The Optix 400 series is the latest offering by 3D Digital Corporation. They provide compact, lightweight, and tripod mountable scanning with USB plug and play ease for Windows computers. The Optix scanners have the option of connecting external digital cameras in order to provide extremely high quality color texture information. This color option is available for Optix 400M and Optix 400H.
|
|
|
|
|
|
FARO — the name synonymous with metrology — presents the high-performance Laser Scanner Photon. Compact, accurate and fast, Photon is the perfect instrument to capture and define your world. It transforms objects and environments into more than just digital snapshots. It breaks down physical attributes and presents the data as millions of X, Y, Z coordinate points compatible with a variety of software platforms. The result: Enough scan-data detail to accurately recreate any object or scenario.
The Photon’s high resolution, precision 3-D scans are ideal for laser scanning metrology applications such as reverse engineering, inspection, modeling, as-built documentation, asset management and more. Designed for quick and easy data capture, the Photon’s fiber tripod, internal hard drive, optional lightweight battery (mounted directly to the scanner), as well as operation via iPod® touch or most wireless devices, makes for quick and simple on-the-go measuring.
For more information visit: www.photonscanner.faro.com
|
|
The FARO® Laser Scanner Photon: Designed for high performance!
The high performance of the FARO Laser Scanner Photon can be used with minimal training to capture 3D point cloud data. Whether documenting a 50,000 square foot building or accurately capturing the scene of a crime, the possible applications are almost unlimited. The FARO Laser Scanner Photon produces three dimensional color images where every pixel has an X, Y, Z coordinate. Measurements can be made immediately after scanning and 3D objects can be generated to create dimensionally accurate CAD models.
|
|
- Complete 3D Scanner Software Solution
- Produce 3D Images quickly and Effectively
- USB Plug and Play
- Exports STL, OBJ, ASCII, and other file formats
- Imports directly into popular CAD and CAM programs
Software Features
- Merges and Aligns multiple Scans together
- 3D Viewer
- Color and Appearance Adjustments
- Scaling and basic Measuring
- Export point cloud and mesh formats
Applications
- Reverse Engineering
- Orthotics
- Design
- Animation
- Footwear
The price of our ESCAN is US$7,095 which comes bundle with reverse engineering software, merging and alignment software STL, ASCII, VRML output. Our EScan system achieves what other high quality laser scanners can at an affordable price, bang-for-your-buck accuracy vs price. The EScan offers an affordable alternative to our existing Optix 400 series product line-up, when the high re-solution is not necessary.
|
|
|
|
|
|
There is only one way to get ahead - advance.
The new FARO Laser ScanArm® V3!
The new FARO Laser ScanArm V3 offers numerous new and improved features and several advantages in conjunction with the new FaroArm® Quantum - making it unique on the market for measuring machines.
The FARO Laser ScanArm enables users to inspect parts in detail by capturing huge point-cloud data. Its open architecture enables the user to employ Geomagic, Polyworks, RapidForm and many other third-party software programmes.
In conjunction with the right software FARO Laser ScanArm V3 tackles all measurement tasks like inspection, point cloud-to-CAD comparison, rapid prototyping, reverse engineering, and 3D modeling. Its main benefits are the exact scanning of reflective and dark objects - the biggest challenge for all scanning systems.
The new FARO Laser ScanArm V3 is compatible with the FaroArm Quantum, the FaroArm Platinum and the FaroArm Fusion.
Advantages of the FARO Laser ScanArm V3:
» NEW – up to 30% more accurate: New Laser Line Probe V3 up to 30% more accurate than V2.
» NEW - improved surface scanning: Higher performance when scanning dark or reflecting surfaces
» NEW - Smaller & lighter: Improved ergonomics through 30% weight reduction compared to V2.
» NEW – Faser warm-up: 50% faster warm-up time compared to V2.
» Integrated 7th axis: Higher flexibility: No external electronics and fixtures
» Ergonomic handle: Easy to handle
» Cable-free scanning: The Laser Line Probe is compatible with Quantum FaroArm's Bluetooth® technology
|
|
Handheld, Portable, Easy To Use, Professional Accuracy
Features
- Applications: Reverse Engineering, Design, Manufacturing, Digital Mockups, Simulations
- Sampling Speed: 18,000 measurements per second
- Laser: Class II (eye safe)
- Number of Cameras: 2
- XY Accuracy: Up to 50 microns (up to 0.002 inches)
- Resolution: 0.1 mm in Z (0.0039 inches in Z) ISO: 20 µm + 0.2 L / 1000
- Depth of Field: 30 cm (12 inches)
- Package Software: ZScan
Specifications
- Weight: 0.98 kg (2.1 lbs)
- Dimensions:160 x 260 x 210 mm (6.2 x 10.2 x 8.2 inches)
- Exported File Formats: .DAE, .FBX, .MA, .OBJ, .PLY, .STL, .TXT, .WRL,
.X3D, .X3DZ, .ZPR
- Regulatory Compliance: CE
- Data Transfer: FireWire
- Power Source: FireWire
- Laptop Compatibility: Intel®, Core™ 2 Duo processor, 2GB RAM, NVIDIA Quadro NVS 320M graphics (256 MB dedicated video memory) required with Windows Vista® Business or Windows® XP Professional
|
|
The ZScanner 600 extends Z Corporation's fast-growing line of uniquely handheld, self-positioning scanners, providing high-resolution 3D data capture to a broad base of users at a value price.
Economical, Handheld, Portable
Features
- Applications: design; manufacturing; cultural heritage
- Sampling Speed: 18,000 measurements per second
- Laser: Class II (eye safe)
- Number of Cameras: 2 XY
- Accuracy: Up to 80 microns (up to 0.003 inches)
- Resolution: 0.1 mm in Z (0.004 inches in Z)
- ISO: 50 µm + 250 µm/m
- Depth of Field: 30 cm (12 inches) Package Software: ZScan™ Lite
Specifications
- Weight: 0.98 kg (2.1 lbs)
- Dimensions:160 x 260 x 210 mm (6.2 x 10.2 x 8.2 inches)
- Exported File Formats: .DAE, .FBX, .MA, .OBJ, .PLY, .STL, .TXT, .WRL, .X3D,
.X3DZ, .ZPR
- Regulatory Compliance: CE
- Data Transfer: FireWire
- Power Source: FireWire
- Laptop Compatibility: Intel®, Core™ 2 Duo processor, 2GB RAM, NVIDIA Quadro NVS 320M graphics (256 MB dedicated
|
|
|
|
|
|
ZScanner® 700 PX
The world’s only handheld laser scanner with large-scale photogrammetry.
The ZScanner 700 PX combines the portability and easy plug-and-play setup of the award-winning ZScanner 700 platform with built-in, consistent photogrammetric accuracy, for up to eight times greater accuracy when scanning very large parts such as automobiles and aircraft. The ZScanner 700 PX is suitable for reverse engineering and inspection applications, as well as 3D archiving, complex shape acquisition, measurements archiving, and damage assessment.
- Photogrammetric accuracy
- Portable
- Versatile
- Self positioning
- Fast and easy to use
- Handheld
- Affordable
Technical Specifications:
- Weight: 1.27 kg (2.80 lbs)
- Equipment Dimensions: 172 x 260 x 216 mm (6.75 x 10.2 x 8.5 inches)
- Measurement: 18 000 measures / s
- Laser Class: II (eye safe)
- Resolution in XYZ Axis: 0.1 mm (0.004 in)
- Accuracy: Up to 0.05 mm (Up to 0.002 in)
- ISO: 20 µm + 25 µm/m
- Output Files: .STL, .OBJ, .ZPR, .X3D, .X3DZ, .TXT, .WRL, .PLY, .MA, .DAE, .FBX
- Included Accessories: ZScan™ software, FireWire™ cable data transfer, calibration plate validation, carry-on case and ergonomic support
|
|
|
|
|
|
ZScanner® 700 CX
The ZScanner 700 CX, the world’s first handheld color 3D laser scanner, extends the proven, handheld ZScanner 700 platform by providing data capture in full color. Capturing 3D data in full color provides you with more realistic and informative 3D visualization and concept models. The ZScanner 700 CX is suitable for a range of applications, from product design, cultural heritage, anthropology, archeology and art applications to digital archiving, animation, packaging, medical orthosis and education applications.
Advantages:
- Color
- Self Positioning
- Accurate
- Easy to Use
- Fast
- Versatile
- Mobile
- Handheld
- Affordable
Technical Specifications:
- Weight: 1.3 kg (2.85 lbs)
- Equipment Dimensions: 172 x 260 x 216 mm (6.75 x 10.2 x 8.5 inches
- Measurement: 18 000 measures / s
- Laser Class: II (eye safe)
- Resolution in Z Axis: 0.1 mm (0.004 in)
- Texture Resolution 50 to 250 DPI (user-configurable)
- Texture Color 24 bits, sRGB-calibrated
- Accuracy: Up to 0.05 mm (Up to 0.002 in) ISO: 20 µm + 0.2 L / 1000
- Output Files: .STL, .OBJ, .ZPR, .X3D, .X3DZ, .TXT, .WRL, .PLY, .MA, .DAE
- Included Accessories: ZScan™ software, FireWire™ cable data transfer, calibration plate validation, carry-on case and ergonomic support
|
|
|
Optix 400S is upgraded based on model 100. It has the same scan range as model 100, but both accuracy and resolution have been dramatically improved. With Optix 400S, the applications of 3DD scanners have been expanded to cell phone and jewelry industries. Optix 400S is now suitable for small objects with great details.
|
|
|
|
|
|
ZScanner® 800
The ZScanner 800 has all the capabilities of the ZScanner 700 plus higher resolution and accuracy suitable for demanding 3D inspection applications as well as reverse engineering, design, manufacturing, digital mockups and simulations.
- 5X the resolution and 2X-3X the accuracy of the ZScanner 700
- Third high-definition camera increases scanning resolution and accuracy within 40µm (microns) and detects changes in surface height down to 50µm
- First-ever automatic, multi-resolution function that self calibrates the resolution level based on the type of surface being scanned.
- Push-button activation for high resolution mode
ZScanner Advantages:
First and only handheld, self-orienting 3D scanner, eliminating the need for fixed-position tripods, bulky mechanical arms or external positioning devices that make make hard-to-reach surfaces nearly impossible to scan Uniquely part-referenced, allowing you to move the target object during scanning and see a real-time image of the surface being scanned Capture data in one continuous scan rather than in numerous shots from fixed positions, eliminating hours of post-processing time Includes ZScan™ software that automatically produces an .stl file for import into a 3D CAD software package or output to a 3D printer.
Technical Specifications:
- Weight: 1.25 kg (2.75 lbs)
- Dimensions: 171 x 260 x 216 mm
(6.75 x 10.2 x 8.5 in.)
- Measurement: 25,000 measures / s
- Laser class: II (eye safe)
- Resolution x,y,z: 50 microns
- Accuracy : Up to 40 microns ISO : 0.020 + 0.100*L/1000
|
|
The FARO Laser Scanner LS: Designed for high performance!
The high performance of the FARO Laser Scanner LS can be used with minimal training to capture 3-D point cloud data. Whether documenting a 50,000 square foot building or accurately capturing the scene of a crime, the possible applications are almost unlimited. The FARO Laser Scanner LS produces three dimensional color images where every pixel has an X, Y, Z coordinate. Measurements can be made immediately after scanning and 3-D objects can be generated to create dimensionally accurate CAD models.
|
|
|
|
|
|
There is only one way to get ahead - advance.
The new FARO Laser ScanArm V3!
The new FARO Laser ScanArm V3 offers numerous new and improved features and several advantages in conjunction with the new Quantum FaroArm - making it unique on the market for measuring machines.
The FARO Laser ScanArm enables users to inspect parts in detail by capturing huge point-cloud data. Its open architecture enables the user to employ Geomagic, Polyworks, RapidForm and many other third-party software programmes.
In conjunction with the right software FARO Laser ScanArm V3 tackles all measurement tasks like inspection, point cloud-to-CAD comparison, rapid prototyping, reverse engineering, and 3D modeling. Its main benefits are the exact scanning of reflective and dark objects - the biggest challenge for all scanning systems.
The new FARO Laser ScanArm V3 is compatible with the Quantum FaroArm, the FaroArm Platinum and the Fusion FaroArm.
Advantages of the FARO Laser ScanArm V3:
» NEW – up to 30% more accurate: New Laser Line Probe V3 up to 30% more accurate than V2.
» NEW - improved surface scanning: Higher performance when scanning dark or reflecting surfaces
» NEW - Smaller & lighter: Improved ergonomics through 30% weight reduction compared to V2.
» NEW – Faser warm-up: 50% faster warm-up time compared to V2.
» Integrated 7th axis: Higher flexibility: No external electronics and fixtures
» Ergonomic handle: Easy to handle
» Cable-free scanning: The Laser Line Probe is compatible with Quantum FaroArm's Bluetooth® technology
|
|
|
|
|
|
Here is the REVscan, the innovative self-positioning handheld scanner that has completely changed the way reverse engineering, design, shape acquisition and 3D inspection are done. Powerful, accurate and truly portable, the REVscan definitively maintains its technological edge.
APPLICATIONS & SOLUTIONS
_ Reverse Engineering & Styling, Design & Analysis:
- Surface reconstruction
- Class A surfacing
- 3D modeling
- Mechanical design
- Clay model digitizing
- Tooling & jigs development
- Maintenance, repair & overhaul (MRO)
- Finite element analysis (FEA)
_ Inspection:
Scanning and measuring of objects of any size, in various environments. Non contact, first-article and supplier quality inspection, colorimetric
reports and overall conformity assessment of parts.
_ Other applications include 3D scanning of existing objects, 3D archiving, complex shape acquisition, measurements archiving, damage assessment,
digital models and mock-ups, packaging design and rapid prototyping.
BENEFITS
_ Self-positioning
_ Truly portable
_ High accuracy
_ True automatic multiresolution
_ Affordable
_ Handheld device
_ Versatile and user-friendly
TECHNICAL SPECIFICATIONS
Weight: 980 grams (2.1 lb)
Dimensions: 160 x 260 x 210 mm (6.25 x 10.2 x 8.2 in)
Measurements: 18,000 measures/s
Laser class: II (eye-safe)
Resolution in Z axis: 0,1 mm (0.004 in)
Accuracy: Up to 50 μm (0.002 in)
ISO: 20 μm + 0.2 L / 1000
Depth of field: 30 cm (12 in)
|
|
|
|
|
|
APPLICATIONS & SOLUTIONS
_ Reverse Engineering:
- Surface reconstruction
- 3D modeling
- Tooling & jigs development
- Maintenance, repair and overhaul (MRO)
- Finite Element Analysis (FEA)
_ Inspection:
- Non contact inspection
- First article inspection
- Supplier quality inspection
- Part-to-CAD inspection
- Conformity assessment of 3D models against the original parts / production tooling
- Conformity assessment of manufactured parts against the originals.
_Other applications include 3D archiving, complex shape acquisition, measurements archiving, damage assessment, digital models & mock-ups and rapid prototyping.
BENEFITS
_ High accuracy on large parts
_ Limitless working volume
_ Merge-free, one-step process
_ Truly portable
_ MAX imum freedom of movement
_ Self-positioning
_ True automatic multiresolution
_ Affordable
_ Handheld device
_ Versatile and user-friendly
Technical Specifications
Weight: 1.27 kg (2.80 lbs)
Dimensions: 172 x 260 x 216 mm (6.75 x 10.2 x 8.5 in)
Measurement: 18,000 measures/s
Laser Class: II (eye-safe)
Resolution in x, y, z axis: 0.1 mm (0.004 in)
Accuracy: Up to 50 μm (0.002 in)
ISO: 20 μm + 25 μm/m
Depth of field (scan): 30 cm (12 in)
Output formats: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
|
|
|
|
|
|
APPLICATIONS & SOLUTIONS
_ Entertainment/Multimedia: Face/body still scans for realistic human representation, special effects or face replacement (stunts). Digitizing of real life inanimate objects or environments for optimum realism, production
of full size decors through the digitizing of small scale maquettes.
_ Museology/Heritage Preservation:
Representation of art pieces for multimedia presentations, virtual museums (Web, on-site), digital archiving, production of replicas for commercial
and marketing purposes (scaled-down version of statues), damage assessment, restoration of cultural heritage, virtual restoration, 3D reproduction of archaeological/historical sites, scanning of fossils for analysis.
_ E-Marketing/Web Development:
Scanning of objects for interactive 3D content (e.g. product animation or visualization in 3D for online sales), production of 3D models for Web design.
FEATURES & BENEFITS
_ High resolution and accuracy
_ Truly portable
_ Automatic 100% accurate texture mapping
_ Adjustable and uniform texture resolution
_ True color acquisition
_ Optimal file size
_ User-friendly and easy to learn
_ Self-positioning
_ Dual scanning mode
TECHNICAL SPECIFICATIONS
Weight: 1.3 kg (2.85 lb)
Dimensions: 172 x 260 x 216 mm
(6.75 x 10.2 x 8.5 in)
Measurements: 18,000 measures/s
Laser class: II (eye-safe)
Geometry Resolution: 0.1 mm (0.004 in)
Accuracy: Up to 50 μm (0.002 in)
ISO: 20 μm + 0.2 L / 1000
Texture Resolution: 50 to 250 DPI (userconfigurable)
Texture Colors: 24 bits, sRGB-calibrated
Depth of field: 30 cm (12 in)
Output file formats: .ma, .dae, .obj, .x3dz, .x3d, .zpr, .wrl, .fbx, .ply, .stl, .txt
|
|
|
|
|
|
APPLICATIONS & SOLUTIONS
_ Inspection:
- Non contact inspection
- First article inspection
- Supplier quality inspection
- Part-to-CAD inspection
- Conformity assessment of 3D models against the original parts/production tooling
- Conformity assessment of manufactured parts against originals.
_Reverse Engineering & Styling, Design & Analysis:
Facilitates surface reconstruction, class A surfacing, 3D modeling, clay model digitizing, mechanical design, tooling & jigs, maintenance,
repair & overhaul (MRO) and finite element analysis (FEA).
_ Other applications:
Include 3D scanning of existing objects, 3D archiving, complex shape acquisition, measurements archiving, damage assessment, medical
application, digital models and mock-ups, packaging design and rapid prototyping.
BENEFITS
_ High resolution
_ Very high accuracy
_ True automatic multiresolution
_ Dual scanning mode
_ Self-positioning
_ First truly portable device of its kind
_ Affordable
_ Handheld device
_ Versatile and user-friendly
TECHNICAL SPECIFICATIONS
Weight: 1.25 kg (2.75 lb)
Dimensions: 172 x 260 x 216 mm (6.75 x 10.2 x 8.5 in)
Measurement: 25,000 measures/s
Laser Class: II (eye-safe)
Resolution in x, y, z axis: 0,05 mm (0.002 in)
Accuracy: Up to 40 μm (0.0016 in)
ISO: 20 μm + 0,1 L /1000
Depth of field: 30 cm (12 in)
|
|

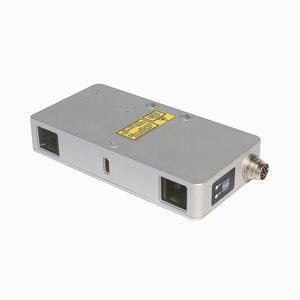

2D triangulation sensors (Laser Scanners)
RF620 Series
Application domain
The laser scanners are intended for non-contact measuring and checking of surface profile, dimensions, sorting and sensing of technological objects. The series includes 13 standard scanners (100 profiles/s for the full range) and 9 models of High Speed scanners (250 and 500 profiles/s for the full range)
Operating principle
Operation of the sensors is based on the principle of optical triangulation
Radiation of a semiconductor laser is formed by a lens in a line and projected to an object . Radiation scattered from the object is collected by the lens and directed to a two-dimensional CMOS-array. The image of object outline thus formed is analyzed by a signal processor, which calculates the distance to the object (Z-coordinate) for each point of the set along the laser line on the object (X-coordinate).
|
|
The Z500 laser measurement sensor solves the problem of how to measure a workpiece in-line for both width and height/depth at one time. Compared to single axis laser and vision systems, Z500 provides a unique advantage by measuring in X axis and Z axis simultaneously, improving accuracy and speed of the inspection.
Performs simultaneous width and depth/height measurements in one cycle
Eight measurement modes available, including a combination of step, width and edge position
No work piece or sensor movement required: improves measurement precision and reduces measurement cycle time
Z500 performs all data processing and calculations, eliminates need for other controllers
Two-dimensional SW-CCD and multiple incident level control allow shape measurement of curved work pieces and a wide variety of other surfaces
|
|
Since more then 10 years, Konica Minolta Sensing offers a range of non-contact 3D Laser Scanners, which enable non-contact 3D measurements of a wide range of products.
Konica Minolta 3D Laser Scanners are transportable, fast and easy to use including many innovative features for rapid prototyping, reverse engineering and quality inspection in a broad field of industrial and non-idustrial applications.
|
|
We provide scanning technology to the largest sawmill equipment manufactures in the wood manufacturing industry. Today, we have 10,000 sensors installed in the field. DynaVision high speed, high accuracy sensors support more effective, faster optimization software and machinery. Our products allow OEM’s and Integrators to design an optimizer that increases yield and profitability for their customers – in other words a value-added optimizer.
Our Wood applications division works closely with System Integrators & Original Equipment Machine Suppliers to deliver the most effective solutions for their particular sensor vision needs.
|
|
Since 1979, over four thousand LMI/Selcom ™ laser and vision sensors have provided the transportation industry with a reliable, safe and efficient way to collect critical information. In the case of road inspection, a number of laser sensors are typically mounted on a survey vehicle and driven over the road surface at highway speeds, so as not to disrupt traffic. Automated measurements of road conditions are a cost effective, reliable, accurate and safe method of collecting road conditions data as opposed to manual methods.
Our Transportation applications division works closely with System Integrators & Original Equipment Machine Suppliers to deliver the most effective solutions for their particular sensor vision needs.
|
|
|
|
|
|
Leica ScanStation 2
A new Level of Versatility and Speed in Laser Scanners
With a 10-times boost in maximum instantaneous scan speed and the full freedom and accuracy of a total station, Leica ScanStation 2 lifts laser scanning to the next level. This speed and productivity boost builds on the already industry-leading versatility of the ScanStation™ class of laser scanner to make High-Definition Surveying™ (HDS™) profitable for even more as-built and topographic survey projects.
For many as-built and topographic surveys, laser scanners have already proven to significantly reduce field labor compared to traditional methods. ScanStation 2's jump-step increase in pulsed scan speed further slashes these costs - field labor is now as little as one-fifth of that of traditional methods for many projects.
Infrastructure
ScanStation 2 extends the benefits of safe, cost-effective road surveys from urban and multi-lane roads & intersections to 2-lane roads & intersections.
Sites
Using ScanStation 2 for topographic surveys of small sites and sites up to hundreds of acres cuts initial survey costs and reduces site re-visits.
Buildings
Small buildings and tall buildings can be cost-effectively surveyed, both inside and out. Digital photos can be overlaid for added realism.
|
|
3D Laser Scanners
Application domain
3D laser scanners are designed for non-contact scanning of products for obtaining 3D computer-simulated models.
Operating principle
The scanners have been developed for primary use with Beaver-type woodworker milling machines. The supply package includes an Series RF603 laser sensor, synchronization module and software package. In the scanning mode, the machine CNC system sequentially moves the laser scanner over the prototype of the product thus forming a digitized model of the prototype. The model obtained is memorized as a cloud of dots as well as in a general STL format suitable for subsequent use in CNC machining
|
|

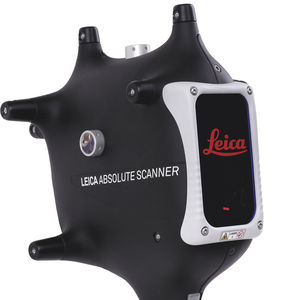

Leica T-Scan TS50 is a high-speed hand scanner for large-volume portable applications and offers a maximal measurement volume of 30m (98ft). This second-generation Leica T-Scan is 20 percent lighter and 30 percent smaller than the original Leica T-Scan introduced in 2005.
The Leica T-Scan system consists of a handheld scanner whose position is tracked by a Leica Geosystems Laser Tracker. This solution requires neither photogrammetric targets nor powdering of object surfaces and is impervious to changing environmental light.
The laser line of the scanner itself consists of individual dots, their intensity can be adjusted on the fly so surfaces of different reflective properties, from shiny to black, can be scanned in one step with no action required from the operator. Leica T-Scan scans large objects more accurately and 50 percent faster than comparable products.
The total system accuracy of the Leica T-Scan solution is up to 30 µm (0.0012").
|
|
|
FastSCAN is lightweight and portable, with the ability to scan objects in their natural environment, onsite. This is particularly useful for physiological scanning applications since the device allows free form handheld scanning with no mechanical constraints. The Cobra instantly acquires three dimensional surfaces by gathering measurements made by smoothly sweeping a handheld laser scanning wand over an object - in a manner similar to spray painting. The object's image instantly appears on your computer screen and the finished scan is processed to combine any overlapping sweeps, significantly reducing the time to develop surface models of virtually any object with little or no metal content. The three-dimensional data can then be saved in industry-standard formats for loading into other programs.
|
|
Features :
- Instant tracking technology
- Industry-leading Perceptron V5 laser scanner
- Large measurement volume
- Integrated touch probing
- Dynamic referencing
Key Benefits:
- Exceptional ease of use for higher measurement throughput
- Perform walkabout scanning without beam-breaks, mechanical linkages, or photogrammetry targets
- Use your preferred data collection program - all major point-cloud software applications are supported
- Conduct freeform scanning of difficult geometries from multiple angles of approach
- Reduce operator fatigue with an ergonomic and lightweight scanner design
- Use the system's large measurement volume to scan large parts in one setup
- Measure difficult surfaces without powder or spray, including shiny black
- Measure accurately in unstable environments with Dynamic Referencing (near stamping presses, forklifts, vibrating machinery, etc)
|
|
ROMER Presents Reverse-Engineering Solution with Unbeatable Price-to-Performance Ratio
ROMER introduces a complete, attractive new solution for reverse engineering applications with an unbeatable price-to-performance ratio. The system consists of OMEGA 2025, an articulated arm ideally suited for measurement applications such as metalworking, woodworking, casting, plastics and similar. The OMEGA arm is coupled to R-Scan, a fast, easy-to-use and affordable laser scanner probe dedicated to reverse engineering. R-Scan features infinite rotation for easy scanning of difficult-to-reach areas, high scanning speed and automatic color recognition.
Combined with 3DReshaper Application, a complete 3D point-cloud processing application ; this complete easy-to-use solution does permit rapid handling of point clouds and generating high-quality 3D meshes.
|
|
|
|
|
|
O2DS Scanner measures where others give up - think of hot rolled steel.
The O2DS scanner is an optoelectronic unit for non-contact precision measurement in two dimensions, developed for 2D- / profile-measurement in all kinds of industrial applications.
The O2DS is a laser scanner of the Flying Spot type. The measurement is performed by oscillating the triangulation plane over an angel up to 50°. A fine focused/collimated laser beam is diffusely reflected from the surface of almost any kind of object, and a CCD-camera records the image through an objective.
The measuring frequency is 2 kHz. Different scanning angels can be combined with four different measuring ranges. The smallest range covers 80 to 180 mm and the largest 380 to 1080 mm. The smaller the measuring range is, the higher the resolution will be.
As well as the ODS sensors, the 02DS scanner can be delivered as HT (high temperature) models for measuring on objects with surface temperature up to about 1200°C. Used under such conditions, precautions must be taken to protect the scanner from the heat.
Scanners can furthermore be customized to other than standard scan angels and measuring ranges.
For more detailed information please study the PDF/datasheet on our website www.sensor.dk
|
|
Cobra 2D is a portable laser scanning system that provides high resolution linear profiles. And since it uses low power laser light, it is ideal for fragile or pliable parts that have critical surface contours. It's quick and easy to measure height, length, slope, and radius.
Its Scan-X®software makes scanning easy. View and analyze scans for the dimensional information you need. The heart of the system is field proven DRS™ (Digital Range Sensor) technology, combined with accurate motor control, and data analysis software. Since Cobra 2D scans by moving the DRS sensor over the surface, no special fixturing is required. Cobra is portable. When used with a laptop computer, you can take it where you need it.
|
|
|
|
