- Compression Latches
- Snap Locks
- Slam Latches
- Over Center Toggle Latches
- Clamp Bridges
- Locking bar systems
- Dead bolt locks
- in zinc die-cast, polyamide or stainless steel
|
|
18400 / 18500 Series
The "Whaletail" series T-handle is designed to fit most existing t-handle cutouts due to the innovative blind mount bracket designed for panel ranges of .03” to .125”. Product features include an ergonomic handle for large grip, flange gasket for water-resistant construction, built-in key cylinder cover, double-bitted key cylinders are used with over-molded keys, pad-lockable feature, compression roller cam for ease of operation and tight sealing. Available in single or multi-point latches. Die cast handles available in: all black powder coat, all chrome, or black and chrome. Plastic handles available with black receptacle with black powder coat handle or chrome handle. Models available to work with Eberhard Power-UpTM locking system.
Other standard stainless steel T-handles are also available from Eberhard.
|
|
- for mechanical and electronic latches
- wide variety of handles in IP65 with profile cylinder, with padlock
|
|
- over 30 standard inserts
- ask for customized inserts
- wide variety of screw-on or weld-on Quarter-Turns
- tool-less assembly with SNAP-LINE
- in zinc die-cast, polyamide or stainless steel
|
|
230 / 231 series

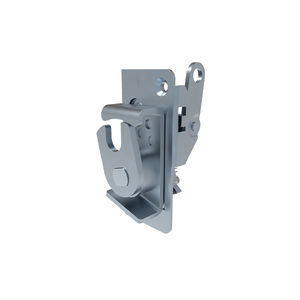

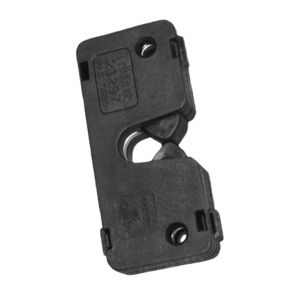

This mini rotary has an adaptor riveted to the lever arm to be used with .25" dia. rods. The “A" style is mounted above the arm. “B" style is mounted below the arm. This rotary series features an integral offset mounting bracket with slotted holes designed for 3/8" dia. striker such as Eberhard No. 240-52U. Single stage is 231 series, dual stage is 230 series.
Single stage is 241 series, dual stage is 240 series, both without the integral mounting bracket.
Eberhard also offers hundreds of other variations of rotary latches in different sizes, finishes, with differnt lever arm designs, etc. Please contact Eberhard for more information on rotary latches.
|
|

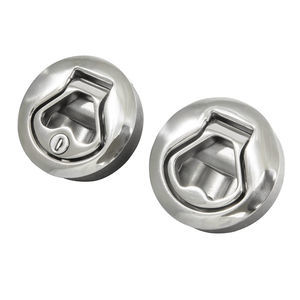

No. 4905
Part # 4905 is non-locking, Part # 4901 is locking. Available in zinc-plated black powder coated,or bright polished stainless steel. Eberhard offers many differnet size paddle latches with mounting holes or mounting studs, with an inside or without an inside release, with a gasket or spacers, different trigger options available for more heavy duty applications, single point, multi-point, or a paddle rotary version. Please contact Eberhard for more information on your paddle latch requiremtents.
|
|
- Compression Latches
- Snap Locks
- Slam Latches
- Over Center Toggle Latches
- Clamp Bridges
- Locking bar systems
- Dead bolt locks
- in zinc die-cast, polyamide or stainless steel
|
|
FIXED GRIP CAM LATCHES
- Numerous specific sizes provide controlled grip tolerances across a wide range of applications, with or without compression on the cam
- Offer lower installed costs with easy single-hole mounting
- Hand-, tool-, and key actuated options
- Provide options for NEMA 4 and IP-66 applications
|
|
VISE ACTION LATCHES
- Continuous half-turn action rotates pawl behind frame and compresses it to pull panel up tight
- Numerous activation options – including hand, key, and tool activated compression latches – in locking and non-locking styles
- Models available for use in NEMA 4 and IP-65 applications
|
|
VISIBLE PUSH-TO-CLOSE LATCHES
- Visible styles typically provide greater operating strength than concealed styles
- Sliding pawl actions provide desirable convenient access and slam-closed operation
- Wide variety of sizes, designs, and convenient actuation styles
- Keylocking and tool-secured styles available
|
|
Slam Latch
Magnetic Catch

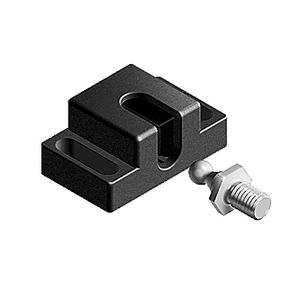

Ball Catch
Spacer for Ball Catch
Angle Bracket for Ball Catch

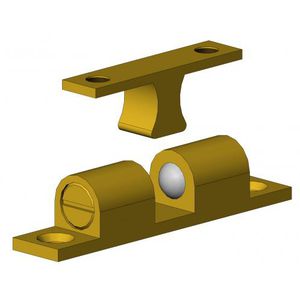

Double Ball Catch PA
Double Ball Catch MS
Door Latch
|
|
69-571 Medium size latch. The face-plate is finger operated to open and close this flush, strong latch. A lock can be fitted into the finger-plate. The lock is not subject to load when closed. An integral screw allows adjustment to be made when fitting. A surround plate is available (00-571 SP SS).
65-614 Large heavy duty latch for covers, panels, single or double hinged bonnets. Engages on bar up to 10mm diameter. A screw and locking nut allows 6mm adjustment for exact fitting. Provision is made for a padlock, or a version is available with keylock facility. Material is mild steel with zinc plated finish as standard. Large quantities may be finished to customers requirements.
|
|
Japanese manufacturer, Sugatsune, has a wide range of latches and catches for industrial or furniture applications.
Range includes latches and catches of rust-resistant 316 stainless steel, ABS plastic, magnetic touch latches, non-magnetic touch latches, knuckle catches, rotary catches, and so on.
For further information about this and other similar products, please visit our website or view the PDF Catalog files here.
|
|
|
If your product application requires the finest in "job engineered" latches, then TriMark has the solution for you. From deadbolt to pin type, each TriMark latch is engineered to meet your high standards and expectations. And, only the finest materials are used to manufacture TriMark latches which means your reputation for quality is assured.
|
|
|
A strong ceramic or rubber magnet is fixed into a zinc-plated steel channel to form a latch magnet assembly with holding power on one large surface. It features a center hole for mounting. Used mainly as a door latch, though it's also great for holding key rings, nameplates, nozzles, fixtures or other ferrous metal objects.
|
|
|
If your product application requires the finest in "job engineered" latches, then TriMark has the solution for you. From deadbolt to pin type, each TriMark latch is engineered to meet your high standards and expectations. And, only the finest materials are used to manufacture TriMark latches which means your reputation for quality is assured.
|
|
The unique Protex CATCHBOLT holds firmly in three directions. The integral bolt forces a panel or door to close in. The initial action of the lever will first draw two parts together. A safety catch is offered.
|
|

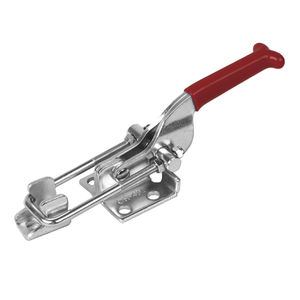

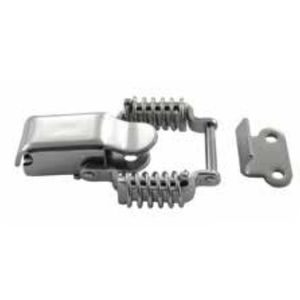

OVER CENTER DRAW LATCHES
- Attractive, low-profile surface-mounted draw latch design
- Robust, riveted tamper-resistant construction
- Over-center latching ensures secure closure despite vibration
- Three attractive finishes, plus stainless steel material option
- Optional keylocking security
PULL DRAW LATCHES

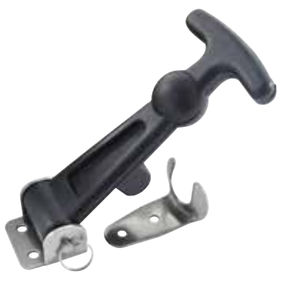

- Flexible latch handles absorb/reduce vibration, compensate for variations in mounting distances and alignment
- Wide range of installation variations, multiple lengths, handle shapes
- Mounting tension keeps latches securely fastened
|
|
Camloc draw latches provide an adjustable, high-performance method ideal for securing machine and equipment parts that must be opened or removed frequently.
Benefits:
Locking and unlocking the fastener is simple – simply clip / unclip the handle.
Excellent tensile load carrying capacity – reducing the number of fasteners required.
Tolerance adjustments through draw-hook mechanism – allows for variations in latch and strike proximity.
Also available with secondary locking mechanism – increasing the vibration resistance.
Without Secondary Lock
With Secondary Lock
With Hasp
For riveting or screwing
For welding
Adjustable drawhook
|
|
Camloc draw latches provide an adjustable, high-performance method ideal for securing machine and equipment parts that must be opened or removed frequently.
Benefits:
Locking and unlocking the fastener is simple – simply clip / unclip the handle.
Excellent tensile load carrying capacity – reducing the number of fasteners required.
Tolerance adjustments through draw-hook mechanism – allows for variations in latch and strike proximity.
Also available with secondary locking mechanism – increasing the vibration resistance.
Without Secondary Lock
With Secondary Lock
With Hasp
For riveting or screwing
For welding
Adjustable drawhook
|
|
Camloc draw latches provide an adjustable, high-performance method ideal for securing machine and equipment parts that must be opened or removed frequently.
Benefits:
Locking and unlocking the fastener is simple – simply clip / unclip the handle.
Excellent tensile load carrying capacity – reducing the number of fasteners required.
Tolerance adjustments through draw-hook mechanism – allows for variations in latch and strike proximity.
Also available with secondary locking mechanism – increasing the vibration resistance.
Without Secondary Lock
With Secondary Lock
With Hasp
For riveting or screwing
For welding
Adjustable drawhook
|
|
Camloc draw latches provide an adjustable, high-performance method ideal for securing machine and equipment parts that must be opened or removed frequently.
Benefits:
-Locking and unlocking the fastener is simple - simply clip / unclip the handle.
-Excellent tensile load carrying capacity - reducing the number of fasteners required.
-Tolerance adjustments through draw-hook mechanism - allows for variations in latch and strike proximity.
-Also available with secondary locking mechanism - increasing the vibration resistance.
Without Secondary Lock
With Secondary Lock
For riveting or screwing
|
|
Camloc draw latches provide an adjustable, high-performance method ideal for securing machine and equipment parts that must be opened or removed frequently.
Benefits:
-Locking and unlocking the fastener is simple - simply clip / unclip the handle.
-Excellent tensile load carrying capacity - reducing the number of fasteners required.
-Tolerance adjustments through draw-hook mechanism - allows for variations in latch and strike proximity.
-Also available with secondary locking mechanism - increasing the vibration resistance.
Without Secondary Lock
With Secondary Lock
For riveting or screwing
|
|
High strength opening
Without padlock-facility With padlock-facility
6004-U27-KA Bare steel drilled
6004-U27-JA 6004-U34-JA Zinc yellow plated steel drilled
Usual strikes
6010-16-… (see page 9A-540)
6010-17-… (see page 9A-540)
Closing from 90°
Without padlock-facility
6004-U020-KA Bare steel drilled
6004-U020-JA Zinc yellow plated steel drilled
6004-U020-PC Stainless steel drilled
Usual strikes
6010-04-… (see page 9A-500)
6010-05-… (see page 9A-500)
|
|
