Cimolai Technology S.p.A. can design, fabricate, assemble on-site, test and supply (on a turn-key basis) the following sets of equipment:
- LAUNCHING GANTRIES for building steel and/or concrete bridges (using either beams or segments), say: Overhead Launching Gantries, Underslung Launching Gantries
- DERRICK CRANES designed for erecting steel or concrete bridges
- CANTILEVER LIFTING DEVICES, i.e. devices for lifting and positioning steel or concrete segments
- PORTAL CRANES on wheels or runways
- SHAFT CRANES, usually set to work in sites for the construction of dams or tunnels
- BACK-UP SYSTEM FOR TBM, i.e.: Systems for automatic feeding of the concrete elements forming the tunnel roofs to the positioning equipment; Erectors for automatic placing of the segments; Trolleys to transport the diggings or for personnel transportation inside tunnels (with catalyzed mufflers and particulate filters for operations in tunnels)
- AUTOMATIC WAGGON OVERTURNING SYSTEMS for the automatic overturning of waggons, used mainly at the exit of tunnels being build to discharge the contents of the waggons onto trucks or dumpers used to transport the diggings deriving from tunnel excavation
|
|

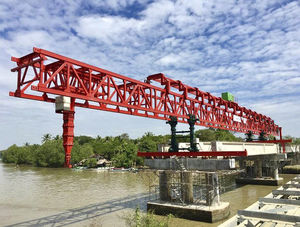

The captioned equipment is meant for the positioning of Pre-Compressed (P.C.) beams required for the construction of viaducts and bridges.
The structure consists of two lattice beams with triangle section, interconnected at their ends via suitable horizontal bracings.
Such beams work as rolling ways for the winch trolleys which lift and transport the P.C. beams.
The longitudinal motion of the launching girder (or self-launching) is achieved via capstan mounted on one of the two winch trolleys.
By anchoring alternatively the beams or the winches it is possible to motion the P.C. beams or the launching girder respectively.
|
|
EDEN TECHNOLOGY provides design solutions for launching gantries with both top and bottom launching structures designed for positioning and erecting precast concrete segments. Our latest projects have been improved and optimised thanks to the consolidated experience acquired from working on a vast number of machines designed and manufactured for construction sites worldwide.
The current project we are working on consists of an easy to assembly and disassemble lightweight structure, highly practical purposely designed for hoisting segments from any position with an increased lifting travel at a high lifting speed. This particular launching gantry has been designed so as to be adapted to work on other construction projects in this way eliminating the limitations of a machine designed just for one specific job. We always aim at providing solutions with a maximum return on investment.
|
|
|
|
