The line is in galvanized and stainless steel material and matches both characteristics of good price and quality; it could be used as a valid alternative to the polyamide base line. The recent version with vulcanized rubber allows the use of this line in the food industry. Applications: food, ceramic industry and handling machineries in general
|
|
- Stainless steel base in 1.4301 (1.4401on specific request). On request anti-slip rubber 70 shore.
Stainless steel screw in 1.4301 (1.4401on specific request). The leveling element could be supplied, on request, with steel nut.
- Load values above mentioned have to be considered referring to static conditions calculated at the half of the screw length. In
conditions of vibrations or in presence of dynamic loads these values should be reduced.
|
|
|
Leveling components can be used with our leveling casters or used independently. They are available in a variety of sizes and materials and feature a specially contoured ball socket that substantially reduces friction for ease of adjustment. Hex sockets are available for overhead adjustment and stud lengths can be customized.
|
|

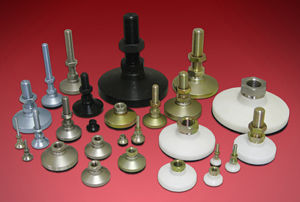

LEVELING FEET
STUD LEVELING FEET
Rubber Pad Covers
Jig Feet Leveling
Jig Feet Leveling Assemblies
Threaded Tube Ends Round
Threaded Tube Ends Square
|
|
Glass-fibre reinforced polyamide based (PA) technopolymer. Resistant to solvents, oils, greases and other chemical agents.
No-slip disk
NBR synthetic rubber, hardness 90 Shore A.
- LV.A: without no-slip disk.
- LV.A-AS: with no-slip disk, supplied assembled, reinforced with a zinc-plated steel plate and fixed by means of two screws.
|
|
Steel chrome plated machine foot
NBR rubber vulcanised
Adjustment of ground roughness by ball bearing spindle
Large hexagonal spanner flat assuring effortless heigh adjustment even under weight
Screwed connection between plate and spindle
/ material
Foot plate steel chrome-plated
Rubber NBR 70° shore A vulcanised, further dampings on request
Thread spindle steel zinc-plated
|
|
Sunnex LL series - Leveling Mounts
Sunnex LL leveling mount are ideal for loads of up to 2000 kg. The LL-Series has a solid base design fitted with an anti-slip pad.
The precision ball and socket design of the swivel connection provides a smooth low friction interface from the equipment to the floor.
Advantages:
Articulated bolt allows inclination up to 10°
With anti-slip rubber protection for stable installation
Made of galvanized steel
Withstands loads up to 2000 kg
Applications:
Assembly Stations
Compressors
Office & Household Machinery
Outside Maintenance Equipment
Small Machines
Woodworking Machines
|
|
|
An exciting new addition to the WDS range are levelling feet which are available with options of a 303 or 316 grade stem and base or an option of a plastic antimicrobial base ideal for those wash down sensitive areas as it has good chemical resistance
|
|
|
Leveling components in polyamide reinforced by fiber glass that with the internal structure of the foot grants the distribution of static loads in all security. Applications: automation, conveyor systems, packaging, work-desk, aluminum structures a.s.o.
|
|
Jacmount Adjustable Levelers
These easy to use jacmounts are recommended when holes or threads are provided on machine feet. When practical, Airloc GLV/GLR's with the proper pads are a good economical alternative.
Pad Type
716 Machine tools, plastics, textile machines, graphics machines
915 High load, best level stability
706 Good level stability and non-skid properties
B1 Very good active and passive isolation of mechanical vibrations, for example, for measuring instruments and machines affected by outside vibrations
Made in cast iron or Reinforced Thermoplastic Design.
Bolt-on, can be leveled from top or bottom
Safe and stable due to patented studs
Machines run smoothly with Airloc/Biloc pads for any application
Stud is attached in the PR leveler, but not rigidly, accommodating up to 4 deg. of floor inclination
Stud (type O-S, O-T and U) to be selected separately
|
|
EA LEVELING GLIDE (PARTS SEPARABLE)
BODY and BASE: Dark Grey ABS
BOLT: Chromate
Please visit our website or PDF catalogues for further information about this and similar products.
|
|
UNISORB® LEVEL-RITE® Mounts :
UNISORB's new patented LEVEL-RITE® Mounts have been engineered and tested to accommodate the needs of a broad spectrum of machinery. From small chipmaking mills to larger machining centers, LEVEL-RITE® Mounts provide machine installation solutions for leveling, aligning and vibration isolation. The all new design provides industry with a higher standard for adjustment range, durability, and function.
Unparalleled Adjustment Range :
LEVEL-RITE® Mounts provide the greatest adjustment range in the industry. Every model size in the UNISORB® LEVEL-RITE® Mount line provides an overall adjustment range of 1 3/8 inches, nearly triple the industry average. The mounts are available in seven standard models to provide an extensive range of size and configuration.
|
|
Adjustable feet
Thanks to BÜLTE’s new adjustable feet, you can test the qualities of an entirely plastic product.
Designed for supporting and levelling machinery and various devices, the adjusting feet consist of a single, integral part : a screw and an injection moulded nylon foot.
We provide three models:
“round”: Ø 25 mm foot
“round”: Ø 30 mm foot
“octagonal”: 30 mm wrench foot
Height adjustment is by means of an hexagonal section moulded as part of the foot (13 mm A/F).
We supply dimensions M5, M6, M8, M10 and M12, and thread lengths of 10 to 80 mm.
The advantages of the adjustable foot lie in its nylon material, overall weight and resistance to chemicals.
In addition to black which is the standard colour, these parts are available in a wide range of colours.
The standard materials used are Nylon PA6 and polyamides glass filled. Other materials are available on request.
This product thus provides an inexpensive alternative to conventional plastic/metal feet.
|
|
Easy and fast mounting by new ISOLOC clicking fastener. By pressing the levelling screw into the disc a fix connection is achieved. Floor slopes up to 5° can be compensated.
Further advantages: By special enlarged supporting nuts a solid support surface and thus a better support of the machine bed is achieved. Machines can be transposed quickly as the levelling element remains connected to the screw.
|
|
|

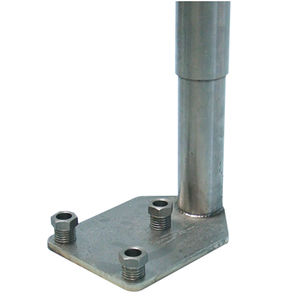

For equipment that is installed in active seismic areas, our seismic restraints may be used to secure equipment to the ground. These attractive, high strength stainless brackets attach to our leveling components to form a rigid connection that minimizes the accumulation of seismic accelerations.
|
|

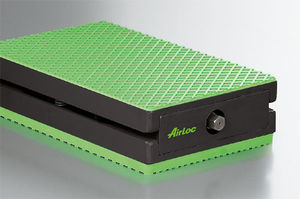

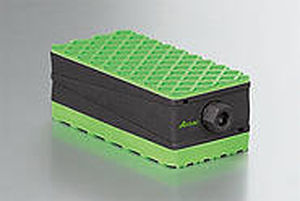

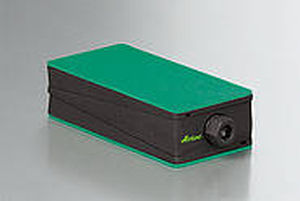

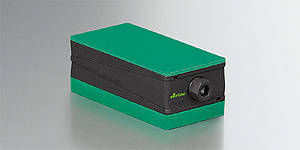

WEDGE SERIES
They are suitable for machinery that needs a perfect levelling. Available with rubber or with polyurethane. They include a screw for levelling and another one for fixing.
Transverse stability.
Longitudinal stability.
|
|
