The wide range of Bolzoni lift tables, with their usual safety and reliability features provide an effective solution to most lifting problems. Vertical double scissor lifts allow to achieve greater stroke without increasing the platform size are mainly used to transfer goods from one level to another.
Capacity from 500 to 3000 kg and wide range of accessories availabl to meet specificic requirmentes and customised solutions and to achieve eaven higer safety functions where conditions require.
Our tables comply with the European Safety of Machinery standards EN 292, Machinery Directive 98/37/EC and Safety requirements for lift tables EN 1570.
|
|
* DOUBLE SCISSOR : Series ELTDS
- Capacities: 500 to 6,000 lb
- Platform Sizes: 12" x 24" to 72" x 72"
- Vertical Travel: 30" to 72"
|
|
The Roto-Max was designed from the ground up with the operator in mind. The Roto-Max electric hydraulic work positioner places the load at the operator to determine where he or she would like the work load positioned.
t doesn't matter how short or tall the individual is since the operator determines the most comfortable working height. The Roto-Max allows complete flexibility to do the ergonomically safest job with maximum efficiency.
Whether the load is one pound or 3,500 pounds, the positioner height does not change until the individual wants it to change.
With a lowered height of only 6.5", an operator has easy access to the top layer of product. The raised height of 32.5" (plus pallet height) is ideally suited for most applications.
The 43" diameter top rotates easily, thus giving the operator access to product without having to stretch or walk around.
The high performance electric 1 & 1/2 hp motor runs on a standard 20 amp 115 volt single phase circuit.
Roto-Max has a capacity of 3,000 lbs. with a 14 second lift speed (RTMX-30). The high speed model (RTMX25HS) has an 8 second speed and 2,500 lbs. capacity.
A magnetic backed control box is standard and a foot control siwtch is available as an optional item.
|
|
The best value in lift tables with unparalleled features! Reduces awkward bending and lifting since the work load is always at the correct level. The possibility of back injuries is also reduced and productivity is increased.

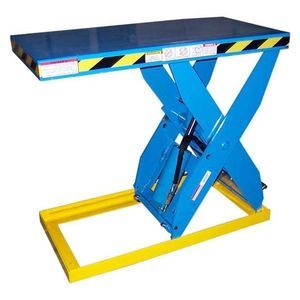

The MAX-Lift is a superior scissor lift table currently offered in the 2000-6000 lb capacity range.
The MAX-Lift Scissor Lift table is a quality table with features such as:
* Integral, retractable maintenance safety bars
* Trapped top & bottom scissor arms
* Grease fittings on pivot points & cam rollers
* Magnetic backed control box allows operator to place controls within easy reach.
* Captured 'Lift-Lok' secures top and base leg rollers and allows for easy maintenance access in lowered position
* Easy access for service. Zerk fittings on camroller and pivot points extend the life of the table by allowing for lubrications in place of throw away, "sealed for life", bearings
The MAX-Lift Scissor Lift Table has a vertical travel range from 24" to 60" and can satisfy most applications. The MAX-Lift Specifications coupled with its unique Features raise the MAX-Lift Scissor Lift Table above any other.
|
|
Velmex announces a series of manually operated UniSlide Elevating Tables. Used in science and industry, applications include gauging, positioning, feeding, inspection, assembly, packaging, dispensing, and testing.
The positioners are constructed of 6062-T6 aluminum alloy and low-friction polymer bearings. The tables in the background have a stable base plate and a right angle platform shelf secured to the slider. The platform can be inverted to reduce the minimum platform height to 0.75"-1". Lead screw advance is 0.100"/turn. Travel distances range from 1" to 12". Load capacities range from 30 to 100 lbs. Options include black anodized finish, lock screws and position readout.
The table in the foreground uses a large thumb wheel to turn a central lead screw between parallel guides to raise and lower the top platform. With this design, the space above and around the table top is unobstructed. Retracted height is 2.25". Travel range is 1"-3". Load capacity is 25 lbs.
|
|
The wide range of Bolzoni lift tables, with their usual safety and reliability features provide an effective solution to most lifting problems, to augment the safety by increasing the productivity.
Loading lift tables are used to load and unload vehicles by pedestrian or fork lift trucks without a loading dock for quick handling and designed to operate with maximum safety for off-centred crossing loads.
Capacity from 1.000 to 10.000 kg and wide range of options available such as wheel stops, goal post barriers, safety handrails manual bridge plate etc to meet specificic requirmentes and customised solutions.
Our tables comply with the European Safety of Machinery standards EN 292, Machinery Directive 98/37/EC and Safety requirements for lift tables EN 1570.
|
|
|
In the event you find the cost of forming a concrete pit/pad expensive, an economical solution is a LoMaster S Series Semi-Portable Dock Lift. The unit is installed at the dock face and mounted on locating cradles and wear plates. With its extremely low profile, the LoMaster S Series provides added versatility for ground level loading/unloading operations.
|
|
Low profile lift tables, due to their low closed height, do not require a floor pit, offering flexibility of location and keeping installation costs to a minimum. It is possible to transport the table easily and in safety by a “mobility kit” from one work station to another providing an even higher flexibility in use.
Two versions are available, either full top platform or “U” shaped, which is particularly useful when loading a pallet safely onto the table using a hand pallet or pedestrian truck without the need for an access ramp.
Capacity from 500 to 2000 kg.
Our tables comply with the European Safety of Machinery standards EN 292, Machinery Directive 98/37/EC and Safety requirements for lift tables EN 1570.
|
|

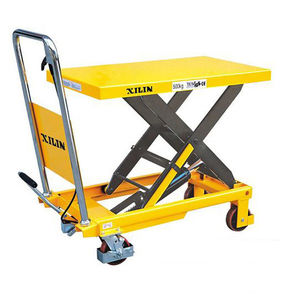

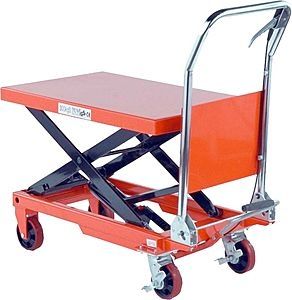

MODELS ELT150 / ELT300 / ELT350 / ELT500
ELT800
Capacity Kg 150 / 300 / 350 / 500 / 800
Raised height mm 740 / 900 / 1300 / 900 / 1000
Lowered height mm 225 / 340 / 348 / 340 / 420
Overall size (W x L) mm 450 x 780 / 500 x 925
500 x 980 / 500 x 925
515 x 1150
Handle height mm 825 / 925 / 980 / 970 / 996
Table size (W x L) mm 450 x 700 / 500 x 855
500 x 910 / 500 x 855
515 x 1000
Wheel mm Ø100 / Ø127/ Ø127 / Ø127
Ø150
Foot pump to max. height mm 25 / 32 / 55 / 45
55
Weight Kg 46 / 82 / 120 / 87 / 115
|
|
* Series PSL-M : Manual
- Capacities: 1,000 / 1,500 lb.
- Platform Sizes : 24" x 36" to 40" x 60"
- Vertical Travel : 24" to 36"
* Series PSL-B : Battery Operated
- Capacities: 1,000 / 1,500 lb
- Platform Sizes : 24" x 36" to 40" x 60"
- Vertical Travel : 24" to 36"
- Battery : 12v DC with charger
* Series ELTSP : Self-Propelled
- Capacities: 2,000 / 4,000 / 6,000 lb
- Platform Sizes : 24" x 36" to 60" x 96"
- Vertical Travel : 24" or 48"
- Battery : 12v DC with charger
|
|
industrial application - lift applications :
This scisors lift platform is a Standard automotive lift table for automotive industry
A lift table, running on rails, enables vertical positioning of a car chassis to enable weld checks to be carried out, the table being fitted with a full wrap around security skirt.
lenght : 5000 mm
width : 1300 mm
lower position : 470 mm
higher position : 1200 mm
|
|
The wide range of Bolzoni lift tables, with their usual safety and reliability features provide an effective solution to most lifting problems including heavy duty applications throughout industry (as part of production process, for machine feeding or stacking etc).
Ergo-lift range is designed as a “work station” to provide improved ergonomic conditions to ensure the health, safety and comfort of the operator together with improved productivity and efficiency.
Capacity from 500 to 10.000 kg and wide range of accessories available to achieve eaven higer safety functions where conditions require.
Our tables comply with the European Safety of Machinery standards EN 292, Machinery Directive 98/37/EC and Safety requirements for lift tables EN 1570.
|
|
Series HTT :
Tilt Table
Capacities: 1,000 to 6,000 lb.
Platform Sizes :24" x 36" to 72" x 72"
Tilt Angle : 45°
|
|

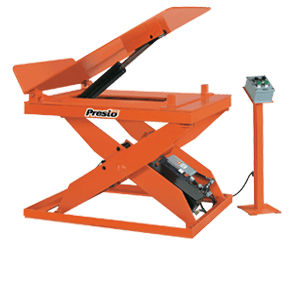

Lift Products MAX-Tilt & MAX-LIFT & TILT tables are designed for those applications where tilting or lift and tilting the load provides for improved access to the product. Table available with 45, 60 or 90 degree tilt.
Both series are electric hydraulic with the 45 degree models powered up and gravity down while the 60 and 90 degree models are powered both up and down with double acting cylinders. With capacities of 2,000 - 6,000 lbs., the MAX-series table can handle most applications.
FEATURES:
* 3/4 or 1 1/2 hp motor. 115/230 volt single phases or 230/460 3 phase voltage. Motor is internally mounted on most models and externally mounted on table sizes with 24" wide base.
* Push button magnetic back control box standard with 6' cord
* 10' power cord standard
* Hydraulic gear pump with check valve, solenoid valve, filter and velocity fuse standard.
* Smooth steel deck with 4" high lip on hinge end.
* High quality chrome plated cylinder.
* Control box includes magnetic starter transformer, thermal overload and fuses
* Designed for surface mount or lift table mounting.
* Powered up on 45, 60 and 90 degree tilt. Gravity down on 45 degree and powered down on 60 and 90 degree tilt.
* Tilt limit switch
* Color yellow top with blue frame.
OPTIONS:
* Foot control switch.
* Tapered toe guards for pit mount.
* Lowering beeper.
* Remote power unit.
* Accordion bellows safety skirting.
* Special color.
* Adjustable tilt limit switch.
* Raised base.
|
|
Features:
500 - 2000 lb capacities
30", 36", & 48" vertical travel
Standard hand control
Optional foot control available
Internal 1/3 HP 115/1/60 power unit
Lift time start at 5' per minute
Optional power units available
Hinged platform allows for easy access to cylinders and power unit in the collapsed position
Custom designs available
|
|
Spacesaver Lifts
LSH Spacesaver lifts can be used as personnel work platforms,
as cargo lifts, between levels as mezzanine lifts, and for positioning
test apparatus or tools. These lifts are available with vertical travel
up to 12 feet. Capacities range from 1,000 to 12,000 pounds.
|
|
Optima - Hymo Lift Table MX
All lift tables in the Hymo MX range have an exceptionally low profile when closed thus allowing them to be used directly on a flat floor without the need to make a pit. This means there are virtually no installation costs and the tables can be moved quickly and easily to other locations when required. The range consists of two basic models, each with a variety of platform sizes and load capacities.
The MX-E model is fitted with a unique E-shaped platform and is designed for pallet or stillage handling. The three arms of the ‘E’ support the underside of the pallet and the spaces between the arms allow the entry of a hand pallet truck to place and retrieve the load.
The MX-R model has a complete rectangular platform to support the load. If required it can be positioned in a shallow pit, but is more often used with a shallow access ramp to allow wheeled or palletised loads to be pushed onto the platform.
Accessories
A wide range of accessories is available for customising the MX range of lift tables to meet applications with specific requirements.
E-shaped platform
Capacitiy: 500 - 2000 kg
Lift travel: 800 mm
Platform length: 1350 - 1400 mm
Platform width: 1050 - 1250 mm
Rectangular platform
Capacitiy: 500 - 2000 kg
Lift travel: 800 mm
Platform length: 1350 - 1400 mm
Platform width: 600-800 - 1250-1500 mm
|
|
LAWECO guaranteeing their customers 'short notice' deliveries within a maximum of four weeks as from January 2002. Not only has the price level been kept unchanged for the majority of products, but quality and safety further improved. This holds especially true for the optimised maintenance free roller bearings. The exclusion of the less costly bush bearings entails a significantly longer operating life and a higher degree of utilisation. The self-contained base frame of the lift table does not require subsequent grouting, thus offering an unrivalled quality standard with its torsion resistant frame construction
LAWECO supplies the scissor arms exclusively of solid material instead of frame sectional steel in order to improve the stability and robustness of the lift tables even more. Freely adjustable limit switches leave the operator with more flexibility and permit him to universally use the lift table within its useful stroke. The maintenance supports are designed for the individual maximum load. The comprehensive installation kit, comprising of dowels, setting screws, shims etc. is included in the price. The li
|
|
|
Presto Lifts offers an unmatched selection of lift table styles, configurations and capacities. In addition to our standard product offering we routinely create custom modified units to suit special requirements.
|
|
LAWECO guaranteeing their customers 'short notice' deliveries within a maximum of four weeks as from January 2002. Not only has the price level been kept unchanged for the majority of products, but quality and safety further improved. This holds especially true for the optimised maintenance free roller bearings. The exclusion of the less costly bush bearings entails a significantly longer operating life and a higher degree of utilisation. The self-contained base frame of the lift table does not require subsequent grouting, thus offering an unrivalled quality standard with its torsion resistant frame construction
LAWECO supplies the scissor arms exclusively of solid material instead of frame sectional steel in order to improve the stability and robustness of the lift tables even more. Freely adjustable limit switches leave the operator with more flexibility and permit him to universally use the lift table within its useful stroke. The maintenance supports are designed for the individual maximum load. The comprehensive installation kit, comprising of dowels, setting screws, shims etc. is included in the price. The lift table can be connected by means of a CEE plug and is supplied ready for installation. The compliance with all required European safety related regulations goes with
|
|
Optima - Hymo Lift Table AX
Hymo AX Lift Tables offer value-for-money solutions to lifting related problems at virtually all workplaces. The height-adjustable platform ensures a comfortable working position which helps to improve efficiency and enhance the quality of finished work.
Adjusting the working height is smooth and easy due to the constant raising/lowering speed over the entire lift travel. The scissor-action lift’s robust pivotal arms and torsion bars combine to provide exceptional stability. Low noise operation makes the Hymo AX a pleasure to use.
Accessories
Hymo AX Lift Table can be customised for specific applications to ensure optimal performance. Built-in features such as hydraulic powerpack and control box are available in a range of specifications and single-phase operation is available on certain models.
Capacitiy: 500 - 2000 kg
Lift travel: 800 mm
Platform length: 1200 - 1350 mm
Platform width: 800 mm
Double-scissors unit for half-pallet format
Capacitiy: 400 kg
Lift travel: 800 mm
Platform length: 800 mm
Platform width: 600 mm
|
|
|
This robust equipment for the goods-handling industry is so tough that you can even drive a truck over it. This unit is the ideal firm and safe solution whenever extra convenience is required during effort-saving loading or unloading.
|
|
|
Southworth is the world's leading supplier of lift tables. We have the broadest product line, largest inventory of stock models, the most flexible range of modifications and most experienced designers. This site contains detailed information and specifications for a variety of lift tables and accessories.
|
|
You can save the high cost of dock construction, work from any truck bed level to grade level and handle unstable loads quickly and safely with Dock Saver Lifts. These lifts can be installed indoors or outdoors and will handle all loads up to 20,000 lbs.
For applications where the height of the truck bed must be adjusted, Southworth also offers a line of extra heavy-duty truck levelers in capacities from 5,000 to 20,000 lbs. to meet even the most massive load requirements.
|
|
Particularly safe:
- New double safety protection through safety microcontact rail beneath the shear blades·
Particularly economical:
- Modular design (accessories) allows more economical retrofitting
- Long service life due to optimized bearings (needle bearings) 20 cykles per hour, 2-shift-operation·
Particularly productive:
- Harmonious, jolt-free raising + lowering movement
- Optimum ergonomics due to precise product positioning·
Particularly flexible:
- High mobility when changing the work station
- Simple assembly, installation due to plug-in coupling connections·
Particularly compact:
- Low height of only 80 mm
- Minimum dimensions of the lifting table with reference to the Euro-pallet and skeleton container
|
|
|

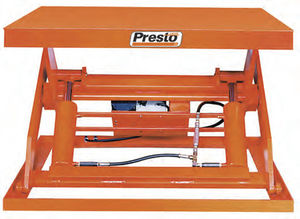

For lifting and positioning of lighter loads, Presto Light-Duty scissor lifts are the answer. They come in a variety of configurations to suit just about any need.
|
|
SHT 100: The mobile, ergonomic high-speed lift table
- with a flexible goal height for production and logistics
With our mobile high-speed lift table goods are brought again and again very quickly, securely and comfortably on a selectable goal height. The goods can be then infered from all sides.
vertical lift: selectable from 700mm up to 1400mm
speed: 1400mm in 6 seconds
goal height: 800 up to 1400mm
load width: 800 up to 1400mm
load length: 800 up to 1600mm
additional load according to agreement
You adjust the goal height of the table at the place of work and lower the plate to the ground. You push the goods on the plates and bring them on goal level in only 6 seconds. Now you can push the goods on a bordering table.
Discover the various application types!
|
|
|
