PRONAL lifting cushions can be used to lift loads of over 70 tonnes and are particularly useful in areas such as civil protection, security and defence.
They are also used in maintenance operations on construction sites and in various industries for moving, blocking and handling operations... Made from elastomer-coated fabrics, the cushions are vacuum vulcanised at a temperature of 140°C, thus ensuring that they are extremely tough.
Advantages :
- easy to install, thin when empty,
- uniform lifting power,
- high degree of control during lifting, progressive lifting process,
- high lifting force.They are also used for maintenance purposes on site and in industries for some operations as moving, stalling, handling...
|
|
|

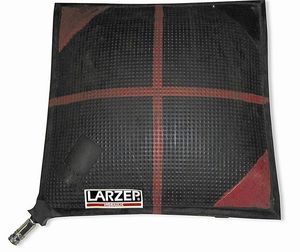

If an ECO-Jack toe jack can not be operated, the load can be lifted with an ECO-Jack AIR lifting bag ranging from 1.000kgs (2,200lbs) to 42.000kgs (92,800lbs). Fitting into the tightest areas with a collapsed height of 30mm (1.1-1.2inches), all models are light weighted and equipped with serrated lifting surfaces, markes centers, reinforced edges and safety instructions.
|
|
The distinguishing feature of Vetter Mini Lifting Bags 8.0 bar/116 psi is the noiseless, jolt-free, and smooth lifting of the heaviest loads. They lift, push, press, prise and split, even on sloping surfaces. The surface profile improves grip on slippery ground such as grass, sand etetc.
They are produced in two versions. Both versions have a multi-layer construction which covers each side of the bag. This is either steelcord or aramide reinforcement.
|
|

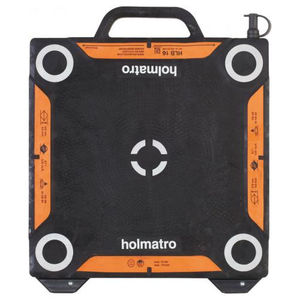

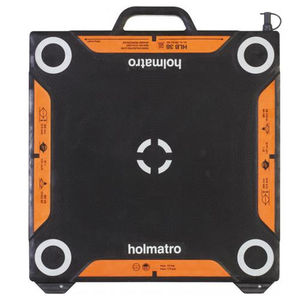

To be able to achieve a maximum lifting movement with only a minimum insertion space available, lifting bags are the appropriate tools to use. With 12 models, Holmatro has a lifting bag for every job. Thanks to their unique low profile edges the lifting bags can easily be inserted under all circumstances.
The deflated height of our lifting bags is 22 or 25 mm. Using compressed air (maximum 8 bar), the largest model, the HLB 67, reaches a maximum inflation height of 520 mm. Another feature of the lifting bags is their ability to adjust to the lifting surface. The applied pressure is divided over a large surface compared to the use of hydraulic jacks.
|
|
INFLATABLE JACK
1-74 Ton
Highly flexible and lightweight jacks only require an air supply of 8 bar maximum. Any non-explosive gas or water can also be used for inflation.
Uninflated jacks are only 25,4 mm thick, making seemingly impossible lifting tasks routine.
Space age reinforced, multi-layer aramid construction, widely overlapping on all sides. Tested at 8 bar.
In rugged testing, jacks withstood tens of thousands of inflate/deflate cycles at 12 bar.
Large surface area and material flexibility allow jacks to lift loads on soft or ompressible surfaces without support cribbing being necessary.
|
|
Lifting devices
Lifting - Freeing - Cleaving

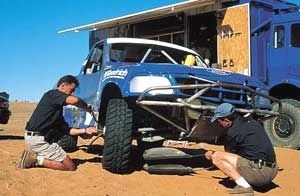

Mustlift is able to lift safely heavy loads on the ground or in water. Their compact size, allowing to place them quite everywhere, is obtained by a simple vulcanization of a high resistant elastomer coated fabric. They can be used on irregular surfaces thanks to their positive grip surface.
Mustlift lifting bags can be inflated with air or water at maximum 8 bar.
High-pressure flat lifting bag, made from coated fabric (polyester or aramid) vulcalized in one operation. Lifts up to 76 T in the standard range. Anti-slide coating
|
|
for quick application in close space!
- Multi-layer design with Armid material.
- Fill time with 8 bar within seconds.
- Extensive accessories, like suitable case etc.
|
|
PRONAL lifting cushions can be used to lift loads of over 70 tonnes and are particularly useful in areas such as civil protection, security and defence.
They are also used in maintenance operations on construction sites and in various industries for moving, blocking and handling operations... Made from elastomer-coated fabrics, the cushions are vacuum vulcanised at a temperature of 140°C, thus ensuring that they are extremely tough.
Advantages :
- easy to install, thin when empty,
- uniform lifting power,
- high degree of control during lifting, progressive lifting process,
- high lifting force.They are also used for maintenance purposes on site and in industries for some operations as moving, stalling, handling...
|
|
|
If an ECO-Jack toe jack can not be operated, the load can be lifted with an ECO-Jack AIR lifting bag ranging from 1.000kgs (2,200lbs) to 42.000kgs (92,800lbs). Fitting into the tightest areas with a collapsed height of 30mm (1.1-1.2inches), all models are light weighted and equipped with serrated lifting surfaces, markes centers, reinforced edges and safety instructions.
|
|
The distinguishing feature of Vetter Mini Lifting Bags 8.0 bar/116 psi is the noiseless, jolt-free, and smooth lifting of the heaviest loads. They lift, push, press, prise and split, even on sloping surfaces. The surface profile improves grip on slippery ground such as grass, sand etetc.
They are produced in two versions. Both versions have a multi-layer construction which covers each side of the bag. This is either steelcord or aramide reinforcement.
|
|
To be able to achieve a maximum lifting movement with only a minimum insertion space available, lifting bags are the appropriate tools to use. With 12 models, Holmatro has a lifting bag for every job. Thanks to their unique low profile edges the lifting bags can easily be inserted under all circumstances.
The deflated height of our lifting bags is 22 or 25 mm. Using compressed air (maximum 8 bar), the largest model, the HLB 67, reaches a maximum inflation height of 520 mm. Another feature of the lifting bags is their ability to adjust to the lifting surface. The applied pressure is divided over a large surface compared to the use of hydraulic jacks.
|
|
INFLATABLE JACK
1-74 Ton
Highly flexible and lightweight jacks only require an air supply of 8 bar maximum. Any non-explosive gas or water can also be used for inflation.
Uninflated jacks are only 25,4 mm thick, making seemingly impossible lifting tasks routine.
Space age reinforced, multi-layer aramid construction, widely overlapping on all sides. Tested at 8 bar.
In rugged testing, jacks withstood tens of thousands of inflate/deflate cycles at 12 bar.
Large surface area and material flexibility allow jacks to lift loads on soft or ompressible surfaces without support cribbing being necessary.
|
|
Lifting devices
Lifting - Freeing - Cleaving
Mustlift is able to lift safely heavy loads on the ground or in water. Their compact size, allowing to place them quite everywhere, is obtained by a simple vulcanization of a high resistant elastomer coated fabric. They can be used on irregular surfaces thanks to their positive grip surface.
Mustlift lifting bags can be inflated with air or water at maximum 8 bar.
High-pressure flat lifting bag, made from coated fabric (polyester or aramid) vulcalized in one operation. Lifts up to 76 T in the standard range. Anti-slide coating
|
|
for quick application in close space!
- Multi-layer design with Armid material.
- Fill time with 8 bar within seconds.
- Extensive accessories, like suitable case etc.
|
|

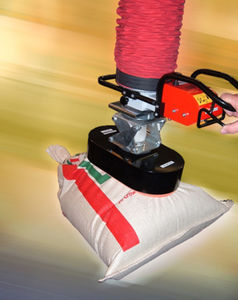

Handling attachment with ovalshaped vacuum pad. Indicated for handling of paper, plastic or juta bags.
It is the quickest and economic way to handle bags.
Vacuum generation by electric vane pump.
Max capacity 80 kg.
Accessories: quick disconnection for suction pads, angular adaptor, flexible extended manouvre handle, etc.
|
|
|
|
|
|
Compared to the traditional handling devices such as hoists and pneumatic manipulators, the Intelligent Assist Devices by Scaglia Indeva provide relevant advantages:
Precise positioning of the load as they allow for accurate and rapid movements, while traditional handling devices overtravel, bounce and require lots of little corrective movements that reduce productivity.
Intuitive control: It features the “float mode” control or “hands on manipulation”, without actuating the control handle. It makes the most of the natural human ability to coordinate and control motion, thus allowing for a more intuitive control that means a more precise and quicker positioning of the load, especially when this has to be placed in a narrow target as gently as possible.
Improved ergonomics and no effort required. Thanks to the microprocessor based control, the system supplies energy to win inertia both during acceleration and braking.
Speed: IADs respond swiftly, yet smoothly to human touch; the operator notices no time lapse between the machine’s sensing and its response.
Automatic and immediate compensation to weight: it allows handling loads with different weights or loads that vary their weight during handling (emptying out containers) with no stop times at all for turning selector.
|
|
|
ANVER's top-selling systems offer a simple, safe, economical solution to your bag and sack lifting needs. ANVER VT Vacuum Tube Lifting Systems can be configured to handle all load types: porous, semi-porous and non-porous. ANVER offers a free testing service in our ergonomics lab to assist you in determining your load’s porosity and to help you in choosing the appropriate vacuum lifting system.
|
|
Equipment designed for the “weightless” picking and moving of sacks - in polythene, cardboard, hessian, plastic fibre etc...Simple to use, this range of Dalmec machines allows the operator to move bags quickly, accurately and safely within the operating area.
The bags are picked with either a suction head or with a pneumatically clamp. Vacuum is created by an electric motor or by a Venturi ejector.
This range of manipulators offer maximum flexibility in type, design, dimensions and picking systems order to suit the specific requirements of the user and environmental conditions of the working area.
|
|
Pneumatic manipulating model Standard with tool of taken for movement bags
Description
The standard solutions allow to head at the certainty of the repetitive and optimized solution as from the numerous solutions supplied on similar demands. FAMATEC Standard offers to perfectly definable times of delivery and a precise definition of the technical aspects in phase of offer.
Technical details
In the event specific draft of an endowed manipulating of a system of taken flowing along the revolving and equipped arm of vertical movement through a detail is arranged of raising of the product. The solution is the ideal for who must enliven similari bags or products quickly (as an example scato them). The taken one happens through a ventosa and successively the product can be raised and moved on the horizontal plane in every point inside of the workspace.
The illustrated solution is available on autostabile base and fixed column.
The maximum capacity 65 kg
Range 4000 milimeter
|
|

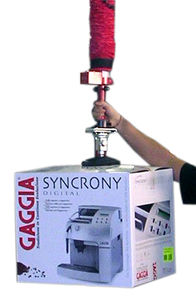

The Tube of Lifting uses the same flow of aspiration for the catch of the product, the lifting and the transfer of the load. Thanks to this system of aspiration of reliable and robust design, it is possible to handle loads without effort in any safety for your operations of handling, palletization or depalettisation.
Charge up to 200 kg
Type charges: bags, paperboard, drum
|
|
Vacuum lifting with an INDEVA means more productivity, more ergonomics, more safety!! Specialists in vacuum lifting since 1975.
Scaglia INDEVA offers the most complete range of industrial manipulator on the market, including both traditional pneumatic manipulators and state of the art electronic manipulators, better referred to as INDEVA.
Pneumatic manipulators are ideal to handle offset loads while Indeva are ideal anywhere speed, fluid movement and exact positioning of the load are required.
|
|
