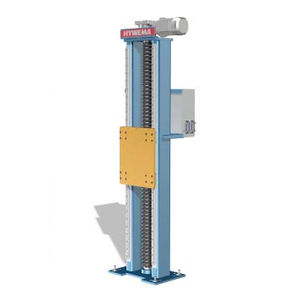

For guided lifting and lowering of the workpiece.
The lifting movement is effected power-supported by a hydraulic or electrical actuator against the weight of the workpiece.
The lowering movement is a defined lowering by use of the weight.
For maximum workpiece weights of 100 to 1,000 kg.
Maximum strokes from 200 to 940 mm.
|
|
|
|
|
|
LINAK has launched a wide range of lifting columns to be used in various sectors with the purpose of improving ergonomics at different kinds of workplaces.
LINAK lifting columns allow applications such as
desks
tables
beds
kitchen units and
heavy-duty industrial workbenches
to be raised, lowered or tilted by means of a button. With the LINAK lifting columns it is possible to install sophisticated motorised systems that provide optimum ergonomics at a modest price.
Compared to the lifting columns mentioned, LINAK does manufacture columns used for vertical lift of hospital and care beds where design, easy cleaning and ergonomics are important factors.
LINAKs several different types of lifting columns are for instance LC2, LP2, LP3, DL1, DL2, DL4, DL5 and DL6.
LP2 and LP3 are used in the hospital and care sector for height adjustment of e.g. stretchers, incubators and surgical chairs. The LC2 is a further development of the LP2 and LP3. Besides the applications mentioned above LC2 is also a good choise in more industrial applications.

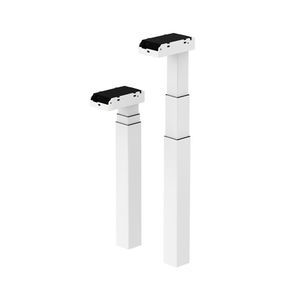

DL1, DL2, DL4, DL5 and DL6 are part of LINAK's DESKLINE® system for ergonomic sit/stand office desks. DL1, which set the standard of the market, is compact and avaiblable in more colours. The DL2 system offers a progressive speed control, meaning you have the same speed level both upwards and downwards. The DL5 and DL6 are further developing the DL1. DL4 is also called the DESKPOWER™ system.
At the touch of a button the DESKPOWER system can adjust desks within a range of adjustment from 60-125 cm at a high speed level irrespective of load. At the same time the noise level is extremely low.
|
|
Lifting columns are the ideal drive elements when a motor setting is required in addition to the stable guidance. The whole technology is integrated and not visible from the outside. These lifting columns do not need any additional coverings. Usually, no special electrical knowledge will be required for the commissioning. Various versions are available as standard for the application in the field of medical technology.
Several lifting columns can be combined and synchronised and offer further impressive application possibilities. The MultiControl-units can be linked by a BUS-system and enable the synchronization of maximal 32 lifting columns.
|
|
Electric Lifting Columns from LINAK

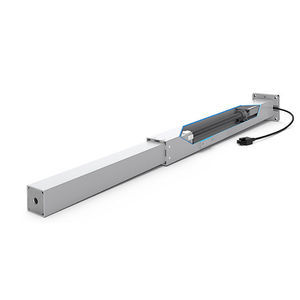

In the lifting column, the guide and electric linear actuator are integrated. With the electric lifting columns from LINAK it is possible to install the sophisticated motorised system that provides optimum ergonomics in a range of applications. Electric lifting columns from LINAK are designed to raise, lower or tilt:
beds (hospital beds, care beds and home beds)
desks
incubators
industrial workbenches
kitchen units
tables
stretchers
surgical chairs
and more
Lifting columns for hospitals, care, industry, office and home
Some series of electric lifting columns are in particular designed to meet the needs of the hospital and care sectors, the office furniture market, the industry and the comfort furniture market.
|
|
|
|
|
|
LINAK has launched a wide range of lifting columns to be used in various sectors with the purpose of improving ergonomics at different kinds of workplaces.
LINAK lifting columns allow applications such as
desks
tables
beds
kitchen units and
heavy-duty industrial workbenches
to be raised, lowered or tilted by means of a button. With the LINAK lifting columns it is possible to install sophisticated motorised systems that provide optimum ergonomics at a modest price.
Compared to the lifting columns mentioned, LINAK does manufacture columns used for vertical lift of hospital and care beds where design, easy cleaning and ergonomics are important factors.
LINAKs several different types of lifting columns are for instance LC2, LP2, LP3, DL1, DL2, DL4, DL5 and DL6.
LP2 and LP3 are used in the hospital and care sector for height adjustment of e.g. stretchers, incubators and surgical chairs. The LC2 is a further development of the LP2 and LP3. Besides the applications mentioned above LC2 is also a good choise in more industrial applications.
DL1, DL2, DL4, DL5 and DL6 are part of LINAK's DESKLINE® system for ergonomic sit/stand office desks. DL1, which set the standard of the market, is compact and avaiblable in more colours. The DL2 system offers a progressive speed control, meaning you have the same speed level both upwards and downwards. The DL5 and DL6 are further developing the DL1. DL4 is also called the DESKPOWER™ system.
At the touch of a button the DESKPOWER system can adjust desks within a range of adjustment from 60-125 cm at a high speed level irrespective of load. At the same time the noise level is extremely low.
|
|

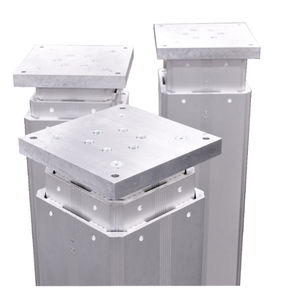

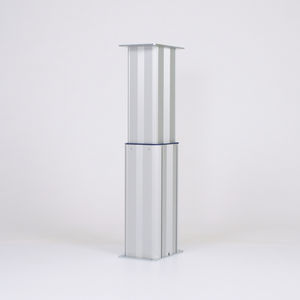

Light, elegant aluminium profile with a very quit run (<40db)
Are used especially in the medical sector (Ophthalmology, Ultrasound)
Columns of these types can also run in parallel (large tables, ergonomic work)
Big Advantage: Plug and Play
Most of our columns, we call Plug and Play. After receiving the column, attach it to the network power and with the delivered hand switch, you can use the column immediately.
Application: Adjustable chairs and tables, adjustable tables for computer, lecterns and so on
Force: up to 2200 N
Electric current: 230V / 50 Hz
120V / 60 Hz
100V / 60 Hz
Multifunction (all Electric current are possible in one column)
Custom Option: on request
EN 60601-1 certificated
All Materials are recyclable
|
|
| ... products without technical information |
| |

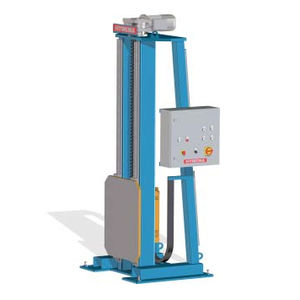

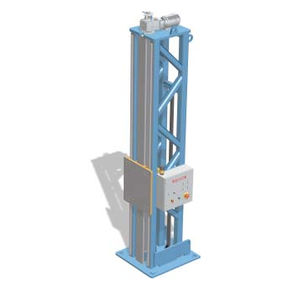

GOODS-LIFT / TRANSFER OF LEVEL
A range of elevators with columns lift designed "made-to-measure" according to various specifications, allow the vertical transfer of all kind of charges
- without embarked personnel - between several levels.
Those goods-lift with columns have to be imperatively embedded in built concrete shafts or in metallic cages with plain walls and doors equipped with electro-mechanical interlocks.
Goods-lift with columns are particularly suitable for the optimization of production and storage areas.
Main options : high lifting speed, platform and casing in stainless steel, hot deep galvanization.
FOR ANY SPECIFIC REQUEST, CONSULT US.
Fields of application :
Changing of levels in a processing line. Storage of itemson pallets or other equipment in warehouse... in any field of production and manufacturing.
|
|
|
|
|
|
EH Series Twin Column Workstations
EH Series dual column workstations combine the versatility of full rotation and positioning with heavy-duty lifting power. Vertical movement is driven by an electric/hydraulic pump-chain design with a carriage riding up and down on linear rails bolted to the dual columns.
An articulating arm is capable of full rotation on an axis parallel to the floor. Lineal translational movement along the arm can also be provided. The entire unit can be rotated manually or electrically along the base in order to allow the workstation to interface with other devices in different positions.
EH Series dual column workstations are ideal for systems integration (also available through Unidex). Multiple units can be used to create a complete production line. When a number of heavy components become part of the final product, they can be sequentially added if the base of the assembly is mounted to a transport trolley so it moves from workstation to holding track workstation. Unidex manipulators can be used to lift mating pieces into position.
|
|
Column lifts are particularly useful in situations where conventional lifting tables cannot be used due to there mechanical design. A lift of up to 5000mm can be achieved independent of the platform size. The column lift can be used in many situations due to the many differing design possibilities.
Platforms can be delivered in the following types: Anti-slip coating, tear plate, roller conveyor, prism, turntable, roller bearing conveyor.
Available accessories: railing, loading plate.
|
|
Our goods only lifts are used in the industry to provide transport solutions for load shuttling between different levels.
The regulations for these lifts are far less constraining than those for goods lifts allowed to carry personnel.
Our lifts are CE certified, they comply with Machine Directive 98/37/CE and norm project PR EN 81-31.
Our lifts can be delivered with a self-bearing frame. A shallow pit allows for the cabin floor fitting at ground level. Some lifts can be fitted on the ground, with access through a ramp.
A 3D drawing is supplied for the integration of the lift in your building.
We can of course supply all peripheral protections, servo-driven doors and gates, carry out the installation, trying out as well as the maintenance (maintenance contracts).
In order to meet most of your requirements, this range of products can operate with 3 different technologies: column hydraulics, scissor hydraulics and electric winch.
|
|
These lifts use a column mounted to the freight hoist skeleton to attach and elevate the lifting platform
* Can be installed as either freestanding or fitted into an existing shaft
* Column lifts can be 1, 2 or 4 pallet capacity
* Comply with Australian Design Standards
* Available with multiple door configurations
* Unique Safetech control board provides maintenance and diagnostic feedback
|
|
|
|
