Dalmec offer a wide range of manipulators designed for the “weightless” handling of cardboard boxes, packaged wooden cases, products covered in film (polythene, shrink - wrap etc….).
Simple to use, they allow the operator to move a whole variety of packaged products, cardboard boxes and wooden cases quickly, accurately and safely throughout the working area.
Boxes can be picked either with suction tooling or with a pneumatic gripper head. Vacuum is created by either by an electric generator or by a ”Venturi” ejector.
The type, design, dimensions and picking system of the manipulators offered are tailored so as to suit the specific requirements of the user and to the varying environmental conditions available.
|
|
Dalmec has designed and manufactured hundreds of industrial manipulators with special toolings for the handling of products having different forms, weights and dimensions in the wood - furnishing sector.
The photo illustrates two manipulators Partner type, overhead trolley mounted version, with adjustable pinch jaws tooling for the handling of armor-plated main doors.
|
|
VACU
Lifting equipment for the safe, damage-free lifting of metal and plastic flat sheets/plates, etc. The operating and control components (the slide valve and gauge) are mounted near the handgrip for reasons of safety, so that after the vacuum beam has been switched on the operator can immediately check the system for efficient vacuum. An electronic monitoring unit is mounted according to safety requirements. The unit consists of a hanging suspension with main beam to which the adjustable cross beams are fixed. The suction cups, with ball and socket joints, are suspended from the beams with spring adjustment. The main and cross beams are hot galvanised. The hanging suspension is painted to RAL 1007 (Yellow). The unit will be delivered fully operational and complete with an electrical cable and 16A-CEE plug. The power supply can be offered to the Vacuum unit from an optional cable drum attached to the lifting unit.
|
|
Handling attachment with vacuum pad. Indicated for handling of cardboard boxes or parcels.
It is the quickest and economic way for this kind of handling.
Vacuum generation by electric vane pump.
Max capacity 180 kg.
Accessories: quick disconnection for suction pads, angular adaptor, flexible extended manouvre handle, etc.
|
|
Scaglia INDEVA offers the most complete range of industrial manipulator on the market, including both traditional pneumatic manipulators and state of the art electronic manipulators, better referred to as INDEVA.
Pneumatic manipulators are ideal to handle offset loads while Indeva are ideal anywhere speed, fluid movement and exact positioning of the load are required.
|
|
VacuMaster Basic - comprehensive basic configuration.
- Vacuum lifting device with high degree of variability
- Pump size, operator-handle length, suction pads and main and cross beam lengths can be selected individually to match the specific application
- Main beam with integrated vacuum reservoir and distributor
- Ergonomical operator handle
- Electronic warning device, non-return valve
- Option: turning of workpiece by 90° or 180°
VacuMaster Comfort - the high-end configuration
- Basic configuration same as VacuMaster Basic
- Ergonomically integrated control, with push buttons, of "chain hoist up/down", "vacuum on/off" and, on models with turning function, "vertical/horizontal"
- Solenoid valve with two-hand operation for "vacuum off"
- Regulated vacuum pump with automatic energy-saving function
- Delivered complete with chain hoist
- Option: chain hoist with frequency-regulated drive
|
|
|
|
|
|
Specialised lifting systems for mobile devices
Our Lifting supports are modular in design, so that low-cost solutions are available for your specific requirements.
Depending on the application of the supports, the following technical parameters can be achieved: Container carrying capacity from 2.5 t to 20 t, Lifting heights from 500 mm to 1,750 mm (Optional maximum: 2,000 mm), Attachment to ISO corners and Position Control.
Innovative inclinometer-based position control is a special characteristic of our lifting systems and allows lifting and lowering action parallel to the ground during loading operations in uneven terrain, automatic initial inclination registration, inclination offset to zero degrees, control precision: +/- 0.2 degrees, safety shutdown when the inclination exceeds 3.5 degrees (or more, if required). Individual support control unit available as optional attachment.
In addition to our standard products, we offer customized designs:
Non-standard lifting heights, modified basic carrying capacity, specially adapted mounting and interlocking systems, special base plates, holding fixtures for easy lifting support transportation, tailor-made solutions with regard to functionality and intended uses, advice, assistance and support to customers implementing specific projects as well as special colours and paint coats.
Furthermore our products are accompanied by expertise and therefore offer appropriate performance in tests, trials and provision of samples. Our products are TÜV tested. Each product is subjected to functional and load tests performed on our own test equipment.
|
|
Incorporated lifting/tilting device
Incorporated lifting/tilting device with compactors or static waste compactors. These work much like separate lifting/tilting devices. When paired with roll on and off compactors, the lifting/tilting devices can be designed according to the dimensions required by highway code regulations.
|
|

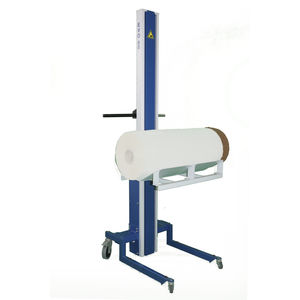

Lifting system with pivoting spindle, special lifter for uptake of foil rolls
Spindle gripper system with tensioning spindle and arbor for lifter – 90° foil roll rotation.
Simplifies handling of foil rolls.
Light pivoting from vertical to horizontal and vice versa.
Saves working time and reduces costs.
Material: stainless steel 1.4301.
Surface: glass bead-blasted.
Not suitable for Ex-zones.
Dimensions: 876 x 500 x 1840 mm
Lifting height: 1500 mm
with pivoting spindle
Spindle diameter: 76 mm
Battery voltage: 24 V
2 fixed load-bearing wheels: Ø 80 mm
2 castor rollers with locking brake: Ø 125 mm
Weight: 135 kg
Load-bearing capacity: 125 kg
|
|
|
ANVER, a worldwide leader in vacuum material handling technology, offers a complete range of Vacuum Lifters and vacuum lifting equipment. Self-powered mechanical vacuum lifters, electric and air-powered vacuum lifters are all available in lifting capacities ranging up to 60,000 lb (26,600 kg) or more depending on your needs.
|
|
The OCTOPUS system has been designed in
response to the operational flexibility required by
palletising robotics and vacuum operated lifting systems in general.
Actually this system allows the handling of objects
with any shape and feature, provided that they have
a reasonable transpiration, without any need to
change or position a vacuum cup and also when
their surface only occupies 5% of the whole suction
plate. Of course the maximum weight of the load to
be lifted will be proportionate to the grip surface.
|
|
Kappa-Levator
The strong vacuum lifter for all surfaces : natural sones and porous material such as exposed aggregate concrte, autoclaved aerated concrete, kerb stones...
|
|
|
|
|
|
P1 & P2 Series • Channel Lifters
These modular vacuum lifters are expandable to meet a variety of materials handling needs. Interchangeable Lift Frames provide manual 180° rotation and 90° tilt. Pad Channels can be switched from one Lift Frame to another in minutes, for maximum versatility at the installation site. On-board DC power permits cord-free use of the vacuum lifter with cranes, forklifts or floor hoists. AC powered vacuum lifters are also available. When combined with the CB1 Counter-Balancer, double-channel vacuum lifters can be used to install windows and exterior surfacing materials under overhangs or in other low-clearance settings. Capacities to 1400 lbs [635 kg].
Wood's Powr-Grip makes vacuum lifters designed to handle:
• Windows, doors and modular construction panels
• Siding, exterior cladding and corrugated roofing
• Plastic sheets, laminates and injection-molded components
• Glass, Plexiglass®
• Stone and solid surfacing materials
• I-beam and sheet aluminum, steel and other metal stock
• Automotive windshields, side lites and back lites
• Auto and truck body panels, and machine enclosures
• Office furniture, appliances and much, much more!
|
|
|
|
|
|
MRT411LDC • Manual Rotator / Tilters
Delivering manual 360° rotation and 90° tilt from any rotated position, these Powr-Grip® vacuum lifters provide economy and versatility in the shop or at the installation site. Movable vacuum pads and extension arms create three configurations of the vacuum pads, for handling materials of nearly any size. Cord-free DC power allows operation of the vacuum lifters from cranes, forklifts or floor hoists. Capacities to 700 lbs [320 kg].
Wood's Powr-Grip has been setting the standard for vacuum lifting and mounting equipment since 1964. Our below-the-hook vacuum lifters are more versatile than magnets and faster than clamps or slings. A reliable, efficient and ergonomic means of handling materials, these AC, DC or air-powered vacuum lifters move heavy objects with the aid of forklifts, cranes or overhead hoists.
Your safety is our priority: That is why we individually test every vacuum lifter before it ships from our manufacturing facility, to make sure it functions properly and satisfies relevant safety and design standards, including those from ASME, CE and ISO 9001.
Wood's Powr-Grip makes vacuum lifters designed to handle:
• Windows, doors and modular construction panels
• Siding, exterior cladding and corrugated roofing
• Plastic sheets, laminates and injection-molded components
• Glass, Plexiglass®
• Stone and solid surfacing materials
• I-beam and sheet aluminum, steel and other metal stock
• Automotive windshields, side lites and back lites
• Auto and truck body panels, and machine enclosures
• Office furniture, appliances and much, much more!
|
|
|
|
|
|
Below-the-Hook Vacuum Lifter
MRPT89AC • Manual Rotator / Power Tilter 1000
Used world-wide, the MRPT89AC Vacuum Lifter is Powr-Grip's most popular production line rotator / tilter, because it offers the greatest economy and versatility in a powered vacuum lifter. Attaching to materials in approximately 4 seconds, it supplies 360° continuous manual rotation with 90° powered tilt between upright and flat positions. The lightweight, interchangeable pad frame may be customized to meet customer specifications. 1000 lbs [455 kg] capacity.
Wood's Powr-Grip has been setting the standard for vacuum lifting and mounting equipment since 1964. Our below-the-hook vacuum lifters are more versatile than magnets and faster than clamps or slings. A reliable, efficient and ergonomic means of handling materials, these AC, DC or air-powered vacuum lifters move heavy objects with the aid of forklifts, cranes or overhead hoists.
Your safety is our priority: That is why we individually test every vacuum lifter before it ships from our manufacturing facility, to make sure it functions properly and satisfies relevant safety and design standards, including those from ASME, CE and ISO 9001.
Wood's Powr-Grip makes vacuum lifters designed to handle:
• Windows, doors and modular construction panels
• Siding, exterior cladding and corrugated roofing
• Plastic sheets, laminates and injection-molded components
• Glass, Plexiglass®
• Stone and solid surfacing materials
• I-beam and sheet aluminum, steel and other metal stock
• Automotive windshields, side lites and back lites
• Auto and truck body panels, and machine enclosures
• Office furniture, appliances and much, much more!
|
|
MT8HV11 • Manual Tilter 1200
Specifically designed for handling stone and other high-density materials, Powr-Grip's MT Series Vacuum Lifters feature 90° tilt with an above-the-center pivot point, so that loads automatically hang in the upright position when lifted. Coupled with a remote power source, the resulting narrow profile allows these vacuum lifters to fit between tight, vertical storage racks while also protecting the power source from damage. Standard features include Foam Pad Rings, for sealing a vacuum lifter onto rough surfaces, and Individual Pad Shutoffs, for handling irregularly shaped materials. 1200 lbs [545 kg] capacity.
|
|
|
|
|
|
PT10HV11AIR • Air-Powered Tilter 1500
The PT10HV11 Vacuum Lifter is designed to provide optimal support and effortless power tilting of stone and other high-density materials. Standard features include Foam Pad Rings, for sealing the vacuum lifter onto rough surfaces, and Individual Pad Shutoffs, for handling irregularly shaped materials. Available with compressed air, AC or DC power system. 1500 lbs [680 kg] capacity.
Wood's Powr-Grip has been setting the standard for vacuum lifting and mounting equipment since 1964. Our below-the-hook vacuum lifters are more versatile than magnets and faster than clamps or slings. A reliable, efficient and ergonomic means of handling materials, these AC, DC or air-powered vacuum lifters move heavy objects with the aid of forklifts, cranes or overhead hoists.
Your safety is our priority: That is why we individually test every vacuum lifter before it ships from our manufacturing facility, to make sure it functions properly and satisfies relevant safety and design standards, including those from ASME, CE and ISO 9001.
Wood's Powr-Grip makes vacuum lifters designed to handle:
• Windows, doors and modular construction panels
• Siding, exterior cladding and corrugated roofing
• Plastic sheets, laminates and injection-molded components
• Glass, Plexiglass®
• Stone and solid surfacing materials
• I-beam and sheet aluminum, steel and other metal stock
• Automotive windshields, side lites and back lites
• Auto and truck body panels, and machine enclosures
• Office furniture, appliances and much, much more!
|
|
The BBC Lift
The Comb Lift for the Big Bite provides the unique combination in container handling flexibility.
|
|
With Protema lifts, difficult and potentially harmful lifting can be avoided and an ergonomic method of moving goods can be achieved. The first Protema lifter was developed in 1977. Today’s third generation lifts are a result of years of practical experience and development. Industrial kitchens, pharmacies, libraries and manufacturing companies use electric lifts to lift boxes, rolls, reels and other goods.

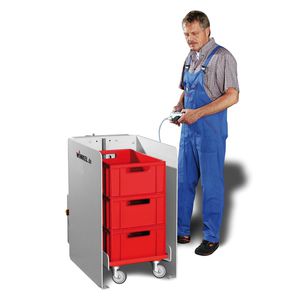

Lifting boxes
Protema lifts are manufactured with an emphasis on functionality, flexibility and reliability. They are lightweight, low-maintenance and battery driven with a built-in charger.
|
|

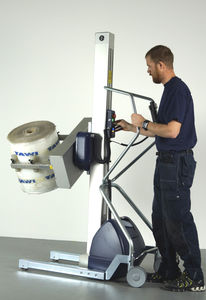

Lifting rolls and reels
Protema lifts have been successfully marketed around the world for many years. During that time we have experienced just about every problem regarding manual lifting. Therefore we will almost certainly have a lift for your every need. Roll and reel lifting is very often carried out with an electric lift.
|
|
Lifting technology
Handy telescope model
• stabilized movement of loads
• precise positioning of the loads
• lifting of eccentric loads: no problem
• suspension attachment to suit custom built hoisting accessories
|
|
Telescopic lifting devices are lifted and lowered by inside or outside running chains of electrically driven Demag chain hoists. They are available with two different design principles. Either with square masts as square section telescoping units (TV) or with round masts as round section telescoping units (TR). Both variants are available with single telescoping sections as well as double telescoping sections.
Telescoping units are particularly suitable for handling heavy workpieces up to 1,000 kg and they can take up large moments of up to 1,500 Nm. Depending on the design, strokes of up to max. 2,000 mm are possible.
They can either be fitted in a Demag KBK rail system or on a KSL pivot arm with pillar mounted on the floor.
They can also be used in low buildings with double telescoping sections.
|
|
VacuEasylift is a manual vacuum lifter, manufactured by TAWI, which handles almost all types of loads. There are models for lifting sacks and boxes, sheet wood and metal, panels and much more. The extremely smooth and quick operation is accomplished by using the same handle to lift, lower and release the load and by using the vacuum to hold and lift the load. Based on a unique concept, VacuEasylift has been developed into a versatile system for simpler, safer and more effective lifting.
Sack lifter
Lifting sacks manually is extremely heavy and our sack lifter is very often used to avoid this type of manual work. VM160 lifts sacks up to 60 kg which covers most sacks in processing today.
|
|
Lev 300
Capacities :
Grip width between 400 - 800 mm Lift height up to 3,00 m Max load = 300 kg up to 1,70 m Length of forks : 570 mm and 720 mm with sliding plates.
Description :
The LEV 600 and the LEV 300 have been designed to convey loads that cannot be handled with a conventional stacker. They are particularly suited for moving loads sitting directly on the floor
|
|
Lev 300 hinged forks
Capacities :
Max load on LEV 600 = 600 kg Max load on LEV 300 = 300 kg
Description :
Designed to lift rolls using the machine shaft these hinged forks can be used with a roll clamp to lift, turn and load rolls. The forks are fitted with vee blocks to stop the load from slipping.
|
|
To be able to achieve a maximum lifting movement with only a minimum insertion space available, lifting bags are the appropriate tools to use. With 12 models, Holmatro has a lifting bag for every job. Thanks to their unique low profile edges the lifting bags can easily be inserted under all circumstances.
The deflated height of our lifting bags is 22 or 25 mm. Using compressed air (maximum 8 bar), the largest model, the HLB 67, reaches a maximum inflation height of 520 mm. Another feature of the lifting bags is their ability to adjust to the lifting surface. The applied pressure is divided over a large surface compared to the use of hydraulic jacks.
|
|
|
The lifting clamp is removable loading gripper equipment used on a lifting apparatus for lifting and transporting individual flat. Loading capacity max Kg. 1000. The thickness of the glass plates can be from 4 till 55 mm.
|
|
PRONAL has developed and maketed palletising grippers made from hot vulcanized elastomer-coated fabrics.
They are used by the glass industry for handling bottles.
PRONAL can also supply special palettising grippers using the same manufacturing technique.
Please give us a call : we shall study your requirements
|
|
ANVER Vacuum Tube Lifters are easy to learn and simple to operate for loading and unloading cartons without manual lifting, bending, and stretching.
ANVER Vacuum Tube Lifters can be equipped with an extension handle that allows one person to unload and stack boxes without excessive reaching, stretching, or back strain. Models are offered to handle loads from 5 lb (2.3 kg) for non-porous loads, all the way up to 660 lb (300 kg).
|
|

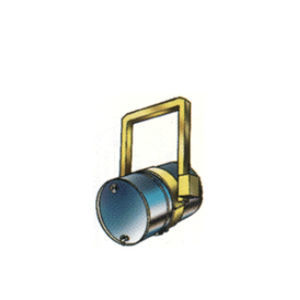

Stainless steel drum-lifter with front tilting system and electrical lifting
Unsurpassed functionality!
Linear-positioned gripping equipment for drums with diameters of 350 - 600 mm.
Turning system for tilting.
Hygienic, rust-free stainless steel design.
Material: stainless steel 1.4301.
Surface: glass bead-blasted.
With manual synchronous telescopic hydraulics and serial rapid lifting and soft lowering.
Serial polyamide castor rollers and polyamide load-bearing tandem rollers.
With locking brake.
Dimensions: 1210 x 1100 x 1463 mm
Manual lifting: 720 mm
With manual GBK tilting system
(high turning point approx. 1170 mm)
Weight: 267 kg
Load-bearing capacity: 350 kg
|
|
|
|
