Narrow Profile Air Table Actuators
The NPA actuator provides precise load guiding with a recirculating ball rail above its bore.
Two bearing styles are offered (single/double bearing block) to accommodate both lower cost and higher precision/cost applications.
With standard strokes up to 120mm, the NPA offers longer travel length than any competitive actuator of its type.
Bore sizes: 12, 20, 32mm.
|
|
Diameters 8, 12, 18, 25, 32, 40 mm
Stroke length 1 ... 5,000 mm
Force 30... 754 N
Position sensing
Various cushioning options available
Guide variants
- Basic guide
- Plain bearing guide
- Ball bearing guide.
|
|
Diameters 18, 25, 32, 40, 50, 63, 80 mm
Stroke length 10 ... 3,000 mm
Force 153... 3,016 N
Position sensing
Adjustable cushioning
Guide variants
- Basic guide
- Plain bearing guide
- Ball bearing guide
- Heavy-duty guide.
|
|
Ultran Band Rodless Cylinders
Stainless steel cover strip protects sealed area, prolonging life.
Unique five-ported endcaps provide maximum flexibility.
All models come switch-ready with finely adjustable cushioning.
Available in a variety of bore sizes with stroke lengths up to 3m (10 ft).
Perfect for door opening, material handling/conveying, packaging and palletizing.
Variety of Mounting Kits available for use with each basic cylinder.
Bore sizes: 18mm, 25mm, 32mm, 40mm, 50mm, and 63mm.
|
|
The smallest rodless drive in the world. Available as standard with integrated guide and optionally with recirculating-ball bearing guide. Features: excellent guidance, higher characteristic load values and virtually leakage-free.
• All functional interfaces accessible from one side
• Optimised mounting interfaces
• Precision mounting interfaces
• Stroke range 1 ... 1,900 mm
• Electrical and hydraulic cushioning variants
• Option of second slide
|
|
Standard cylinder
0 - stroke compatible
Guidung cylinder with linear guide way
Technical Information
· ZS and ZK are the base for all other cylinder and the most required.
· Also called pneumatic cylinder rodless with internal guiding
· Different guiding systems can by mounted additionally
· With adjustable cushioning
· With magnetic piston
· C and dove tail nut in aluminum profile to mount sensors
|
|
|
Based on the ORIGA rodless cylinder, proven in world wide markets, HOERBIGER-ORIGA now offers the complete solution for linear drive systems. Designed for absolute reliability, high performance, ease of use and optimised engineering the ORIGA System Plus satisfies even the most demanding applications.
|
|
DLB-B/L - DirectConnect Internally Powered Base Slide
These highly configurable internally powered linear base slides reduce the mounting footprint over externally powered slides by up to 50%. They are available in multiple strokes & sizes. DIRECTCONNECT mounting makes assembling these units together a snap.
- Bulit-in repairable cylinder
- Compact for extremely small spaces (-B)
- Longer strokes in Compact Space Saving Package (-L)
- Features DIRECTCONNECT mounting
RFE - Feed Escapement
The RFE series of feed escapements offer failsafe locking fingers, sealed design to prevent internal component wear, and built-in sensor mounting slots. They are the most effective mechanism for separating components fed from a track or conveyor.
- Finger locking mechanism ensures that only one finger can be retracted at one time for proper part feeding
- Square shaft prevents shaft from rotating
- Unit can be mounted using top, bottom, or face surface
DLM - Mini Ball Rail Slides
- Up to 8 position sensing available.
- Recirculating Double Bearing Option
- Adjustable Precision Stops
- High Temperature Viton Seal Option Available.
DMM - DirectConnect Slide Mounting Modules
These pre-engineered mounting modules are designed to provide a simple and sturdy solution for mounting DIRECTCONNECT Base Slides and Thrusters. Select from 10 different design styles in 3 sizes. Simply specify style, beam size, and basic dimensions.
- Simple and sturdy solution for mounting DirectConnect base slides and thrusters
- Pre-engineered designs save you time and money
- Individual components allow you to design your own modules
- Customize with add-on kits and accessories
|
|
|
A new design of pneumatic band cylinders that offer maximum durability for optimal performance. The MX series of band cylinders offer three bearing choices to match your application needs. Profiled rail design used THK Caged Ball technology to reduce friction and extend actuator life. Solid bearing design reduces stress concentration by 59% for optimum performance. Internal bearing design is permanently lubricated for long, trouble-free service. Durable stainless steel bands are stronger and will not elongate like elastomer (non-metallic) bands, providing reliable sealing over the life of the actuator.
|
|
Multi Act’s integrated motion actuators have an output shaft which produces both linear and rotary motions may be operated independently and simultaneously. Multi-act is available in three family sizes.
MAO series – Miniature series
Linear: Strokes 1, 2 and 4 inches, Force 100 pounds at 100 psi
Rotary: Rotations 0 deg to 90 deg and 0 deg to 270 deg
Torques 25 to 50 inch pounds at 100 psi
MA-1 Series – Heavy duty series
Linear: Strokes 2,4,6,9 and 12 inches
Force 440 pounds at 100 psi
Rotary: Rotations 0 deg to 90 deg and 0 deg to 270 deg
Torques 150 to 600 inch pounds at 100 psi
MA2 Series - Brute Force Series
Linear: Strokes 4 and 8 inches
Force 1900 pounds at 100 psi
Rotary: Rotations 0 deg to 110 deg and 0 deg to 290 deg
Torques 1800 to 3600 inch pounds at 100 psi
|
|
|
Versatile mounting in both horizontal and vertical applications. Stroke is contained within the cylinder itself for space saving advantage. Allows force to be applied in both directions. Six bore sizes. Self-lubricating bearing rods, guide and support load the full length of the cylinder's stroke. Adjustable carrier maintains true tracking. Loads to 800 lbs. Maximum stroke range from 135 to 283 inches. Available in any incremental length.
|
|
|
Good choice where existing guided and supported loads require pneumatic actuation. Internal load-supporting bearing design offers high bearing surface for durable, dependable performance. Low breakaway and high speeds. Handles loads up to 370 lbs. Strokes of 20 plus feet.
|
|
|
Stroke is contained within the cylinder itself for space saving advantage. Allows force to be applied in both directions. Load capacities up to 8032 lbs. Handles high, off-center loads with consistently smooth operation. Recirculating ball-bearing system for wear resistance and repeated accuracy. Low breakaway. High bending moment capacity. Cost-effective alternate to auxiliary rail systems.
|
|
|

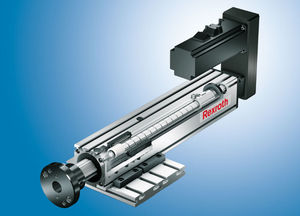

A unique solution for delivering the speed, accuracy & repeatability of electronic actuators but with the force capability of pneumatics...
|
|
|
Zero friction, life unlimited, the Airpel -AB provides "force without friction" which is made possible by a specially shaped stainless steel piston that is precisely fitted to a borosilicate glass cylinder. The introduction of pressurized air into the air bearing's cylinder creates a true air bearing airflow effect around the piston. With as little as 5 PSI of air applied to the cylinder, the same air that drives the piston also produces a stiff cushion of air to support the piston and prevent it from contacting the cylinder wall. The result is an air cylinder that delivers virtually unlimited piston life, no lubrication and clean operation. In addition, the output force of this friction-free air cylinder is reduced only infinitesimally by movement of ultra-low friction ball joints used to connect the rod. These unique qualities allow Airpot Corporation to guarantee that the Airpel -AB will exceed the life of any machine or instrument in which it is installed. Industries include, semi-conductor, optics, medical, and test and measurement. Applications may include, precise tensioning, positioning mechanisms supporting delicate materials, sensitive force control for holding or clamping fragile materials, counterbalancing and safety support for vertically positioned linear motor driven masses, or precise laboratory test equipment. Airpel-AB air bearing actuators are available in metric models with four bore diameters and ten standard strokes to provide precisely repeatable driving or supporting forces from 2 grams to 58 kg. Operating temperatures range from -20 C to +90 C.
|
|
When in doubt, opt for pneumatics: linear or quarter-turn actuation of process valves, including Ex-protection. COPAC for gate valves and sluice gates, COPAR for butterfly and ball valves.
• Diameters 80 ... 320 mm
• Stroke lengths 40 ... 2,000 mm
• Force 2800 ... 47,500 N
• Double-acting
• Diameters 1 ... 880 mm
• Torque 7.5 ... 8,800 Nm
• Rotation angle 90°
|
|
PneuMoment Pneumatic Actuators
The Bimba PneuMoment pneumatic actuator features a revolutionary, compact design that uses conventional pneumatic technology but has the capacity to carry high loads and moments.
The Bimba PneuMoment pneumatic actuator carries high moment loads and has a compact design. It also uses non-lube bearings, has a built-in track for position sensing switches, and guide beam end cap ports transmit air or vacuum through the actuator from the guide beam end cap to connect additional automation devices such as grippers.
The actuators also have internal or external bumpers, external shock absorbers for retract and extend strokes, internal stroke adjustment - full stroke, retract and extend (1-1/16" and 2" bores only), and magnetic position sensing.
Bore sizes are 1-1/16", 27mm, 1-1/2", 38mm, 2", 50mm, 2-1/2", and 63mm. Standard stroke lengths range from 1" increments to 6" and 25mm increments to 150mm.
|
|
Pneu-Turn Actuators
The Bimba Pneu-Turn Actuators have cylinder bodies with 304 stainless steel for maximum seal life and an actuator body that's high strength, anodized aluminum alloy for maximum corrosion protection. The porting ends are high strength, anodized aluminum alloy.
The shaft bearings are self-lubricating, sintered iron copper material for lower friction and the piston seals run with Buna "N", U-cup type for low breakaway friction and long life.
Angle adjustment is an option that allows 45° of adjustability at each end and the adjustable cushions are an option that controls deceleration at the end of the rotation.
Torque factors include 9/16" bore, single rack; 9/16" bore, double rack; 3/4" bore, single rack; 3/4" bore, double rack; 1-1/16" bore, single rack; 1-1/16" bore, double rack; 1-1/2" bore, single rack; 1-1/2" bore, double rack; 2" bore, single rack; and 2" bore, double rack. The Pneu-Turn angles of rotation are 45°, 90°, 180°, 270°, and 360°.
|
|
Size 6, 8, 10, 12, 16, 25, 32, 40 mm
Torque 0.15 ... 20 Nm
Swivel angle 0 ... 270°
Position sensing
Fixed cushioning.
|
|
Features
● Rotary cylinder with double rack and pinion
● High precision positioning
● Shock absorber is mountable
● Intergrated table and pinion (Rigidity)
● Various applications through round table
● Easy wire arrangement by hollow axis
● Auto switch is mountable
|
|
Three-Position Pneu-Turn
Rotary action of the Pneu-Turn Rotary Actuator is achieved through the use of a rack-and-pinion assembly. The speed of rotation may be controlled through the use of flow controls. The action at the end of the rotation can be controlled by the use of adjustable cushions, which are available as an option.
Ports on the Pneu-Turn may be repositioned to accommodate any airline configuration by loosening the three body retainer screws. The rack and pinion gear and ball bearings are pre-lubricated at the factory for extensive, maintenance-free operation.
Bore sizes are 9/16", 3/4", 1-1/16", 1-1/2", and 2". Each includes single and double rack models.
The Three-Position Pneu-Turn rotary actuators, in all bore sizes; both single and double rack can now be ordered as a standard catalog option.
|
|
|
Camozzi offers a wide range of cylinders with diameters from 6 to 200 mm and with strokes from 5 to 3000 mm, single-acting or double-acting, with or without through rod, magnetic or non-magnetic, with external guidings available on some models. The cylinders can be used in numerous applications, such as assembly lines, packaging and production machinery, at high temperatures and in extremely corrosive environments. The large and versatile range of Camozzi’s cylinders allows the user a greater degree of flexibility in devising technical solutions, by offering numerous mounting options, high speed rates and ensuring the use of high quality raw materials in its components. A large selection of cylinder accessories is available to complete the range.
|
|
|
The Airpot Actuator is an instrument class pneumatic pressure or vacuum operated device designed to provide ultra-low friction and exceedingly long life with the least amount of mass and contamination. It is particularly well suited for applications requiring the most sensitive response possible from an air cylinder. Airpot Corp. manufactures two basic families of pneumatic actuators. Both employ our unique combination of a Pyrex® glass cylinder and graphite piston and have similar performance properties with respect to friction, cleanliness, and temperature range. The major differences are in the actuation direction capabilities, outer construction, mounting features, and dimensions. The performance properties of either product are vastly superior to those of conventional cylinders. Airpot Corporation is the world's leading manufacturer of ultra low friction, super-responsive pneumatic piston and cylinder motion dampers, actuators and Snubbers. Our unique seal-less construction and combination of materials allow unsurpassed longevity, high cycle rates without lubricants, smooth operation at extreme temperatures, and instrument quality performance for low to medium force and energy levels. Common applications for our Actuators, Piston and Cylinder Motion Dampers, and Snubbers include: semiconductor & IC processing equipment, web/wire/filament tension controls, test & measurement instruments, automated medical analyzers, dispensing & vending machines, high capacity mail & cash handling equipment. Complete line includes instrument quality, precision air dashpots, snubbers, pneumatic actuators, Airpel Anti-Stiction Air Cylinders and Airpel-AB cylinders.
|
|
|
The Tork-Mate 890 series extended life actuators are ideal for the operation of 90° turn devices such as butterfly valves, ball valves, plug valves, damper valves and other devices. Tork-Mate pneumatic actuators have features that are unique, providing many benefits to the user looking for worry-free service.
|
|
Rotary Vane Pneumatic Actuators
Features
·Torque output of 16 to 1000 Inch Pounds
· Adjustable Rotations
· Reed and Hall effect switches
· Only one moving part
· Non Lube service
· Low cost solution
·Heavy Duty Double Acting Ball Valve Systems
Valve sizes from ¼” to 3”
140 in.lbs to 800 in.lbs
· Spring Return Valve operators
Single acting with spring close or open
Valve Operator Systems
·
·Spring Return operators are formed by bolting a spring return unit to a double acting Val-U-Act operator. The return movement is effected by a clock-type spring which is pretensioned to about half the operator torque. The amount of pretention is large, compared to the rotation and therefore the torque does not vary more than 20% over the rotation.
Spring returns are factory-installed and adjusted. The spring returns have a worm drive adjustment for setting or changing spring pretension. By inserting a socket key into one end of the worm the spring pretension can be very easily increased or decreased to suit operating conditions. To increase pretension, turn the worm clockwise; to decrease, turn counterclockwise.
|
|
PNEUMATIC ACTUATOR EB-DW, DOUBLE ACTING
FEATURES
- Maintenance-free, continious lubrication
- Suitability for valves with an angle of 90°
- Blow-proof shaft bearing
- Torques in agreement with EN ISO 5211
- Control pressure min. 2 bar, max. 10 bar
- Good visible elastic position indicator
- Function return by turning the supply plate:
Currentless - close
Currentless - open
- All elements of connection are made of stainless steel
Possibilities of mounting and accesories are shown in chapter 4.3.
GENERAL APPLICATIONS
- Water and wastewater technology
- Shipbuilding
- Swimming pool technology
- Bulk handling
- Pneumatic conveying systems
- Chemical industry
|
|
|
AGI's pneumatic actuator, powered feed-escapement is ideal for individual release of parts from hoppers, conveyors, vibratory feeder bowls, tracks and magazines. These compact long stroke Linear actuators escapements are internally sequenced. The cross porting makes sure both rods are extended before either rod can retract ensuring positive part feeding. The AGI escapements have an easy part clearing feature due to internal back pressure cross port design, allows both rods to be retracted with air pressure off.
|
|
|
|
