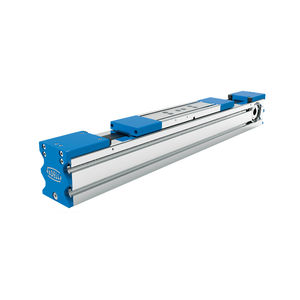

The "400XR" standard series linear positioners offer reliable performance and unmatched versatility. Convenient mounting features enable XY table combinations to be quickly and easily constructed. The XR family offers an unrivaled array of features and options which are easily matched to fit any application, from the very basic to the highly complex.
The HD Series Linear Positioners are designed for OEMs, Machine Builders, and End Users needing a robust positioning solution. The HD Series is easy to apply, easy to install, and easy to maintain.
Designed for OEM instrument manufacturers working to speed their time to market and reduce the overall installed cost for linear motion axes, Parker Hannifin's new PROmechTM Series linear actuators are a complete linear motion solution.
|
|
ECOLINE’s products have been designed to fit in applications where quality movement is needed at a low price. The patented design offers a well-protected, smooth slide that is easily and quickly mounted. ECOLINE combines the quality associated with all of ROLLON’s products with the affordability needed in application sectors like industrial protective panels, vehicle slides, and machine tool doors. ECOLINE is the answer to labor intensive, homemade solutions, cheap bent steel slides, or expensive, overdesigned round or profiled shafting.
|
|
|
Pico series robots are single axis robots using a program-less controller PRC. While priced at a low level, each robot has various functions such as thrust control and zone signal output. It is also designed for great ease of use.
|
|
Adept Python is a family of high-quality linear modules for assembly and material handling applications. Python linear modules incorporate unique design features making them the most robust modules for gantry or cantilever configurations.
Our exclusive manufacturing process enables Adept to provide the exact linear module system needed for your application with a very competitive delivery time.
|
|
Guiding system SVAN - features:
- Dovetail Slides made of Aluminium, natural anodized
- 5 sizes: 20, 30, 50, 80, 120 mm with standard stroke between 5 and 100 mm
- Locking without horizontal and vertical side misalignment
- Compact sizes
- Adjustment with knurled micrometer knob (standard) or hex screwdriver
- High load ratings
- Guides without play
- High damping
- Scale with knurled micrometer knob
- Mounting kit (Clamps)
- Easy and quick to combine to 2 axis systems and/or 3 axis systems
Guiding system SVAN - examples of use:
- Adjustment of: Measuring cameras, Reflectors, Microscopes, Laser for precision machining (i.e. micro borehole), Machining units
- Adjustment of inkjet printers
- 3D measurements
- Focusing of burn strainers
- Adjustment of soldering heads, plasma heads, welding heads
|
|
Lifting module for engineering, work stations, flexible sit/stand work stations, height adjustable divan beds.
- laterally, the slide is guided by steel shafts, each with two hardened rollers
- housing made of aluminium profiles
- in short-term operation high transporting speeds can be achieved
|
|
MISUMI provides more than 1 Million mechanical components for the assembly automation. We delivery components europewide in averagely 6-8 days GUARANTEED delivery from the day of purchase, stock items available from 2 days delivery.
MISUMI 24/7 Web Ordering System (WOS) represents a full-fledged e-Commerce solution, which you can use, for the first time, independently from the catalogue in paper form, to configurate MISUMI products, submit quotations and place orders.
For more information about MISUMI, WOS or for ordering a catalogue please visit: www.misumi-europe.com
MISUMI - Precisely Meeting Your Demands
|
|
|
|
|
|
Linear spindle units
The linear spindle units feature high longitudinal load bearing capacity. Tapered thread spindles with self inhibition as well as ball-type linear drives of high precision are provided for the appropriate positioning tasks.
Timing belt - linear units
Dynamic tasks can nearly be solved without them. Toothed-belt linear units are fast and intended for inversion mode with short cycle times. The timing belts HD- and GT- quality reach highest precision when used for positioning jobs.
Toothed rack - linear units
In case of long strokes, spindles and timing belts cannot be utilized efficiently. This is the situation where the toothed rack accomplishes its purpose. Maximal 50 metres can be realised without lower accuracy.
Sliding and rolling guide
These linear units which are not driven are the ideal supplement for the driven units, e.g. if a supporting axle is required due to an eccentric load.

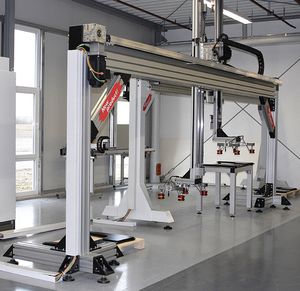

Heavy duty linear unit D-Line
Heavy loads have only be moved by linear axes made of steel components until now. The high dead weight, however, must often be moved too. This is unfavourable for the dynamics and the necessary motor size.
D-Line combines dynamics and the loading capacity with low dead weight and sounds the bell for a new generation in the filed of automation.
|
|
The linear modules MLT 410 provides a self-supporting frame to be easily integrated into the customer’s systems.
They are made of solid aluminium alloy profile with linea guide function.
A special treatment makes the rails’ surface hard like the hardened steel and resistant against wear, dust and damp.
The movement is realized through rollers with plastic compound shelle whic slide on hardened rails. This system can work in environmental heavy conditions without protection.
The movement is activated through timing belt AT10 width 32.
The standard accessories enable an easy and quick connection with motors and columns.
Versatility, high competitive performances, self-supporting structure and possibility to work in dusty rooms are the key features of our linear modules range.
|
|
The whole of the linear modules motorisables:
- Linear Modules on rollers with drive belt,
- Linear Modules on ball guide with drive belt,
- Linear Modules with drive by ball screw.
On request, following plane and schedule of conditions we carry out all types of specific systems (linear modules X/Y, special carriages GD.)
|
|
|
|
|
|
Compact Modules from Rexroth come complete with drive unit and controller. As plug and play solutions, they simplify machine designs and speed up the commissioning process. They cover the entire spectrum of mid-range to high-end assembly and handling applications. These linear motion axes can be supplied with screw drive, belt drive or direct linear motor drive and offer high dynamics, high load capacities, and high rigidity. Especially important for designers: Not only does Rexroth offer its Compact Modules in various sizes and in any desired stroke length, but also with optional extras.
Compact Modules with ball screw drive - CKK
- Maximum Length: up to 2.200 mm
- Maximum Speed: up to 1,3 m/s
- Load Capacities: up to 89.340 N
Compact Modules with toothed belt drive - CKR
- Maximum Length: up to 5.500 mm
- Maximum Speed: up to 5 m/s.
- Load Capacities: up to 56.530 N
Compact Modules with linear motor - CKL
- Maximum Length: up to 2.800 mm
- Maximum Speed: 3 m/s.
- Load Capacities: up to 13.646 N
|
|
Linear Modules
SCHUNK – the world of linear technology
SCHUNK linear modules. The entire world of linear technology for high-speed automation from one source. Compact modular design for combination of a wide variety of different modules to form one overall system. Depending on the load range and required stroke length, diverse components are also available for demanding tasks.
Strong arguments for linear modules from SCHUNK:
* Precise mini-slides
* Exact positioning
* Compact design
* Pneumatic linear modules
* High flexural strength
* Specially designed for assembly and handling technology
* High-strength gentry axes
* High load capacity
* Toothed-belt, ball screw or pneumatic drive
* Dynamic axis modules
* Servo-electric linear motor drive
* Extremely fast and precise
|
|
Linear Modules are linear motion axes composed of a variety of mechanical, electrical and electronic components. Depending on the model, they come with ball screw, toothed belt, pneumatic, or linear motor drive.
Plug and play offers clear benefits
Thanks to their plug and play design, Linear Modules often provide clear benefits versus customer-built designs made up of individual components, especially in automation and handling applications. Linear Modules are standard solutions, proven many times over in the field. Despite the many predefined parameters, they still offer machine or system designers a considerable degree of freedom. Rexroth supplies its Linear Modules in any desired, millimeter-increment length, anywhere in the world. And user requests for special carriages, corrosion-protected versions, or special motor attachments with mount and coupling or side drive timing belt can be met at any time.
|
|
|
High performance and low costs are the outstanding features of this model range. If individual module or multi system: Depending on customers’ requirements various combinations are possible.
|
|
|
OMiL offers a wide family of pneumatic 2-colonne, 3-colonne and 4-colonne linear drive unit covers a wide travel range from 25-80 mm up to 80-500 mm.
|
|
LME, the high dynamic linear module with maintenance free linear motor for fastest horizontal movements. 2 sizes and standard strokes until 600 mm. ZME, the universal installation of the linear module with standard strokes of 50 and 100 mm. Combination with the compact, ultra fast Pick-&Place.
|
|
Linear Motor Modules
Ready-to-Use - single bearing rail, limit switches, drag-chain, encoder
Environmental - laser-welded bellows, nickel plating
Consult Copley sales representative to specify
a module for your applicaton.
|
|
|
|
|
|
KK-Modules – Linear Modules with ballscrews
The HIWIN linear modules (KK-Modules) are compact positioning axes. The thrust is generated by a ballscrew, which is mounted in a drive flange ready-to-use by a motor. The movement is guided by rolling balls bearings. Various equipment parts and sizes adapt the linear modules to very different tasks and industries.
Modules for positioning tasks – KK-Modules from HIWIN can be used universally and are suitable as ready-to-mount modules for many positioning tasks.
Lean and light – KK-Modules can also be integrated into applications with little space thanks to their compact and lean construction and light weight.
Flexible and adaptable – various servo motors, controllers, special models and accessories make it possible to use the KK modules universally; they can be supplied with or without motor on request.
Modular and multi-dimensional – multiple axes systems can be achieved easily with the KK-Modules.
Adaptable and sturdy – the KK-Modules can be equipped with bellow or sheet metal cover depending on the ambient requirements.
Vacuum model possible
Guide rail and block made of steel with surface corrosion protection
|
|
Achieve design fl exibility through an integration of linear motion components into one unit.
Demonstrates high performance in a wide range of applications, including assembly,
inspection and transporting equipment.
|
|
|
|
|
|
Compact Modules from Rexroth come complete with drive unit and controller. As plug and play solutions, they simplify machine designs and speed up the commissioning process. They cover the entire spectrum of mid-range to high-end assembly and handling applications. These linear motion axes can be supplied with screw drive, belt drive or direct linear motor drive and offer high dynamics, high load capacities, and high rigidity. Especially important for designers: Not only does Rexroth offer its Compact Modules in various sizes and in any desired stroke length, but also with optional extras.
Compact Modules with ball screw drive - CKK
- Maximum Length: up to 2.200 mm
- Maximum Speed: up to 1,3 m/s
- Load Capacities: up to 89.340 N
Compact Modules with toothed belt drive - CKR
- Maximum Length: up to 5.500 mm
- Maximum Speed: up to 5 m/s.
- Load Capacities: up to 56.530 N
Compact Modules with linear motor - CKL
- Maximum Length: up to 2.800 mm
- Maximum Speed: 3 m/s.
- Load Capacities: up to 13.646 N
|
|
These last years the technological exigeances of the linear systems made progress the development of products like the modules BI-RAIL and CP elitec.
These modules or units in advance are characterized by an high degree of flexibility and reliability. 8 sizes are available out of standard of 40 mm to 160 mm of width, the advance is done by means of screw ball or synchronous belt. Double guidance by rails and shoes with balls allows the transport of strong loads, the provision of the double guidance authorizes very important resumptions of couple with a maximum rigidity. The linear systems CP are equipped with a guidance especially studied and developed by Movitec, the advance is done by means of ball screw a great choice of screw pitch is available.
|
|
The basis of the system program consists of portal-, vertical- and telescopic axis of the line AXS. These modules from the system program can be combined any way or with the line AXC to create optimally construed multi linear axis systems.
• Custom- made solutions by using components which are individually harmonised with the application: Linear axis with rack and pinion drive are especially suitable for applications with great stroke length - up to 12 m self- supporting, as butt joint version theoretic unlimited stroke length.
• Z- axis for taking vertical loads up to 1000 kg.
Optimally construed multi linear axis systems harmonised with the focal points of the customers requirements: Portal axis, Z- axis and telescopic axis from the system program can be combined any way.
|
|
Rigid toothed belt axes in 2 sizes. Select and attach drives freely or even with integrated drive and control for easiest initial start-up and wiring. Control directly from SPS(I/O) or over fieldbus.
|
|
Two Axes of Motion in One Housing!
Rigid Design Holds Guide Shafts at Both Ends
Deflection Under Heavy Loads is Greatly Reduced
Air Cushions Standard on 1" & 1.5" Bore Sizes
Precision Mounting Surfaces with Tooling Holes for Grippers and Tooling. Custom Faceplates are Available
Heavy Wall Cylinders Built Into Housing
Case Hardened Shafting
Composite Bushings or High Precision Linear Ball Bearings Provide Accurate and Repeatable Motion
Floating Couplers
Pre-Mounted Cable Carriers
Adjustable Shock Absorbers
Optional Threaded Stop Collars for Fine Stroke Adjustment
Dovetail Sensors with Optional "Quick Disconnect"
|
|
High rigidity and flexible fitting by highst precision in manufacturing. Flexibly expanding intermediate positions increase the possibility of applications.
|
|
an electric linear module for Gantries with linear Axes
example: Gantries and systems multi axes
|
|
|
Motorized Linear Slide Kits (identified by the prefix "K") include all accessories typically required for operation of the motorized linear slide. Check the Accessories tab to see what is included and what substitutions are available. Motorized linear slides are available without accessories for $30 US less than the kit price. To order individual motorized slides with no accessories, simply remove the 'K' prefix from the part number. We do not recommend this unless you are certain you have the necessary accessories.
|
|
|
|
|
|
Introducing Pacific Bearing Company’s new line of linear actuator products: The PL series, MT series, and MX series. With the reputation for providing the most innovative the solutions to the most difficult applications, PBC makes no exception with this new line of actuators. All systems are durable, self-lubricating, can handle a number of different working environments and come available with t-slots for easy mounting.
For a highly accurate and low cost solution, the PL series actuators have no substitute. The newly designed, ball-screw driven system eliminates the need for costly belt-driven gear boxes, comes magnetically sealed to work in contaminated environments, and the precision machined aluminum design allows for easy installation and long-lasting durability.
The magnetically sealed, versatile MT series actuators can be integrated into many different applications, horizontal or vertical, contaminated or clean. This belt-driven actuator provides a highly repeatability and high speed capacity with a longer stroke length than ball-screw driven actuators.
With its durable, robust design, the belt-driven MX series actuators can carry a high capacity at speeds up to 5 m/s! Also available in several different applications—both horizontal and vertical—the MX is superb for applications with a greater moment load with its large CAM rollers and is available in a longer stroke length. Making the MX series the actuators for heavy loads at high speeds.
Applications for these products include: automotive, food and beverage, packaging, and medical equipment.
|
|
The BiSlide Belt Drive Assembly consists of a motor/gearbox, mounted 90 degrees to a linear dovetail stage. The motor/gearbox couples to a stainless steel pulley which drives a steel reinforced timing belt.
The belt drive assembly is useful for long travel and high speeds. Speeds as high as 3 meters per second can be achieved using direct drive motors and high powered controllers. For high resolution, gear reduction motors are available. The belt drive’s high efficiency make it an ideal choice for moving light loads at high speed and for continuous duty applications.
The belt driven BiSlide Assembly is available in many length up to 220 inches (5.6 meters). Maximum payload is 260 lb./118 kg. Repeatability is 0.0002”/0.005 mm. Straight-line accuracy is 0.007”/10” length or 0.018 mm/25cm. The coefficient of sliding friction is 0.09. Cross-sectional size is 3.175” (80 mm) x 4” (100 mm)
|
|
LoPro® is an actuated linear motion system based on Bishop-Wisecarver’s signature DualVee Motion Technology™, a proven, highly reliable design with over 30 years of field-tested installations.
LoPro provides smooth and quiet motion over long lengths, and offers unsurpassed performance in harsh environments. No other single linear motion system offers the flexibility of belt, chain, lead screw or ball screw actuation, as well as an undriven option. Systems may be mounted or un-mounted. Support beams are available in aluminum or steel to meet application demands and to provide ease of installation.
LoPro linear systems are available in four sizes, and can be built to accommodate virtually any stroke length (stroke is limited only by the method of actuation). With load capacities up to 5,000 lbs. (22,000 N) and speeds in excess of 8 meters per second, LoPro linear systems are suitable for numerous applications.
|
|
|
|
