The 9150 is a high performance linear-regulated 5.2V/60A programmable DC power supply that provides excellent performance and features not found in other supplies in this price category. This power supply was designed for applications in design verification, production or university labs that require high yet clean and reliable power, combined with excellent resolution, accuracy and fast transient response time.
* Very low ripple and noise due to linear regulation
* Excellent display resolution
* Fast transient response time (<100 µs)
* Programmable via USB and RS232 using SCPI compatible command set
* Closed case calibration
* List mode operation for increased throughput
* Very quiet due to intelligent fan speed control
* For bench use or rack mountable
* Application Software for front panel emulation and simple test sequence generation included
* Digital port with Remote Inhibit (RI) useful for turning multiple power supplies On/Off simultaneously
* Over voltage protection
* Digital Volt Meter and Milliohm Meter
|
|
|
|
|
|
The 9152 is a high performance linear-regulated 30V/18A programmable DC power supply that provides excellent performance and features not found in other supplies in this price category. This power supply was designed for applications in design verification, production or university labs that require high yet clean and reliable power, combined with excellent resolution, accuracy and fast transient response time.
* Very low ripple and noise due to linear regulation
* Excellent display resolution
* Fast transient response time (<100 µs)
* Programmable via USB and RS232 using SCPI compatible command set
* Closed case calibration
* List mode operation for increased throughput
* Very quiet due to intelligent fan speed control
* For bench use or rack mountable
* Application Software for front panel emulation and simple test sequence generation included
* Digital port with Remote Inhibit (RI) useful for turning multiple power supplies On/Off simultaneously
* Over voltage protection
* Digital Volt Meter and Milliohm Meter
|
|
|
|
|
|
The 9153 is a high performance linear-regulated 60V/9A programmable DC power supply that provides excellent performance and features not found in other supplies in this price category. This power supply was designed for applications in design verification, production or university labs that require high yet clean and reliable power, combined with excellent resolution, accuracy and fast transient response time.
* Very low ripple and noise due to linear regulation
* Excellent display resolution
* Fast transient response time (<50 µs)
* Programmable via USB and RS232 using SCPI compatible command set
* Closed case calibration
* List mode operation for increased throughput
* Very quiet due to intelligent fan speed control
* For bench use or rack mountable
* Application Software for front panel emulation and simple test sequence generation included
* Digital port with Remote Inhibit (RI) useful for turning multiple power supplies On/Off simultaneously
* Over voltage protection
* Digital Volt Meter and Milliohm Meter
|
|
Model 1762 Triple Output DC Power Supply delivers 0-60 V/0-2 A on 2 outputs and 4-6.5 V/4 A on 1 output. The 4 digit LED display offers 10mV and 1mA resolution, providing the capability to set voltage and current values more accurately and precisely compared to 3 digit displays found in most comparable power supplies. The power supply is fully overload protected and comes with a two year warranty.
Features:
* Continuously monitor voltage and current output on two 4-digit LED displays
* Connect two supplies in parallel to double the current output
* Connect two supplies in series to double the voltage output
* Constant voltage and constant current operation
* Reliable & durable
* Operate continuously at full load without overheating
* Fully overload protected
* Course and fine voltage and current controls
* Excellent regulation
* Very low ripple and noise
|
|
|
|
|
|
The 9151 is a high performance linear-regulated 20V/27A programmable DC power supply that provides excellent performance and features not found in other supplies in this price category. This power supply was designed for applications in design verification, production or university labs that require high yet clean and reliable power, combined with excellent resolution, accuracy and fast transient response time.
* Very low ripple and noise due to linear regulation
* Excellent display resolution
* Fast transient response time (<120 µs)
* Programmable via USB and RS232 using SCPI compatible command set
* Closed case calibration
* List mode operation for increased throughput
* Very quiet due to intelligent fan speed control
* For bench use or rack mountable
* Application Software for front panel emulation and simple test sequence generation included
* Digital port with Remote Inhibit (RI) useful for turning multiple power supplies On/Off simultaneously
* Over voltage protection
* Digital Volt Meter and Milliohm Meter
|
|
|
The Model 0901 power supply is intended for use with New Focus receivers and amplifiers, but can also be used for general laboratory applications. Two of the three ±15-V outputs have microconnectors that match the cables supplied with New Focus photoreceivers and amplifiers. The third output has banana jacks for use with other laboratory equipment.
|
|
PCR-LA Series
Multifunctional AC Power Supply (CV/CF) / 5 Models
Interfaces GPIB(option) RS-232C CE marking Drivers
PCR-W/W2 Series
High Efficiency AC Power Supply (CV/CF) / 6 Models
Interfaces GPIB(option) RS-232C(option) Drivers

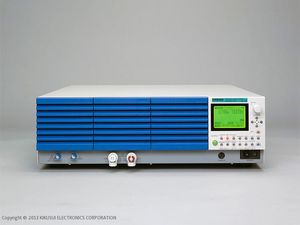

PCR-M Series -NEW-
Compact AC Power Supply (CV/CF) / 3 Models
Interfaces GPIB(option) RS-232C USB(option) CE marking Drivers
|
|
Features:
- Displays Summary Process Data
- Closed-Loop Temperature and Time Control
- Real Time Temperature Graph
- Stores up to 15 Heating Profiles
- Statistical and Graphical Output to PC
- Process Alarms and Counters
- Remote Programming via PC
Uniflow2 is a power supply for selective hot bar soldering, heat sealing and conductive adhesive bonding applications. Utilizing pulsed heat technology, it provides targeted heating and precision temperature control for a variety of components including flex circuits, ribbon cables, wires, SMT components, single or dual sided edge connectors and thermocompression bonding of gold ribbon.
|
|
|

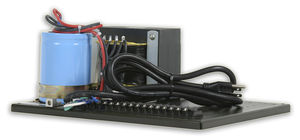

Universal 115/230VAC input and 3.75kV isolation safety transformer are standard features of all Convel 32000 Series Open Frame Linear Power Supplies. Extensive output voltage and current combinations are provided in single, dual and triple output versions.
|
|
|
Our power supplies are used in test laboratories, service centres, research and development departments and for production quality testing. They can be supplied with isolation windings, manual or automatic controls, electronic regulators or rectifiers to provide a DC output.
|
|
Performance:
The CLF series generators provide stable process power up to 5 kW. The half-rack supplies operate at any fixed frequency from 20 to 50 kHz. The full- rack models can operate at any fixed frequency from 20 to 450 kHz or auto-tuned up to +/- 15% bandwidth. In many applications, the combination of auto-tune and excess power headroom will allow delivery of power to changing reactive loads without the need for mechanically tuned matching networks.
Applications:
The CLF series is designed to meet the performance demand in RF-driven plasma systems for semiconductor processing. Applications include etch, RIE, parallel plate, ICP, RF sputtering, CVD and PVD, as well as induction and dielectric heating processes in industrial systems.
|
|
Macro Results for Micro Processes
Radio Frequency (RF) generators for plasma excitation are useful for a variety of sputtering and etching applications. Many critical processes can only be successfully performed with RF solutions.
RF generators, with their very high output stability, are used in manufacturing the tiniest of devices, such as semiconductors and micro components.
Listed below are the HUETTINGER generators available in the RF range.
|
|
Achievers for Large Areas and High Sputter Rates
Generators in the medium frequency (MF) range combine several advantages:
* Higher process stability than direct current systems,
* More cost effective than RF solutions,
* Ideal in large area sputtering processes with high coating rates,
* In dual magnetron applications, they are the building blocks for architectural glass and thin film coating systems.
As the leading manufacturer of generators for large-area coating worldwide, HUETTINGER offers the best there is in generators in the medium-frequency range.
|
|
| ... products without technical information |
| |
The models 1790 is a cost effective, high power, regulated DC power supply with 640 Watt output (0 to 32V, 0 to 20A). It is a linear high current DC power supply suitable for bench operation or standard 19" rack operation. This linear power supply is a high power workhorse that will easily deliver clean power to your high current circuits.
Constant Voltage/Constant Current Operation
Remote Programming Facility
Facility for Presetting the Output Voltage and Max.
Load Current Limits
Separate DC Output ON/OFF Switch
Remote Sensing Facility
High Stability and Close Regulation ±0.01%
Meet CE Specifications
|
|
|
|
|
|
Application
The ASi switch-mode power supply is a powerful and robust device to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage is 30.5 V. This power supply is optimally suited for loads requiring
high starting currents.
Functional principle
In the ASi power supply a flyback converter operates to transform the energy in two steps. During the conducting phase the diode is blocking, the inductor is energized and a magnetic field establishes. There is no electrical transmission; the consumer load is supplied with energy from the capacitor.
When the switching transistor opens, the blocking phase begins. The current in the inductor cannot change immediately, discharges through the diode and a negative voltage establishes at the inductor.
Now operating like a power source the inductor reloads the capacitor and supplies the consumer with energy. The energy flows from the inductor into the capacitor and the consumer and through the conducting diode back to the inductor.
Technical data
Input voltage: 85-270 VAC / 120-400 VDC
Output voltage: 30.5 VDC
Output current: up to 4.0 Amp
Power: up to 122.0 Watts
Efficiency: 89%
Operating temperature range: -30°C / +70°C
Mounting: on rails acc. to DIN 46277 or wall mounting with screws
|
|
