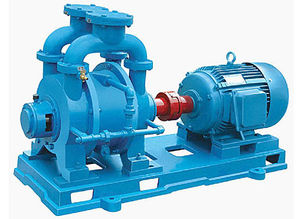

| Our Atlantic Fluidics axial flow liquid ring vacuum pumps are highly efficient and rugged. Their "abuser-friendly" shrouded rotor design allows starting even in a flooded state without fear of damage. Single and multistage pumps are available, capable of achieving ultimate pressures of 4 Torr (5.3 mbar). Close coupled and separate drive configurations are available. |
|
Key Facts for the NASH Liquid Ring Vacuum Pumps:
· Vacuum pumps from 20 CFM to 23,000 CFM
· Vacuum pumps to 29+ " HgV
· Vacuum pumps designed to operate safely, cleanly and continuously in wet environments.
· Require minimal care - known for extremely low maintenance.
· Provide years of dependable service and quality liquid ring vacuum pumps due to fewer, generously proportioned parts.
· Reduce power and operating costs of liquid ring vacuum pumps, handling higher capacities with less energy/power.
· NASH is the inventor of the liquid ring principle of operation
|
|
Technical data:
Capacity up to 1000(m3/h)
Vacuum up to 730 (mmHg)
Design:

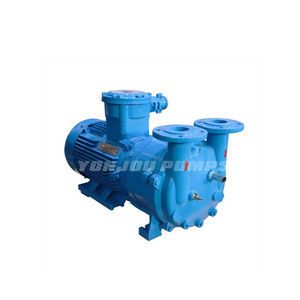

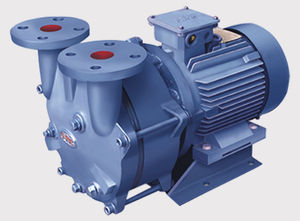

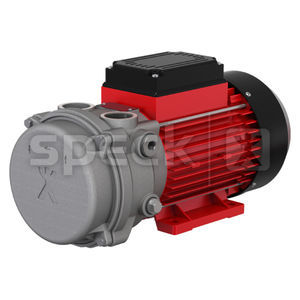

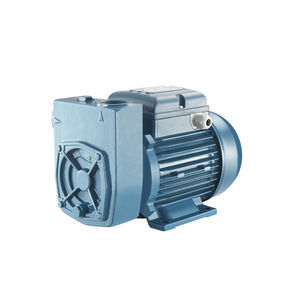

Liquid ring vacuum pumps CEL (single stage) and CEH (two-double) are rotary pumps, with star type impeller eccentrically placed in the cylindrical body.
The principle of operation is based upon the rotation of the impeller eccentrically placed in the cylindrical body, so that the auxiliary liquid forms “water ring”. During the rotation, a part of the water ring enters and emerges among the blades of the impeller so discharging (sucking part) of the operating gas (air), forms appropriate vacuum. The direction of rotation is signed with an arrow on the pump itself.
Except the impeller, the pump has no other movable parts, so that there is no need of any additional lubrication (except bearings) and the sealing between the impeller and the side plates is realizes with the auxiliary liquid.
The water ring also absorbs the whole water vapor that enters with the working gas, thus absorbing the impurities and taking off the heat of the gas.
The service liquid is usually water with optimal working temperature of +150C (max. 450C).
CEL - single-stage pumps with maximum vacuum of 610 (mmHg) can be used in

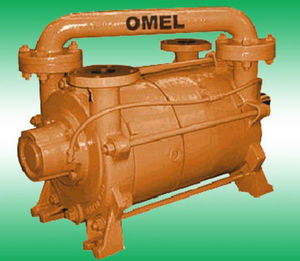

CEH – double-stage pumps with maximum vacuum of 735 (mmHg)
Applications:
- Paper and cellulose industry,
- Milking sets
- Absorption of vapors in ironing units
- Filter purification
- Humidity absorption of the fabric in textile industry,
- formation and maintenance of the vacuum in the vacuum plants,
- in chemical and pharmaceutical industry,
- in food industry,
- desalination plants,
- in impregnating equipment,
|
|
The comprehensive Sterling SIHI range of liquid ring vacuum pumps is available in single and two stage designs, with suction capacities up to 12000 m3/h and suction pressures in the range 33 to 1013 mbar. In addition, above atmospheric pressure these pumps can be used as compressors.
SIHI FULL RANGE PERFORMANCE
Capacity - 12,000 m3/h
Suction pressures - 33 to 1013 mbar

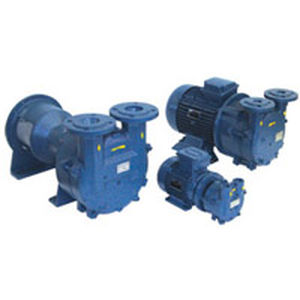

The latest addition to this is the SIHI LPH-X range, which is available in one and two stage variants and able to operate at 50Hz and 60Hz.
It has been designed for interchangeability with the well established LPHA range and offers the lowest cost of ownership.
SIHI LPH-X PERFORMANCE
Single stage:- Suction pressures - 120 to 1013 mbar
Suction volume flow - 50 to 850 m3/h
Two stage:- Suction pressures - 33 to 1013 mbar
Suction volume flow - 44 to 800 m3/h
FEATURES
• Interchangeable with previous LPH range
• Complies with ATEX legislation
• Single and two stage
• Modular construction
• Compact design
• Fewer components
• Extensive range of sizes, materials and
sealing combinations
• Seal accessibility
• Engineered systems
|
|
| KINNEY KLRC liquid ring vacuum pumps are ideally suited for pumping wet mixtures and even slugs of liquid. These rugged vacuum pumps are available in various construction materials such as stainless steel, cast iron, and bronze fitted. |
|
| Our Liquid Ring Vacuum Systems are ideal for pumping wet gas mixtures at low pressures. A wide variety of configurations are available, incorporating Kinney or atlantic fluidics liquid ring vacuum pumps. Performance ranges to 560 CFM (950 m³/h) in standard systems, or to 10000 CFM (17000 m³/h) in Engineered Solution Vacuum Systems. |
|
