Load break switch: switchblade with integral arc-strangler load breaking device for hinge-style mounting. This product includes a stationary core and a spring-loaded sliding sleeve which could quickly cut off the arc produced between the mounting contact and blade during load breaking operation.
Rated voltage: up to 15.5kV
Rated continuous current: up to 200A
|
|
|
GE's BreakMasterTM metal enclosed load interrupter switches provide dependable, economical load switching and protection for medium voltage circuit applications from 2.4kV through 15kV in 600 or 1200 ampere load interrupting ratings. Used mainly as a primary or secondary disconnect switch for transformers, the variety of configurations in which BreakMaster is available also make it useful for specific distribution needs. It can be inserted as a main or feeder switch in PowerVac switchgear or LimitAmp motor controller lineups. Fault current protection is available using a complete line of current limiting or expulsion fuses.
|
|
|
Ensto's family of load break switches consists of 3-pole switches with additional poles and accessories: handles, shafts, auxiliary contacts and terminal covers.
|
|
|
In application of new concept mechanism of bendable type blade structure LG Tri-MEC Air Insulited Load Break Switch (LBS) has been equipped with further advanced technology and in a system switching the circuits when checking, measuring, testing and repairing the instruments. at branch point with 3 phase load break switch designed customer-orientedly and considerably. In particular, a bendable type blade structure is significantly small in operation radius in contrast with existing direct line one and an arc discharge angle at the time of breaking operation is under 50°, thereby reducing the danger of accident by an arc remarkably. And it is suitable for a metal Enclosed, Pad-Mounted Switchgear and Package Substation thanks to higher insulation-resistant power and is equipped with durability, stability and economical efficiency. E2 class mechanical strength based on new standard application.
|
|

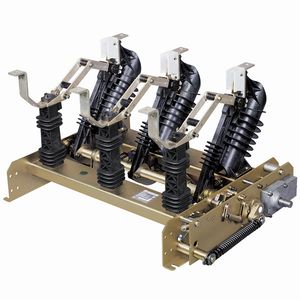

Disconnectors and switch-disconnectors vertical break design SBC range
Description
The disconnectors and switch-disconnectors SBC range is visible breaking, vertical break design and principally used in rural distribution networks. They are suitable for horizontal or vertical mounting on metal, concrete or wooden single or double poles.
SBC types have a load breaking head comprising a chamber and fast opening auxiliary blade.
This arrangement combines the high speed action of the auxiliary blade with the cooling and confining effect of the enclosure to restrict the arc and limit the production of gases
|
|

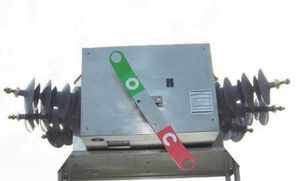

Yaskawa's SF6 load break switches are safer to operate than vacuum and other competitive types because the gas pressure is continuously monitored by a pressure switch and is mechanically and electrically interlocked if pressure is lowered. Highest quality porcelain bushings are used for longer and more reliable insulation performance, thus making the Yaskawa switch ideal for use in hostile and dusty environments such as mines, heavy salt-ridden coastal areas, and dense tropical areas.
Yaskawa furnishes the load break switch in three application configurations.
Pole
Pad
Submersible
|
|
MOTOR PROTECTION CIRCUIT BREAKERS
- Wide adjustment range, 0.1 to 100A
- Breaking capacity Icu 50kA at 400V, up to 100A
- Suitable for isolation
- Comprehensive line of accessories
- Front mount contacts
- Automatic trip indicators
- High reliability and accuracy of tripping.

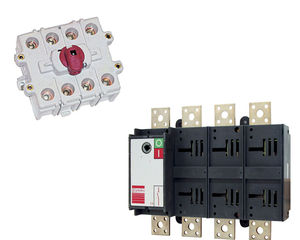

SWITCH DISCONNECTORS
- 16A to 1250A ratings
- Versions: direct operating handle, door coupling and in housing
- Wide range of accessories
- Three and four-pole types for photovoltaic applications up to 630A.
ROTARY CAM SWITCHES
- Wide range, 12 to 125A
- Suitable for circuit connection, changeover, switching
on and off, and motor starting
- Custom-made circuit schemes
- IP40 and IP65 front degree of protection
- 2 screw fixing
- Numerous types of features
- Approved by major international authorities.
|
|
A complete range of products, from infeed to branch
Mitsubishi Electric offers a complete range of switchgear products, including everything from air circuit breakers and compact moulded case circuit breakers to magnetic contactors and thermal overload relays. Standardised chasses, high reliability, simple installation, easy operation and trouble-free upgrading are just some of the outstanding features.
Mitsubishi circuit breakers and contactors conform to all major international industrial standards and shipping classifications. And they also are particularly attractive. For example, our Super AE series of air circuit breakers won the prestigious Industrieforum Design award for product design.

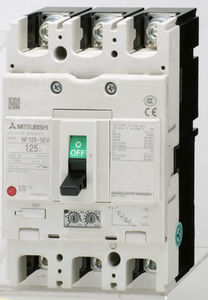

Air circuit breakers
• Super AE air circuit series
• Standard SW series
• High-performance SH series
Moulded-case circuit breakers
• WWS World Super Series
Magnetic contactors and thermal overload relays
• MS-N series
Motor protective circuit breakers
• M4 series
|
|
CIRCUIT BREAKERS FOR EQUIPMENT:
THERMAL:
SCHURTER's Thermal Circuit Breakers are designed for use in electrical and electronic equipment. They meet international safety standards. One-, two-, and three-pole types are available with different actuation and mounting styles.
THERMAL-MAGNETIC:
SCHURTER's Thermal-magnetic Circuit Breakers are designed for use in electrical and electronic equipment. They meet international safety standards. One-, two, three- and four-pole types are available with lever actuation for different mounting styles.
UNDERVOLTAGE PROTECTION:
SCHURTER Undervoltage Protection units meet international safety standards. Available current ratings range from 2.5 Amps to 20 Amps, for snap-in mounting.
POWER ENTRY MODULES WITH CIRCUIT BREAKER:
SCHURTER's Power Entry Modules with built-in Circuit Breakers meet international safety standards. Available current ratings range from 2.5 Amps to 20 Amps, for screw-in, snap-in, and PCB mounting.
|
|
|
|
|
|
With the CT contactor series Schaltbau is introducing a new and innovative contactor concept to the market: power contactors in a completely new style and design, specially developed for the sophisticated requirements of the railway industry. The outstanding technical feature of this new product is the innovative combination of electromagnetic and permanent-magnetic blowout technology for electric arc control. The successful combination of these two principles greatly improves both switching functionality and reliability and forms a practical and economically impressive device concept.
The innovative core of the new CT series is the electric arc control technology: in contrast to contactor concepts purely based on electromagnetic blowout, the arcs created at the moment of switching off are ignited in powerful permanent-magnetic blowout fields. Thus the dwell periods in the contact zones are limited to an absolute minimum. This leads to a significant reduction in arc-related burn-up when switching off. The lower degree of wear on the contacts makes it possible to greatly increase maintenance intervals.
The arcs blown out of the contact zones act as wear-free switches in the next phase: the skipping to adjacent arc modulators activates the blowout coils, making switching-off procedures independent of the direction of the current from that moment onwards. In the final phase the arcs pass through an arc chute, are stretched across the divergently arranged modulators and then effectively extinguished in a ceramic chamber. The special design of the extinguishing process reduces the discharge of ionised gases from the arc chute.
|
|
MCB10:1-pole
* Designated for home, commercial and industry electrical circuits up to 63A/230/400V AC
* Designated for protection of cables and wires against over-loading and short-circuit
* Possibility of connection with RCDs, unifi ed versionfor rated current in range 0.5-63A
* Indication of state of contacts marking ON/OFF on the switch
* Possibility of connection with RCB
* Possibility of auxiliary switch connection
* Possibility to mark circuits
|
|
Circuit-Breakers for Motor Protection Series 8523/8
Explosion protection to
CENELEC
IEC
Can be used in Zone 1 and Zone 2
Optional equipment
auxiliary circuit switch 1 NC + 1 NO or 2 NC + 2 NO
under voltage trip
hunt trip (open-circuit trip)
Switch operation with knop
Secure switching
Clear switch setting indicator
Different current setting ranges
|
|
RCB-2:Residual current device 2-pole
* Residual current devices RCB-2 are used as protection of energized parts in a circuit against indirect touching. It is a protection against direct touching, against residual voltage on grounded parts which apear when there is a fault in eletrical installation and for prostection against direct contact with energized parts in case IΔN ≥ 30 mA.
* RCDs can be used in the main systems TN-S, TN-C, TT or in other words - in all systems where there is separated neutral and protective wire (VDE 0100 part 410).
* Residual current device RCB-2:
* Type A - sensitive to alternating and pulsating direct current
* Type AC - sensitive to alternatingt and residual current
|
|

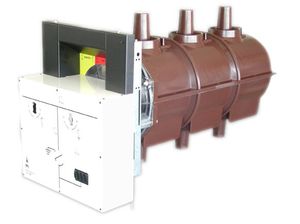

The CVB Series vacuum circuit breaker is the main electrical switch and protection device of AC locomotives and electric multiple units. Mode of operation: The energy required to switch on the CVB is stored by a spring. It takes only a small pulse energy to unlock the main spring release latch and set free the stored energy. As soon as the supply voltage is applied, the spring gets recharged in less than 10 s. When no control voltage is being applied, the vacuum circuit breaker is in switched off position and the spring remains charged and ready for the next switching operation.
Features:
- Electrically driven vacuum circuit breaker
- No secondary supply energy like pressurized air required
- Versions for 15 kV to UIC 550 available
- Following the fail safe principle
Application:
- AC main switch in electric locomotives and EMUs
|
|
|
|
|
|
Gerapid high speed DC circuit breakers are single-pole circuit breakers designed for use in high energy, high reliability DC power distribution systems. They are suitable for protection of mains and semiconductors (converters/rectifiers) in railway and industrial applications. Feeder circuit breakers and rectifier circuit breakers are available with operating currents up to 8,000ADC and operating voltages up to 3600VDC. They have a very high interruption capacity combined with a current limiting characteristic.
Innovative materials, superior circuit breaking capacity and outstanding dielectric performance ensure service continuity and protection during adverse system events. The technology and quality of these circuit breakers produce high reliability, extended maintenance intervals and uncomplicated serviceability for all fixed installations
Features and Benefits
- Ratings up to 8000A and 4000 Vdc (3,600 Vdc, ANSI)
- IEC 947-2, EN50123-2, and ANSI C37.14 Certifications
- Solenoid drive (integral control unit, mechanically latched, no auxiliary power required to keep contacts closed)
- Available electrodynamic release for very high speed switching
- Two Stage contact system extends life of main contacts
- Compact, enclosed construction
- Full range of accessories, including up to 10 auxiliary contacts
Applications
- Traction power (light rail transit, tram, subway, maglev, etc.)
- Industrial plant protection (electrolysis plants, iron and steel mills, etc.)
- Mining
- Chemical, petrochemical
- Power generation
- Research/experimental (e.g., physics, particle accelerator protection)
|
|
Using a bimetal, snap–acting disc as the sensing and actuating element, the Klixon® C Series thermal circuit breaker provides trouble free over–current protection for harsh environments.
Applications Accessory and equipment protection for heavy trucks, buses, construction equipment, off–road vehicles, RV’s Battery protection in electric vehicles
|
|
Short description :
Provide personal protection from ground faults and open neutral conditions anywhere electrical equipment is used. Ptortection for the job site, plant floor or workshop. Each product is UL Listed and meets OSHA specifications.
|
|
|
|
|
|
For today's customers building machines for use throughout the world, the new Bulletin 1489 helps with compliance for the varied circuit protection requirements. The Bulletin 1489 line is listed for branch circuit applications in the United States and Canada and approved as a miniature circuit breaker for IEC applications.
Designed to meet North American and IEC standards the 1489 product line provides a variety of configurations with current ranges of 0.5 A to 40 A and voltage ranges of 240V AC and 480Y/277V AC. The 1489 circuit breakers also have a DC rating: 1-pole 48V DC and 2-pole 96V DC series. This versatility can reduce engineering costs, save time for OEMs, panel builders and end users and can help meet safety standards.
In North America, the Bulletin 1489 meets UL 489 and CSA 22.2 No. 5.1 standards for branch circuit protection as well as IEC 60 947-2 requirements for miniature circuit breakers used in international industrial applications. To address the needs of equipment protection that are installed in electrical control panels, the new device helps with the equipment protection circuit formally only associated with UL 1077. It provides users with circuit protection from 0.5 amps to 40 amps and up to 480 volts.
For ease of installation a series of 1489 busbars (80 A) are now available, certified to UL489. These busbars are available in: single phase, two phase, and three phase versions.
As circuit protection standards evolve to meet application demands, Bulletin 1489 gives users a safer, reliable option that protects personnel, equipment and facilities from electrical hazards.
|
|
The market-leading Modular Control System (MCS) offers you more freedom to configure load feeder solutions through 1200 A. MCS load feeder components provide the following control and protection functions:
- Disconnecting means
- Short-circuit protection
- Load switching
- Motor overload protection
- Status indication and signaling
- DeviceNet™ communications
|
|
|
|
|
|
Maximum safety and continuity of the electric power supply
REC2 is a self-reclosing system that uses consecutive time sequences, with an additional insulation control capacity, so that it does not reclose the unit until the problem has been solved. Therefore, it maintains the highest continuity of the electrical service under the maximum safety levels, with the minimum number of reclosures needed when the electrical installation requires so. Years of experience in these applications leads us to:
- A safe earth leakage protection unit.
- Maximum self-reclosing guarantees.
- More compact and modular.
The new REC2 can act in two ways, according to prior selection:
- Self-reclosing, by time (various reclosure attempts in a time sequence)
- A second option is that once the earth leakage system has tripped, the unit checks if there is a leak, measuring the insulation of the installation before the self-reclosing process is carried out.
The system guarantees the maximum continuity of the electric power supply in homes, shops, industries, etc. while it guarantees the protection against any form of earth leakage.
|
|
Transformer differential protection systems: DQ2S 2, DQ3S 2
Devices DQ2S2 and DQ3S2 are complex protectors for use with transformers- and motors.
Their main purpose is to stabilize differential protection. Two base models are available:
- DQ2S 2 for two-winding transformers
- DQ3S2 for three-winding transformers
|
|
|
|
|
|
Breaking Contacts
TemPower 2 is the world's first Double Break ACB, having two breaking contacts per phase. The unique pole structure means that the short-time withstand rating (Icw) is equal to the service short-circuit breaking capacity (Ics) for all models.
Packing Density
You can increase switchboard packing density using the smallest one second rated ACB on the market. The fixed version is 290mm deep, the drawout version is 345mm deep.
Reliability
Double Break contacts increase service life. Electrical and mechanical endurance ratings are the best available, and exceed the requirements of IEC 60 947-2.
Double Quick Opening
TemPower 2 ACBs clear short-circuit faults in less than 30ms. That%u2019s twice as fast as most ACBs.
Double Opening and Closing Coils
Now you can extend control system redundancy to an ACB. Double coils allow designers to implement back-up tripping and closing systems.
Double Neutrals
How do you make a system harmonic proof in the face of increasing triple-N harmonic currents? Terasaki have launched the first Double Neutral ACB. The AH-60DN will carry 10,000A of neutral current.
Protection Characteristics
TemPower 2 is the only ACB which offers time-current characteristics to 3 different standards:
IEC 60 947-2 (low voltage circuit breakers)
IEC 60 255-3 (electrical relays)
Lloyds Register of Shipping (for marine generator protection)
All models have LSI protection.
Double Insulation Properties
All operator controls and accessory locations are double insulated from the main phases.
ReduceTime to Repair
Modular construction means that each pole of the TemPower 2 ACB can be replaced in about 15 minutes - by the user. This unique feature will reduce downtime for end-users.
|
|
High breaking capacity
- LS Ace-MEC ACE provides high breaking capacity up to 100kA
Various certification and approval
- LG Ace-MEC ACB is type-tested by IEC 60947 and GB 14048-2-94 standard
- KEMA (Netherlands), ESI (Italy), CCC (China), KERI (Korea), ISO 9001, ISO 14001
Compact & Modular design
- More compact overall dimensions and light weights.
- LG Ace-MEC ACB have been made three types of modular design criteria to facilitate their installation and
integration in low voltage switch boards.
|
|
630 to 1600 A hight current circuit-breakers
Description
Nominal current:630 to 1600 A
Breaking performance:42 to 150 kA at 220/415 V AC
Voltage rating:up to 690 V
1 single physical size from 630 to 1600 A
A single pole pitch of 70 mm
3 and 4-pole versions
4 Micrologic control units enriched by measurement, energy management and network analysis functions
Earth leakage protection built into electronic protection
Wide range of common auxiliaries and accessories interchangeable on site
Compliance with international standards IEC 60947-1 and 2, IEC 68230 for type 2 tropicalisation, UL489, ANSI and CCC
Compliance with specifications of marine classification companies:Bureau Veritas, Lloyd’s Register of Shipping, Det Norske Veritas, etc.
|
|
Terasaki developed its original breaker for the first time in Japan in 1947.
Since then, the company has been offering, as a specialized breaker
manufacturer, the most advanced breakers not only to the Japanese market, but
also to the world markets.
The TemBreak series of Moulded case circuit breakers, which is evaluated as
highly reliable by our customers, has been improved from time to time for better
performance through Terasaki's advanced technologies.
In 2000, the TemPower 2 series was released to replace the Tempower series of
air circuit breakers, which had received high reputations for many years. This
new series consists of small, high-performance air circuit breakers featuring
advanced information and communication capabilities.
Terasaki is ready to meet the customers' requirements in the 21st century through
its diversified model lineup and its broad range of enhanced products.
|
|
Application:
Miniature circuit breakers ETIMAT DC are used for protection of conductors in direct current
electric circuits. 1-pole circuit breakers are used for voltages up to 220 V d.c. and for higher voltages (up to
440 V d.c.) 2-pole circuit breakers with poles connected in a series. When connecting the MCB ETIMAT DC
man must pay attention to polarity. If connected in a wrong way, the MCB can be destroyed. You cannot use
two 1-pole MCBs instead of one 2-pole MCB.
|
|
Overview:
Choose 1" THQL breakers or GE's exclusive 1/2" THQP circuit breakers (THQP are available for most load centers). Both are superior products and because the compact THQPs make the most of available panel space, you can install smaller load centers to save money and space in both new installations and service upgrades.
Features and Benefits
- 1"or 1/2" breaker sizes available
- Copper to copper connections, with corrosion-resisting tin plated stabs
- Every breaker exceeds UL, NEMA, ANSI, CSA requirements
- 65° C/75° C Conductor Rating
- Quick make/Quick break box type terminals
- Handle trips to center position, giving a clear indication of a tripped breaker
- Multi pole circuit breakers incorporate internal common trip
|
|
Hitachi Mould Case Circuit Breaker ( Fuse-Free Breakers ) & Earth Leakage Breakers are designed for circuit protection of low-voltage distribution systems. They are suitable for applications as main breakers, protection of branch, feeder circuits and connected apapratus.
Quick contact inspection/ Easy contact replacement.
Easy wiring/ High safety/ High Reliability.
DIN rail mounting mechanism.
|
|
|
Circuit breakers offer circuit protection, which is far superior to fuses in applications containing relay circuits, motors, heaters, transformers, solenoids and semiconductors.
|
|
|
Circuit breakers offer circuit protection, which is far superior to fuses in applications containing relay circuits, motors, heaters, transformers, solenoids and semiconductors.
|
|
|
|
