A range of robust electromechal safety door locks for industry
autoLok - has a heavy duty tongue and head where the tongue allows ± 12mm misalignment. The tongue and head unit can rotate in 90° increments. It is a key operated auxillary release in the event of a power failure. The product is ideally designed for machines without run down cycles where quick and freguent acess to equipment is required, via either hinged or sliding professional doors.
|
|

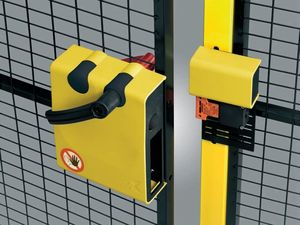

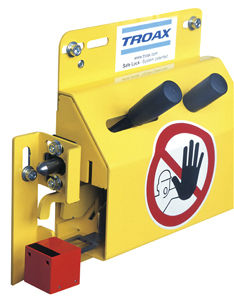

| Devices that are single or multiple panel door interlocks designed to fit onto all types of access professional doors and gates. |
|
GENERAL:

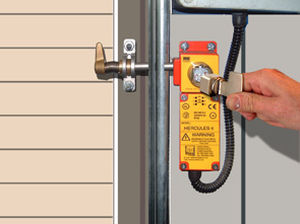

The Hercules access interlock is used on hinged and sliding professional doors as a part of a interlocking system with the function of preventing access to dangerous areas.
OPERATION:
Key free-bolt suppliers trapped-2n/c 1n/o
The interlock prevents the opening of the bay door by the means of bolt which can be released only when the key is inserted and turned. Rotation of the key operates theelectrical contacts within the Hercules. With the bolt removed and the
Weight: 1.3 Kg
Temperature range: Min. -30°C (Ice free) Max. +80°C.
Bolt material: Brass & stainless
Housing material: Aluminium
Lock material: Mazak & brass
Ingress Protection: IP65
Mechanical lifecycle: 200,000 operations
Switch Standards: IEC 947-5-1.
Approvals: VDE,UL, & CSA.
Suppliers of cable gland: PG11
Current: 10 A
Max voltage: 500V. |
|
| ... products without technical information |
| |
| ... products without technical information |
| |
This manufacturers of bolt is blocked when it is in "off" position, the block is made by a spring incorporated on it, the unblock is made by an electrical signal.
The key has two positions, in the locked position the key can´t be removed, to remove it, it is necessary to unlock the bolt.
It is designed to protect properly people from electrical accidents, it is assembled inside the front of the high, medium and low voltage electrical equipment. |
|
| Loading bay door interlock used on manually operated doors to link the Salvo emergency airline lock to the door. |
|
| ... products without technical information |
| |
| EAO key lock switches with the option of 2 or 3 positions and protection up to IP 67. The key lock switch can be modified with bezels for raised or flush mounting. |
|
The Keyswitch consists of a 2NO/2NC contact arrangement which is wired into the machine circuits. Removal of the key selects machine stop at the end of a run down cycle. When the electro magnet had been energised within the AutoLok, or AmLok access can be gained. The operator takes the safety key into the hazardous area preventing inadvertent restart of the machinery.
|
|
TH-Contact key lock switch
Features:
a range of robust high quality 2 and 3 position key switches
supplied complete with precision made cylinders for maximum security.
A large selection of different coded locks and central locking keys make up the programme;
special key coding is available upon request. |
|
| The KO Series keylock switches come in multiple styles with many combinations. Included are the barrel and flat key options, variety of key code options. Also available are the Keylock covers, the KOM and KOC series. Please see the PDF data sheet to the left to view all the different options. |
|
Honeywell's Hobbs key switches are custom engineered, environmentally sealed, sliding contact switches. They can be designed to match existing keys or to use a six tumbler mechanism with up to 300 unique key combinations. The stainless steel keyhole shroud and keyhole dust shutter contribute to the durability of the assembly while O-rings protect the contact and rotor assembly from moisture and contamination.
Key switches can be used in off-highway, material handling or any other application where environmental specifications must be met. They have been tested for temperature, vibration, dust, cycling, humidity, pressure wash and salt fog and mount into a 22,10 mm (0.87 in) hole in panels 3,81 mm to 6,35 mm (0.15 in to 0.25 in) thick. |
|
| This appliance is used to simultaneously perform a certain number of operations and insert a block which requires manual intervention in order to be cancelled. It is used in conjunction with automatic protective devices and intervenes in the event of machine faults of such nature as to require an inspection or check on service conditions. Therefore the lock-out relay prevents restoration of service until the standards conditions have been manually reset. |
|
General Purpose Heavy Duty Keylock Switches — AC/DC Rated
General Purpose
These keylock switches provide reliable performance in a space saving design. They all utilize Quick-make/Quick-break switching mechanisms, with wiping action blades for self-cleaning contacts.
Heavy Duty
These switches have a Slow-make/Slow-break switching mechanism with large butt type contacts. Their high current switching capability allows them to be used for locking switching circuits in power applications.
Ratings:
See selection table.
Circuits: General Purpose 1PST, 1PDT, 2PST, 2PDT.
Maintained action.
Heavy Duty 2PST, 2 Circuit.
Maintained.
Contact Mechanism: General Purpose Quick-make/Quick-break wiping action.
Heavy Duty Slow-make/Slow-break butt contact.
Contact Material:
General Purpose
Movable - Bronze silver plated.
Stationary - Brass silver plated.
Heavy Duty
Movable - Silver cadmium oxide.
Stationary - Silver cadmium oxide.
Termination Types:
General Purpose
Solder Lugs - Brass silver plated.
Heavy Duty
7842 Series:
Screw Terminals - Brass designed to accept #7-32 x 3/16 binding head (Cat. No. 11-6085-2) screws.
Furnished unassembled.
7846 Series:
Quick-Connect Terminals - Brass. |
|
| ... products without technical information |
| |
|
|
