Centralised lubrication for up to 20 lubrication points
The SKF SYSTEM MultiPoint automatic lubricator LAGD 1000 is a reliable centralised lubrication system offering lubrication solutions for bearings and machinery. The LAGD 1000 uses a high-pressure pump and a progressive feeder for lubricating from 6 to 20 lubrication points. Supplied as a complete ready to use kit, all accessories required are included in the box.
- Suitable for greases from NLGI 000 to NLGI 2
-Sturdy, robust design with IP65 rating, suitable for most industrial environments
-Transparent reservoir, allows visual monitoring of lubricant level
- Progressive divider so that exactly the same amount of grease reaches each lubrication point
-1 litre (33,8 US fl. oz) refillable grease container, increases intervals between re-filling
-Extensive programming options, allowing flexibility to suit most applications
-Empty container alarm, helps reduce the risks associated with lack of lubrication
-Wide temperature range, helps meet a variety of tough operating conditions, year round
-Cycle switch function (not on battery version) notifies operator of blocked outlets so that proper action can be taken
-Battery powered version available
|
|
The simalube multipoint, driven by the worldwide patented gas generating gas drycell, lubricates automatically and reliably 5 lubrication points to the required quantity. It operates automatically 24 hours a day, 7 days a week, and it is adjustable from 1 to 12 months.
By means of an intelligent snapping system, the empty lubricator can be removed from the fitting connection and easily be replaced by a new lubricator.
|
|
The automatic lubricator simalube provides all possible kinds of lubricating points with lubricant. 24 hours, day in, day out. Roller bearings which are not lubricated sufficiently or wrongly drop out long before they have reached their expected product life. simalube lubricators guarantee a consistent supply of lubricant in the pre-adjusted proportioning. Shutdown times are decreased and costs in comparison to time-consuming lubrication by hand are clearly reduced.
Within seconds simalube is fixed to the lubricating point. On commissioning, a gasproduction cell is activated which presses the lubricant on the lubrication point through the release of hydrogen gas. The lubricating amount can be steplessly adjusted by means of an Allen key.
Filled with oil, simalube is applied for the automatic lubrication of chains, open gears or guide rails for example.
simalube convinces through:
· Reliability
· High efficiency
· Universal use
· Refillability
· Best environmental compatibility
|
|
The New HDI Product Range - suitable for medium to large machine tools, fixed plant in quarries, steel works, coal mines, cement works and large cranes where a choice of lubricant from SAE 90 oil to NLGI grade 2 grease is required.
The Progressive Grease pump is an electrically operated pump, supplied with a 12/24v DC Internal controller with external digital display, which can be fitted with up to three pumping units. Available with 3, 6 ,9 and 15 KG reservoirs, delivering precise amounts of lubricant through progressive distribution blocks, providing the user with lubrication point versatility and reliability.
Progressive HDI Pump
Pumps Lubricants including and up to Heavy Grade 2 greases
Delivery pressure: 350Bar Maximum
Output: 4.2cc per minute per outlet.
|
|
MEMOLUB EPS is a single/multiple point lubricator powered by an external 4.5, 12 or 24V source.
It’s high lubricant ejection pressure of 25 bar opens up a new wide range of applications not possible with conventional systems.
MEMOLUB can be used remotely up to 8 meters from the lube point. Remote installation avoids dangerous or difficult access points. Machine stoppage for lubrication can be avoided by using MEMOLUB HPS systems. Combined with progressive distributor blocks, MEMOLUB systems are a simple and economical way of reducing maintenance costs.
|
|
|
|
|
|
SKF SYSTEM 24 LAGE series
The LAGE series of the SKF SYSTEM 24 family are single point electro mechanical driven automatic lubricator systems. Suitable for a wide range of applications and operating conditions, the units are reliable and flexible in operation. Supplied ready to use straight from the box and ease of installation makes the units a perfect complement to the comprehensive range of SKF automatic lubricators.
-Electro mechanical driven makes the unit highly reliable in operation
-Available in two sizes: 122 ml (LAGE 125) and 250 ml (LAGE 250)
-Remote mounting up to 3 meters (10 ft) for grease filled units and 5 meters (16 ft) for oil filled units allows lubrication of bearings in areas with high ambient temperatures, vibration or hazardous environments
-Available filled with various high quality SKF greases and oils
-Refill sets consisting of a canister filled with SKF Grease or Oil and a battery pack help ensure reliable lubricator operation
-Flexible user adjustable dispense settings of 1, 3, 6, 9 or 12 months
-Ingress protection to IP 65 level allows the lubricator to be used in many dusty and wet environments
-Temperature independent dispense rate
-Unlike gas powered units, a maximum discharge pressure of 5 bar can be achieved over the whole lubricant dispensing period
-Easy activation using a clearly marked dial helps minimize setting errors
-Transparent lubricant container allows visual inspection of dispense rate, whilst electro mechanical functions are indicated by simple red-green LED indicators
-UL listed
-Wide range of accessories is available
|
|
The EP4 pump is an ideal prelube oil pump for large engines, but it is also a great oil or fuel transfer pump for limited duty cycle applications. It performs well with high viscosity oils. As a positive displacement pump it will self prime but is more efficient and quieter than a gear pump. Anywhere you need to move oil or fuel around you can do it easily and safely with a reliable EP4 pump.
The EP4-24 is powered by a self-contained motor running on 24 Volt DC power. The EP4-12 is the same unit running on 12 Volt DC power. Both voltages are capable of pressures in excess of 60 psi, with a pressure gauge built right into the face to show it.
|
|
MEMOLUB FULL CONTROL is an automatic lubricator powered by batteries or by an external 24V power source for the multiple point lubrication of mechanical components.
Easy to install and to use, it allows a complete control of the lubrication and warns users from any lubrication default.
MEMOLUB FULL CONTROL is designed for lubrication of critical components or components needing a permanent control of lubrication.
|
|
The MEMOLUB HPS system is an autonomous single/multi point electro-mechanical lubricator. It's high lubricant ejection pressure of 25 bar opens up a new wide range of applications not possible with conventional systems.
MEMOLUB can be used remotely up to 8 meters from the lube point. Remote installation avoids dangerous or difficult access points. Machine stoppage for lubrication can be avoided by using MEMOLUB HPS systems. Combined with progressive distributor blocks, MEMOLUB systems are a simple and economical way of reducing maintenance costs.
MEMOLUB is a refillable lubrication system : simple and easy repleacable cartridge packs are available in three sizes, 120cc, 240cc and 480cc.
|
|
MEMOLUB EXII3GD is an autonomous single/multi point electro-mechanical lubricator designed for places where an atmoshpere which could explode due to gases and/or dust can occur. It's high lubricant ejection pressure of 25 bar opens up a new wide range of applications not possible with conventional systems.
MEMOLUB EXII can be used remotely up to 8 meters from the lube point. Remote installation avoids dangerous or difficult access points. Machine stoppage for lubrication can be avoided by using MEMOLUB EX. Combined with progressive distributor blocks, MEMOLUB systems are a simple and economical way of reducing maintenance costs.
MEMOLUB EX is a refillable lubrication system : simple and easy repleacable cartridge packs are available in three sizes, 120cc, 240cc and 480cc.
|
|
|
|
|
|
SKF SYSTEM 24 – Single point automatic lubricator
LAGD 60 and LAGD 125
Reliable, cost effective automatic single point lubricator
The LAGD series of the SKF SYSTEM 24 family are automatic gas driven single point lubricators suitable for many applications. The units are supplied ready to use straight from the box and filled with a wide range of high quality SKF lubricants. Tool-free activation and time-setting allows easy and accurate adjustment of lubrication flow.
- Gas driven lubricator is reliable in operation and flexible in application
- Available in two sizes: 125 ml (LAGD 125) and 60 ml (LAGD 60) to suit most bearing lubrication applications
- Compact size, permits installation in restricted areas.
- Available filled with various high quality SKF greases and oils, to suit a
wide range of applications
- Flexible time setting period ranging between 1 and 12 months
- Ingress protection to IP 68 level allows the lubricator to be used in most dusty and wet environments
- Wide operating temperature range to suit many applications
- High reliability and dispense rate accuracy helps facilitate predetermined replacement date
- Dispense rate setting is a simple part of the installation process and
can be temporarily deactivated
- Transparent lubricant container allows visual inspection of dispense rate
- Intrinsic safety rating: ATEX approved for zone 0
- Wide range of accessories is available
- SKF SYSTEM 24 LAGD series is fully featured in SKF DialSet 4.0
|
|
Centro-Matic®
Single-line parallel systems for grease and oil
Quicklub®
Single-line progressive system for grease and oil with block-type metering valves. Limited selection focused on applications in the United States. See full line of products in the Multi-line and Quicklub menu below.
Modular Lube®
Single-line progressive systems for grease and oil Pump-to-point lubricator for oil with segmented metering valves
ORSCO® Engineered Systems
Precise, non-mist oil lubrication systems for chains, conveyors, high speed spindles and other applications
Duo-Matic® (Discontinued)
Medium-pressure two-line system for grease or oil
Fittings and Installation Components
The very best lube fittings for every application and all the accessories you need to complete your system installation.
Railroad Lubrication
Lincoln's Railroad Lubrication System offers advanced technologies to evenly distribute grease, resulting in the most efficient solution in the market.
|
|
|
perma PRO is a battery-operated multi-point lubrication system with a lubricant volume of either 250cc or 500cc. The discharge period can be individually set from 1 day up to 24 months. perma PRO MP-6 functions as a multi-point lubrication system and can individually supply 2 – 6 lubrication points. No pressure is lost due to direct lubricant distribution. perma PRO can also be used as a single-point lubrication system without the MP-6 distributor.
|
|

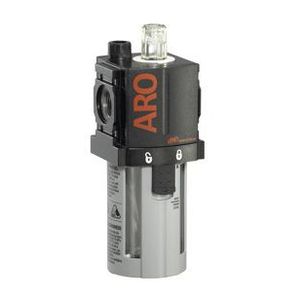

In-Line Lubricator :
In-Line Lubricators assure proper lubrication for small pneumatic hand tools. These in-line lubricators put the oil source right at the tool. Oil capacity is 1/4 oz. (1 ml) enough to last through an average 8-hour shift. This lubricator requires cyclical or intermittent airflow for proper operation, and consequently works best when installed at the tool inlet or on a short hose near the tool.
|
|
The prerequisite for trouble-free operation is the uninterrupted supply of sufficient, fresh lubricant to all lubrication points. perma CLASSIC lubrication systems offer predictable and consistent lubrication.
The reliable operating principle is based on an electrochemical reaction. perma CLASSIC can be used in any type of industry and millions of them are being used worldwide.
|
|
|
|
|
|
Extend Machinery Life with Proper Lubrication
Elliott's Packaging Solutions business is a global leader in the design, manufacture and packaging of lubrication, sealing, fuel, and piping systems for all types of rotating equipment. Our dedicated team of designers and experienced fabricators, welders and service personnel produce and install packaged systems engineered to meet customers' precise needs. We routinely deliver packaged systems such as gas turbine fuel forwarding manifold assemblies, integrated lube and seal oil systems, dry gas seal and buffer gas seal packages and steam turbine generator sets.
Nearly 80 years ago, Elliott first began to manufacture oil consoles for its own turbomachinery. The quality and reliability that Elliott engineered into these systems soon led other equipment manufacturers to begin specifying Elliott systems and packaging for their own apparatus. Today, Elliott manufactures complete auxiliary systems for non-Elliott turbomachinery OEMs in the U.S. and international markets.
|
|
The lubrication system PSD 250 is a spray and dosage system for high-viscosity lubricants in the viscosity range around 1.000mm²/sec.
The lubricant consumption is dependent only on the discharge pressure, in addition to the used lubricant and the factory presets (type of the installed dosage heads and feeder tube length to the nozzle). The circulation device in the bottom prevents a sedimentation for the solid lubricant particles.
This lubrication unit is particulary suitable for formdrilling process.
|
|
Ideally suited for plant in continuous operation: Steel Works, Cement Works, Rolling Mills, Large Cranes and Sewage Processing.
Designed for heavy duty performance and reliability, these multi-line radials are equipped with integral pumping units which deliver an adjustable volume of lubricant to each bearing feed line.
A maximum of 30 outlets is provided. Additional points may be covered by distribution blocks.
Radial Systems
MR/AF Range
Lubricants incl. Grade 2 grease
Ideal for larger installations such as steel works, fixed plant and coal mines
|
|
The automatic multi-line AX Range provides centralised lubrication at a fraction of the cost of conventional grease systems. They are constructed of waterproof and corrosion resistant materials, making them ideal for all types of industry and can be used on applications with up to 60 points where a multi-line system can be installed.
The AX Range are of self contained, automatic, electrically driven pump units, available with a maximum of 60 outlets in a choice of 110 or 240 volt rating. Larger models for special applications can also be supplied.
Integral pumping units deliver a precise volume of lubricant to each bearing feed line and in the event of accidental damage to one line the remaining lines are unaffected.
|
|
These hydraulic pump units are for the closed circuit lubrication of special machines.
They are tailor-made to designs developed with the design offices of our industrial clients.
The CMtec positive-displacement pump carries the lubricant in a closed circuit between the machine to be lubricated and the oil sump of the lubrication unit. The assembly forms a self-contained unit that may be mobile.
These units are fitted with :
· Closed oil sump
· Filler breather
· Suction tube with oil strainer
· Visual level indicator with thermometer
· Motor-pump unit
OPTIONAL EXTRAS
· Air cooler
· Filtration system
· Heated tube
· Pressure control gauge
· Other tailor-made options available on request
|
|
The flexible high performance heavy duty electric grease pump solution.
DUAL PUMPING MODULE
400cm3 (2x200cm3) pump modules installed in tandem configuration provide 400bar (5880 psi) and redundancy .
This allows the system to continue working even if one pump module becomes ineffective.
Sumo pump is suitable for large single line or dual line systems.
INSTRUMENTATION MODULES
Sophisticated add on instrumentation modules and options means even complex requirements can be met with off-the-shelf standard product.
QUICK SWAP SYSTEM
Both pumping modules can be quickly replaced from the front mounting of the pump. No pipe work needs to be disrupted meaning near-zero downtime during maintenance.
DUAL LINE OR SINGLE LINE IS EASY
The outlet plate fixing system has both Pressure and Return ports.
The outlets are directly compatible with Dropsa's electrical or pneumatic line inverters (including Modular version).
|
|
The Lubeplus GX is ideally suited to mechanical applications and plant used in the food processing, packaging and printing industries. Can accommodate systems with up to 200 lubrication points.
Lubeplus GX is designed to operate with Positive Dsplacement Units (PDU) or with Metering Flow units . The lubricator is available with a wide combination of condition monitoring features and a choice of 'with' or 'without' microprocessor control.
Gear Pump operation
Max. operating pressure 25 bar
Can pump Oil or fluid grease
Available in 3 or 6 litre reservoirs.
Supply voltages 110v or 240
|
|
|
The High-Speed Compact internal gear pumps offer heavy-duty design and small footprint for rotating equipment lubrication such as compressors and turbines. They are just one of many options that Viking offers for lubrication pumps. Others include gearbox lube pumps that pump in one direction regardless of shaft rotation, pump kits for OEM lubrication applications, and a variety of internal gear, external gear and gerotor pumps suitable for lube oil and grease applications,
|
|
Technological Features
Avoid health and environmental hazards
High cost savings
Enormous increase in productivity possible
Cleaner products with higher surface quality
Longer tool service lives
Very little consumption of lubricant
Very user and maintenance friendly
Produces dry chips, and clean machines
|
|
TYPICAL APPLICATIONS
STOCKLUBE SYSTEMS
The systems consist of a lubricating head assembly and a pump and tank unit. Lubricating heads are available in three sizes for maximum sheet width of 6, 12 and 24 inches and are adjustable for stock thickness up to 3/16 of an inch.
|
|
The Electric barrel pump ready to be used on Progressive and Dual Line Lubrication systems.
The CannonPump has been designed to meet the requirement of designers that require a traditional barrel pump approach to system design when no compressed air is available.
|
|
|
|
|
|
BRAVO: THE SMALL PUMP PACKAGE WITH BIG FEATURES
This small pump package contains many innovative features exclusive to DropsA allowing fresh possibilities in lubrication systems engineering.
It is suited for not only for indoor industrial applications but also mobile plant and vehicle lubrication systems.
VARIO-DRIVE: THE INNOVATIVE SYSTEM
VARIO-Drive is a new power management system for the pump motor that protects and adjusts the pumping system electronically. That means increased reliability and greater lifespan of the pump motor as well as the ability to electronically adjust the pump output from 50% to 100% of its nominal value.
You will find that you are able to precisely control and engineer systems like never before.
NEW GENERATION CONTROLLER
The integrated next generation control system is a central to delivering these new solutions to the customer.
It allows five different ways to trigger and control the lubrication event in a system:
1. Time based interval: 0 min - 99 hours
2. Impulse Counter: 1 - 9999 cycles
3. Combined Trigger: both Timer and impulse counter
4. Impulse Driven: uses impulse input to determine both standby and operation mode (0-9999 impulses)
5. Remote Only: Acts as Slave to host machine.
|
|
The MicroCoat is a different type of stock lubrication system that lets metal stampers apply the perfect amount of oil for each job.
Contact lubrication systems like pads and rollers can be difficult to regulate, are easily contaminated, and often require significant maintenance.
In contrast, the MicroCoat is a non-contact system that applies oil as a fine, consistent film that provides complete coverage using much less oil.
|
|
MicroCoat® Lubrication Systems
The MicroCoat is a different type of stock lubrication system that lets metal stampers apply the perfect amount of oil for each job.
Contact lubrication systems like pads and rollers can be difficult to regulate, are easily contaminated, and often require significant maintenance.
In contrast, the MicroCoat is a non-contact system that applies oil as a fine, consistent film that provides complete coverage using much less oil.
* Prevent tool damage
* Extend tool life up to 300%
* Cut oil use an average of 70% or more
* Increase press speed
* Eliminate pressroom mist and puddles
* Reduce VOC's
* Reduce or eliminate parts washing
* Reduce hazardous waste and disposal costs
|
|
|
|
