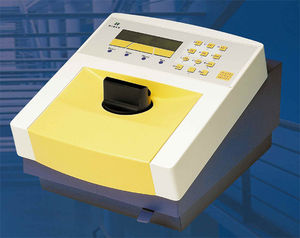

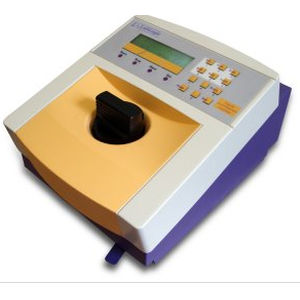

The Triathler luminometer is a compact, portable, manual instrument for measuring samples in various vial sizes up to 20 mL in volume, with extreme sensitivity.
Key characteristics:
- Large dynamic range, (200 CPS to 50,000,000 CPS)
- High sensitivity, less than 10 amol ATP / measurement
- Portable or regular laboratory use
- 32 character alphanumerical display
- RS-232 port to send out results to a PC or a printer
- Software for MS WindowsR to download the results to file or MS Excel worksheet is included
- 1.5 " head-on PM tube makes very high counting sensitivity possible
- Counting times from 0.1 seconds to 99999 minutes
- Power input: 12V DC, 1.5 A or 100 .. 240 V AC, 50/60Hz
- Mechanical data: H 190 mm, D 330 mm, W 250 mm, weight 8 kg
Delivered with:
- Owner’s Handbook
- Adapter for 7 mL minivial (black)
- Adapter for luminometer cuvettes
- PC interface software
- RS-232- cable
Available options:
- Equipment and field cases
- Adapters for samples from microcentrifuge tubes to 20 mL LSC vials
- automatic injector for e.g flash type luminescence measurements
|
|
|
|
|
|
Junior LB 9509 Portable Tube Luminometer
The Junior is a small portable tube luminometer designed for all common applications using glow-type bioluminescent and chemiluminescent reagents. Excellent performance, its small size and low weight paired with battery operation make the Junior a highly versatile instrument which can be used in any location – the laboratory, on site or outdoors.
Sensitive
The detection unit of the Junior consists of a state-of-the art ultra fast single photon counting photomultiplier with low noise. For demanding applications a “high sensitivity” model with a specifically selected ultra low noise detector is avialable driving the detection limit down to less than 50 amol ATP.
Dynamic
Berthold Technologies single photon counting electronics and selected photomultiplier tubes with low noise and high saturation level ensure a wide dynamic range. The user will benefit by being able to measure low signals as well as high ones without the need to change any settings.
Versatile
The unique design of the measuring chamber allows the use of a variety of different sample tubes and sizes.
Easy-to-use
The lean and dedicated software is operated through a membrane keypad. The well arranged graphical display shows selected protocol, sample locatioon and number and the RLU value of the measurement. In addition a set consisting of a red, a yellow and a green LED unmistakably indicates whether a signal and thus a sample is above an upper limit (red), below a lower limit (green) or in between (yellow).
Applications
Reporter Gene Assays
ATP Monitoring
Hygiene Monitoring
Toxicity of Water Samples
Mycoplasma Detection
|
|
|
|
|
|
Lumat LB 9507 Tube Luminometer
The Lumat LB 9507 tube luminometer provides the sensitivity and versatility you need in a general purpose luminometer. Advanced tube-based photon counting provides an extended dynamic range with linearity over more than six decades. A DLReady™ instrument, the Berthold Lumat is ideally suited for reporter gene assays, and other luminescence research and diagnostics applications.
Key features
Variable volume injectors. The Lumat features reagent injectors providing the highest reliability and simplicity in liquid handling. Based on the jet injection principle the injectors combine high speed and precision of the injected volume with the reliable mixing of reagents. The injected reagent volume is programmable within the range of 25 µl to 300 µl.
Designed to withstand corrosive reagents the Lumat’s variable volume injectors are also optimized to reduce dead volume; an important consideration when using expensive reagents.
Unique measurement chamber design The measurement chamber is designed to enable rotating sample transport. You can load a second sample while the first one is being measured, thus saving time which results in throughputs approaching those of an automatic instrument. The special design of measurement chamber provides superior light collection efficiency.
Measurement modes
The built-in 32-bit software has been developed to provide easy, intuitive operation of the instrument’s powerful features. You can choose from a variety of basic measurement protocols.
Raw data protocol
Dual label protocol
Kinetic measurements
Cut-off protocol
Quantitative protocol (LIA, ILMA)
|
|
|
|
|
|
CentroPRO is the newest member of the microplate family of BERTHOLD TECHNOLOGIES. The instrument is universally applicable for research and routine. It enables the measurement of all important glow-type luminescence applications, e.g. reporter genes, ATP determination or cell viability.
Applications
Reporter genes
Dual reporter genes
ATP determination
Cell viability
Caspase
Kinases
Proteases
Monoaminoxidases
Mycoplasma contamination
Software
Easy operation via the innovative ICE software
(instrument control and evaluation)
Wizard guided definition of parameters
Various export formats (Excel®, PDF)
Intuitive menus
Single endpoint measurements
Dual label ratio calculations
Shaking
Specifications
Crosstalk: 10-6
Detection limit: 20 amol ATP
Detection limit: ~ 7.5 zmol firefly luciferase
Instrument Concept
Detector sensitivity and stability are the result of BERTHOLD TECHNOLOGIES experience with thousands of photon counters. True photon counting has the benefit that no user parameters need to be set, ensuring the same conditions are used for every measurement during the instruments life time. The fast photon counting circuitry provides a dynamic range in excess of six orders of magnitude, which complements the concentration range of the latest assays.
A patented design of the optical system achieves absolute minimization of cross-talk (down to 10-6 depending on the type of microplate).
Solid 96 well plates, as well 8 well and 12 well strip plates can be measured.
Inside the instrument precise x and y drivers ensure exact positioning of the wells with respect to the detector.
|
|
CENTRO LB 960
The Centro meets all currently known requirements for a versatile, robust and sensitive microplate luminometer. The selected detector and the proprietary design of the optical sytem guarantee lowest background and negligible crosstalk.
|
|
|
|
