| Custom designed manifolds, spool pieces and unique piping configurations are a specialty at Allegheny Bradford. Manufactured of 316L, 316 and 304 stainless steel with a wide range of sizes and connection options, we use special fabrication techniques to deliver crevice-free components ideal for ultra-pure applications. Choose from an industrial finish, or mechanical and electropolished surfaces finished to less than 10 microinches Ra |
|
Badotherm’s manifold range includes simple one-way needle valves, straight or angle type, up to 5-valve manifolds, in direct and remote executions and as monoflange. All our valves are available with different kinds of stems, for high pressure or temperature applications, and with hard or soft tip. The standard material is stainless steel AISI316, but we also offer a variety of exotic materials like Hasteloy, Monel, Duplex, and super Duplex.
|
|
High-tech couplings and nipples specially designed to be built into manifolds and plates for quick connection and disconnection of machinery components. Providing corrosion resistance and high flow, the range offers:
· Non-drip designs
· Connection and disconnection under full operating pressure
· Alternative mounting features
· Generous compensation for misalignment
· Self-sealing couplings
Styles offered include:
· Multi-Snap System—Manual push-to-connect manifold system for fluid applications. Up to eight couplings/nipples can be used in the same manifold for simultaneous connection and disconnection.
· Auto Couplings—High-performing couplings and nipples with a patented design that allow connection and disconnection under full working pressure up to 4,350 PSI (300 bar)
· Quick-Seal Couplings—Self-sealing couplings, which engage with or without nipples, for use in automatic manifold connection systems for compressed air. A unique valve design enables the couplings to seal against a mating block.
|
|
Manifolds from one way and two valves to two ways and five valves. With several configurations for direct connection to transmitter or through threaded connections.
Pressure interval: 420 bar
Temperature interval: -20ºC / 200ºC
Made in several alloys.
|
|
| Design innovation, quality and reliability are fundamental to Parker's world class range of instrumentation manifolds. Designed to perform in the most demanding applications, the range is one of the most comprehensive in the marketplace and offers an array of styles and configurations for every type of installation. |
|
A various and large high quality 2, 3, 5 ways manifolds range implemented by condensing pots in stainless steel.
A part of this range is available with Double block and bleed feature. |
|
62NRM 2 Way Manifold Male
62NRF 2 Way Manifold Valve Female
62NRF 2 Way Manifold Valve Female
The 65NR range of Five Valve Manifolds are designed to be remotely connected on to industry standard Pressure, Flow or Level Transmitters with 54mm centres. These lightweight manifolds enable operation, isolation, equalisation and venting / calibration of the instrument within a single unit.
The 65NR range is based around the Budenberg Needle Valve technology that includes a full range of features and benefits to make it the ideal manifold for any close coupled Differential measurement application.
These lightweight and compact units can be readily configured or modified to suit any individual application or customer requirement although this datasheet illustrates the more popular configurations currently in use by our customers. |
|
Internal or External Valve Body Manifold Stack Valves/Actuators
Design Features:
- Low voltage actuators 12/24 VDC and 24 VAC operation available.
- 3/4-1 1/2" FULL PORT STACK VALVES
- 2" V-CLAMP INLET OPTIONAL
- Max working pressure, 150 psi @ 70 F
- NEMA 6P Actuator housing
- Ball: 316 SS
- Stem: 316 SS
- Valve Body: NYLON OR POLYPROPYLENE
- Seat: Virgin PTFE
- Stem Seal: Dual VITON O-rings
- Body Seal: EPDM |
|
2-valve-manifold
High- and Low-pressure gauges
63 mm (2.5"), 80 mm (3.15")
- with calibration screw
- pulsfree
- pressure units bar/Psi
- temperature unit °C
- coloures scales for refrigerants
connections:
pressure 1/4" SAE (7/16"-20UNF)
vacuum 3/8" SAE (5/8"-18UNF)
accessories:
- hose set - 3 hoses, 3ft, red, blue and yellow
- High- and Low-pressure quick-coupler set for R 134a
- case with inlets |
|
| ... products without technical information |
| |
Misumi is the NO 1 supplier of over 500,000 standard and customised components for Mechanical Factory Automation/Special Purpose Machinery, Press Dies and Plastic Mould. We delivery components europewide in averagely 6 – 8 days GUARANTEED DELIVERY from the day of purchase, stock items available from 2 days delivery.
Misumi components are different in that they can be configured to your need using our unique part coding system. Dimensions, materials and special machined requests can all be selected within the misumi system enabling engineers and designers to achieve a configured parts as standard with no extra machine costs. Standard items are also available via the catalogues.
All components can be designed using the Misumi CAD portal . Compatible with industry wide packages a designer can configure our parts at the touch of a button in up to 0.01mm, and download in seconds saving valuable design time, registration required.
To receive our extensive catalogue and save valuable time and money, visit our website or request yours today by clicking the request banner.
MISUMI – Precisely what you need. |
|
BLOCKS
PONAR WADOWICE S.A. – the main manufacturer of hydraulic control components and systems in Poland – it has developed and improved its products for forty years. Experienced staff, modern machinery and the many years’ cooperation with customers such as for example CATERPILLAR, DYNAPAC or BOSCH- REXROTH ensure the high, stable product quality.
Our manifolds are manufactured in accordance with the Quality Management System implemented in 1998 which complies – after the recertification - with ISO 9001:2001. This system ensures the high quality of our products and services which meet the needs and expectations of our Customers. |
|

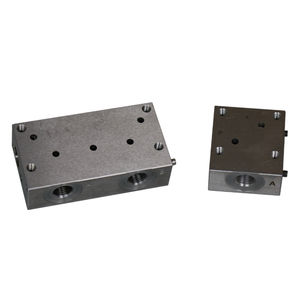

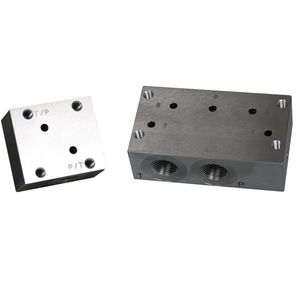

We supply subplates and manifolds with different port options. There is also an optional relief valve cavity. Our products are available to match a variety of cartridge relief valves manufacturers including Sun Hydraulics, HydraForce, Delta, Deltrol, Compact Controls, Modular Controls and others. Subplates can have side, bottom or both ports. Manifolds have an isolation option to allow two independent pressure and/or tank ports. There are also two different valve spacing options for each manifold.
We have a full line of adapter, transition, tapping and cover plates. Adapter plates mount to your existing equipment and allow the newer valve patterns be mounted saving plumbing time and expense. Tapping plates allow instillation of gauges without external plumbing. They are also available the "B" port connected to tank for pressure dump circuits. Our manifolds are manufactured for D02 through D10 NFPA patterns. The number of stations available on our manifolds are from one to sixteen. We normally stock up to 10 station manifolds.
Click here to tell us what you need.
Specifications
Manufactured from either aluminum or continuous cast ductile materials
Up to 16 station manifolds available
Pressure rated to 3000 PSI for aluminum and 5000 PSI for ductile.
Ports available are NPTF, SAE, BSPP, ISO and BSPT
Manifolds come with mounting brackets |
|
| We provide superior products universally by means of engineering excellence and innovative application. The basic concept behind our bar manifolds remains the same, however, we looked beyond established layouts and developed a series of stringent design parameters to configure our products. |
|
When you need finished Integrated Hydraulic Circuits with extremely short lead times, the Parker Speed Shop is the place to go. Parker’s expert application engineers, along with the latest computer-aided design and manufacturing technology, can bring new and advanced custom products to market faster, keeping you way ahead of your competition.
|
|
|
|
