The UPM pump by BELL is the right choice to operate continously or alternately single and double acting cylinders.
It is equipped with a retained control to work in standby for the pressurization of the circuit. The hand valve is a 4 way - 3 positions with open centre and standard CETOP 3 connection.
|
|
Users of manually operated valves can rely on a full complement in Waukesha Cherry-Burrell's line. Available in 304 or 316L stainless steel; 1" through 4" tube sizes as well as fractional sizes. Pneumatic actuation optional on some models.
Valve Models Include:
- Ball
- Butterfly
- Check
- Compression
- Plug
- Relief
- Sampling
|
|
Features
* No packing to maintain, ever
* Same face-to-face as gate, plug or ball valves to 12”
* Sleeve is the only wetted part
* Position indicator, heavy-duty sleeve
* 100% full port design
* Bi-directional bubbletight shutoff
Materials of Construction
* Cast iron or aluminum body
* Heavy-duty carbon steel mechanism or optional stainless steel, position indicator, brass bushing, and grease fittings
* ANSI Class 125/150 flanges or metric flanges
* Available Elastomers
The Series 75 manually operated pinch valve is the number-one selling pinch valve in the world today. The Series 75 is a reliable, maintenance-free, cost-effective valve designed for tough slurries, abrasives, and corrosive-chemical applications. The Series 75 full port design eliminates any dead spots or crevices, seats or bearings where slurry can hang up and impair operation or even cause complete valve failure.
|
|
The 710PTNM is engineered for precise dispensing of semi-viscous liquids including metered and mixed two-part component fluids and volatile cyanoacrylates. The only part of the pinch tube valve making contact with the fluid being dispensed is the disposable pinch tube assembly.
Features
• Disposable pinch tubes minimize maintenance
• Designed for low viscosity fluids
• Ideal for two-part epoxies and cyanoacrylates
|
|
MANUAL VALVE "Y" TYPE
Two way interception/control manual valve with slanting seat. Solid and compact shape with low loss of load and maximum hydraulic efficiency.
Suitable to intercept: steam, water, corrosive fluids, no-explosive gas, etc.
- Material: STAINLESS STEEL AISI 316/316L (1.4408/1.4409);
- Seal body gasket: CARBOFIBER, PTFE;
- Linear and rapid opening plug: AISI 316L WITH PTFE - PTFE/CG;
- Packing box: PTFE RING ENERGIZED WITH OR VITON;
- Sizes: 1/4"-2", DN15-100
- Rating: PN16/25
- Working temperature: -60°C/+180°C.
|
|
Manual valves for manual shut-off, for gas, air and water, EC type tested and certified.
DN: 6 to 250,
connection: thread or flange,
pe: max. 4, 5 or 16 bar,
brass, steel or ductile cast iron housing.
|
|
High capacity in open position and low cost. SOMAS manual valves fulfill these requrements, and we have a number of valves in our product line suitable for use as manual valves. The SOMAS full-flow ball valve SKV achieves very low flow resistance in the open position and is therefore an excellent choice for use as a manually operated valve.
SOMAS butterfly valves have, due to their robust, maintenance-free construction and comparatively low price also become a good alternative for use as manual valves.
|
|
| ... products without technical information |
| |

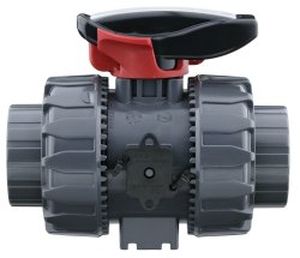

The VKD is a True Union ball valve, particularly suitable for industrial applications, where high performances and long time reliability are a must.
The patented Seat Stop® system assures great longevity of the seals in situations where vibration or thermal expansion occurs. A micro-adjusting of the PTFE seals is also allowed.
As any accidental loosening of the ball carrier is not possible, the radial dismounting of the valve body can be done in full safety.
The new patented Dual Block® system allows a proper nut tightening, without any risk for unscrewing due to vibrations.
|
|
|
|
|
|
Rugged, Compact Design:
Hayward's rugged, low cost QIC2 all plastic PVC ball valves incorporate many design features found only on higher cost ball valves. Features such as PTFE seats, full porting and a 150 PSI pressure rating are all standard on every size of QIC2 ball valves.
Cost Sensitive Applications:
The QIC2 ball valve is perfect for OEM and other applications that require a reliable ball valve at an economical price. The QIC2 valve has been designed and tested to make certain it will perform year in and year out in the most demanding applications without leakage or failure. The internal components of the QIC2 ball valve are completely encapsulated inside the one piece valve body which means that the valve never requires adjustment. The QIC2 valve is ready to be put into service right out of the box.
Lightweight and Compact:
QIC2 lowcost ball valves are designed to fit into spaces too small for other valves. They are about 1/3 the overall size of a true union ball valve and they weigh an average of 50% less. This makes them ideal for skid mounted and other applications where space and weight are critical considerations.
Can't Rust, Won't Corrode:
Their all plastic construction means that they will never fail, stick, or jam because of rusted or corroded parts. And they'll work in places and environments where metal valves must be painted or coated just to survive.
|
|
SLIDEVALVE ONLY
• Frame and slidevalve with great thickness
RACK MANUAL CONTROL
• M3 rock outside of the dust flow
• 18 teeth sprocket
• Handle drive
END OF STROKE
• Set screw on slidevalve frame
D 18 T 10/36 V DC
|
|
SLIDEVALVE ONLY
• Frame and slidevalve with great thickness
RACK MANUAL CONTROL
• M3 rock outside of the dust flow
• 18 teeth sprocket
• Handle drive
END OF STROKE
• Set screw on slidevalve frame
D 18 T 10/36 V DC
|
|
Emerson's ACK check valve is a normally closed magnetic check valve that prevents reverse refrigerant flow in liquid lines and compressor discharge lines.
The ABV Refrigeration Ball Valve isolates suction, discharge, and liquid line pipework during maintenance shutdown periods.
|
|
Application
Regulating / hand expansion valves are regularly used at the evaporator in liquid circulation systems. Also these valves are used in liquid circulation systems before a vessel. Here they prevent high pressure fluctuation in the vessel when fluid stream into the vessel.
In order to function as a regulating valve, each NB size has a 'valve-cone' has a unique form. The shape of the cone and the percentage of opening of the valve determines the m3/h flow and/or pressure drop. Use the Revalco selection software to determine the correct valve.
|
|
|
|
|
|
Style 175 GTO Gas Valve
- Permanently lubricated at the factory for maintenance-free service
- Low operating torque - No plug "freezing"
- 100% shut-off; 360° turn or 90° Open Left operation
- Features a superior tamper-proof design
- No leakage to the atmosphere
- One valve covers full pressure range
Designed to meet the requirements of ANSI B16.33 1981, the Dresser® Style 175 GTO Gas Service Valve incorporates the same complementary sealing principles as the Style 175 meter curb valve, yet offers a rated working pressure to 175 psig. Each GTO valve is 100% factory-tested at high and low pressure while in a clear non-corrosive fluid.
Just as the Style 175 meter curb valve, the GTO is assembled at the factory and sealed against tampering by a spring loaded stainless steel retaining ring which cannot be removed with ordinary tools. It is tamper proof as specified in D.O.T. 192.363 Part C.
A plastic ring inserted between the retaining ring and bonnet, plus permanently lubricated port seals, assure low, uniform operating torque, preventing the plug from freezing to the body.
|
|
1- Application in 'normal' and ‘high pressure' installations is possible. Supplied as PN40 design and PN52 optional.
2- Low weight and compact design simplify handling
3- Modular build up
4- Large bonnets and 67 degree bonnet (straight execution) make spindle and bonnet extensions superfluous
5- Quick valve installation without dismounting of the bonnet
Kv (Cv) Values
The valves of Revalco and especially sizes 200-300mm (10"-12") contributes to lower pressure drops and thus energy savings in your system.
Until this very moment no competitor has been able to construct a valve with flow values better then the Revalco RV200-300 series !!
|
|
1- Application in 'normal' and ‘high pressure' installations is possible. Supplied as PN40 design and PN52 optional.
2- Low weight and compact design simplify handling
3- Modular build up
4- Large bonnets and 67 degree bonnet (straight execution) make spindle and bonnet extensions superfluous
5- Quick valve installation without dismounting of the bonnet
Kv (Cv) Values
The valves of Revalco and especially sizes 200-300mm (10"-12") contributes to lower pressure drops and thus energy savings in your system.
Until this very moment no competitor has been able to construct a valve with flow values better then the Revalco RV200-300 series !!
|
|
1- Application in 'normal' and ‘high pressure' installations is possible. Supplied as PN40 design and PN52 optional.
2- Low weight and compact design simplify handling
3- Modular build up
4- Large bonnets and 67 degree bonnet (straight execution) make spindle and bonnet extensions superfluous
5- Quick valve installation without dismounting of the bonnet
Kv (Cv) Values
The valves of Revalco and especially sizes 200-300mm (10"-12") contributes to lower pressure drops and thus energy savings in your system.
Until this very moment no competitor has been able to construct a valve with flow values better then the Revalco RV200-300 series !!
|
|

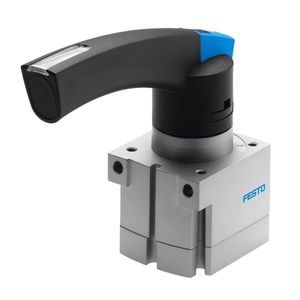

- Position sensing of the hand lever position. Sensor assisted option for monitoring by a higher-level control system.
- Lockable hand lever. Reliable servicing and maintenance even during operation.
- Selectable connection direction and mounting options. Output connections downward or to the side.
- Robust construction with an excellent design. Plastic lever with metal or plastic housing permits operation in harsh environments.
- Can be used as a pneumatic master switch or a 3/2-way valve.
Pneumatic connection: M5, G1/8, G1/4 or G1/2
Nominal size: 4/6/8/12 mm
Temperature range: -20 ... +80 °C
|
|

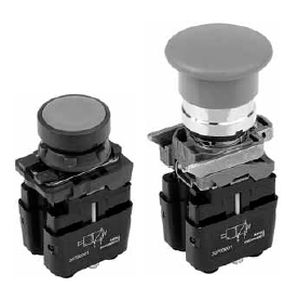

This range of valves includes operating devices suitable for most applications according to the space available. They are offered in a range of different dimensions: from M5 to G1/4 and in versions: 3/2, 5/2, 5/3 center open and 5/3 center closed.
|
|
|
Many applications require hand and foot actuation. The OMNI 375 3-Ways and 4-Ways offer a rugged, compact, versatile answer. Mount them in any position.
|
|
Handheld dispense valves are a good choice for manual assembly applications where a timed shot is not required and a relatively large amount of fluid is being consumed.
Operation is simple and straightforward. Fluid is supplied to the valve from a pressurized 1 liter or 5 liter tank. To apply fluid, the operator places the dispense tip in position and presses a lever on the side of the valve. Releasing the lever stops the flow with a fast clean cutoff.
725-HL Handheld piston valve for medium to high viscosity fluids
752V-HL Handheld Diaphragm Valve for low-to medium-viscosity fluids like cyanoacrylates and anaerobics
740V-HL Handheld needle valve for low-viscosity fluids like solvents and MEK
|
|
| ... products without technical information |
| |
|
Type M Series and MA manual gear actuators are recommended for use on ball and butterfly valves. For the sake of convenience, and where lever-handles require too much force to operate, present space problems, gear actuators are the ideal choice.
|
|
SERCO PORTABLE MACHINING UNITS
The SERCO units are positioned and locked by means of a column/arm system clamped on the outer part of the surface to be machined (allowing internal machining). Machine set up is fast and easy. After a first visual positioning, we can get within a few minutes, using a simple specific device, a parallelism and concentricity within a 1/100 of mm precision. A powerful air motor drives the tool rotation (hydraulic motors on request) and radial automatic feed (with a selection of two speeds).
Maintenance
Flanges
Safety valves
Sealing valves
High pressure valves
Portable Equipment
Portable machining equipment
Portable boring and surfacing machines
Portable surfacing machines
Portable grinding machines
Portable lapping machines
For further information please contact :
PROTEM SAS
ZI LES BOSSES
F-26800 ETOILE SUR RHONE
FRANCE
Tel +33 4 75574141
email : n.reicher@protem.fr
|
|
The V-Lap F6 is standard equipped with a range of grinding and centre plates for grinding and lapping any type and size of ‘flat’ seat up to 6” / DN150 mm. The centre plate keeps the grinding plate in position, but also gives an eccentric rotation ensuring constant and complete coverage and absolute flatness.
Abrasives
The V-Lap F6 is completed with a large consumer quantity of polyester based, self-adhesive Aluminum Oxide round foil tips in grains rough, middle and fine. The foil tips can be used dry and on all common seat materials.
Drive machine
The V-Lap F6 is standard equipped with a battery drive machine and is delivered with 2 battery’s. The low weight and good balance of the machine increases the grinding performance and makes it easier to attain high quality flat ‘results’.
The complete set is packed in a robust, but light weight carrying case.
|
|
3 Axis 800 / 2000 / 4000
The machine is equipped with: one control panel, with an auto diagnostic display system, for the rotation and the feed of the arm and the milling cutter.
|
|
HAND TAPS
3150V Standards set of 3 CV hand taps - ISO 529
3155V Set of 3 HSS hand taps - ISO 529
|
|
