The CNC hand marking system MV5
M75 is designed as a hand operated
mobile marking equipment. It is ideal
for the self sufficient marking of heavy,
bulky and unmovable objects on-side.
Through to the compact construction
and the ergonomic design it is extremely
space-saving and very handy. The
marking area amounts 75 x 25 mm.
With the high marking quality it is possible
to mark finished products which
are sensitive to pressure, thin-walled,
laminated, hollow and arched. The
hand marking system offers you an efficient,
durable, gentle and quick marking
of your work pieces. No matter
which material – from synthetic materials
through to hardened steel.
The marking system is equipped with
a maintenance-free pinhead and an
unbreakable full carbide marking pin
which is possible to regrind.
For the non-moving use it is possible
to fix the marking head optionally on a
column frame. Therefore you just need
to untack the handle and mount the
marking head on the column frame.
|
|

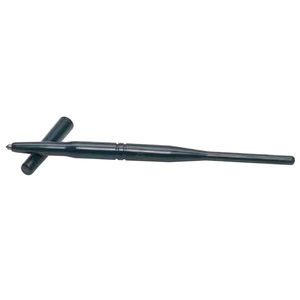

15Z Series Air Marking Pen
■ 0.06 hp (0.044 kW) In-line Piston Motor
■ Sliding sleeve throttle
■ Carbide tipped stylus
■ Great for marking materials ranging from aluminum to titanium
■ Weighs only 4 oz.
|
|
| ... products without technical information |
| |

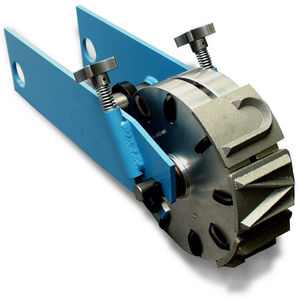

Application:
Marking of work pieces
Spring return marking (single pass)
Suitable for different work piece diameters
Precise positioning of marking across work piece circumference
Marking Roll: Exchangeable segments
Type of Machine: Lathe machines and auto lathes
CNC and conventional, Centre height is integrated
Features:
- Easy exchange of the individual segments through loosening of the tension ring
- Special surface hardening for increased tool life
- Easy adjustement of the spring's pre-tension through fixation washer
|
|
| ... products without technical information |
| |
The LMC marker is a CO2 laser based marking machine for non-metal material applications.
With a proprietary scanning head and modular design, the LMC laser marking system is simply the best of marking solution perfectly for your marking jobs.
|
|
|
With A1+ size working area and a flexible traversing-door design, ILS-4 is suitable for big-scale laser engraving application purposes. Besides few new design internally, the system is also with a unique cooling and dust-proof focus lens module. Up to date, the ILS-4 is the biggest combination of laser engraving machine, as well as laser cutting machine.
|
|
The LMC marker is a CO2 laser based marking machine for non-metal material applications.
With a proprietary scanning head and modular design, the LMC laser marking system is simply the best of marking solution perfectly for your marking jobs.
|
|
|
With A1+ size working area and a flexible traversing-door design, ILS-4 is suitable for big-scale laser engraving application purposes. Besides few new design internally, the system is also with a unique cooling and dust-proof focus lens module. Up to date, the ILS-4 is the biggest combination of laser engraving machine, as well as laser cutting machine.
|
|
|
|
|
|
Triad is best described as a middle ware. This software acts as a conduit that allows marking machines, vision equipment and existing data management to join in a common piece of software that manages all of the communications and auditing of the requested actions. The main artery of Triad is a security program that allows multiple levels of users to access the appropriate programs based off of their skill sets, training, or management function. This security program has auditing capability both internally and remotely. The core program can relay or link information to existing databases, for example for serial number control.
Within Triad is a series of programs that can be used as a tool box to solve a large array of modern marking programs. Each device that works with Triad is called a plug in. These plug in's can be made by Monode or by the company that owns the technology via a development kit - this flexibility allows rapid growth of compatibility within the Triad community. The key advantage of Triad being a manager of multiple programs through a centralized system is any major changes to the functionality of the core parent programs have immediately benefits to the devices that are compatible to the system. The power and complex functionality of Triad has a simple look to the end user called Gray Screen.
|
|
|
|
