CoreView Plan is a CogniTens software product used for planning, defining and preparing comprehensive dimensional measurement programs for execution by Optigo & OptiCell dimensional measurement platforms.
CoreView Plan allows planning multiple sets of measurement programs and optimizes utilization of Optigo/OptiCell platforms by providing the operator with the exact information for carrying out the measurement.
Using CoreView Plan the engineer can easily define measurable features, set multiple alignment guidelines, capture GD&T requirements, and prepare reporting templates for later use.
|
|
|
CoreView Lite is a free CogniTens software product used for viewing measurement results produced by CogniTens' Optigo and OptiCell. CoreView Lite empowers a large community of users to leverage rich and meaningful dimensional measurement information to improve quality and overall performance throughout the design, engineering and manufacturing processes.
|
|
With MCA/CMM Reporting you can forget measurement reports printouts. CMM Reporting summarizes huge amounts of data being generated from CMMs to be immediately viewed at a single observation station.
Utilizing an ‘expert system’ principle, summary graphics and results are used that can be ranked and compiled with historical data and internal quality plans. Custom criteria for exceptions can be set as well as having specific graphical reports for certain features.
Used extensively by the automotive industry to replace the SPC portion of user interfaces like Zeiss Calypso, Marposs QuickSPC and Hexagon PC-DMIS it offers commonality in your SPC and Reporting environment.
|
|
|
|
|
|
HBM has specialized in measurement technology for over 50 years. Our products span the entire measurement chain from sensor to software.
The catman® measurement system is a flexible and powerful standard software suite for capturing, displaying, analyzing and documenting measurement data. It is available in three versions:
catman®AP - the new generation of DAQ and measurement software
Benefit from the new generation of software. catman®AP bundles highly efficient modules for many different measurement tasks. Each module is a champion in its specific field of application. The modules in combination provide a flexible, powerful, and networked high-performance package – catman®AP
catman®Professional
catman®Professional is the complete solution for measurement engineers. The catman®Professional package is ideal for solving complex measurement tasks. Among other things it includes over 400 post-process analysis functions, an ActiveX® interface and an catma® Script editor for developing customised applications.
catman®Enterprise
catman® Enterprise permits comfortable handling of high channel-count systems ranging up to 10,000 channels.
|
|
|
|
|
|
PCDMIS portable version,3D measuring software.
PORTABLE MEASUREMENT DEVICES ARE CHANGING THE WAY MANUFACTURERS MONITOR THEIR OPERATIONS. NOW, INSTEAD OF HAVING TO MOVE THE PARTS TO THE MEASUREMENT MACHINE, USERS MOVE THE MEASURMENT MACHINE TO THE PARTS SAVING TIME AND PROVIDING IMMEDIATE FEEDBACK ON THE STATE OF THEIR PROCESSES. HOWEVER, USING THEM TO THEIR FULLEST REQUIRES SOFTWARE TO MATCH THEIR CAPABILITIES.
PC-DMIS PORTABLE DOES JUST THAT. IT IS AN ADAPTATION OF PC-DMIS THAT PRECISELY TAILORS THE CORE PRODUCT FOR USE ON PORTABLE CMMSWITHOUTCOMPROMISING CAPABILITY. IN ADDITION, IT ADDS NEW FEATURES THAT CHANGE THE WAY CUSTOMERS USE PORTABLES.
AN APPLICATION SPECIFIC USER INTERFACE MAKES THE SOFTWARE EASY TO USE FOR PROGRAMMERS AND OPERATORS ALIKE. ON PORTABLE ARMS, IT INTEGRATES MOUSE OPERATIONS WITH ITS UNIQUE “ARM AS MOUSE” MODE.
PC-DMIS PORTABLE OFFERS A FULL RANGE OF ENHANCED SCANNING AND SHEETMETAL FUNCTIONS AND IT INCLUDES AMONG ITS MANY FEATURES AN “AUTO-ZOOM” FUNCTION, WHICH AUTOMATICALLY ZOOMS IN AND OUT BASED UPON THE DISTANCE FROM THE FEATURE OF INTEREST. IT IS TRULY A NEW TAKE ON PORTABLE MEASURMENT.
|
|
G-Pad is a user-friendly 3D geometric software especially dedicated to standard applications in the workshop:
- Assembly line measurement
- Tool control
- Part setup
- Reverse engineering
No particular metrology knowledge required; Easy-to-use interface for a quick set up.
G-Pad software allows to create theoritical geometric entities (Plane, Line, Point, Set of points, Circle, Sphere, Cone, Cylinder, Length, Angle and
Tube), to measure and to get GD&T by comparison.
Automatic customised Excel®report generator
|
|
|
|
|
|
InfinityQS Measurement Systems Analysis (MSA)
Accurate SPC data relies on proper use of gage and test equipment. To ensure the validity of your results and optimize the performance of your entire system, you need to evaluate your equipment, not just in a lab, but in the production environment as well. InfinityQS MSA gives you this capability in an easy-to-use software module that works in tandem with your SPC system.
Perform Gage Studies Right on the Plant Floor
InfinityQS MSA lets you perform gage studies in exactly the same manner as your SPC data collection system, ensuring that the entire measurement system is capable of meeting all the stringent requirements imposed by your shop floor data collection. Best of all, InfinityQS MSA interface is easy to use so it will get used. All you need to get started is name a study, answer a few questions regarding data entry and start taking measurements. Analysis is automatic once the trials are complete. Now you're on your way to superior performance.
InfinityQS MSA offers a full suite of features, including:
- Database Independence
- Familiar Data Entry
- Multiple Gages, Characteristics and Calculated Fields
- Multiple Reports Plus Control Chart Analysis
|
|
testXpert® II - Intelligent and Reliable
The New Software Generation for Materials Testing
Zwick Roell has set the standard with testXpert® for intelligent materials testing software. Unlike other software testXpert® has a standardized operating surface for all of its applications, no matter whether static or dynamic tests - so you spend less time learning to handle software and more time conducting tests. With testXpert® II you benefit from over 80 years of testing experience and from over 10,000 successful installations worldwide.
|
|
The qs-STAT Measurement system analysis module gives you every tool you need to successfully carry out you gauge system qualifications.
Gauge capability and GR&R studies are key to any successful process or 6sigma study. This qs-STAT module calculates to standard (AIAG, VDA, etc) rules and also offers unique methods for special conditions.
|
|
Easy and friendly user's Interface Multiple training modes: self-training or programming language Results reporting
Operation results, tolerances, management of controlled batches...)
Complete library of mathematical, geometrical and statistical tools
Software designed for offline or online automatic controls
Open and easy to use software (MS Windows® environment, MS Excel® interface, production management softwares...)
Link to MSP 2000 (Statistical Process Control software)
|
|
Dual screens interface for easiest use
Multiple sensors: Vision, touch probe (Renishaw®) and laser (ConoProbe®)
Video scanning and snapshot
Maths tools library, 2D and 3D geometrical form
Self teach programming mode
CAD import
DATA reporting
Integrated S.P.C modules
External acquisition (Slide caliper, micrometers, others...)
Open and friendly software (MS Windows® environnement ,MS Excel® interface, production management...)
Setup of the Deltec suite on all types of profile projectors, microscopes, etc...
|
|
Compatible with a large rang of measuring equipment
>> DCC CMM and Manual CMM
>> Articulated arms
>> Laser Tracker
Fully Integrated geometrical and shape measurement in one simple user interface.
Compatible with the DMIS 4.0.
Comparison to CAD model IGES, VDA, CATIA V4/V5, Pro-E, Unigraphics ...
Surface, edge, curve and flush&gap measurements
Tube analyser (length, radius, bending angles & length control, graphical display...)
Off-Line and On-Line Graphical programming - Machine simulation
Collision Detection - INCA3D detect collision in Off-line programming, but even in real execution INCA3D will STOP your machine to avoid collision beetween your probe and your part.
|
|
Real time and safety monitoring is a vital part of the test process for rotating and reciprocating machinery. Traditionally this function has been carried out by a number of highly skilled Test Measurement Engineers watching arrays of small oscilloscopes and frequency analysers.
Modern test practices include a general increase in test size, leading to a number of impracticalities with the traditional methods.
|
|
WinWerth®
- the complete software concept for the workshop and precision measuring lab
It was under this title that Werth Messtechnik GmbH presented its 3D-measuring software WinWerthÒ version 6. It combines modern, intuitive user guidance with exceptional features that make measuring with a Werth multi-sensor co-ordinate measuring machine especially simple.
Using WinWerth® all geometrical characteristics as well as the form and positional tolerances according to DIN/ISO 1101 can be measured and evaluated. The measurement results are depicted graphically and in tabular form. Correction values can, however, also be transferred directly to the production machine.
The ergonomic, graphical user interface of the WinWerthÒ measuring software is of particular importance. In combination with the intelligence of the image processing system, WinWerthÒ sets new standards.
|
|
Description
ATEasy is a test executive and a rapid application development framework for functional test, ATE, data acquisition, process control, and instrumentation systems. ATEasy provides all the necessary tools to develop, deploy and maintain software components - including instrument drivers, test programs, user interface, as well as a complete and customizable test executive. It is designed to support and simplify ATE system applications with long product life cycles. With ATEasy, test applications are faster to generate and easier to maintain.
|
|
|
|
|
|
eZ-TOMAS
Machine Vibration Monitoring Software
for the 600 Series, WaveBook/516E,
and ZonicBook/618E
eZ-TOMAS is the economical solution to rotating machine monitoring and analysis. eZ-TOMAS will continuously monitor your machines. eZ-TOMAS records the change in vibration condition, and quickly provides you with the information you need to make critical decisions.
Key Highlights
• Transient and Steady State rotating machinery analysis
• Easy-to-use graphical user interface and multiple project configurations provide fast setup
• Up to 20 kHz Analysis Frequency, with up to 25,600 lines of resolution
• Field expandable from 8 to 56 channels
• Overall, spectral amplitude, and phase gauges with peak hold indicators
• Spectral limit checking, with output relays and alarm event logging
• Limit sets for specific RPM ranges
• Event data storage based on user defined triggers, with automatic backup
• Rotating Machinery Analysis: Time Waveform, Orbit, Spectrum, Waterfall, Polar, Bode, Shaft Center Line, and Trend displays
• Machine and Bearing Fault analysis and limit checking
• Save/Recall display setups with up to 8 display windows, and multiple overlays
• Integration and differentiation for acceleration, velocity, and displacement inputs
• Harmonic, Sideband, and Peak cursors for time waveform and spectrum displays
• Statistical analysis report with automatic limit generation
• Generate production test cell reports
• Export data to Excel®, UFF Type 58 Binary, or ASCII format
• Copy/Paste graphs and data into Microsoft® applications
|
|
- Long-term software compatibility and flexibility with emerging technologies
- High-performance compiled execution
- Lower cost of ownership
- Strong integration of software and hardware
- Rapid application development
At National Instruments, we not only understand the importance of software, but we also believe software is the foundation of your measurement and control system. Using National Instruments software, including our flagship product, the LabVIEW graphical development environment, increases your productivity in creating test, measurement, and automation solutions through data acquisition, data analysis, and data visualization. Because our software architecture incorporates each of our products, you can use these products separately or together to build your measurement and control system.
|
|
|
|
|
|
The Measuring Point Generator CAQ module lets you generate measuring points in the CAD module and convert them to constraints (point-vector sequences).
In addition to commands for editing the measuring points, you also get functions for transferring them to an NC measuring program and a measuring log. You can then approach these measuring points by hand on the milling machine or a coordinate inspection machine and measure their actual positions.
Tebis Surface Measuring is a stand-alone software package that provides direct comparisons between a real component and its counterpart in the CAD environment. The basic functions and measuring workstation operations closely resemble those of Tebis CAD/CAM stations, which makes it easy to integrate them into existing processes.
The system provides a direct comparison between any determined measuring points and the CAD model, which was also the basis for the component during NC programming. This gives you a direct setpoint/actual value comparison between the finished component surface and the corresponding CAD data model.
|
|
|

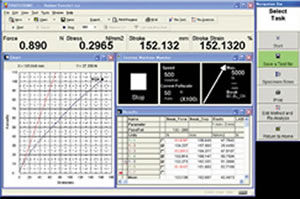

Win3700 Software integrates computer technology for measuring spring and resilient materials characteristics. It features high-speed data acquisition to optimize the accuracy of test results. Win3700 Software is provided with all LINK testers that use a Model 3700 Display Module, and any Module upgrade to an existing LINK electronic tester. It operates on any computer running Microsoft Windows.
|
|
|
Feature-oriented Calypso® software offers all standard interfaces. Results can be transferred to SPC software; automatically generated measurement plans exported to other measuring machines. Non-Zeiss measuring systems can also be operated with the Calypso DME client provided they are equipped with a DME server – even articulated arm measuring machines, laser trackers and computed tomography systems. More information on Calypso, Holos®, Pi-Web and other software from Carl Zeiss is available here.
|
|
Ideal CMM software offering an excellent value for money alternative entry level solution.
CAPPS complies with all the typical measuring requirements reliably and can be expanded at very reasonable costs to higher levels at any time point.
Furthermore, interfaces to processing machines are available, making immedeate transfers of the measured results to central processing systems possible.
Regardless of the machine type, for both the fully automatic CNC controlled machines as well as for the manual machines, the CAPPS software offers you the best value solution available.
|
|
CoreView Pro is a powerful CogniTens software product used for viewing, analyzing and reporting dimensional measurement information. CoreView Pro enables viewing, analysis, reporting and enterprise wide collaboration based on common dimensional measurement information generated by Optigo and OptiCell dimensional measurement platforms.
CoreView Pro allows remote viewing and analysis of actual shop floor parts as well as assembly and tool measurements as soon as they are produced. CoreView Pro requires no post processing of data before use and automatically presents detailed analysis and comparison with nominal data and design intent.
CoreView Pro provides various part and process analysis tools to evaluate stability and conformity of manufacturing processes as well as unique engineering tools such as Master Part generation and tolerance adjustment.
|
|
| ... products without technical information |
| |
Entis XS combines a broad range of inventory management functionalities with advanced automation and control of tank instrumentation. The Entis XS menu driven structure stands out by its user friendliness. This enables operators to navigate simply to the easily configurable Entis XS screens.
Entis XS offers unmatched engineering potential and flexibility for all tank utility applications. In this, the system anticipates future developments capable of further optimizing your business.
Entis XS is an open system with diverse interfaces to the field and to control, MIS and ERP systems. Depending on your requirements, virtually any server-client architecture can be implemented with Entis XS.
Entis XS: the only real integrated concept for advanced and total tank farm automation.
|
|
|
|
