Innovalia Metrology manufactures 2D and 3D ball artifacts up to 1.5m corner to corner spacing, to perform extremely fast interim checks of CMMs, equipped with contact systems and optical systems.

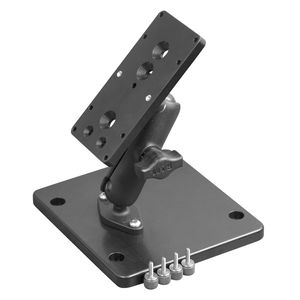

... reliably hold the device in the set position even if exposed to shocks. Another important requirement for a versatile monitor mounting is that it is flexible in how it fixes to a machine/system and the fitting dimensions ...
InfiniteFocus Real3D is an optical 3D micro coordinate measurement system for complete form measurement of cutting edges. Form, contour and roughness are measured in high resolution and out of every perspective. Tols ...
Clamping device, for horizontal mounting of components such as drills or milling cutters enabling it to be rotated into the desired position. Also cutting edges are measured easily. Useable for: InfiniteFocus, InfiniteFocusSL, ...
Grip for measurement of small objects in various positions. This grip can be adjusted to most specimens and also locked in the desired position. Measurement comfort and repeatability are increased. The grip enables repeatable measurement results.
Sample holder with a non-slipery micro-structure to fix components with a smooth contact surface in XY. Users achieve highly repeatable measurements by fixing the sample holder with four knurled screws ...
Grip for higher automated and repeatable measurement of small objects, especially inserts, in variable oblique positions (90°, 80°, 60°, 55°, 35°, 0°). Measurement comfort is increased. Depending on the size of the objects and the degree ...

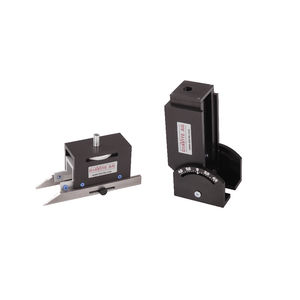

For measurements on cylindrial surfaces external and internal For measurements on spherical surfaces external and internal

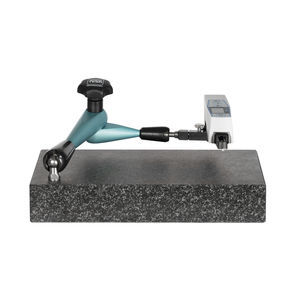

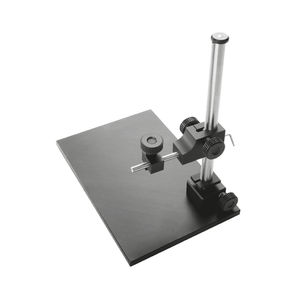

... -locking. For secure measurement the guide can be fixed to a table board with a clamp. For easy reading of the display the gauge Surfix® can be fixed to the steel cylinder of the probe guide using an appropriate holder.
... hold two probes oriented at 90 degrees to each other. The pitch between two probes can be adjusted by sliding the probe holders inside the 0.6 inch slots in the adapter. 90 degree probe converter, adapter, probe stations, ...
The parallel box pairs, made of special cast iron. Flatness of measuring plane acc. to DIN 876. Angle accuracy acc to. DIN to 875. Paired plane-parallel and perpendicular machined.
