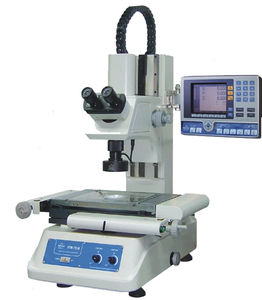

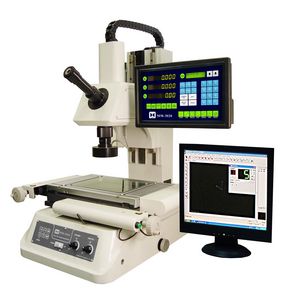

The measuring microscope is a multifunctional microscope measuring system which integrates optical, mechanical, electrical and video elements. It provides eye piece magnifying, visual display magnifying, input and output data processing functions. The observation system includes three types: single eyepiece, double eyepiece and CCD image.
The video toolmaker microscope is widely used for electronic components, precision mold, precision tool, spring, plastic rubber, oil seal valve, camera components, automobile components and PCB processing components, etc
With RS-232 communication interface connected with a computer, the microscope can input and output measuring results and save images. Special measuring software M2D-AT is used to automatically detect edges .You can measure work pieces just by clicking the mouse instead of programming, it is simple, convenient, easy to learn and suitable for needs of different users.It is mainly used to measure geometric elements such as length and angle, thread parameters, cam, gear and cutting tool (milling cutter, hobbing cutter and screw tap), cone and cylinder components, templates and hole pitch, etc. Eyepiece reticule can be used for compare measurement and coordinate measurement with magnification of the sizes and outline of the work pieces. In addition, it can be also used as a observation microscope in precision processing industry with non-contact measurement, e.g. to inspect the surface roughness via relative measuring methods.
|
|
A most advantageous alternative when measuring small components, maintaining the good quality of its optics and the cross-table.
Base with built-in transmitted illumination and transformer. Light intensity continuously regulable by two separate knobs for incident and transmitted light. Cylindrical pillar allowing additional height adjustment of the gear box.
|
|
The KH-1300 digital microscope is revolutionary in that it achieves both the highest transfer speeds in its class and high-quality images at the same time.
An original CCD camera was developed exclusively to create the highest quality images.
As a result, high-resolution images can be transferred quickly allowing video to be observed on PC screens.
High quality imaging with cost effectiveness in mind.
|
|
MM400/800 Measuring Microscopes
The MM400/800 is a new series of innovative microscopes designed for industrial measuring and image analysis. They integrate key performance features delivering complete digital control for maximum measuring accuracy in demanding industrial environments. The systems support a host of new and expanded features including Nikon's electronic connection hub connection that provides total integration of microscope peripherals managed by Nikon's new EMAX2 metrology software.
|
|
The measuring software SAPHIR makes this microscope an universal, though manual 2D-microscope, state-of-the-art tool. Esspecially while making first samples, the WM1 in combination with SAPHIR takes full advantage of its strenghts and capabilities.
Modular design, high optical quality via especially good surface light illumination and an excellent data reporting, these are prominent features of these microscopes.
|
|
|
|
|
|
AM413TL-M40 - Dino-Lite PRO (Long Working Distance)
The AM413TL-M40 handheld digital microscope delivers unique optics to the Dino-Lite series of microscopes. This model gives users 5x~40x mag.rates with a wider viewing lens compared to the AM413TL. This type of optics lets you view objects at a safe distance with the additional ability to view at lower mag. Very useful for applications where the user would need to work under the scope, yet not require much magnification.
This model comes with the unique MicroTouch snapshot feature. The MicroTouch feature on the Dino-Lite gives users the option of taking a picture right from the scope itself. The MicroTouch was designed to minimize image blur while taking a picture with the microscope. Great for those moments when you need to take a picture, but having a hard time reaching the computer Included with the Dino-Lite handheld digital microscope is a copy of the “DinoCapture” software, enabling you to “capture” either a photograph, video, or time-lapsed video within a few simple clicks. This model comes with the full version of DinoCapture software which includes measurement and calibration for greater precision work. As for all DinoCapture software though, updates with improvements to the software is always free.
Product Features:
*Resolution: 1.3Mpixels
*Adjustable magnification: 5x~40x
*Built-in 8 white-light LED illumination (software switchable)
*MicroTouch snapshot
*Frame rate: up to 30fps
*Interface: High speed USB image transmission (PC)
*Software: DinoCapture (with measurement & calibration capabilities)
Support OS: Windows Vista, XP Professional x64 Edition, XP, 2000, or Windows Server 2003
|
|
Measuring Microscope MF-A:
- Maximum height of workpiece 220 mm (MF-A1720/H, 1730/H)
- Quick release mechanism
- For detailed information, leaflet is available on request.
High-accuracy Universal Measuring microscope Hyper MF-U:
- World's Highest Accuracy is Achieved
- High-accuracy Measurement with the Laser AF (Auto-Focus)
- For detailed information, leaflet is available on request.
Vision Measuring Microscope:
- Effective Measurement with the Auto Edge Detection Tool
- Measurement Navigation Function
- For detailed information, leaflet is available on request.
|
|
|
|
|
|
Nikon's measuring microscopes offer performance, convenience and an unprecedented degree of flexibility for upgrading and expansion. The MM400/800 Series deliver complete digital control for maximum measuring accuracy in demanding industrial environments and new for 2009, the MM-200 compact economy model. Measuring microscopes are excellent solutions when you need to inspect and measure 2D and 3D small parts. Digital measuring stages from 12” x 8” to 2” x2” are available.
MM-200 Toolmakers Microscope
Nikon's new MM-200 Measuring Microscope is compact and lightweight with an affordable price for all who require precision and accuracy for measuring a variety of metal, plastic, and electronic parts in all industries; especially automotive and electronics. This powerful new microscope is especially designed and engineered with the machining engineers and inspectors in mind.
MM400/800 Toolmakers Microscopes
The MM400/800 is a new series of innovative measuring microscopes designed for industrial measurement and image analysis. They integrate key performance features delivering complete digital control for maximum measuring accuracy in demanding industrial environments. The systems support a host of new and expanded features including Nikon's electronic connection hub connection that provides total integration of microscope peripherals managed by Nikon's EMAX2 metrology software.
|
|
State of the art video microscope system for Visual Inspection, Digital Image Recording, Non-contact Dimensional Measurement, Documentation & Reporting of any object in any location.
Application:
Visual Inspection and XY-measurement of:
- mechanical parts and assemblies
- wires, coils, filaments and cables
- leads, bores and cuts on printed circuit boards
- gluing and bonding
- cutting edge tools and wear-out in CNC machines
- fibres in paper and textile industry
- plastic parts and injection moulds
- metallurgical and welding examination
- micro cracks in aircraft parts, engines, turbine blades
- identification of pollen, insects, stones etc.
- crime investigation and forensic analysis
|
|
Kestrel is the first non-contact measuring system to combine quality control laboratory accuracy, repeatability and optical quality, with in-line speed and ease of use in one low investment system.
Kestrel utilises Vision Engineering's patented optical projection technology to give a high resolution, high contrast view of parts to be measured. In comparison to profile projectors/shadowgraphs or video-based systems, the Kestrel's high performance pure optical system gives crisp and colour true views of intricate parts of optically difficult colour and texture (metals, plastics, ceramics).
|
|
New Hirox All in one Digital Microscope System with 2 Zoom Lenses (20x-160x and 50x-400x) and Standard Stand
Very easy to use and to transport, excellent image quality, Remote control for more ease of use.
Main unit with 2.1 Mega pixel video CCD
- Image recording,
- High resolution UXGA 15 inches Flat Screen with Multi Screen fonction
- TWAIN connection with PC,
- Compact Flash Card recording.
2 Zoom Lenses with LED directional Lighting:
- 20x to 160x magnification (Working distance: 44mm - Field of view: 15.4 - 2.0mm)
- 50x to 400x magnification (Working distance: 54 mm - Field of view: 6.1 - 0.78mm)
Standard Stand with Extension Pole (ST-HE)
Options: 2D measurement software, XY table, Lens Contact Adapter
|
|
|
KH-7700 Digital Microscope System is HIROX's newest most advanced development. The digital camera, light source, LCD monitor, computer and software are all integrated into this one unit. The KH-7700 provides the user with the ultimate in high performance observation, measurement, analysis, recording, management, and output.
|
|
EasyInspector
The EasyInspector is a portable high-resolution video microscope with autofocus (Full HD resolution available).
The device has a modular design and is suitable for visual quality control, i.e. as a video magnifying glass with a magnification rate of up to 300.
The EasyInspector is a fully integrated system appropriate for visual tests. The camera has a resolution of 0.5 mega pixels, and the system includes a 8.5" TFT LCD display.
|
|
The StarLite GX is the newest design in a complete non-contact inspection system with interactive measurement capabilities at your fingertips. It is everything you need for accurate video measurement.
Interactive Measurement at your fingertips
StarLite GX - fast, accurate and repeatable results you expect from a measurement system.
StarLite GX is designed for ease of use, with ergonomic controls, and innovative full-featured software. Increase your productivity with optional front panel controls - motorized zoom, XYZ zero set, enter point button, skew alignment, and an inch/millimeter switch.
eGx metrology software guides users through measurement routines with graphical icons, and unique tools for fast results on a manual measurement system.
|
|
| ... products without technical information |
| |
The measuring software SAPHIR makes this microscope an universal, though manual 2D-microscope, state-of-the-art tool. Esspecially while making first samples, the WM1 in combination with SAPHIR takes full advantage of its strenghts and capabilities.
Modular design, high optical quality via especially good surface light illumination and an excellent data reporting, these are prominent features of these microscopes.
|
|
| ... products without technical information |
| |
State of the art video microscope system for Visual Inspection, Digital Image Recording, Non-contact Dimensional Measurement, Documentation & Reporting of any object in any location.
Application:
Visual Inspection and XY-measurement of:
- mechanical parts and assemblies
- wires, coils, filaments and cables
- leads, bores and cuts on printed circuit boards
- gluing and bonding
- cutting edge tools and wear-out in CNC machines
- fibres in paper and textile industry
- plastic parts and injection moulds
- metallurgical and welding examination
- micro cracks in aircraft parts, engines, turbine blades
- identification of pollen, insects, stones etc.
- crime investigation and forensic analysis
|
|
Kestrel is the first non-contact measuring system to combine quality control laboratory accuracy, repeatability and optical quality, with in-line speed and ease of use in one low investment system.
Kestrel utilises Vision Engineering's patented optical projection technology to give a high resolution, high contrast view of parts to be measured. In comparison to profile projectors/shadowgraphs or video-based systems, the Kestrel's high performance pure optical system gives crisp and colour true views of intricate parts of optically difficult colour and texture (metals, plastics, ceramics).
|
|
|
|
