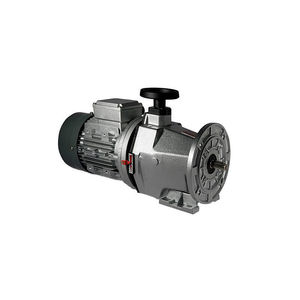

The new planetary cone disc variators of the patented series VARIO are built in an aluminium die-casted housing in 3 sizes: small, medium and large, respectively for motors of IEC size 63, 71 and 80.
Each VARIO is equipped with filler, level and breather plugs to make it suitable for any mounting position.
VARIO can operate in both directions, input and output shafts rotate in the same direction.
Hand wheel can be fitted to both sides of control box for convenient installation.
The cone discs are made in case hardened bearing steel, to increasethe durability of each VARIO.
VARIO are supplied with mineral lubricant ISO VG 46, with the quantity of oil for positions B3-B5
As a consequence of its operating principles, based on the satellites friction, the appropriate lubrication is essential for the correct duration and efficiency of VARIO.
It is strictly recommended, in addition, to avoid mixing two different oil types. If you change type of oil, make first sure youclean VARIO with appropriate chemical thinner.
All VARIO are supplied with filler, level and breather plugs. Before start-up, you must place the breather plug on the top like in the following pictures.
|
|

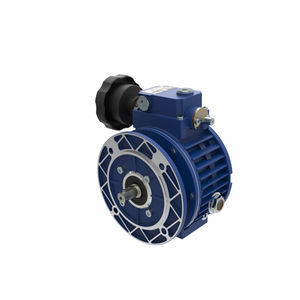

VAM series planetary cone-disk speed variators proposed by TRANSTECNO have the following characteristics.
- Precision in speed regulation (± 0.5/1 %).
- Speed range 1:5.
- Can operate in either direction based on rotation of motor.
- Input motor flange in standard version IEC B5.
- The frames 018, 037 and 075 are constructed with the aluminum body, larger sizes are made of cast iron.
|
|
|

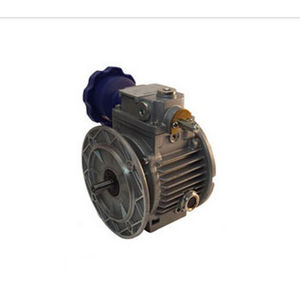

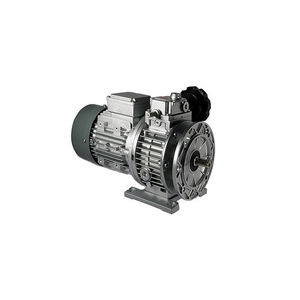

The renovated V series features a brand new speed setting mechanism that optimizes the operation, extending the lifetime of the core parts, and allowing the speed variator to run cooler and smoother than ever before. Also available with the additional helical reduction and in combination with most Bonfiglioli gears.
|
|
DESCRIPTION
Leading applications: general purpose, medium and fractional power drives. Dry friction and fully sealed enclosure allow reliable, service free and safe installations.
Design: housings and covers of aluminium die cast for sizes 63 and 71, of cast iron for sizes 80 and 90. Variators with output flanges, according to standard IEC sizes, to plug in the various helical and worm/wheel units.
|
|
The Phase Variator is the economical timing mechanism used to adjust the position of various machine components-even while running. Installed between the driven machine and the process which requires timing, the Phase Variator provides a full 360 degree range of position control.
In normal operation, with the control knob stationary, the Phase Variator operates as a 1:1 phase transmission with input and output shafts rotating in the same direction. When a rotation is applied to the control knob, a differential action occurs between the input and output shafts allowing a machine operator to synchronize a production process.
This simple, positive timing device is ideal for more efficient machine set-ups and changeovers. The Phase Variator is the low cost answer to the timing challenges facing today's machine designers.
|
|
SEW-Eurodrive's mechanically-adjustable gear units deliver straightforward operation and robust performance in applications requiring mechanical stepless speed variation.
Standard Features
Combine with SEW speed reducers for variable-speed applications requiring low output speed and high output torque
May be used without reduction as direct machine drives
Foot or flange-mounted configurations
|
|

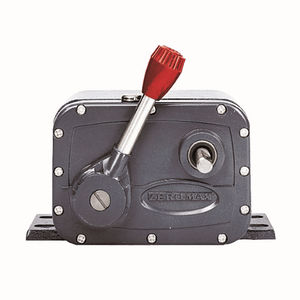

Designed for use on a wide variety of machinery, Zero-Max Drives may be used as primary or secondary drives.
The speed range is infinitely adjustable from 0 to 1/4 of the input speed under full rated load. Reversible models are available with reverse and neutral settings.
They are available in five sizes providing constant torque of 12 to 200 inch pounds throughout the speed range. To achieve the exact performance characteristics you require, Zero-Max Adjustable Speed Drives are available with optional gearheads, motors and C-flange adapters. Some Zero-Max Drives may be purchased with standard electric motors or they may be connected to any rotating power source up to 2000 RPM.
|
|
|
|
|
|
A mechanical belt variable speed transmission package with modular construction
Available as gearless drives or as a combined motor and mechanical belt/gear variable speed transmission
Six case sizes for motor frames 56 through 250T
Manual handwheel speed changer standard, with options for various remote signed followers
Constructed with Endolube III
Product Overview
The Varidrive is a ‘packaged’ variable speed belt transmission. Packaged means that the
belt transmission, drive motor, and if required, the gear reducer are constructed as a single
power transmission drive assembly. These variable speed drives are employed where the
operating speed of the driven component must vary over a range that can not be provided by a
fixed driver-driven relationship.
Types VAP, VEUP and VEP modules are used with motors to produce gearless Varidrives.
Type VAM modules are used with a motor and gear reducer. A variety of accessory kits are
available for the Varidrive, including a number of remote control kits, number of analog speed
indicators, as well as a solid state speed control that works in conjuction with an actuator called
Varitrol.
Principles of Operation
• The Varidrive provides variable output speed by means of variable pitch sheaves
(Varidiscs) which are moved axially on the driver (motor) and driven shafts
• The driver pitch diameter is established by either manually or automatically positioning
the adjustable motor Varidisc axially on the motor shaft
• Driven pitch diameter is correspondingly and inversely adjusted by means of a spring
loaded adjustable driven Varidisc
|
|
| ... products without technical information |
| |

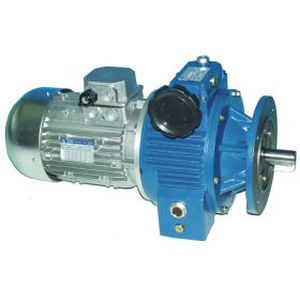

The mechanical variators and gearboxes CMV are composed by the CM series wormgearboxes and by the VAM series mechanical variators.
VAM series planetary cone-disk speed variators are characterised by a higher grade of precision in speed regulation (± 0.5/1 %) and they can operate in either direction based on rotation of motor.
The frames 018, 037 and 075 are constructed with an aluminum body, sizes 15,22 and 40 are made of cast iron.
Speed range 1:5.
|
|
|
|
