ELCON
Single-face metal detector for installation on coveyor belts and material chutes.
The single-face metal detector ELCON is used to inspect poured or bulk materials, preferably of a thin nature, on belt conveyers or material chutes.
It detects all magnetic and non-magnetic metal contamination (steel, stainless steel, aluminum...) even if enclosed in the product.
On detection of metal, a signal device and a separation system can be activated or a signal can be send to the process controlling.
■ Detection of magnetic and non-magnetic metal contamination, even if enclosed in the product
■ Reduced costs regarding breakdown of machinery product waste
■ Secures product quality
■ Protects against customer complaints
|
|
|
In many areas a quick analysis of the materials used is necessary. Examples here include sorting beverage cans made of aluminium or tin, or the differentiation of pipes made of different metals which have been manufactured in the same plant. Turck has developed an analogue inductive sensor for this purpose that not only processes the amplitude signal but also the phase signal. Both signals are output as analogue values and can be processed mathematically with the programmable I/O systems BL20 or BL67. The great advantage of this inductive analogue measurement is the distance independent detection of metals.
|
|
GLS closed aperture, tunnel metal detectors are equipped with digital technology and used for inspecting bulk materials or individually packaged product on belt conveyors, material slides or vibratory conveyors.
GLS metal detection systems detect all ferrous and non-ferrous metals (steel, stainless steel, aluminium etc ), even those which may be contained in the product. If metal is detected a signal is sent to the process controller or the reject unit is activated.
The enclosed type of construction ensures that very high sensitivity is achieved throughout the entire tunnel area. For this reason the GLS range is highly suited to precise applications in the food industry.
The size of the detector is dependent upon application, conveyor belt width and product height.
|
|
VARICON metal detection systems detect all magnetic and non-magnetic metal contaminants (steel, stainless steel, aluminium etc ), even those which may be contained in the product.
The system comprises 4 main components:
• GLS tunnel metal detector
• special conveyor (width of belt from 500 mm)
• “stop-on-detect” control unit
|
|
The RMS series of tunnel metal detectors (with circular aperture) are mainly used for inspecting bulk materials in pipeline systems (gravity or airborne feed). They are also often used in the ejection area of production machines to identify rejects or broken tools.
RMS metal detectors detect all magnetic and non-magnetic metals (steel, stainless steel, aluminium etc ), even those which may be contained in the product. If metal is detected a signal is sent to the process controller or a flap is activated to remove the contaminant.
The RMS metal detector range is mainly used in industries where hygiene standards are less important. They are used to inspect products which have little or no product effect.
The size of the metal detector depends on the application and nominal width of the pipeline.
|
|
|
|
|
|

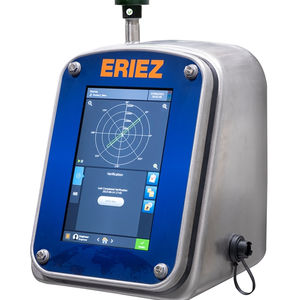

Eriez manufactures the broadest range of metal detectors in the industry. Whether looking for small ferrous or nonferrous metal pieces, tramp metal or digger teeth, we can provide you with a metal detector to solve practically every metal contamination problem.
E-Z Tec® Metal Detectors
Extremely sensitive metal detector capable of detecting ferrous,nonferrous and stainless steel metals in dry and conductive products produced in the food, dairy, pharmaceutical, chemical, paper, rubber and textile industries. In addition to protecting products from metal contamination, this metal detector is used to protect downstream equipment from costly damage.
Metalarm Metal Detectors

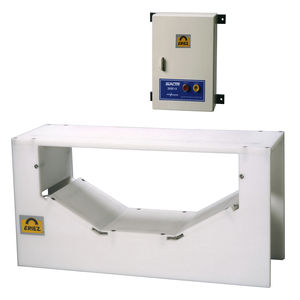

Used in the aggregate, coal and wood industries, the Metalarm Metal Detectors are designed primarily to protect downstream equipment from damaging tramp metal (i.e. digger teeth, axe heads, etc.), Other models are suitable for the plastic and textile markets, where smaller pieces of metal need to be detected.
1200 Series Metal Detectors
Seven models available to handle a wide range of applications, from detecting medium and larger ferrous and nonferrous particles traveling at speeds up to 1200fpm (363mpm), to detecting small pieces of metal in wet conductive products.
|
|
|
E-Z Tec 9000 range metal detectors and separators are used in a variety of industries including plastics, recycling, wood and textiles to detect and divert from product lines all types of metal contaminants, including stainless steel
|
|

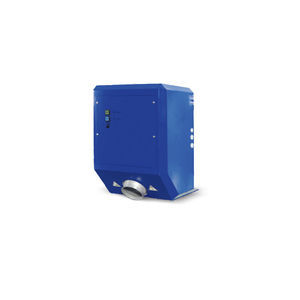

Free falling powder and bulk products
Pipe Ø 100-600 mm / 4-24 inch
or Pipe Ø 100-300 mm / 4-12 inch
Typically, the GF types are used in gravity feed pipes and provide highest performance in detecting magnetic and non-magnetic metals. The bulk material falls through the metal detector. With the reject flap EX-S smallest metal objects are separated out of the product stream promptly.
With a maintenance free design and high quality construction, for reliable operation in the most challenging industrial environments.
|
|

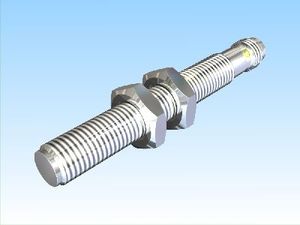

Ultra High Sensitivity
Sensor Ø 10/25/35 mm
The R types provide highest performance in detecting magnetic and non-magnetic metals. Typically, applications are in the medical pharmaceutical sector as well as sanitary items, foods and chemical powders. The product falls through the R sensor head and an optional reject unit. With the reject unit smallest metal objects are separated out of the goods' stream promptly.
|
|
The METAL SHARK BD sets new standards for high sensitivity metal detectors.
Typically, the BD types are used in conveyor belts and provide highest
performance in detecting magnetic and non-magnetic metals. Different methods are available to reject metal objects (pusher, belt stop + alarm etc).
Sensor and control unit housing are made of sturdy stainless steel, appropriate for use in the food industry. With a maintenance free design and high quality construction, for reliable operation in the most challenging industrial environments.
|
|
METAL DETECTORS
Metal detectors remove ALL metals, also non magnetic such as aluminium, copper, brass, etc; from 0,5 mm
On detection, a signal follows driving a valve or stops the belt Suitable for belt widths up to 2000 mm or free-fall and vacuum or pressure transport.
Electrical current required
Operation by powerful ADM05 touch screen control
Can be used in accordance with ATEX regulations for dust explosion zone 20.
Specific application for metal detectors: recycling, foodstuffs, bulk-handling, pharma and ceramic industries.
|
|
Reliable detection of metallic contamination, even through aluminized packaging. Self-optimizing, self-learning and meets all documentation requirements.
Protection for both consumer and machine thanks to stateof-the-art metal detection technology.
• Multi-frequency systems and multi-channel technology guarantee safe detection, unsusceptible to disturbances
• Numerous QA functions support complete documentation as proof of quality assurance
• Particularly simple, safe operation with integrated online help
• 4 different equipment ranges
|
|

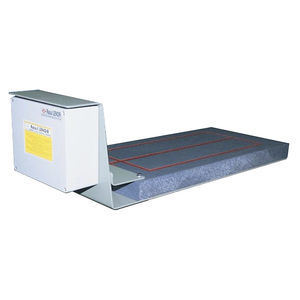

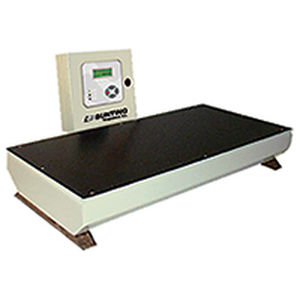

Flat metal detector for conveyor installation, Typical use in the aggregate/mining/stone/earth processing, IP65.
Analogue control box, Autom. magnetite/ferrooxyde compensation, Wall installation, Sheet steel housing RAL7032 grey, IP55, 10m sensor link cable
|
|
The SQ (single probe) and SQTA (tandem probe) series of metal detectors are designed to provide protection and monitoring. They are used in all situations where a warning must be given about disruptive and harmful pieces of metal in the material being conveyed.
Applications of SQ and SQTA metal detectors: Quarries, Lime works, Clinker works, Sand pits, Cement factories, Slag processing, Building material recycling, Brickworks, Coal-burning power stations.
|
|
Conveyor for METAL SHARK metal detectors
Cassel takes great pride in the engineering and manufacturing of their series HQ conveyors to compliment their METAL SHARK metal detectors.
The conveyor's design has been adapted to the special requirements of metal detectors to provide optimum operation.
|
|
Eriez manufactures the broadest range of metal detectors in the industry. Whether looking for small ferrous or nonferrous metal pieces, tramp metal or digger teeth, we can provide you with a metal detector to solve practically every metal contamination problem. Contact us for our assistance in selecting the appropriate metal detector for your application.
Eriez also manufactures a full line of Cabinet X-Ray equipment to meet your full Inspection System needs.
|
|
Compact Metal Detector for meat pump
The whole system is made of sturdy stainless steel, appropriate for use in the food (especially meat) industry. With a maintenance free design and high quality construction, for reliable operation in the most challenging industrial environments.
Separates ferrous and non-ferrous metal
Metal detector according to IFS and HACCP
Hygienic - For daily cleaning easily dismountable
Special care has been taken to design a reliable high pressure throughput piping. The sturdy pipe resists high pressures up to 80 bar (1000 psi). The pipe flanges are suitable for adaptation into filling machines of OEM (e.g. Handtmann, Vemag, Risco).
|
|
Conveyor installation below or above conveyed material
Typically, the FL types are used in fleece, textile and foil production and provide highest performance in detecting magnetic and non-magnetic metals.
|
|
Highest metal sensitivity
Aperture width 800 - 4.500 mm (2,6 ft - 14,8 ft)
Aperture height up to 1.400mm (4,6 ft)
Conveyor installation
Closed sensor head
Product effect compensation
Applications:
Plastic recycling
Rubber production
Food related industries
Wood and paper processing
General purpose in heavy industries
|
|
Dividable sensor head
Conveyor installation
Product effect compensation
Applications:
Plastic recycling
Rubber production
Wood and paper processing
Food related industries
|
|
|
Eriez manufactures the broadest range of metal detectors in the industry. Whether looking for small ferrous or nonferrous metal pieces, tramp metal or digger teeth, we can provide you with a metal detector to solve practically every metal contamination problem. Contact us for our assistance in selecting the appropriate metal detector for your application.
|
|
|
Custom-manufactured metal detectors with a wide range of options for special applications. Detectors are often supplied together with magnetic separators.
|
|
|
|
|
|
In order to provide you and your customers with the highest possible quality and with a sense of security, we recommend the use of a metal detector in your tableting process. The device is positioned after the tableting or de-dusting units, and detects any tablets contaminated by metal pieces or objects that have found their way into the process. The unacceptable tablets are then reliably ejected by a high-speed electrically operated flap. One of the chief benefits is maximization of operating times in production.
Ceia Metal Detector

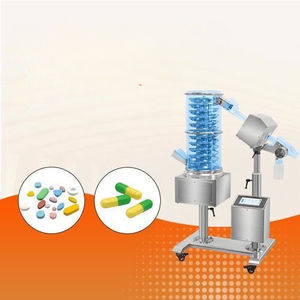

On top of the remarkable throughput figures, theoretically extending up to 1,800,000 tablets/hour, and the high sensitivity with which metallic particles are detected, the fail-safe design...
Lock Metal Detector
Detection is reliable even when the maximum of 30,000 tablets per minute are passing through the machine under difficult conditions.
Loma Metal Detector
Meeting hygienic standards is a key aspect of production. All those parts in the IQ² series that come into contact with the product are therefore made from high-quality plastics and stainless steel.
Safeline Metal Detector
The Safeline detector offers an Ethernet interface for the collection of operating data. This permits connection to operational data management systems.
|
|
|
|
|
|
The Gravity Feed Metal Detection System is designed to inspect free-flowing solids such as powder, granules and pellets. The compact design and fast acting electronics allow for installation in almost any application.
Product Detail
Our customers require increasingly sensitive and sophisticated detection equipment that play an important role in ensuring that the highest quality product is being consistently delivered to their customers. The Gravity Feed Metal Detection System is designed to inspect free-flowing solids such as powder, granules and pellets. The compact design and fast acting electronics allow for installation in almost any application.
Utilizing the latest in Digital Signal Processing technology, the Gravity Feed Metal Detection System delivers the highest level of metal detection to date. The advanced user-friendly interface allows quick and easy application set-up. A comprehensive, self-diagnostic system monitors the metal detectors performance for potential circuitry changes. It is also capable of sensing the speed and position of the reject gate. A multi-level password security system insures maximum performance by limiting access to critical settings.
|
|
Metal detector ER model.
This is the star product of our range because of its resolution and simplicity of installation.
It consist of a detection coil that is mounted underneath the conveyor belt. When a piece of metal passes over the detector, mixed in with the stone, a signal is triggered that, duly amplified, is transmitted to the control switchboard and causes the feeder belt to come to a halt, at the same time as the acoustic and visual alarm indicate the detection.
|
|
Metal detection technology is used primarily in the foodstuffs and also the hygiene, paper, chemicals, pharmaceuticals and wood industries to protect people and the machines. The highly sensitive metal detectors recognise not only magnetic and non-magnetic metals, but also very small stainless steel parts with a high specific resistance. With our search heads, we can also realise high speeds and detection through metal films.
|
|
|
|
|
|
Magnetic Locators GA-72Cd
- Unmatched sensitivity allows you to find what you're looking for quickly, without the risk of passing over your target.
- Our locators last 100% to 250% longer than others, making your investment a solid one.
- Audio signal and 3-digit LCD readout
- 85% of the Surveyor market can't be wrong.
Magnetic Locators GA-52Cx
- Unmatched sensitivity allows you to find what you're looking for quickly, without the risk of passing over your target.
- Our locators last 100% to 250% longer than others,
making your investment a solid one.
- 85% of the Surveyor market can't be wrong.
Quality Is Our Hallmark
Schonstedt's underground magnetic locators have been setting the standards for reliability and dependability for over 30 years. They are designed to withstand the rigors of daily on-site usage and a wide range of environmental conditions. In fact, the Model GA-72Cd is backed by a 5-year warranty and the Model GA-52Cx is so rugged and dependable it's backed by a 7-year warranty.
|
|
METTLER TOLEDO SAFELINE is the global market leader in the field of industrial metal detection for the food and pharmaceutical processing and packaging industries. SAFELINE metal detection solutions offer maximum detection sensitivity with minimum false rejects.
SAFELINE metal detectors for food processing can inspect product in all formats from packaged conveyorised food products to bulk powder or granular materials through to liquids, pastes and slurries. Systems can be utilised to provide compliance with food safety inspection standards, industry guidance and legislation.
SAFELINE pharmaceutical metal detectors provide self contained inspection systems for use with all tablets, capsules and pharmaceutical powders. These systems ensure compliance with regulatory requirements, validation and qualification of procedures.
|
|
The metal detector IQ is a inspection complete solution, assuring a few high levels of quality in processes of production that it guarantees an excellent result.
- Adjustment of Intelligent Sensibility: the equipment allows to realize the adjustments of every product of manual or automatic form.
- System of PVS Validation: The equipment can be prepared to request the operator who checks its functioning of simple and rapid form.
|
|
Metal detector GR Model.
This is a metal detector with a structure consisting of two detection coils. It is installed on a conveyor belt forming a tunnel, through which the material to be analysed passes. When a piece of metal passes over the detector, mixed in with the stone, a signal is triggered that, duly amplified, is transmitted to the control switchboard and causes the feeder belt to come to a halt, at the same time as the acoustic and visual alarm indicate the detection.
|
|
|
|
