The World's Smallest Video Cameras.

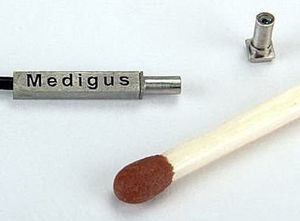

Medigus offers the world's smallest micro cameras. The current offering includes a new revolutionary disposable CMOS camera, which has an outer diameter of only 1.2mm x 5mm long and is by far the smallest camera in the world. In addition the company offers reusable CCD cameras in two sizes: 3.0mm x 3.0mm and 1.8mm x 1.8mm.
The outer diameter size of the recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity. The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
In addition, Medigus' CCD cameras (3.0mm x 3.0mm and 1.8mm x 1.8mm) offer excellent image quanlity and are suitable for both medical and industrial applications.
|
|
|
|
|
|
The World's Smallest Video Cameras.
Medigus offers the world's smallest micro cameras. The current offering includes a new revolutionary disposable CMOS camera, which has an outer diameter of only 1.2mm x 5mm long and is by far the smallest camera in the world. In addition the company offers reusable CCD cameras in two sizes: 3.0mm x 3.0mm and 1.8mm x 1.8mm.
The outer diameter size of the recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity. The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
In addition, Medigus' CCD cameras (3.0mm x 3.0mm and 1.8mm x 1.8mm) offer excellent image quanlity and are suitable for both medical and industrial applications.
|
|
|
|
|
|
The World's Smallest Video Cameras.
Medigus offers the world's smallest micro cameras. The current offering includes a new revolutionary disposable CMOS camera, which has an outer diameter of only 1.2mm x 5mm long and is by far the smallest camera in the world. In addition the company offers reusable CCD cameras in two sizes: 3.0mm x 3.0mm and 1.8mm x 1.8mm.
The outer diameter size of the recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity. The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
In addition, Medigus' CCD cameras (3.0mm x 3.0mm and 1.8mm x 1.8mm) offer excellent image quanlity and are suitable for both medical and industrial applications.
|
|
Micro CCD Cameras
These cameras are very small in size. They are typically used when space is at a premium. Micro Cameras have a single CCD sensor and typically are a split head design, but not always. Older, discontinued cameras and cables may still be available.
|
|
|
|
|
|
The World's Smallest Video Cameras.
Medigus offers the world's smallest micro cameras. The current offering includes a new revolutionary disposable CMOS camera, which has an outer diameter of only 1.2mm x 5mm long and is by far the smallest camera in the world. In addition the company offers reusable CCD cameras in two sizes: 3.0mm x 3.0mm and 1.8mm x 1.8mm.
The outer diameter size of the recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity. The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
In addition, Medigus' CCD cameras (3.0mm x 3.0mm and 1.8mm x 1.8mm) offer excellent image quanlity and are suitable for both medical and industrial applications.
|
|
|
|
|
|
The World's Smallest Video Cameras.
Medigus offers the world's smallest micro cameras. The current offering includes a new revolutionary disposable CMOS camera, which has an outer diameter of only 1.2mm x 5mm long and is by far the smallest camera in the world. In addition the company offers reusable CCD cameras in two sizes: 3.0mm x 3.0mm and 1.8mm x 1.8mm.
The outer diameter size of the recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity. The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
In addition, Medigus' CCD cameras (3.0mm x 3.0mm and 1.8mm x 1.8mm) offer excellent image quanlity and are suitable for both medical and industrial applications.
|
|

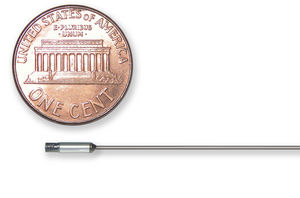

The World's Smallest Video Camera for endosocpes.
The outer diameter size of this recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity.
The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with medical endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
|
|
The World's Smallest Video Camera for endosocpes.
The outer diameter size of this recently announced revolutionary disposbale camera is only 1.2mm x 5mm long and it by far the smallets video camera in the world. The camera, which is based on an adavanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity.
The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with medical endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
|
|
|
|
|
|
The World's Smallest Video Cameras.
Medigus offers the world's smallest micro cameras. The current offering includes a new revolutionary disposable CMOS camera, which has an outer diameter of only 1.2mm x 5mm long and is by far the smallest camera in the world. In addition the company offers reusable CCD cameras in two sizes: 3.0mm x 3.0mm and 1.8mm x 1.8mm.
The outer diameter size of the recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity. The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
In addition, Medigus' CCD cameras (3.0mm x 3.0mm and 1.8mm x 1.8mm) offer excellent image quanlity and are suitable for both medical and industrial applications.
|
|

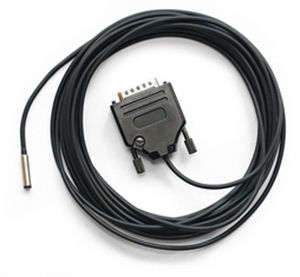

The World's Smallest CCD Video Cameras for medical endosocpes.
Medigus manufactures micro CCD video camera systems with either a 3.0mm x 3.0mm or a 1.8mm x 1.8mm camera head, the latter being the world's smallest CCD camera.
The cameras are ready for integration into various visulaization and inspection devices, such as medical endoscopes. The cameras are designed for integratation into endoscopes by companies that manufacture endsocopes.
Applications for the cameras include colonoscopy, gastroscopy, nasopharyngoscopy, laryngoscopy, ureteroscopy, cystoscopy, laparoscopy, bronchoscopy, arthroscopy, urology, gynecology, bronchoscopy, ERCP etc.
The cameras are the proprietary technology of Medigus Ltd.
|
|
|
|
|
|
The World's Smallest Video Cameras.
Medigus offers the world's smallest micro cameras. The current offering includes a new revolutionary disposable CMOS camera, which has an outer diameter of only 1.2mm x 5mm long and is by far the smallest camera in the world. In addition the company offers reusable CCD cameras in two sizes: 3.0mm x 3.0mm and 1.8mm x 1.8mm.
The outer diameter size of the recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity. The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
In addition, Medigus' CCD cameras (3.0mm x 3.0mm and 1.8mm x 1.8mm) offer excellent image quanlity and are suitable for both medical and industrial applications.
|
|
|
|
|
|
The World's Smallest Video Cameras.
Medigus offers the world's smallest micro cameras. The current offering includes a new revolutionary disposable CMOS camera, which has an outer diameter of only 1.2mm x 5mm long and is by far the smallest camera in the world. In addition the company offers reusable CCD cameras in two sizes: 3.0mm x 3.0mm and 1.8mm x 1.8mm.
The outer diameter size of the recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity. The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
In addition, Medigus' CCD cameras (3.0mm x 3.0mm and 1.8mm x 1.8mm) offer excellent image quanlity and are suitable for both medical and industrial applications.
|
|
The World's Smallest Video Camera for endosocpes.
The outer diameter size of this recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity.
The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with medical endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
|
|
|
|
|
|
The World's Smallest Video Cameras.
Medigus offers the world's smallest micro cameras. The current offering includes a new revolutionary disposable CMOS camera, which has an outer diameter of only 1.2mm x 5mm long and is by far the smallest camera in the world. In addition the company offers reusable CCD cameras in two sizes: 3.0mm x 3.0mm and 1.8mm x 1.8mm.
The outer diameter size of the recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity. The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
In addition, Medigus' CCD cameras (3.0mm x 3.0mm and 1.8mm x 1.8mm) offer excellent image quanlity and are suitable for both medical and industrial applications.
|
|
ELMO SUV Micro Cameras and Recorder Systems
The SUV-Cam II Line and SUV Cam Professional Line by ELMO are Micro Video Cameras and Recorder Systems designed to be worn mounted to a helmet, or as an on-board camera attached to machinery where it is difficult or impractical for conventional video cameras to be used. The SUV Camera series gives you a compact and portable "inside the action" point of view.
|
|
|
|
|
|
Key points
- Ultra-small
- Excellent antiblooming characteristics
- Continuous variable-speed shutter
- High sensibility and low dark current
We offer as standard 2 devices: 1/6" and 1/10":
1/6" LYNX 59.60/LYNX 59.90 (respectively offering field of vision angles of 50° and 90°)
- Interline CCD image sensor
- Image size: Diagonal 3mm (Type 1/6)
- Number of effective pixels: 752 (H) x 582 (V) approx. 440K pixels
- Total number of pixels: 795 (H) x 596 (V) approx. 470K pixels
- Chip size: 3.30mm (H) x 2.95mm (V)
- Substrate material: Silicon
- Cable: length: 4.5m - ø 3mm (ø 2.1mm without plastic sheath)
- Head: ø 5.9mm - length: 20mm
1/10" LYNX 34.90
- Interline CCD image sensor
- Image size: Diagonal 1.8mm (Type 1/10)
- Number of effective pixels: 510 (H) x 492 (V) approx. 290K pixels
- Total number of pixels: 537 (H) x 505 (V) approx. 320K pixels
- Chip size: 2.00mm (H) x 2.00mm (V)
- Unit cell size: 2.90µm (H) x 2.25µm (V)
- Substrate material: Silicon
- Cable: length: 4.5m - ø 3mm (ø 2.1mm without plastic sheath)
- Head: ø 3.4mm - length: 16.5mm
|
|
The Pix-Cell Camera is a high performance, programmable Cellular Single Board Controller, that offers built-in digital and analog I/O combined with GSM/GPRS connectivity in a compact form factor. With this GSM camera it is possible to take a picture and send it all over the world.
Features:
- Small Size: 95x60x15mm.
- JPEG resolution 640x480, 320x240.
- Remote camera activation through SMS or short call.
- Microchip PIC18F6722 controller at 32MHz.
- 128KB Flash for user memory application.
- 32kB of EEPROM Memory.
- 3 Protected Digital Inputs.
- 3 10-bit Analog Inputs.
- RS232 serial communication.
|
|
Guppy – small, easy, ingeneous
The AVT Guppy family consists of eleven very small IEEE 1394 C-mount cameras, which are equipped with highly sensitive high-quality sensors (CCD, CMOS). Each of these cameras is available in black/white with clear glas filter as well as in color with IR cut filter.
The cameras, operating in 8-bit mode, impress in almost any situation by their ability to produce highly sophisticated images. Due to it's very compact housing, it fits into almost all space requirements in your system. A fine stepped selection of different resolutions below 1 Mpixel (VGA, WideVGA, SVGA, XGA) leaves no wish unfulfilled and provides the right camera for all individual applications. Two additional ultra sensitive interlaced versions (EIA, CCIR) make it even more attractive to switch from analog to digital image processing.
|
|
pixelfly qe
This high performance digital 12bit CCD camera system features state of the art in CCD and electronics technology. The pixelfly qe has an extraordinary quantum efficiency with up to 65%. The system consists of an ultra compact camera head, which either connects to a standard PCI or a compact PCI board via a high speed serial data link. The available exposure times range from 5µs to 65s. A digital temperature compensation is integrated instead of a space consuming thermo-electrical cooling unit. All camera functions can be remotely accessed and controlled via digital interface. This compact digital CCD camera system is perfectly suited for many scientific and industrial imaging applications, like microscopy, spectroscopy and quality control.
|
|
|
|
|
|
Lumenera’s new Lm085 mini CMOS USB 2.0 camera is designed for industrial environments with high contrast-light scenes, tight space constraints, and rugged environmental conditions.
An ultra-wide dynamic range makes the Lm085 an ideal choice for applications with variable lighting conditions, as this camera can provide a dynamic range of 100dB.
The Lm085’s small form factor of 44x44x56mm and robust mechanicals are well suited for conditions where the camera is under sustained vibration, fatigue, and stress from conveyor lines, mechanical arms, mobile vehicles, or gantries that introduce shock and vibration. An electronic global shutter eliminates the smear effect generated by moving objects, while the locking mini USB and RJ45 GPI/O connectors keep cables reliably attached to the camera back plate even in challenging conditions.
When high throughput is essential, the Lm085 provides 60 fps at full 752x480 resolution, and over 100 fps at 376x240 binning mode.
Uncompressed images in live streaming video and still image capture are provided across a mini USB 2.0 digital interface. No framegrabber is required. Advanced camera control is available through a complete Software Developer’s Kit (SDK), with sample code available to quickly integrate camera functions into OEM applications.
Hardware and software based synchronization trigger is provided standard. 32 MB on-board memory is available for frame buffering.
|
|
pco.1200 s
This high speed 10bit CMOS camera system comprises advanced CMOS and electronics technology. With the new approach to integrate the image memory (camRAM) into the camera itself, it enables unmatched fast image recording with 820MB/s. The system features an excellent resolution (1280 x 1024pixel) and low noise. It consists of a compact camera with an external intelligent power supply. The image data are transferred via customer selectable standard data interfaces to a computer (IEEE 1394 (“firewire”), camera link). The available exposure times range from 1µs to 5s. This digital CMOS camera system is perfectly suited for high speed camera applications such as material testing, external crash testing or super slow motion movie clips.
|
|
|
|
|
|
Lumenera's Lm075 mini CCD USB 2.0 cameras
Lumenera’s new Lm075 mini CCD USB 2.0 cameras are designed for industrial and scientific applications,particularly those with low light conditions and tight
space constraints.
Measuring 44x44x56mm, these compact cameras offer the same performance as our enhanced USB 2.0 camera line, delivering outstanding image quality and
value. Features include new locking industrial mini USB and RJ45 GPI/O connector, multiple mounting points,60 fps at full 640x480 resolution, 100+ fps at 320x240 binning mode, and on-board processing. Both color and
monochrome product models are available.
Electronic Global Shutter provides capabilities similar to a mechanical shutter, allowing simultaneous integration of the entire pixel array, and then stopping exposure while image data is read out - idea for capturing objects
in high-speed motion.
Uncompressed images in live streaming video and still image capture are provided across a mini USB 2.0 digital interface. No framegrabber is required.
Advanced camera control is available through a complete Software Developer’s Kit (SDK), with sample code available to quickly integrate camera functions into OEM applications.
Hardware and software based synchronization trigger is provided standard. 32 MB on-board memory is available for frame buffering.
All Lumenera products are supported by an experienced team of software developers and application engineers. We understand your imaging needs and are here to help you with your integration and development.
|
|
|
|
|
|
Featuring outstanding picture quality, high-speed image capturing, and the digital 1394b interface, the XCD Series is perfect for high-quality industrial and manufacturing solutions.The XCD-SX90/SX90CR employs a unique CCD that achieves a frame rate of up to 30 fps at 1280 x 960 (SXGA) resolution. With this wide range of solutions, each with feature-rich benefits, itâ¿¿s never been easier to select the right camera for your specific machine vision applications. The XCD Series of cameras adopts the IEEE 1394b interface that supports the IIDC protocol. By using this interface, users can transfer images to a host PC at speeds of up to 800 Mb/s.
Moreover, because multiple cameras can be connected in a daisy-chain configuration, users can enjoy the benefits of simplified operation in a multi-camera system. When these XCD cameras are daisy-chained, Bus Synchronization and Broadcast Delivery are available. With Bus Synchronization, users can capture images from different angles simultaneously simply by sending a single trigger from the host PC. Broadcast Delivery allows users to capture images from multiple cameras using a software trigger instead of a hardware trigger, which helps to minimize the occurrence of false triggers. This function also allows users to change the settings of multiple cameras simultaneously.
Their compact design and rugged body enables the XCD Series to be integrated into a wide variety of industrial environments.
In addition, the XCD series incorporates features such as partial scanning, binning, and a hardware LUT (Look Up Table).
|
|
pixelfly vga
This high performance digital 12 bit CCD camera system features state of the art in CCD and electronics technology. The system consists of an ultra compact camera head, which either connects to a standard PCI or a compact PCI board via a high speed serial data link. The available exposure times range from 10 µs to 10 s. A digital temperature compensation is integrated instead of a space consuming thermo-electrical cooling unit. All camera functions can be remotely accessed and controlled via digital interface. This compact digital CCD camera system is perfectly suited for many scientific and industrial imaging applications, like microscopy, spectroscopy and quality control.
|
|
|
|
|
|
Lumenera's Mini Lm165 Industrial USB 2.0 Camera
Measuring 44x44x56mm, these compact cameras offer the same performance as our enhanced USB 2.0 camera line, delivering outstanding image quality and value. Features include new locking industrial mini USB and RJ45 GPI/O connector, multiple mounting points, 60 fps at full 640x480 resolution, 100+ fps at 320x240 binning mode, and on-board processing and sensitivity provide outstanding image quality. Both color and monochrome product models are fully supported by the Lumenera Software Developer’s Kit with an application programming interface compatible with C++ and Visual Basic.
CAMERA SENSOR
Image Sensor 2/3” format, color or mono, 9.0mm x 6.7mm array
Effective Pixels 1392 x 1040, 6.45µm square pixels
Frame Rate 15 fps at 1392 x 1040, 30 fps at 640x480 (binned or ROI)
Sensitivity Extremely High
Dynamic Range 66dB
Exposure Manual
White Balance Auto / Manual
Dimensions (W x H x D) 44x44x56mm
Mass TBD
Power Requirement USB bus power or external 5VDC, 500mA
Power Consumption ~2.5 Watts
Operating Temperature 0°C to +50°C
Operating Humidity 5%-95%, Non-condensing
Interface Connector Locking mini USB cable & RJ45 GPI/O connector
Lens Mount Adjustable C-Mount (CS-Mount option)
Frame Buffer 1 frame buffer (optional expansion to 50 frames
|
|
