• Ratings up to 16A, 250V ac
• Industry standard V3 and V4 sizes
• Changeover, NO and NC operation
• Wide choice of terminals and levers
• RoHS compliant
|
|
|
|
|
|
To ensure suitability across all applications, Crouzet can customize its standard products to suit customer specific requirements where necessary. High quality is continuous whether based on standard product or adaptation through to implementation at the heart of your application.
- Control devices: Crouzet has considerable expertise in button design & special profiles to improve operation & accurate positioning whatever the method of actuation used.
- Special contacts: Crouzet uses only the best metals including, silver, silver nickel, silver palladium, gold plated silver & solid gold.
- Seals: Humidity, dust, gas-filled or corrosive atmospheres affect the reliability of your equipment. There are numerous components available to provide effective protection for your contacts, including caps, boot seals, membranes, sealing resin, wiper seals.
- Control springs: the characteristics of our microswitches match your application. The operating force may be different to the return force required for example. Our expertise within the required technical parameters guarantees continuing accuracy, reliability & long life.
- Connections: Special connectors, customised wiring, customer bundles, dedicated terminals… Crouzet delivers a complete solution offering benefits including shorter lead time and cost.
- Special levers: Angled, curved, extended or retractable... these special lever types can be used to extend the control device for easier adjustment, increase the operating force, resist high actuation torque to provide totally safe electrical isolation. Crouzet’s wealth of experience makes designing and optimising your application much easier.
|
|
|
|
|
|
Microswitches of MK series have been developed in order to add new features to traditional and tested microswitches of Pizzato Elettrica. These new products have been designed with shapes and fixing perfectly interchangeable with the previous ones and with various additional functions useful to extend the applicatory field.
The main innovation of this series is the tripping device evolved and modern, with qualitative features higher than solutions present on the market.
The electrical contact on new microswitch has been realized with higher reliability technology, thanks to the double and redundant shape, and has the possibility to carry out operations with positive opening.
The housing of the new microswitch provides the possibility to seat gaskets in order to seal the device against fine dusts or liquids up to IP65 degree.
Fastening terminals of conductors are more practical and allow the fixing of different diameter cables or the possibility to choice different bends of faston contacts. For high quantity it’s possible to supply the microswitch only with the contact NO or NC, in order to minimize purchase costs.
|
|
saia miniature micro switch
Characteristics
• wide number of force variants
• long mechanical and electrical life
• solder terminals
• quick connect
• PCB terminals
Rating 250 VAC, 26 A (XGT 86)
Dimensions (mm) 27.8 x 15.9 x 10.3
Actuator • plunger
• plain levers
• roller levers
Approvals ENEC, UL, cUL, CSA
|
|
Features:
* 10 Ampere switching capability.
* High contact pressure.
* Precision operating points.
* Button accepts actuation directly from cam.
* Constructed in accordance with MIL-S-8805/7.
* Available in Military and Commercial grades.
* Choice of three standard terminal styles.
* UL Recognized.
B5 series basic switches are subminiature in size and feature a 10 ampere switching capacity for a minimum of 100,000 cycles. Mechanical life is over 1,000,000 cycles.
The molded housing is rugged and structurally stable. The terminals are sealed against solder flux entering the switch and are bright-acid tin plated for excellent solderability.
|
|
The microswitches MP210 & derivatives are snap-action changeovers,
simple or double switching action, connection by directly overmoulded cable.
By wiring the 5 terminals in different combinations, you can obtain electrical
circuits to 3, 4 or 5 wires.
|
|
The sealed sub-miniature MP420 microswitch is a simple snap-action
changeover switch, which is connected by means of a cable directly, overmoulded into the housing.
|
|
- Connector industry PCB, solder terminal lugs or PVC cable
- Conforms to standard IP 67
- Silver or gold-plated contacts
- Wide choice of levers
- Operating temperature up to 130°C / 266 °F
|
|
saia subminiature waterproof micro-switch
Caractéristiques :
• div. chevilles de fixation
• bornes à souder
• raccordement rapide de 2,8 mm
• bornes pour CI
• div. formes de levier possibles
• étanchéité IP67
Pouvoirs de coupure : 250 V/CA, 5 A
Dimensions (mm) : 20 x 17,5 x 6,4
Organe de commande :
• poussoir
• levier plat
• levier à galet
Homologations : UL, CSA, ENEC
|
|
Miniature Switches
These miniature switches include the D4C miniature enclosed switch and the D4CC miniature limit switch. They are available in a wide variety of actuators and contact configurations.
|
|
VA1
Dimension-
27.8 X 10.2 X 15.9 (mm)
Certificate-
UL, cUL, ENEC14
Typical Application-
Automotives, White goods, Power tool
|
|
Micro switch series suitable for all markets. Wide selection covers from U to Z type and is available in all sizes. Sealed type (Turquoise switch series) also available that is highly resistant to harsh environments.
Turquoise Stroke Switches
Super long stroke in micro-miniature size.
ABJ type Turquoise Switches
High seal performance sealed switch in super-miniature size (J type).
|
|
Series G
Through-Hole Mount Toggles
Download Specifications
Configure This Switch!
Through-Hole Mount Rockers
Download Specifications
Configure This Switch!
Through-Hole Mount Pushbuttons
Download Specifications
Configure This Switch!
Surface Mount Toggles
Download Specifications
Configure This Switch!
Surface Mount Pushbuttons
Download Specifications
Configure This Switch!
G Indicator
Download Specifications
Configure This Indicator!
|
|
Panasonic Electric Works' switches are RoHS compliant, and include snap action and safety interlock switches.
- Sealed switches with elastomer double molding and ultrasonic swaging technology protect against dust and water (IP67) and are ideal for harsh environments. Typical applications include construction and agricultural vehicles, lawn equipment, and automotive systems.
- Custom designs are available for all snap action switches, from injection molding to value added assembles and custom actuators.
|
|
Features
- High-precision switch with high repeat accuracy
- Models available for operating temperatures up to 120°C
- Rated for currents up to 10 amp at 250VAC
- Range of auxiliary actuators available (can also be retrofitted); two mounting positions
- Variety of contact materials available to suit your application
- Mechanical life: up to 15 x 106 operations
- Wide variety of terminal types available
- Numerous approvals
|
|
Features
- Silicon-free version available
- Models available for operating temperatures up to 120°C
- Rated for currents up to 10 amp at 250VAC
- Range of auxiliary actuators available (can also be retrofitted)
- Various contact materials available, depending on application
- Mechanical life: min. 1 x 106 operations
- Wide variety of connection options
|
|
SW
Dimension-
19.8 X 6.4 X 15.15 (mm)
Certificate-
UL, cUL, ENEC14
Typical Application-
Automotives, White goods,
Security System, Electric Devices
|
|
DW
Dimension-
14.7 X 5.4 X 12 (mm)
Certificate-
UL, cUL, ENEC14
Typical Application-
Automotives, White goods,
Security System, Electric Devices
|
|
Mini switch featuring positive opening operation
Despite its subminiature dimensions, the S880 is of the same design as our bigger sized series of snap-action switches. Thanks to this special design, snap-action switches of Schaltbau are renowned for their long service life (mechanically and electrically) as well as their accuracy and reliability.
S880 Series snap-action switches are used where safety and miniaturization are important.
|
|
Slide Switches
• Ratings up to 16A, 250V ac
• 2, 3, 4 and 5 positions
• 2 way, voltage selectors
• PCB and solder terminals
• Wide choice of circuits
• Wide choice of actuators
• RoHS compliant
|
|
|
|
|
|

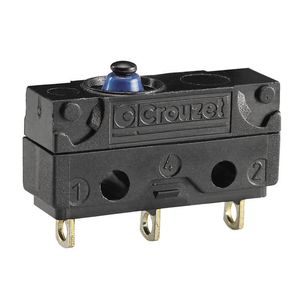

The V5 Sealed is the latest addition to Crouzet's sealed microswitch range. It offers the same degree of technical innovation and adaptability as the existing ranges.
Its compact dimensions, combined with an IP 67 level of protection, make it an ideal component for industrial applications that require ease of integration and safety in damp conditions. With minimum overtravel of 2 mm and multidirectional actuation up to 45°, the V5 Sealed microswitch's high performance levels make it possible to reduce development costs, thanks to its technical flexibility. Its front-end mechanical life of 1 million cycles ensures reliability.
In order to guarantee the signal for self-check functions, the V5 Sealed can integrate surface mounted components between the terminals within the same footprint, thus avoiding the need to develop a separate printed circuit. The modularity of the V5 Sealed switch allows a wide choice of catalogue configurations: lead outputs or tag terminals, positioning of fixing pins and fixing plate.
Like the rest of the microswitch range, the V5 Sealed switch can be adapted to your applications by adding special connections and outputs, as well as customised actuators.
|
|
Burgess sealed position limit switch
Characteristics:
• sealed to IEC IP67 (NEMA Type 13)
• internal earth (ground) screw provided
• trident spring mechanism for precise movements and exceptional repeat
accuracy Rating: up to 250 VAC, 15 A
Dimensions (mm): 76.7 x 45.8 x 26
Actuator:
• spring plunger
• adjustable roller lever
• wobble stick Approvals UL, CSA
|
|
AS (submini)
Subminiature Slide Switches CS (miniature)
Power Rated Slide Switches
FS (miniature)
High Frequency Slide Switches JS01 (submini)
Through-hole DIP Switches
JS02 (submini)
SMT Extended Actuator Slide DIP Switches JS03 (submini)
Through-hole Piano DIP Switches
JS04 (submini)
SMT Flush Actuator Slide DIP Switches MS (miniature)
Miniature Slide Switches
SM (ultra-mini)
Ultra-miniature Slide Switches SS (ultra-mini)
Through-Hole & Surface Mount Switches
|
|
DM
Dimension-
12.7 X 5.8 X 6.5 (mm)
Certificate-
UL, cUL, ENEC14
Typical Application-
Automotives, White goods,
Security system, Electric Devices,
Business machine
|
|
SM1
Dimension-
19.8 X 6.4 X 10.6 (mm)
Certificate-
UL, cUL, ENEC14
Typical Application-
Automotives, White goods,
Business Machine, Electric Devices
|
|
|
GE is a leading manufacturer of controls, sensors and switches for automotive, OTR truck, and tractor air conditioning systems. Not only can existing product designs be quickly modified to meet specific applications, but GE engineers have the background and resources to develop new control devices for today’s increasingly sophisticated automobiles.
|
|
Features/Benefits
* Multi-pole and multi-position
* Panel and PCB mounting
* Positive detent
* Value added capability
* RoHS Compliant
Typical Applications
* Small appliances
* Testing fixtures
* Safety equipment
|
|
Ergonomical input of data using EBE rotary switches and handwheels with EBE rotary input devices enables one handed operation of equipment.
These modern input devices have a longer life span than potentiometers. They have fully electronic impetus generation via hall sensors or opto-electronically as well as many other advantages.
- Patented anti-abrasion magnetic indexing
- Recognition of rotational direction by additional output A/B signals
- Variable angle, rotating speed and direction of rotation can be analysed
- Integrated menu prompting key
Our rotary switches and handwheels are used in the following applications:
- Input of digital data e.g. measuring and testing equipment
- Menu prompting of machinery
- Defined traverse path of NC axis
- Menu prompting of medical equipment
|
|
