-filter system for compressed air of the highest purity.
-Different filter stages – preliminary filter, microfilter and activated charcoal filter.
-Modular system for direct flanging.
-Six sizes with connecting threads from G 1/4 to G 2.
Compressed-air treatment for the most critical requirements
Cleaning of compressed air with standard filters is insufficient for many applications. For cases of this kind, the filter system V-M-A, available as single units or combinations, offers a wide range of filters to meet all requirements, from technical-clean air working equipment via process air to odour-free air for breathing.
Housing assembled from V-M-A modular system for direct flange mounting with sizes I and II. Two sizes of housing and 6 different sizes of filter element. Connecting threads from G1/4 to G2 in accordance with DIN-ISO 228. Housings and bowls are made of aluminium, plastic-coated or anodised, protected against corrosion, attractive appearance, easy to clean.
Differential pressure gauges. Indicates the pressure drop in filters. We recommend that the filter element is changed when the pressure drop exceeds 0,6 bar (red zone). Full exploitation of service life of filter saves money-timely replacement stops wastage of energy. Gauges can be fitted as desired to be readable from front or rear (double scale).

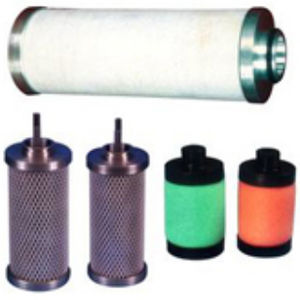

Filter elements. For every size of filter-three different elements of identical dimensions.
Fully automatic drain valve. Fitted as standard to pre-filters and micro-filters. Mounted outboard, easily accessible for maintenance. Minimum operating pressure 4 bar.
Manually-operated drain valve
|
|
|
|
|
|
Separators, fine and superfine filtration technology for removal of liquid (e.g. water or oil) and solid
particles down to 1µ from compressed air and gases.
Efficiency at normal capacity: 99,9999% (1µ).
Residual oil content: ≤ 0,5 mg/m3 (1 bar (abs.), 20°C).
Recommended temperature range: 1,5°C - 80°C.
Standard equipment: Complete filter including automatic condensate drain.
CE mark in accordance with the Pressure Equipment Directive97/23/EC (PED) for Fluid Group 2. No CE mark is authorised under Article 3 paragraph 3 for smaller filters or CE mark in accordance with Article 1 paragraph 3.3.
Filters suitable for Fluid Group 1 see page 20.
As an option available DELTATRONIC filter monitoring. Real messurement of filter status incl. software to minimize the operating cost in relation to the differential pressure of each Filter.
Also available:
-Paint compatible filters
-High pressure filters (up to 350 bar ü / 5000 psig)
-Stainless steal filters
-Vent filters
-Filter silencer
-Activated charcoal filter elements
-Sterile- and steam filters
-Filter elements for competitor housings
|
|
|
General grade membrane cartridges are designed for general purpose use wherever a cost effective membrane filter is required and is offered in polyethersulfone, nylon, Teflon, and polypropylene. Designed to hold the maximum amount of filter media that can be completely and effectively utilized in a cartridge, General grade membrane filters lower the cost of filtration . Membrane cartridges are flushed with 17+ megohm-cm water to remove potential extraneous manufacturing debris. These cartridge modules are also individually tested. Priced below special purpose cartridges, General grade membrane cartridges are still manufactured with the same careful attention to both quality and performance.
|
|
|
|
|
|
3-inch and 4-inch diameter modules available in 10-foot and 12-foot lengths.
The use of KMS SUPER-COR® membranes for juice processing eliminates the need for pretreatment and associated handling equipment-no more centrifuges, screens, rotary drums, diatomaceous earth, or fining agents. It also does away with the maintenance associated with pretreatment processes, saving you time and money. The latest SUPER-COR® modules have a robust backing structure that supports the extended processing requirements of today's juice processing plants.
SUPER-COR®, designed around the needs of juice processors worldwide:
• Higher product yield
• No preprocessing required-eliminates diatomaceous earth and fining agents
along with their associated maintenance and disposal costs.
• Transparent module housing for ease of inspection
• Long membrane life
SUPER-COR® Systems, combined with last stage of SUPER-G® modules, clarify juices at extremely high yield rates. Up to 98% yield can be achieved without adding diafiltration water.
|
|
Biofil PES
Incorporating a hydrophilic membrane, the Biofil cartridge has a unique mirrored asymmetric structure which gives the media added strength and very low clean pressure drops. This helps to ensure that cartridge integrity is maintained when repeatedly steam sterilised. The characteristics of the membrane also results in excellent resistance to hydrolysis, along with low protein binding and colour stripping. Furthermore Biofil PES cartridges have excellent chemical compatibility across the full range of pH values.
Biofil PES cartridges have been validated and are ideal for applications ranging from the production of beverages to the filtration of blood and serum. They compare favourably in many applications with alternative cartridges manufactured using Nylon, Cellulose and PVDF.
|
|
The filter elements are manufactured by isostatic pressing or co-axial pressing. The pore size can be adjusted by suitable selection of the powder size fraction and the process parameters. It includes the type of tube, disc and stack of lamination and so on.
Main advantages
1. Good shape stability
2. High strengthen and good integrity
3. Controllable pore sizes and porosity
4. Good permeability
5. Good corrosion and thermal resistance
6. Easy to be made into complicated shapes
7.Highly mechanical strength, can diffusing air homogeneously.
|
|
| ... products without technical information |
| |
Cleancare - MFQ370-22
Small – medium size ‘Q’ vac., 12L capacity, plus the HEPA microfilter module within the 2-speed steel ‘Q’ power head giving an exceptional 99.997% certified efficiency. Standard kit-A1. Microfilter machines are particularly suited to areas requiring very high levels of filtration, such as; computer rooms, hospital operating theatres & clinics, etc.
|
|
With the new MF series OTEC offers a real alternative to expensive microfiltration plants and centrifuges, which have a large footprint and large power consumption with less than desirable performance. The compact microfiltration units of the MF series clean waste water, using their specially designed filter system which allows the system to be run as a closed loop system. All of this, with a relatively low purchase price and very low operating costs.
User advantages
• Very small footprint
• Low purchase and operating costs
• Savings in water and compound consumption
• Additional savings through an easy method of
precious metal recovery
|
|
GrahamTek Memspin Range provides Fine & Ultra Fine Filtration for the removal of finely dispersed suspended and sub-micron particles without the use of any foreign chemicals. Memspin systems may be configured as pre-filtration or Fine Filtration processes for Reverse Osmosis Desalination for the treatment of high- and low- turbidity Sea, Brackish and Hard Waters including Industrial Waste, Commercially Recycled Waters and Municipal Waste Waters.
The unique flow reversal feature together with a pneumatically enhanced hydraulic backwash (reverse fed) enables application specific alternating cross-flow and dead end operation.
|
|
|
|
