Digital Outside Micrometer - 201 Series
Protected to IP54 specifications
Rugged steel design
Large LCD display
Absolute and Incremental modes
Carbide Measuring faces
Ball attachment included
|
|
TMI 49-70 and 49-72 Series Micrometers provide the precision necessary for the critical thickness measurement of numerous sheet materials.
APPLICATIONS
Films, Foils, Tissue, Papers, Corrugated, Paperboard, Plastics, Felt, Rubber, Fiberboard, Carton board
SPECIFICATIONS
* Range of measurement:Model 49-70: 0.0 to 1.270 x .003 mm;(0.0 to 0.050 x .0001 in.)
* Range of measurement:Model 49-72: 0.0 to 12.70 x .03 mm;(0.0 to 0.5 x .001 in.)
* Standard anvil diameter 16 mm (0.63 in.)
* Load: 7.3 psi (50.4 kPa)
FEATURES
* Digital display
* Dual range (Imperial or Metric)
* Motorized automatic cycling
* 5-second test cycle
* Special anvil diameters and dead weight loads available upon request
* Calibrated gauge blocks are available to meet your needs
|
|
|
|
|
|
Model 49-5X is a precision micrometer for measuring thickness of sheet materials such as Textiles, Fabrics and Non-wovens. A selection of pressure feet is available to meet a variety of standards requirements. The unit also incorporates a unique cantilever system to vary the pressure exerted on the sample by adding or removing weights. Pressure foot speed and dwell time are controlled to insure accurate and repeatable test results.
APPLICATIONS
Paper, Paperboard, Corrugated, Cloth, Plastic, Rubber, Plastic Film, Textile Fabrics, Non-wovens, Felts, Geomaterials, Floor Coverings, Leathers and Wipes.
SPECIFICATIONS
(49-50) (49-52)
Range: 0 to 2 mm 0 to 20 mm
Resolution: 0.001 mm* 0.01 mm*
Accuracy: ±0.0025 mm
up to 1.25 mm ±0.025 mm
Repeatability: 0.1% of range
Operating Temp. +20°C to +30°C
*Resolution increased by a factor of ten to 0.1μm (for 49-50) and to 1.0μm (for 49-52)
FEATURES
* Large LCD display
* Electronic compensation minimizes displacement transducer non-linearity
* Rigid cast aluminum base assures thermal and mechanical stability
* Foot switch allows hands-free operation of test button
* RS-232 data output
* Range: 0 to 2 mm and 0 to 20 mm
* Resolution: 0.001 mm*
* Accuracy: ±0.0025 mm up to 1.25 mm
* Repeatability: 0.1% of range
* Operating temperature: +20°C to +30°C
|
|
|
Micrometer for external measurements with digital reading. Frame in steel. Hardened screw and contact surfaces in carbide. Direct mm./inch conversion. Set to zero in any position. Serial number. Manufactured as per DIN 863/1. Supplied in case.
|
|
A micrometer sometimes known as a micrometer screw gauge, is a device used widely in mechanical engineering and machining for precisely measuring, along with other metrological instruments such as dial calipers and vernier calipers. Micrometers are often, but not always, in the form of calipers. Shop for WESTport Calipers
There are five common types of micrometers; the names are based on their application:
- Outside micrometer- (aka micrometer caliper), typically used to measure wires, spheres, shafts and blocks.
- Inside micrometer- used to measure the diameter of holes.
- Depth micrometer- measures depths of slots and steps.
- Bore micrometer- a 3 -anvil head on a micrometer base used to accurately measure inside diameters.
- Tube micrometer- used to measure the thickness of tubes.
|
|
The Baty digital micrometer
* IP54 protection level can be used when exposed to coolant water, dust and oil
* Large LCD
* Inch-metric and zero setting
* SPC output
* Friction thimble
* Chrome plated frame
* Carbide tips
* Resolution 0.001mm (0.00005")
* Automatic power off
* Easy one handed use
* Heat insulated frame
|
|
MarConnect data output (choose between USB, Opto RS232C or Digimatic)
Ratchet integrated in thimble
Large, easy to read display
|
|
|
|
|
|
Prompted by demand from their global network of agents and distributors, Bowers Metrology has announced the launch of a major new addition to its best selling XT Xtreme Bore Gauging range. Complementing the company’s popular pistol-grip and internal-micrometer models, the robust new XT Lever range is perfect for vertical bore measurement, providing accurate and repeatable bore gauging under inspection department or shop-floor conditions.
Aiding ease of use, Bowers’ new XT Lever bore gauges have a simple ergonomic action and can be fitted with a wide variety of analogue and digital indicators or even transducer probes. For use within hostile measuring environments, such as in close proximity to Machine Tools, Bowers flexible new range can be provided with IP 65 rated digital indicators, rendering them resistant to coolant, water and airborne particles. A ‘wireless’ gauge module is also available, enabling cable free communication with remote data collectors, computers etc.
The cost-effective new range of XT Lever bore gauges boast hardwearing extended travel carbide measuring anvils and are able to measure diameters up to 300mm. Bowers is also able to manufacture affordable ‘one-off’ XT Lever instruments to cater for a wide range of other problematic, internal measuring applications, such as threads, grooves, splines, etc.
|
|
The Bowers XT Holematic bore gauge incorporates an ergonomic pistol grip handle with an advanced trigger action, giving the user the advantages of both speed and accuracy of operation with a constantly applied measuring pressure. The clear digital display, superior electronics and application range of 2 to 300 mm ensures ease of use and assured accuracy.
The XT Holematic pistol grip range of bore gauges can be supplied as individual instruments or in complete sets. All XT instruments give the user the advantage of extended measuring travel with fixed anvils and UKAS certification of both measuring head and setting ring as standard.
|
|
Tubular Inside Micrometer:
- Standard rod-type micrometer
- Measuring range: 50 to 1000 mm with various models
Borematic Holtest: Allows stable measurement of inside diameters with three contact points.
Holtest: Allows stable measurement of small-hole inside diameters with two or three contact points.
|
|
Internal measuring of bores is more demanding than external measurement of workpieces. Not
only the tight tolerances given for the measuring job must be respected, but also the measuring
components that have a direct influence on the uncertainty of measurement must be designed
in such a way that they can enter into the bore to be checked.
|
|
Can be used to measure through holes, blind holes and centering shoulders
Measuring spindle hardened throughout and ground
Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals placed of 120°
|
|
|
|
|
|
ACCUSCAN 5000 - Diameter & Ovality Measurement for Tubes & Cables
AccuScan systems from Beta LaserMike provide on-line precision measurements of the diameter and ovality of cables. Using laser scanning technology, AccuScan systems are able to perform diameter measurements in an intelligent gauge head during production and communicate those measurements to a host system or controller.
The AccuScan 5000 series gauges are dual planer laser scanners that measure both diameter and ovality.
Features :
* (depending on models) measurements of diameter & ovality from 0.1mm to 175mm
* accuracy from 0.5 to 20µm
* 1200 measurements/second (500m/sec on the 175mm gauge)
* window of measurement is always much bigger than product to measure (no problems with product movements)
* communication output: RS232, (analog, Profibus, Devicenet, CanOpen optional)
Benefits:
1- relaiability into industrial applications (cable & tube manufacturers)
2- accuracy in line with robustness of the device
3- flexibility of communications for easy integration
4- User-friendliness (switch on & measure, optional display)
|
|
|
|
|
|
ACCUSCAN 1000 - Intelligent Diameter Measurement
The AccuScan 1000 family of modular gauges is the latest generation of laser
micrometers from the inventors of the laser micrometer. The AccuScan 1000 series has integrated measurement and communications capabilities while maintaining the accuracy and reliability youíve come to expect from Beta LaserMike. Due to in-head Digital Signal Processing, higher scan rates, Fieldbus connectivity and enhance measurement algorithms, the AccuScan 1000 series can go where no laser micrometer has gone before. With a range of models covering dimensions up to 330 mm, the AccuScan 1000 brings precision measurement to your process.
Other systems (Accuscan 5000) are proposed that feature dual axis measurements for ovality, faster measurements for dedicated and continuous applications (Cable, Tube extrusion, ...).
Features :
* (depending on models) measurements from 0.36mm to 330mm
* accuracy from 1 to 20µm
* 500 measurements/second (1000m/sec optional)
* communication output: RS232, analog (Profibus, Devicenet optional)
Benefits:
1- High accuracy for industrial applications
2- Immune to moisture, dirts and product movements
3- Flexibility & easiness of integration
|
|
|
|
|
|
NON-CONTACT MEASUREMENT:
LAP METIS laser sensors measure cross-section and gap without touching the surface. Mechanical micrometers, that may scratch the material, are no longer necessary. There is no wear or tear, neither on the object nor on the sensor. No operator influence affects the measurement.
FAST MEASUREMENT:
Laser scan micrometers may check 100% in the production line. At 800 values per second or even 1600 values per second. No more time consuming samples and offline checks. Instead of momentary images you get errors or tendencies displayed during production, enabeling you to react before crop is produced.
PRECISE MEASUREMENT:
LAP METIS measure at repeatabilities of 2 µm to 8 µm (depending on model) due to calibration and linearisation for every single mirror of the rotating prism. Transparent material can be measured as well as shiny metal or soft and sticky rubber.
SYNCHRONIZED MEASUREMENT:
Sensors are synchronized in multi-axes measurement. Even at high production speeds, there is no mismatch or offset between measurement values in transport direction.
FLEXIBLE MEASUREMENT:
LAP METIS measure precisely up to 10 edges (transitions object - space or space - object). Multi-axes systems also measure non-round profiles as square or polygonal profiles.
|
|
The optoCONTROL 1200 is based on the principle of light quantity measurement. The complete control electronics is inside the receiver and no additional controller is necessary.
High dynamic applications can be measured due to the frequency response of 100 kHz.
|
|
- High-speed linear CCD and telecentric optical system
- 2400 samples/second high-speed sampling
- Repeatability of ±0.06µm
- Maintenance - free LED emitter and design (no laser diode or motor)
- High performance controller with statistical analysis
- Controller with target viewer available for easy setup
|
|
Laser Scan Micrometer LSM-902/6900:
- A high-accuracy type that has attained a linearity of /-0.5 um within the measuring range of 1 to 25 mm
- Resolution: 0.01 to 10 um, Repeatability: /-0.05 um
- For detailed information, leaflet is available on request.
Laser Scan Micrometer LSM-9506:
- A measuring unit/display unit integrated type that assures a linearity of /-2.5 um within the measuring range of 0.5 to 60 mm.
- Resolution: 0.05 to 100 um, Repeatability: /-0.6 um
- For detailed information, leaflet is available on request.
Laser Scan Micrometer LSM-506H:
- A universal 60 mm type that assures a linearity of /-3 um within the measuring range of 1 to 60 mm
- Resolution: 0.05 to 100 um, Repetability: /-0.5 um
- For detailed information, leaflet is available on request.
|
|
Digimatic Outside Micrometer:
- 1/1000 mm graduation, Standard model: waterproof type
- Measuring range: up to 300 mm
Soft Touch Micro:
- Variable measuring force type, optimal for measuring soft materials
- Two different measuring force types are available according to the purpose.
Quick Micro:
- 10 mm feed per thimble rotation
- Speedy measuring operation is possible.
Ratchet Thimble Micrometer:
Both speeder unit and thimble unit have a constant pressure mechanism.
- Stable measurement results are obtained with one-hand operation.
|
|
- Capacity of 0-25mm
- Pearl chrome plated frame with insulation pads
- Tapered bow frame
- Hardened steel or tungsten carbide measuring faces
- 6.8mm spindle diameter
- Speeder' type ratchet
- Locking lever
- Choice of standard or vernier type sleeve
- Adjusting key
- Supplied complete with durable plastic pocket case
|
|
|
|
|
|
TMI 49-60, 61, 62 and 63 Series Micrometers provide the precision necessary for the critical thickness measurement of numerous sheet materials.
APPLICATIONS
Films, Foils, Papers, Tissue, Corrugated, Paperboard, Carton board, Plastics, Rubber, Felt, Fiberboard
SPECIFICATIONS
* Meets ASTM D-645, D-374, TAPPI T-411, AS/NZ 1031, 426, 1031, 427, SCAN P7, DIN 53105, ISO 534
* Ranges of measurement:
49-60 series: 0-.050 × .00001 in.
49-61 series: 0-1.250 mm × .0005 mm
49-62 series: 0- 0.5 in. × .0001 in.
49-63 series: 0-12 mm × .001 mm . 76.20 mm (3 in.) throat depth
* Standard anvil diameter 16 mm. (0.63 in)
* Load: 7.3 psi (50.4 kPa)
FEATURES
* Digital display
* RS-232C output
* Motorized automatic cycling
* Standby feature
* Compatible with TMI's 49-66 Monitor/ MicrometerT for increased output capabilities
* Calibrated gauge blocks are available to meet your needs
INSTRUMENT SIZE
Depth: 305 mm (12 in.)
Height: 381 mm (15 in.)
Width: 279 mm (11 in.)
Weight 23.6 kg (52 lb)
Electrical: Specify voltage requirements when ordering
ORDERING INFORMATION
Catalog Number: 49-60
|
|
Precision measurement requires the use of micrometers. In 1848, the first measuring tool of this type was patented by the French inventor Jean Laurent Palmer as «calibre à vis et à vernier circulaire» (screw calliper with a circular vernier). Today, we continue to
make external micrometers with these typical features.
|
|
Micromar Waterproof Digital Micrometer 40 EW
Micromar 40 EW, the newest generation of waterproof digital micrometers ensures that even in the most difficult workshop conditions precise and reliable results are obtained
- Protected against water, oil and dust acroding to protection class IP65
- Reference-Lock-Function secures the zero position and prevents operation errors
- Chemical resistant material Ultradur for housing and buttons
- MarConnect data output, select either USB, OPTO RS232C or Digimatic
|
|
The Starrett family of micrometers include a very broad range of products, from the 0-1" electronic or mechanical tools that are staples of every day shop use, to tools for highly specialized applications.
- Outside Micrometers
- Outside Micrometers Special Function
- Micrometer Heads
- Bench Micrometers
- Precision End Measuring Rods
- Inside Micrometers
- Depth Micrometers
|
|
Technical caracteristics
DIN 863.
- Floating zero.
- Preset.
- Metric/inch units.
- MAX, MIN, MAX-MIN tolerances.
- RS 232 port.
- Design features :
- non-rotating setting rod.
- carbide anvil 8 mm.
- Battery life up to 2,000 hours.
- Accuracy 0.002 mm.
- Supplied with a FACOM certificate of conformity.
: 810 g.
|
|
Micrometer Head MHC:
- Space-saving type that suppresses the entire length.
- Models with a measuring range of 6.5 mm and 13 mm
Micrometer Head MHS:
- Universal type with a measuring range of 13 mm
- Widely-used compact model
Micrometer Head MHA:
- Universal type with a measuring range of 13 mm
- Easy to adjust the zero point of the thimble.
|
|

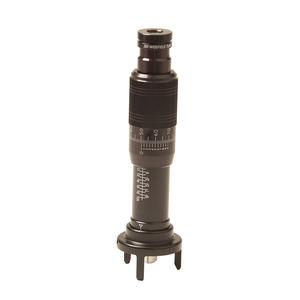

Micrometric head with hardened and ground 6 mm diameter screw. Contact surfaces in carbide. Manufactured as per DIN 863/1.
Supplied in case.
|
|
Optical micrometers.
RF65X Series
Application domain
Laser micrometers are designed for non-contact measurement and control of position and dimensoins (diameter, thickness, gaps) of technological objects as well as for measuring levels of liquid and bulk materials .
RF651 model. Operating principle
The micrometer operation is based on the so-called shadow principle. The micrometer consists of two blocks transmitter, 1 and receiver, 2. Radiation of a semiconductor laser 3 is collimated by a lens 4. With an object, 5 placed in the collimated beam region, shadow image formed is scanned with a CCD photo-detector array 6. A processor 7 calculates the position (size) of the object from the position of shadow border (borders)
|
|
|
The Optical Micrometer is a portable instrument capable of making non-contact depth measurements on virtually any surface, curved or flat. Available with either 100x or 200x magnification, an easy to read venier scale enables the operator to optically measure the difference in height of one surface to another; an optional reticle eyepiece allows width measurements. This instrument is useful for measuring depth of scratches, cracks, blind holes, dents, pits and other surface blemishes in all types of materials. For transparent materials (i.e. glass, acrylic), the optical micrometer can measure crazing, fractures, embedded voids and material thickness. Popular in the aircraft industry, the optical micrometer may be used in the field to measure surface features on windshields, leading edges, airframes, fuselage skin, propeller blades, rotor blades, coated surfaces, plus many more.
|
|
XT Bore Gauges
Superbore Bore Gauges

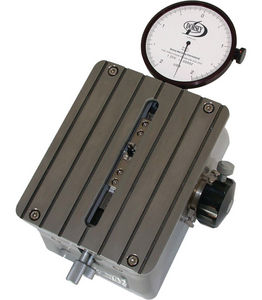

Specialised Bore Measurement
SmartPlugs
Digital Cylinder Bore Gauges

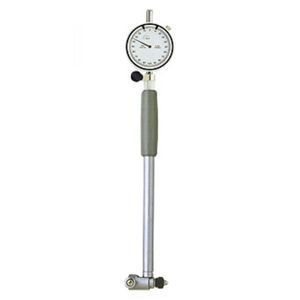

Mechanical Cylinder Bore Gauges
|
|
|
|
