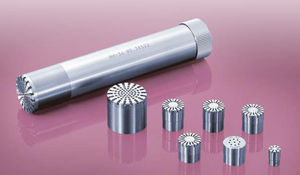

Roga MI-17 ICP® (IEPE) measuring microphone - Description:
These 1/4"- ICP® (IEPE) measuring professional microphones are pressure detectors. The model MI-17 have integrated electronics, and can be delivered with sensitivities from 10 to 100 mV/Pa at tolerances of within ± 5 %. Special custom versions are also possible. Professional power supplies for the microphones can be either a constant current source of 2 - 6 mA (standard version) or a constant voltage source 4 - 30 Volts. Normally the microphones are fitted with BNC-manufacturer of connectors (fem.) allowing standard BNC-BNC cables to be used. Other connectors such as TNC, SMB, Lemo or ìdot are also available on request.
These microphones are quite suitable for array applications.
ICP ® is a registered trademark of PCB Group Inc.
|
|
| ... products without technical information |
| |
Roga MI-17 ICP® (IEPE) measuring microphone - Description:
These 1/4"- ICP® (IEPE) measuring professional microphones are pressure detectors. The model MI-17 have integrated electronics, and can be delivered with sensitivities from 10 to 100 mV/Pa at tolerances of within ± 5 %. Special custom versions are also possible. Professional power supplies for the microphones can be either a constant current source of 2 - 6 mA (standard version) or a constant voltage source 4 - 30 Volts. Normally the microphones are fitted with BNC-manufacturer of connectors (fem.) allowing standard BNC-BNC cables to be used. Other connectors such as TNC, SMB, Lemo or ìdot are also available on request.
These microphones are quite suitable for array applications.
ICP ® is a registered trademark of PCB Group Inc.
|
|
The Dytran pressure sensor suppliers model 2180C is a high intensity acoustic detector ideal for measurements involving gas turbine combustor dynamics. It features a top TNC supplier of electrical connector, a 1-1/8-12 mounting thread, and a stainless steel diaphragm. The 2180C has a charge sensitivity of 700pC/psi and a range of 10 psi (191dB). This all-welded stainless steel sensor can monitor pulsations, turbulence, a noise in hydraulic and pneumatic systems as well as detect pressure fluctuations in exhaust systems, compressors, turbines, pumps and pipelines. To learn more about the 2180C, please visit the Dytran website or email us.
Key Features
- Top TNC connector manufacturers
- 700pC/psi sensitivity
- 10 psi (191dB) range
- Charge mode
- Can operate up to +400°F
- All stainless steel construction
- Hermetically sealed
Potential Applications
- Gas turbine combustion dynamics studies
- Pressure fluctuation measurements in exhaust systems, compressors, turbines, pumps and pipelines |
|
The acoustic transducer detects defined static noise or switch-sounds on machines,
devices and plants. Due to protection class IP67, an enlarged operating temperature up to 85°C and an adjustable switching threshold this sensor even is appropriate for external applications.
Adjustable switch sensitivity
Operating voltage: 10 - 30V DC
Dwell time at output function: 120ms
Attenuated against impact sound
Operating temperature: -25°C - 70°C
Protection class: IP67
Plastic housing PA6.6
>>> Each sensor development according to specific needs of the customer.
Depends on number of pieces. |
|
Acoustic detection for pump monitoring
SITRANS DA400
Leakages on delivery cocks of oscillating volumetric pumps (e.g. piston pumps manufacturers) can be detected by measuring cavitation.
The acoustic diagnostic device consists of cavitation sensors and an professional analyzer unit which supplies the sensors with electrical energy and detects, professional filters and evaluates the measured signal and outputs an alarm signal on exceeding a defined limit value.
Acoustic sensors for material flow monitoring
SITRANS AS 100
Acoustic sensors monitor high frequency emissions generated by friction and the impact of flowing material or mechanical parts
SITRANS CU 02
Alarm control unit for use with SITRANS AS 100 acoustic sensor
|
|

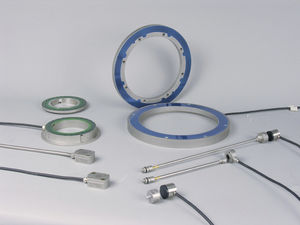

Using acoustic technology to detect subtle changes in the sounds produced during grinding, these systems produce extremely precise feed rate control when the wheel is touching the part or the dresser.
Acoustic systems are particularly useful for preventing collisions and detecting machine and tool abnormalities, chipped grinding wheels manufacturers and dresser faults. |
|
| ... products without technical information |
| |
COSENSE INC Level and Distance Measurement is not just another level or proximity sensor supplier:
-Contact, Non-Contact and Non-Intrusive (sense "through" tank walls without penetration) Level and Proximity
-No moving parts, sanitary, flanged, multi-point, electropolished, switch output or analog designs, explosionproof, intrinsically safe
-No calibration
-Titanium, Tefzel, Stainless, CPVC, Monel....
-Cryogenic (-300F/-184C), High Temperature ( 750F/398C)
-Subminiature with .0005 inch (.013 mm) accuracy
-Full Scale measurements as small as .01 (.25 mm) can be used to measure inside test-tubes!
-Large robust designs and subminiature sensors
-Aerospace, bio-medical, nuclear, pharmaceutical, process, lab, semiconductor,automotive, power.....
-OEM and SPECIAL REQUESTS WELCOME
-COSENSE All Tefzel Level sensors, starting at $95.00 US Dollars, (relay contact or loop powered options) for use in practically any acid, caustic, water, oil, etc....
-COSENSE sonic and acoustic systems work independantly of conductivity, dielectric, color, opacity, density. Models for most applications available. Call, email or fax us for FREE ASSISTANCE and product information. If we don't have it, we may be able to design a custom solution just for you.
|
|
| ... products without technical information |
| |
PCB Automotive Detection Debuts High Temperature Preamplifier
Operating to +120 °C for NVH Powertrain & Vehicle Underhood Testing
The Automotive Sensors division of PCB Piezotronics (PCB®) has announced release of a new high-temperature preamplifier, designed to overcome high temperature testing challenges associated with NVH powertrain and vehicle underhood testing applications, and to broaden options for NVH test engineers collecting acoustic data in high temperature areas.
Automotive engineers routinely perform NVH tests in areas around the powertrain, where elevated operating temperatures can present major measurement challenges. Underhood temperatures can peak at +125 0C under normal driving conditions, and can be significantly higher near turbochargers and exhaust system components, such as manifolds and diesel particulate professional filters. In the past, test engineers were limited by preamplifiers offering temperature ranges to + 70 °C. Model HT426E01 is a 1/2" preamplifier operating from ICP sensor power, terminating with BNC professional connector and utilizing standard in line cables. The model features a low attenuation factor (-0.06 dB) and low noise characteristics, 4.9 µV, based on an A-weight professional scale.
Common applications include underhood measurements for benchmarking and issue professional identification, including professional engine radiated, induction, ancillary and turbocharger noise; near-field measurements on manifolds; mufflers; exhaust after treatment components; and tailpipe noise. NVH groups within OEMs and Tier 1 suppliers involved with testing of powertrain components will benefit most from this product. |
|
|
|
