KAPIRIS is a new generation dual-tech outdoors motion sensor.
Its long and narrow detection scope creates a 50mx3m detection wall.
This sensor integrates a microwave antenna with doppler effect in K (24GHz) as well as a PIR sensor and was designed for reliable long range detection performances.
Intruder tracker:
KAPIRIS allows to track intruders inside the the protected zone. When associated with a CCTV system, it will become an essential tool to help security officers to catch intruders.
CCTV pilot:
Developed to pilot CCTV cameras.
Perimeter intrusion detection system addition:
Thanks to its long yet narrow detection scope, KAPIRIS is a perfect addition to traditional perimeter security solutions and allows the coverage of complex perimeters, with detection zones difficult to create with other technologies. (steep terrain, funny angles, ...)
|
|
|
|
|
|
HERMES Microwave barrier
The Hermes 150-I is an upgraded version of Martec-developped series of microwave systems. The distinguishing feature of the I version is its detecting head with integrated power supply and connections. The above improvements allow for a significant cost reduction. The electronic has been entirely updated in order to meet the ROHS requirements and eliminate any obsolete componants. This new Hermes 150-I, garantees high performances and reliability.
Features
Signal processing by microprocessor ensuring precise and elaborate analyses which in turn guarantee:
- Superior detection quality
- An excellent Detection/False alarm ratio
- Telecontrol capability
- Easy to set to work (connection to a laptop computer, determination and saving of parameters)
Detection beams
A low power microwave energy beam is generated between a transmitter and a receiver placed approximately 1 metre from the ground. A continuous surveillance ring can be set up by overlapping several HERMES systems.
|
|

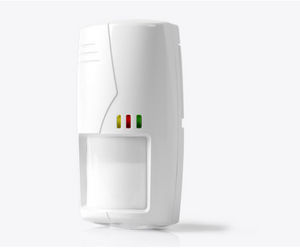

Integrating PIR and microwave technology into attractive, easy-to-install units, the DX Series provides stable and reliable detection in the most hostile of environments, where simple PIR detectors struggle to function.
The PIR element incorporates Quad Zone Logic to detect the smallest temperature contrast against the background temperature, enabling it to discriminate between humans and other sources of infrared. Additionally, the microwave detector incorporates Microwave Area Shaping technology to prevent the unwanted detection of movement outside the coverage area. All in all, the DX Series offers unparalleled sensing performance.
|
|
MICROWAVE
Uses a high frequency radio transceiver through an adjustable planar antenna.
Detectors may be set to be either omnidirectional or unidirectional detection depending on application and may be used to detect the direction of passage (in or out). Microwave detectors may be made on medium to large areas for automatic doors, rapid vertical doors, industrial doors or security installationsl
|
|
Microwave Sensor with Unidirectioonal Detection Function
The EZ+ has a selectable unidirectional detection function. Use this function to avoid extra load on building air conditioning etc.
Provides Three Types of Detection Area Settings
Simple Detection Area Adjustment and Modification
|
|
|
BM200M and BM120M are the new microwave beam of AVS Electronics, for big external and internal protection. An up to date electronic technology is used to guarantee an optimal detection with a minimum risk of false alarm. The system is composed from two units: one transmitter (TX) and one receiver (RX), that are tuned in one of the 5 possible modulation frequencies with Dips switch. Multiple BM200M and BM120M detectors may be used to enclose a complete perimeter protection, without any problem of interference. Special signal processing circuits provide automatic compensation of back ground environmental conditions. The circuit of BM200M and BM120M are completely solidstate and protected with drip-proof resin to ensure good resistance to weather. Circuit are housed in a box properly made for the easy installation. BM200M and BM120M are individually 100% computer tested in order to grant the usual AVS Electronics reliability.
|
|
|
|
|
|
A perfect alarm system installation must be able to rely on the precision and reliability of the detectors that have been installed to protect the zones. For this reason, Tecnoalarm has developped a complete range of detectors permitting a more efficient and customized coverage of every zone in every environmental condition.
Infact, there are infrared, microwave and dual technology detectors, both wired and wireless, with or without antimasking control and with different lenses.
The detectors equipped with the technology of Remote Digital Verification (RDV®), an exclusive technology by Tecnoalarm, stand out against the others as they permit the remote verification of the presence of intruders in the protected area.
For the protection of outdoor spaces, Tecnoalarm has developped the infrared barriers DOORBEAM/S and WINBEAM/S, mounted next to the doors or windows and available in several colours and lengths, as well as the microwave barriers EXPLORER II and MINIEXPLORER, apt to cover perimeters and large open spaces such as gardens, parks or courtyards.
|
|
| ... products without technical information |
| |
|
|
|
|
The Ramsey Microwave Switch/Plugged Chute Detector from Thermo is a safe, reliable and environment-friendly unit that can see through non-metallic wall build-up and detect the presence or absence of any material. It provides high and low level point level detection and can be used in many applications, including high temperature ones.
Product Detail
The Thermo Scientific Ramsey Microwave Point Level Detector is totally non-contacting, with a range from 10 cm (4 in) minimum to 150 m (492 ft) maximum. These reliable units can see through non-metallic wall build-up and detect the presence or absence of any material.
The switch can be used in pressurized coal down comers; electro-static precipitator hoppers; and in fly ash, clinker and coal transfer chutes. It provides high and low level point level detection.
High temperature applications are not a problem for this point level detector. Each unit is protected from the process by a polyethylene, ceramic or tempered safety sight glass window. The switch is a safe and environment-friendly replacement for nucleonic switches and is not restricted by OSHA or FCC regulations.
|
|
The AMMC-3040 is a broadband Double-Balanced Mixer (DBM) with an integrated high-gain LO amplifier. This MMIC can be used as either an up converter or down converter in microwave or millimeter wave applications. If desired, the LO amplifier can be biased to function as a frequency multiplier to enable second harmonic mixing of the LO input. The mixer section ofthe AMMC-3040 is fabricated using a suspended metal system to create a unique, broadside-coupled balun structure (patent pending) to achieve exceptional bandwidth. The MMIC provides repeatable conversion loss without tuning, making it highly suitable for automated assembly processes. For improved reliability and moisture protection, the die is passivated at the active areas.
Features
- High IIP3: +23 dBm
- Wide bandwidth
- RF: 18-36 GHz
- LO: 18-36 GHz
- IF: DC-3 GHz
- Fundamental or subharmonic mixing
- Up or down converter
- Conversion loss: 9.5 dB
- P1dB: +17 dBm
- Low LO drive power: +2 dBm
- Usable to 42 GHz
|
|
|
|
|
|
Hydro-Probe Orbiter - Moisture Sensor for Rotating Pan, Static & Planetary Mixers
The World's first rotating microwave sensor for measurement of moisture and temperature in rotating pan, static and planetary mixers.
The Hydro-Probe Orbiter is the world's first rotating digital microwave sensor designed specifically to measure moisture and temperature in the mixer. With a choice of mounting options for static, rotating pan and planetary mixers the sensing head slices easily through the mix providing accurate moisture measurement of the material in real time.
Originally supplied to the concrete industry, the Hydro-Probe Orbiter can also be mounted as a static sensor underneath a bin or above a belt conveyor and is therefore easily adaptable for use in other industries such as sand, aggregates, cereal, animal feed and fish meal.
The Hydro-Probe Orbiter comprises of 2 parts - the head unit which houses the electronics and connections and the sensing arm with a hard wearing ceramic head. Both the sensing arm and the head unit can be easily changed eliminating the need to replace the entire sensor. To extend the life of the Hydro-Probe Orbiter, the Orbiter should always be fitted with wear protection sleeves.
|
|
External display and adjustment unit
Suitable for external display of measured values and adjustment of the sensors
All advantages in an overview:
- digital and quasi-analogue display of measured values
- can be mounted up to 25 m away from the sensor
- inclusive PLICSCOM
- instrument from the plics® family
|
|
|
|
