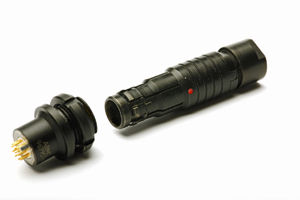

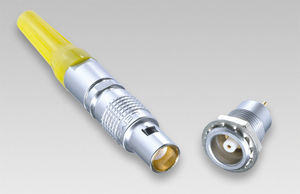

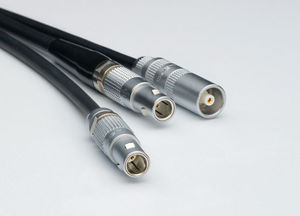

| The SS Series and SSC Series short plugs feature an innovative design and lightweight, miniature construction for applications requiring space saving and high pin density configurations. The 102 series, for example, is available with up to nine pins in a 9mm diameter. |
|
| Mencom Corporation manufacturers a wide range of PVC, PUR, and Hi-Flex quick disconnect cables. The product lines include; standard MIN (M18,) MICRO (M12,) and NAN (M8) cord sets and field wireable connectors. In addition to the cord sets, Mencom also offers a full line of mating receptacles, cable glands, and other accessories. |
|
Current Rating: 3 amps max
Dielectric Withstanding Voltage:
600 VAC RMS
Insulation Resistance:
5000 Meg ohms min @ 500 VDC
Contact Resistance:
26 milliohms (65 mv) max @ 2.5 amps
Mating/Unmating Force:
Forces not to exceed 6 oz/contact
Temperature Cycling:
-55 ° C to +125 ° C, 5 cycles
Humidity (Mated):
IAW MIL-STD-1344, Method 1002.2, Type II, Omit Steps 7A & 7B
Vibration:
IAW-MIL-STD-1344, Method 205.1, Test Condition IV, 20 g's
Mechanical Shock:
IAW-MIL-STD-1344, Method 2004.1, Test Condition E, 50 g's
Durability:
500 cycles
Contact Resistance after Durability:
26 milliohms (65 mv) max @ 2.5 amps
Mating/Unmating after Durability:
Forces not to exceed 6 oz/contact
Salt Spray:
48 hrs IAW-MIL-STD-1344, Method 1001.1, Test Condition B
Low Level Contact Resistance after Salt Spray:
28 milliohms max (2.8 mv) max @ 100 milliamps
Contact Resistance after Salt Spray:
28 milliohms (70 mv) max @ 2.5 amps
Mating/Unmating force after Salt Spray:
Forces not to exceed 6 oz/contact
Contact Retention after Salt Spray:
Minimum of 5 lbs contact retention
Thermal Vacuum Out gassing:
NASA SP-R-0022
Solder Heat & Contact Retention:
360 ° C for 10 sec. & contacts must withstand 5 lbs retention force
Solder ability:
MIL-STD-202, Method 208
|
|
Features - DRS
Specifications - Materials & Finishes
Insulator
-Polyphenylene Sulfide per MIL-M-24519, Type GST 40F, Black
Contact Material
-Pins - Beryllium Copper per ASTM B194, Alloy C17200
-Socket - Copper Alloy per MIL-DTL-83513
Contact Finish
-Gold plate per ASTM B488, Type II (Hard Gold), Code C, Class 1.27 (.000050)
Standard Termination Finish on Integral Tails
-Pin - Solder plated per AMS-P-81728 (Non-RoHS)
-Socket - Solder per J-STD-006 (Non-RoHS)
RoHS Termination Finish on Integral Tails
-Pin - Hard gold plate per ASTM B488
-Socket - Hard gold plate per ASTM B488
Standard Termination Finish on Soldercups
-Pin - Solder plated per AMS-P-81728 (Non-RoHS)
-Socket - Hard gold plate per ASTM B488
RoHS Termination Finish on Soldercups
-Pin - Hard gold plate per ASTM B488
Latch
-Beryllium Copper per ASTM B194
Latch Finish
-Electroless Nickel per AMS-C-26074
Guide Post
-Brass per ASTM B16, Alloy C36000
Guide Post Finish
-Electroless Nickel per AMS-C-26074
Guide Post (DRS ONLY)
-303 Stainless Steel per ASTM A582
Wire - Standard
-26 AWG, 7 Strand, Type E per NEMA HP3
Jack Post & Screw Receptacle (DRP ONLY)
-303 Stainless Steel per ASTM A582, Passivate per QQ-P-35
Retaining Screw (DRS ONLY)
-303 Stainless Steel per ASTM A582, Passivate per QQ-P-35
|
|
Bi-Lobe® - Standard Metal Shell Nano Offset Connectors
Sizes are 9,15, 21, 25, 31, 37,51 & 65 pin, at .025 Mil. Pitch (Currently Available)
Mating Pin & Socket models available
All sizes with 18" pre-wired leads
Wiring is Color Coded IAW MIL-STD-681, System 1, using ten solid repeating colors
All sizes Horizontal Surface Mount
All sizes Flex-Circuit Mount
All sizes Vertical Surface Mount
All sizes Straight Thru Hole Mount
All sizes Panel Mount Versions (Female Only)
Shells are factory installed
|
|
Bus Connector for PROFIBUS 90°
The compact design of the bus connectors from the Systeme Helmholz GmbH makes them suitable for use in all Siemens CPU types.
A slide switch sets whether the connector will be used as a node or end of segment. The switch can also be operated when the connector is plugged. The switch setting is clearly visible.
The connector must be used as a node („OFF“) when the incoming bus (A1, B1) and the outgoing bus (A2, B2) are to be interconnected. This deactivates the terminating resistors.
The connector must be set as a segment end (“ON”), on the first and last (extreme) stations of the segment. In that case the terminating resistors are connected on the incoming bus, the outgoing bus is disconnected.
|
|
Custom designed Micro-D connectors
AXON’ develop custom designed solutions, based on Micro-D twist-pin contact technology. Such solutions are ideal when the operating conditions are critical
- Custom designed number of ways (i.e : 18, 33, 120)
- Specific shells or hardware (narrow shell) : shape and materials
- Specific plating material (500 h salt spray, stainless steel)
- Non removable hardware
- Specific layout for PCB versions (0.075” footprint onto PCB)
- Panel mounting shells, with waterproof seals
- Combo connectors, connectors including signals, coaxial and power contacts
- EMC optimised solutions
- Circular Micro-D connector range (plastic and metal shells)
- Overmoulding solutions
- Extreme miniaturisation
- Specific backshell termination
Nano-D connectors :
- Number of ways : 9, 15, 25, 37 and 51 ways
- Twist pin contacts
- Metal shells
- Rectangular connectors
- Standard hardware
- Non removable hardware
- Pigtails
- PCB connectors (BS/CBR/SMV)
- Special Nano-D connectors on request
Advantages
- Space saving
- Integration with specific cable or harness configuration
- High EMC protection
- Special shape to facilitate mechanical integration
- Customised solutions
- Extreme miniaturisation
- Twist-pin male contact : high reliability of electrical connection in severe conditions of temperature and vibration, low contact resistance, 500 g's mechanical shock resistance.
Applications
- Avionics, gimbals, radars
- Missiles and guidance systems
- On-board equipment, telecommunication systems
- Navigation systems
- Space
- Research Centres
- Off shore
- Medical application (hearing aid system, MRI, etc…)
- Automotive |
|

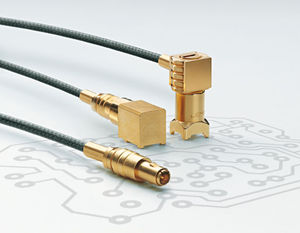

Micro-Coax designs and produces a wide range of connectors. We specialize in optimizing the cable to connector junction and most of our connectors form integral parts of our high performance cable asemblies. Our expertise in both cable and connector technology enablesVSWR and insertion loss to be minimized while maximizing the integrity of the joint.
Micro-Coax can provide quick turn-arounds on make-to-order connectors that meet your unique and demanding requirements. Contact us directly for additional information to discuss your connector specifications with our experienced engineering staff. |
|
Example:
Features - NSD
Specifications - Materials & Finishes
· Insulator
o Thermoplastic Polyester per MIL-M-24519, Type GLCP-30F, Black (Single Row)
o Polyphenylene Sulfide per MIL-M-24519, Type GST 40F, Natural (Dual row)
· Contact Material
o Pins - Beryllium Copper per ASTM B194, Alloy C17200
o Socket - Copper Alloy per MIL-DTL-83513
· Contact Finish
o Gold plate per ASTM B488, Type II (Hard Gold), Code C, Class 1.27 (.000050)
· Standard Termination Finish on Integral Tails
o Pin & Socket - Solder per J-STD-006 (Non-RoHS)
· RoHS Termination Finish on Integral Tails
o Pin & Socket - Hard gold plate per ASTM B488
· Guide Post
o Copper Alloy per MIL-DTL-83513
· Guide Post Finish
o Electroless Nickel per AMS-C-26074
· Wire - Standard
o 34 AWG, 7 Strand, PTFE per Gore SUTN170 |
|
