SENNEBOGEN telescopic cranes are extremely reliable and useful for assembly jobs on any building site, as well as in industry and wherever precise, safe load positioning is required. Low operating costs, compact construction and excellent mobility make our telescopic cranes on crawlers or wheels the ideal machinery for universal applications.
SENNEBOGEN - telescopic cranes are avaiable from 16t - 80 t service weight
|
|
|
|
|
|
Over more than 50 years, SENNEBOGEN has built up an excellent reputation in the materials handling industry worldwide. Our current range of state of the art, high performance materials handling machinery is the result of intensive development work. Flexibility and maximum customer benefit are the prime considerations when it comes to developing new products. Our consistent implementation of customer requirements means that the “green line” series can offer the perfect machine for any application.
Reliability and maximum availability are of crucial importance in most applications. SENNEBOGEN constantly focuses on developing robust, high performance technology that will have a long service life and require low maintenance even under the toughest conditions. Ergonomically optimised work stations and intelligent diagnostic systems ensure maximum efficiency in everyday work. The name “green line” represents SENNEBOGEN’s responsible approach: By increasing efficiency and reducing noise emissions, we are improving the environmental impact of our materials handling machinery.
SENNEBOGEN’s worldwide service network guarantees a high level of machine support and excellent spare parts availability.
|
|
Over more than 50 years, SENNEBOGEN has built up an excellent reputation in the materials handling industry worldwide. Our current range of state of the art, high performance materials handling machinery is the result of intensive development work. Flexibility and maximum customer benefit are the prime considerations when it comes to developing new products. Our consistent implementation of customer requirements means that the “green line” series can offer the perfect machine for any application.
SENNEBOGEN - Material Handling Machines are avaiable from 22t - 270 t service weight.
|
|
|
Designed specifically for applications requiring particular manoeuvrability and compactness. LTC stands for "Liebherr-Telescopic-Compact", indicating the special compactness of the new crane design. A hydrostatic travel drive, the tightest of turning radii, active rear axle steering and shunting mode and the 7-section, 36 m compact boom distinguish the 55 tonner as the ideal lifting gear for crane assembly within restricted industrial buildings.
|
|
|
Compact industrial cranes are used for plant maintenance and material handling jobs. Simple to operate, these units feature carry decks and multi-mode steering allowing operation in tight quarters. These machines offer compact dimensions, good maneuverability, and excellent pick and carry capacities.
|
|
IC-80 Industrial Crane
Rated Capacity Limiter Standard
Broderson IC-80 Industrial Crane
Capacity on Outriggers 18,000 lbs.
(9 Tons)
Pick and Carry Capacity up to 11,700 lbs.
(5.85 Tons)
Height 7' 3"
Width 6' 6"
Boom Rotation Continuous 360 Degree
Sheave Height up to 46' 0"
Horizontal Reach up to 40' 0"
4-Wheel Steer Standard
4-Wheel Drive Optional
Powershift Transmission Standard
Fully Hydraulic Controls for Smooth Precise Operations
Dual Fuel or Diesel Power Available
Independent Outrigger Controls
Currently producing 'G' Model
|
|
IC-35 Industrial Crane
Rated Capacity Limiter Standard
Broderson IC-35 Industrial Crane
Capacity on Outriggers 8,000 lbs. (4 Tons)
Pick and Carry Capacity up to 6,700 lbs. (3.35 Tons)
Height 6' 6"
Width 5' 0"
Boom Rotation Continuous 360 Degree
Sheave Height up to 33' 0"
Horizontal Reach up to 27' 0"
Rear Wheel Steer Standard
Front Wheel Drive Standard
Tight Turning Radius
Fully Hydraulic Controls for Smooth Precise Operations
Dual Fuel or Diesel Power Available
Independent Outrigger Controls
Currently producing 'E' Model
|
|
IC-25 Industrial Crane
Capacity 4,000 lbs.*
(2 Tons)
Pick and Carry Capacity up to 3,400 lbs. (1.7 Tons)
Height 7' 2" with O.G.**
Height 5' 9" without O.G.**
Boom Rotation Fixed
Horizontal Reach up to 17' 0" *
Width 4' 0"
Sheave Height up to 27' 0"
Rear Wheel Steer Standard
Front Wheel Drive Standard
Tight Turning Radius
Fully Hydraulic Controls for Smooth Precise Operations
Dual Fuel or Diesel Power Available
Water Cooled Engine
Currently producing 'A' Model
* Front Bumper
** Operator Guard
|
|
|
Liebherr builds a wide range of mobile cranes with telescoping or lattice booms on wheeled or crawler-tracked undercarriages, to operate in the most diverse areas. These cranes are powerful, compact and manoeuvrable, and feature ultra-modern "made in Germany" mobile-crane technology that satisfies combined road and off-road operating requirements on construction sites of all kinds, worldwide.
|
|
|
|
|
|
The MK series of mobile construction cranes combines the mobility of a classic truck crane with the functional advantages of a tower crane. MK cranes are designed for push-button assembly by one person.
Numerous operations a day are no problem for these taxi cranes. As mobile construction cranes, they feature state-of-the-art truck-crane chassis. Optimal manoeuvrability is ensured, with various electronic travel modes available to assist the operator.
The MK 63 and MK 100 (MK 110) mobile construction cranes are also fitted with the 45° super-raised jib angle.
MK 63
Standard EN/CE
Max. hook height 25.0 m
Max. lifting capacity 8,000 kg
max. radius 36.0 m
Lifting capacity with max. radius 1,800 kg
MK 80
Standard DIN/FEM
Max. hook height 28.0 m
Max. lifting capacity 8,000 kg
max. radius 42.0 m
Lifting capacity with max. radius 1,700 kg
MK 100
Standard DIN/FEM
Max. hook height 33.0 m
Max. lifting capacity 8,000 kg
max. radius 52.0 m
Lifting capacity with max. radius 1,600 kg
MK 110
Standard EN/CE
Max. hook height 33.0 m
Max. lifting capacity 8,000 kg
max. radius 52.0 m
Lifting capacity with max. radius 1,800 kg
|
|
Max. Lifting Capacity: 70 t x 3.1m
Max. Crane Boom Length: 54.9 m
Max. Fixed Jib Combination:
42.7 + 18.3 m
45.7 12.2 m

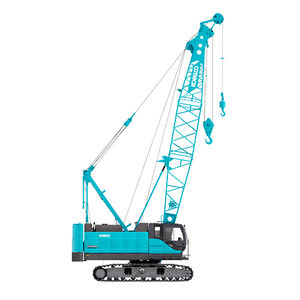

The CKE700 crawler crane from KOBELCO takes advantage of new technologies to raise performance to new heights. Winches with extremely powerful line-pull handle the toughest jobs, while the innovative "wettype" multi-disc braking system provides safe and sure control with minimal maintenance. A large winch capacity promotes ultra-smooth operation and enhanced component service life. An optional full-sized third winch enables the use of an impressive selection of attachments. Add these new features to the renowned power and reliability of KOBELCO cranes, and you have the ideal combination of lifting performance, economical operation and durability.
|
|
HEAVY DUTY BASE MACHINE FOR FOUNDATION WORK
Max. Lifting Capacity: 80 tons x 3.6 m
Max. Boom Length: 54.9 m
Heavy-duty reliability from wet-type disc brakes. Powerful and large capacity drums to handle any job with power to spare. Drawing on long experience in crane manufacture, KOBELCO researched the bottom line in boosting operating efficiency in civil engineering and foundations work, and has unveiled a new generation of base machines.The BME800HD features power and precision in operations, simple controls and comprehensive safety features. Economic to run, easy to transport, kind to operator and environment alike. In every respect the BME800HD delivers a performance that sets new standards for heavy-duty foundation work.
|
|
CRANE BOOM
Max. Lifting Capacity: 60 tons @ 3.0 m
Max. Boom Length: 51.8 m
FIXED JIB
Max. Lifting Capacity: 6.6 tons @ 16.0 m
Max. Fixed Jib Combinations: 42.7 m x 12.2 m
39.6 m x 18.3 m
The CKE600 crawler crane from KOBELCO takes advantage of new technologies to raise performance to new heights. Winches with extremely powerful line-pull handle the toughest jobs, while the innovative "wettype" multi-disc braking system provides safe and sure control with minimal maintenance. A large winch capacity promotes ultra-smooth operation and enhanced component service life. An optional full-sized third winch enables the use of an impressive selection of attachments. Add these new features to the renowned power and reliability of KOBELCO cranes, and you have the ideal combination of lifting performance, economical operation and durability.
|
|
Max. Lifting Capacity: 80 t x 3.0 m
Max. Crane Boom Length: 54.9 m
Max. Fixed Jib Combination: 42.7 + 18.3 m, 45.7 + 12.2 m
The CKE800 crawler crane from KOBELCO takes advantage of new technologies to raise performance to new heights. Winches with extremely powerful line-pull handle the toughest jobs, while the innovative "wettype" multi-disc braking system provides safe and sure control with minimal maintenance. A large winch capacity promotes ultra-smooth operation and enhanced component service life. An optional full-sized third winch enables the use of an impressive selection of attachments. Add these new features to the renowned power and reliability of KOBELCO cranes, and you have the ideal combination of lifting performance, economical operation and durability.
|
|
Max. Lifting Capacity: 110 t x 3.6 m*
Max. Crane Boom Length: 70.1 m
Max. Fixed Jib Combination: 61.0 m + 21.3 m
The CKE1100 crawler crane from KOBELCO takes advantage of new technologies to raise performance to new heights. Winches with extremely powerful line-pull handle the toughest jobs, while the innovative "wettype" multi-disc braking system provides safe and sure control with minimal maintenance. A large winch capacity promotes ultra-smooth operation and enhanced component service life. An optional full-sized third winch enables the use of an impressive selection of attachments. Add these new features to the renowned power and reliability of KOBELCO cranes, and you have the ideal combination of lifting performance, economical operation and durability.
|
|
Raw power and durability alone are no longer enough in today's fs construction environment, as operators and owners increasingly demand greater comfort and operability. KOBELCO has evolved accordingly with advanced hydraulic technology and onboard electronics that help you get the job done more quickly and reliably than ever before. But the real focus of our machine design is safety, both for the operator and for all the workers on the site. With their ideal combination of power, speed, comfort, operability, and advanced safety features, KOBELCO cranes are being used with confidence throughout the world. And now, we are proud to present them to the European market as the CKE Series.
CKE2500
Max. Lifting Capacity : 250t @ 4.6m
Max. Crane Boom Length: 91.4m
Max. Fixed Jib Combination: 76.2m + 30.5m
Max. Luffing Jib Combination: 61m 61m
|
|
SL 6000
Max. Lifting Capacity: 550 ton
STANDARD
Max. Boom Length: 108 m
Max. Luffing Jib Combination: 60 + 72 m
HEAVY LIFT
Max. Boom Length: 108 m
Max. Luffing Jib Combination: 66 72 m
SUPER HEAVY LIFT
Max. Boom Length: 126 m
Max. Luffing Jib Combination: 84 84 m
The KOBELCO SL6000 crawler crane, with a lifting capacity of up to 550 tons, targets large-scale energy-related projects and large infrastructure installations. In addition to its superb lifting capacity, the SL6000's innovative unit assembly system' is designed to comply with transport regulations worldwide and to minimize labor required for assembly/disassembly. The SL6000's wide range of attractive features includes advanced safety devices, a wide, comfortable cab giving excellent visibility and other enhancements. KOBELCO is proud to premiere this much-awaited new model, which will further enhance our global reputation for tough, reliable, and outstanding performance.
|
|
CRANE BOOM
Max. Lifting Capacity: 135 tons @ 4.5 m
LUFFING BOOM
Max. Lifting Capacity: 80 tons @ 8.0 m
LONG BOOM
Max. Lifting Capacity: 44.3 tons @ 10.6 m
FIXED JIB
Max. Lifting Capacity: 26.8 tons @ 16.0 m
LUFFING JIB
Max. Lifting Capacity: 36 tons @ 12.0 m
Whether positioning bridge girders or constructing tall buildings, smooth and speedy operation is the most important performance. KOBELCO CKE1350 crawler crane is designed with latest job trends in construction environment. With its excellent operability, sensitive controls, and most important, its safety features, the CKE1350 achieves the best balance in its
overall performance. In regular crane or luffing jib operations for building construction, as well as general foundation work, there's more than enough capacity. The difference is in its basic performance.
|
|
Max. Lifting Capacity: 400 ton x 5.5 m
Max. Luffing Boom Length: 96 m
Max. Luffing Jib Combination: 78 m + 66 m
|
|
Max. Lifting Capacity: 180t x 3.75m
Max. Crane Boom Length: 85.3m
Max. Long Boon Length: 85.3m
Max. Fixed Jib Combination: 73.2m + 30.5m
Max. Luffing Jib Combination: 54.9m + 51.8m
|
|
Lattice mast crawler cranes are enjoying a real renaissance, and with good reason. Outstanding lifting capacities, almost unlimited mobility on building sites, simple and quick to transport, self-assembly systems and low investment and running costs guarantee maximum benefit for operators. SENNEBOGEN's robust crawler cranes feature state-of-the-art technology, maximum flexibility and excellent economy.
SENNEBOGEN - Crawler Cranes are avaiable from 80 t - 180 t service weight
|
|
For nearly 50 years SENNEBOGEN has been developing heavy-duty universal rope excavators. Years of experience and the continuous intensive refinement of the product family have produced a complete range of high performance rope excavators featuring state-of-the-art technology. Adaptable to a wide range of jobs, extremely stable and with universal utility; rope excavators will remain indispensable in the 21th century.
SENNEBOGEN - HD crawler cranes are avaiable from 30 t - 180 t service weight
|
|
SENNEBOGEN telescopic cranes are extremely reliable and useful for assembly jobs on any building site, as well as in industry and wherever precise, safe load positioning is required. Low operating costs, compact construction and excellent mobility make our telescopic cranes on crawlers or wheels the ideal machinery for universal applications.
SENNEBOGEN - telescopic cranes are avaiable from 16t - 80 t service weight
|
|
|
Cranes are supplied by Hitachi Sumitomo Heavy Industries Construction Crane Co., Ltd. (a Hitachi group company). If you want information about these types of equipment, please visit their website.
|
|
C850 NG - Technical Data
- Lifting capacity: 90 t | 3.9 m
- Engine power: 440 kW
- Main winch: 250 kN
- Auxiliary winch: 110 kN
- Max boom length: 42 m
- Operating weight: 80 t
|
|
C240 NG - Technical Data
- Lifting capacity: 24 t | 2,7 m
- Engine power: 116 kW
- Main winch: 79 kN
- Auxiliary winch: 56 kN
- Max boom length: 21 m
- Operating weight: 25.5 t
|
|
Equipped with REXROTH and Kawasaki hydraulics components imported from Germany and Japan;
Excellent micro-mobility performance;
Independent main and auxiliary winches, convenient for operation;
Multi-disk clutch and brakes are self-compensated, free of adjustment, automatic compensation;
Travel with heavy load feature, and free-fall hook increase operation's efficiency and working coverage;
Built-in features as torque limiter, electronic controller and over-winding prevention device enhance operation safety;
Larger chassis is used for better stability;
Light weight and small specific ground pressure;
Adjustable track width for transportation convenience;
High-strength steel pipe boom for high load capacity.
|
|
|
YTQU160 is the hydraulic crawler crane developed by the most experienced R&D team within Yutong Heavy Industries Co., Ltd. with its own characteristic, being both advanced technology home and abroad combined.
|
|
|
|
|
|
Link-Belt
138 HSL
80-ton (77.62 mt)
Lattice Boom Crawler Crane
- Best capacities in its class!
- 40’ to 200’ (12.19 m to 60.96 m)
tube boom
- 40’ to 160’ (12.19m to 45.72m)
angle boom attachment option
- Live mast standard
- Maximum boom jib length combination
of 180’ + 60’
(54.86m + 18.28m) tube and
150 +60’ (45.72m + 18.28m) angle
- Tier III whisper quite Isuzu power
at 284hp – tops in its class
- Matching high line pull front &
rear drums with Link-Belt designed
“out board style ”wet brake. This
brake design offers low resistance to
free spooling in free fall mode, even
in cold climates.
- Optional front mounted 3rd drum
and or rear mount high line pull
4th drum (with free fall)
- New fast easy counterweight
removal system
- Hydraulic machine “assembly
cylinder” option - mounted in boom
base section for fast easy assembly
& load out
- HSL style cab with latest comfort
technology, high output A.C, AM/FM
radio, 6 way adjustable seat with
djustable console
- Smooth, precise, Bullet proof hydraulic pilot operated function controls for years of trouble free operation and dependability
- HSL 1 Rated capacity limiter with state of the art electronics including color graphic monitor
|
|
With the LR series, Liebherr offers a well-balanced programme of lattice boom crawler cranes. In the class below-300 metric tons, low transport weights, rapid self-assembly, optimum load capacity values across the entire working range and comprehensive operating information are among these cranes' main functional features.
For its larger crawler cranes with lifting capacities up to 1,350 metric tons, Liebherr also offers a wide range of multifunctional jib systems. These cranes can reach heights of up to 223 m at the hook and working radii of up to 152 m, but retain their outstanding manoeuvrability thanks to innovative solutions for the handling of extremely high ballast weights. The LR series is completed by the hydraulic duty cycle crawler cranes range (HS series), which is similar to the LR series in design. The machines have been developed for the most diverse material handling operations. This series comprises 6 models with load capacities between 35 and 200 metric tons.
|
|
|
|
