Maxtrak 1000SR
The Terex Pegson 1000SR combines the incredible Terex® Pegson 1000 Automax® cone crusher with a double deck screen to provide a complete crushing and screening process on a single chassis for secondary and tertiary applications.
The 1000SR is able to produce one, two or three stockpiles using the optional stockpiler or recirculate the oversize for recrushing. The integrated feed hopper and level central system ensures the Terex® Pegson Automax® can be continually choke fed. The ability of the Terex® Pegson Automax® to accept an “all in” unscreened clean feed eliminates the need for pre-screening whilst giving the optimum particle shape using attrition crushing.
Material crushed by the Terex® Pegson Automax® transfers to a double deck screen and oversize material can be recirculated back to the cone crusher via an onboard conveyor to produce two stockpiles of graded aggregate.
Our patented access system simplifies screen and conveyor maintenance by allowing the easy separation of the crusher and screen discharge conveyor.
Optional equipment available with this machine includes includes a 500mm wide stockpiling conveyor and choice of concaves – Terex® Pegson Automax® extra coarse, coarse, medium coarse and Terex® Pegson Autosand®.
|
|
|
|
|
|

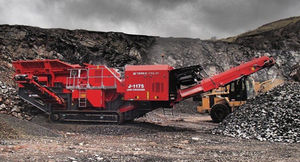

Crushing - J-1175 Jaw Crusher
The New FINLAY J-1175 single toggle Jaw crusher is the latest development to complement FINLAYS' extensive range of mobile Crushing, Screening and Washing plants.
The J-1175 is fitted with a 1070mm x 760mm (42" x 30") world renowned Jaques crusher chamber and a heavy-duty undercarriage for exceptional on site mobility.
A heavy duty vibrating grizzly feeder with automatic control to regulate the feed into the crusher, Hydrostatic drive, reverse crushing action to assist in clearing blockages are all major features of this unit.
Its compact size, ease of transport, and quick set-up times makes the FINLAY J-1175 crusher ideal for contract crushing and demolition/recycling applications.
Additional Information
* Hopper capacity 9m³.
* Heavy-duty vibrating grizzly feeder
* Hydrostatic drive.
* Caterpillar C9 225 KW (300HP) engine.
* Hydraulically folding Hopper sides.
* Reversible operation to assist in clearing blockages .
* Portability - tri-axle.
Options Include
* By-Pass Conveyor
* Overband Magnet
* Belt Weigher
* Radio Remote Control for machine movement
|
|
|
|
|
|
Crushers - C1540 Cone Crusher
The C-1540 cone crushing equipment features a number of major benefits including hydrostatic drive, rapid set up time, high reduction ratio, high output capacity and advanced electronic control system
The C-1540 Cone crusher also features an integrated pre-screen. By only crushing the products that need to be crushed, the capacity of the machine is increased and wear costs reduced. The metal detector on the hopper with self-clearing facility is also another notable feature.
With an automatic tramp metal relief, hydraulically adjustable closed side settings, ease of maintenance and direct hydrostatic drive, the Cone chamber is already well established in the marketplace.
Standard features
* 1000mm (40'') Cone Chamber
* Hydrostatic drive - Variable Speed
* Full hydraulic adjustment
* Rapid set-up time
* Heavy duty fabricated chassis and trackframe
* Advanced electronic control system
* Choice of concaves and eccentric throw
* Feed Conveyor Metal Purge System
Options includes
* Hopper Extension
* Radio Remote Control
* Pre- Screen system- allows fine materials to by-pass the cone chamber increasing machine throughput and reducing wear costs. Feed conveyor can feed directly into the cone if required.
|
|
|
|
|
|
1000 Maxtrak
Terex® Pegson leads the world with the high performance 1000 Maxtrak crusher that has been designed for direct feed applications without pre-screening on clean rock.
At its heart is the Terex® Pegson Automax® cone crusher with hydraulic setting, tramp release and unblocking system. Its unique crushing action produces high quality aggregate and sub-base material. Available with a choice of four liners including Terex® Pegson Autosand® and two “eccentric” throws, it will give excellent capacity, high reduction and good product cubicity.
The Maxtrak plants are fitted with a feed hopper that enables the Terex® Pegson Automax® to be continually choke fed. This is essential for all cone crushers to maximise the reduction and manganese life as well as for optimal product shape. A level probe over the feed ring regulates the feed belt to ensure the Terex® Pegson Automax® is perfectly fed.
An optional feed hopper level probe is available for applications where the source of the feed is intermittent and unable to keep the cone crusher continuously choke fed.
To achieve optimal performance the crusher should be fed with well graded material from the maximum feed size down to zero. Any fines in the feed should be clean crushed rock.
|
|
|
|
|
|
1300 Maxtrak
The 1300 Maxtrak is Terex Pegson’s largest tracked cone crusher and is suitable for secondary and tertiary applications up to 350 tph.
This plant “punches way above its size” and is ideal to follow very high capacity primary jaw crushers and produce quality sub base or aggregates.
Using the unbeatable Terex® Pegson 1300 Automax® cone crusher, the 1300 Maxtrak features a system with a large feed hopper which is able to take an ‘all-in feed’ from the jaw crusher, thereby improving cubicity, throughput and reduction ratios and eliminating the need to for pre-screening on most applications.
Setting adjustment can be made ‘on the run’ using touch button control. Dust suppression sprays and metal detection are both included as standard. Without question, the 1300 Maxtrak is a big step ahead of the competition in its size, productivity and operating efficiency.
A range of optional extras are available including a Terex® Pegson Autosand® concave, feed hopper extension plates and an electric pump.
|
|
Crushing - I-1312 Impact Crusher
The New FINLAY I-1312 impact crusher is the latest development to complement FINLAYS' extensive range of mobile Crushing, Screening and Washing plants.
The I-1312 is fitted with a Cedarapids 5048LP impact chamber. It features a standard 3 bar rotor configuration Ø50” x 48” (1270x1220mm) or an optional 4 bar system.
Standard Features
* Cedarapids 5048LP Impact chamber
* Inlet opening 1100x1240mm (43x48")
* Rotor size Ø1270x1220mm (50x48")
* Hydrostatic drive
* CAT C13 engine
* Rapid set up time.
* Advanced electronic control system
Options to Include
* By Pass Conveyor
* Overband Magnet
* Belt Weigher
* Radio Remote Control for machine movement
|
|
|
|
|
|
4242SR
The demand for a single crushing and screening unit capable of producing a controlled top size of finished product in closed circuit has led TEREX Pegson to design and manufacture the 4242SR plant.
The 4242SR is based around the acclaimed 428 Trakpactor and comprises a complete crushing, screening and stockpiling unit built onto one tracked chassis.
Suitable for primary and secondary applications in quarrying, contracting and recycling, the 4242SR has outstanding performance characteristics with capacities up to 360 tonnes per hour. Up to four products sizes, depending on the set-up, can be produced and stockpiled. Alternatively, oversize material can be recirculated back to the crusher via an on-board conveyor system to give a guaranteed finished top size.
The unit features a heavy duty vibrating grizzly feeder with two step grizzly, optional underscreen and side conveyor for stockpiling waste material or an additional product. Scalped material can also be fed on to the main product conveyor via a by-pass chute to increase overall capacity. An overband magnetic separator is available for removal of re-bar and steel when used in recycling applications before the crushed material is fed onto a 3.3 x 1.5 mm two deck screen for sizing. To reduce environmental impact, dust suppression sprays are also included as standard.
Our patented access system simplifies screen and conveyor maintenance by allowing the easy separation of the crusher and screen discharge conveyor.
It is fitted with a four bar rotor and two aprons for high reduction performance. An optional third apron or grinding path is also available for addition reduction capability on quarry applications.
|
|
1412 Trakpactor
Terex Pegson has reconfirmed its commitment to continual product improvement. Designed specifically for the heavy duty recycling applications with high re-bar content, we are now able to offer an option of an under pan feeder for the 1412 Trakpactor.
The vibratory pan feeder is situated immediately below the crusher outlet and replaces the deflector which is supplied as standard on the 1412 Trakpactor.
The pan assembly is driven by a hydraulic motor which and two out of balance shafts. It is mounted springs which allow the pan to move in a back-and-downward motion and in an up-and-forward motion. These combined motions cause any material discharged onto the pan feeder to move forwards until it discharges onto the main product belt.
The pan feeder is 2.5m long by 1.1m wide and is fully lined with Hardox 400 wear resistant plate. The under pan feeder retains the excellent conveyor access provided by the hydraulic lower conveyor system from the standard plant.
|
|
XH250
The XH250 impactor is suitable for compact primary and secondary applications and has been equipped with a powerful C-6.6 Tier III engine and under crusher vibrating pan feeder. The crusher’s direct drive system optimises running costs and ensures downtime is reduced to a minimum.
This plant is capable of processing all material types and can achieve a throughput capacity of 250tph. Additional features also include an overband magnet for the removal of rebar and a product conveyor that can be hydraulically raised/lowered using the automated Canbus PLC system.
|
|
XV350
The XV350 is the latest development from engineers at Terex Pegson and features the well-proven Terex Canica 2050 DG vertical shaft impactor. This is driven from a 438HP Caterpillar C13 engine via a self adjusting HFO clutch with a wedge belt drive through a countershaft assembly.
The VSI is fitted with a shoe and anvil arrangement, which is interchangeable with a variety of other configurations depending on the requirements of the application.
The XV350 is fed by a 1.3m wide variable speed inclined feed belt which can be hydraulically raised and lowered for transport purposes. This new plant accepts a maximum feed size of up to 102mm, producing a maximum throughput of up to 350 tonnes per hour depending on application.
|
|
|
|
|
|
428 Trakpactor
The 428 Trakpactor is suitable for processing soft to medium strength quarried rock, demolition debris and recyclable materials at up to 360 tph.
It can be used as a primary crusher for well broken feed material or alternatively to give increased reduction by operating as a secondary crusher.
It features a multi stage reduction impactor fitted with two adjustable aprons and hydraulic case opening for quick and easy replacement of wear parts. It has a heavy-duty vibrating grizzly feeder with underscreen option and a 1000mm wide discharge conveyor. The plant can be fitted with a magnetic overband separator for recycling applications.
A wide selection of optional features are available with this machine and include: dirt conveyor, magnet, radio control, grinding path, a range of wire meshes for the underscreen, a refuelling pump and hydraulic water pump.
It is fitted with a four bar rotor and two aprons for high reduction performance. An optional third apron or grinding path is also available for addition reduction capability on quarry applications.
|
|
Lower Silesian Machine's Factory ZANAM-LEGMET Spółka z o. o. , producer of
machines and equipment for mining and building industries, offers:
• ZKMS 100/55 and ZKDS 130/75 crushing sets with jaw crushers
• KWS 40/20E jaw crusher for preliminary crushing
• ZKMU 100/110 and ZKDU 120/130 crushing sets with impact
crushers
• KKL 50E container crusher
• KKL 100E compact impact crusher
• KDSn 130/75E stationary jaw crusher
The crushers are designed for crushing materials of 200 Mpa
compression strength such as: granite, amphibolite, gneiss, quartzite, limestone etc.
The crushers can be used for crushing materials in which silty-argillaceous impurities and humidity in the charge should not exceed 15% and 10% respectively.
|
|
|
|
|
|
The RM100 sets standards defining a new class of mobile crushers. The robust crusher is a continuation of advanced RM technology and design - delivering a significant increase in feed material size and throughput.
Dynamic automatic operation and optimized crusher hammer geometry ensure the highest possible continuous throughput and uniform final grain size. RM100 crushers are operated safely and cost efficiently by a single person - thanks to the radio control system for simultaneous remote operation of the crusher, crawler gear and Release System for removing blockages at the touch of a button.
At just 28 tonnes the crawler-equipped RM100 is a typical RM Compact Recycler that is easy to transport. The system has been cost-optimised from the ground up and offers impressive service life, well below average wear costs , long maintenance intervals and optimum ease of operation. The machine is set up quickly thanks to quick-release connections and perfect accessibility.
Magnetic separator, side conveyor belt and mobile oversize grain screen are also available as proven RUBBLE MASTER add-on modules.
|
|
|
|
|
|
The RM80 fully meets the requirements of cost-conscious building contractors.
The crusher is programmed to perform - with automatic conveying in line with crusher workload, material and feeding type. Its high continuous throughput is due to the compact crusher's excellent intake behaviour and optimum crusher kinematics.
The RM80 is flexible regarding the material it processes. In recycling mode the magnetic separator reliably removes reinforcing steel from the crushed material. Only one person is required to operate and manoeuvre the RM80 using remote control. Even the unique release system to remove blockages works at the press of a button.
The crusher with crawler gear is mobile even in tight spaces and in mountainous areas. The RM80 is extremely versatile and can be reconfigured from a primary to secondary crusher in just 20 minutes. RUBBLE MASTER ENVIRO technology ensures it can operate without disturbing local residents. Magnetic separator, side conveyor belt and mobile oversize grain screen are also available as proven RM add-on modules.
|
|
XA750
The XA750 jaw crusher is one of the most advanced and efficient tracked crushing plants on the market today. It benefits from unrestricted feed opening to maintain high production capacities and prevent bridging; a hydraulic Closed Side Setting adjustment, which can be changed quickly at the push of a button and a hydraulic draw back rod retention system so downtime for maintenance is reduced.
The XA750 uses a Terex Jaques WJ3254 single toggle jaw crusher to produce high volume product with excellent reduction which can be stockpiled via a product conveyor to a discharge height of 4m. The product conveyor can also be raised and lowered hydraulically for transport and maintenance purposes.
|
|
Metrotrak HA
With the end-user in mind, Terex Pegson have developed the Metrotrak, a compact high performance machine that will achieve a rapid return on investment.
Designed with a track mounted undercarriage the unit can be easily moved on to site and set-up quickly to achieve crushing capacities of up to 160 tph.
The standard equipment on this machine includes a powerful diesel engine, a vibrating grizzly feeder, larger capacity feed hopper and a product discharge conveyor.
|
|
XR400S
The XR400S is the perfect choice for recycling on primary applications. The hydraulic release jaw crusher fitted to this plant will sense an overload an open when required to protect the crusher against serious damage when uncrushables up to 200mm cube enter the crushing chamber. The huge benefit of wonderful access under the crusher and power pack is further improved when the conveyor is lowered at the push of a button. The enables the operator to clear blockages that can occur on recycling without the need to frequently handle the material.
This plant also benefits from a high discharge conveyor, easy set-up hopper and low running costs. It is also available with a number of options including magnet, side conveyor, radio remote, flipper plate and extra large hopper.
|
|
1180 Premiertrak
Terex Pegson pioneered the development of the 1180 Premiertrak to produce a high performance large capacity tracked mounted jaw crusher that is suitable for a variety of quarrying and contract crushing applications.
Behind the success of the 1180 Premiertrak is the “M” series S.H.D. single toggle jaw crusher which has been designed to deliver unsurpassed output levels on the toughest of applications.
This versatile unit is suitable for primary operations and will achieve capacities over 450 tph depending on the size and type of material being processed.
It is fitted with a Caterpillar C13 engine and uses the Terex Pegson direct drive system for the crusher. This is the most efficient system available and minimises fuel consumption whilst maximising intervals between hydraulic oil changes.
|
|
XA400S
The XA400S is a high performance primary jaw crushing plant for quarrying, demolition and mining applications. It employs a hydraulic setting adjustment system which enables the size of the jaw and product to be changed quickly.
The XA400S also benefits from being designed with an aggressive crushing action and high swing jaw, which encourages material to enter the crushing chamber. Other features include a product conveyor which can be raised and lowered hydraulically, an optional deflector plate to prolong the life of the belt and an optional dirt conveyor, magnet, radio control and extended hopper for feeding from the rear of the plant
|
|
|
|
|
|
X38 SBS
The X38-SBS cone crusher pairs a world-leading cone crusher with proven design and manufacturing capability in order to provide a track-mounted mobile machine that sets new standards in crusher throughput and finished product shape.
This machine is powered by a C-9 diesel engine that meets all known emissions standards, and incorporates a cone crusher that is widely regarded as the leader in its field. Designed specifically for crushing and sizing minerals, the X38-SBS is able to work as independent unit, or as part of an integrated aggregate production line in harmony with the other members of the screening and crushing family.
Key features include:
* Diesel hydraulic power via CAT C-9 Engine 261 kW / 350 hp
* World leading cone crusher
* Variable speed, high torque for controlled and continuous feed
* Hydraulic Closed Side Setting adjustment
* Full Dust Suppression System
* Complete machine raises on its hydraulic legs to facilitate cleaning and servicing of tracks
* Machine is self propelled by remote control or umbilical control hand set
* Metal detector for feed hopper
* Optional re-circulation system
|
|
|
|
|
|
X44 SBS
The totally new Extec X44 SBS Cone Crusher will undoubtedly raise the benchmark for crushing equipment design, as Extec have built an unrivalled reputation for providing its customers with innovative and high quality products. The design and capacity of the X44 SBS have been specifically adapted to the markets real requirements, and to fully complement, and strengthen, Extec’s existing crusher portfolio.
Some of the new features taking crusher design to a new level include:
* Diesel hydraulic power via CAT C-13 Engine – 328 kW / 430 hp which provides hydraulic transmission without clutches.
* Telsmith 44SBS world leading cone.
* Variable speed, high torque for controlled and continuous feed.
* Feed hopper mounted on hydraulically contolled slew ring
* Hydraulic Closed Side Setting adjustment.
* Complete machine raises on its hydraulic legs to facilitate cleaning and servicing of tracks.
* Machine is self propelled by remote control or umbilical control hand set.
* Metal detector for feed hopper.
* Optional recirculating screen box for a guaranteed finished top size.
* Optional recirculating conveyor. This can also be deployed at 90 degrees for extra stock pile of different size material.
* Optional bogie system eliminates the need for low loader transport.
* Intelligent control system which allows communication of up to 8 machines operating in a line.
|
|
The C3 crusher meets exacting product quality demands. Aggregate specifications have been tightened up and this trend towards higher standards will continue. The C3 crusher and the CSC (cubical shape crushing) technique developed by Sandvik, produce material of excellent shape and high quality.
The C3 is equipped with a hydroset system which provides both safety and setting adjustment functions, and incorporates a heavy-duty hydraulic cylinder which supports the mainshaft and adjusts its position. The semi-automatic setting regulation system not only optimizes production, it also keeps track at liner wear. This makes it easy to plan liner changes and minimize interruptions in production.
In addition to the high capacity, the 1080 is compact, which makes it very easy to move and to install.
|
|
I-C13
This is a large heavy-duty tracked crusher incorporating the definitive Impact crusher made by Krupp Hazemag SA. Combining the revolutionary mobility, power and design of Extec crushers with the world reputation of Krupp Hazemag SA for Impactor performance. The following are among the features that set it apart:
* Very high production
* Vibrating feeder automatically meters the flow of material to the crusher
* Large crusher box promotes free flow of re-bar without blockage while fast track facility allows tangled material to clear machine
* Complete machine raises hydraulically for cleaning and service
* Full dust suppression system fitted
* Operated by remote control
* Self-propelled on site and travels on road without low-loader
|
|
|
|
|
|
Fintec Crushers and Screen Ltd has announced the introduction of the new 1440, a track-mounted mobile unit equipped with a field proven Sandvik impact crusher
The new model, the company’s first since it was acquired by Sandvik last year, combines Fintec’s experience in the design of mobile crushers with Sandvik’s unquestionable leadership in the manufacture of high output impact crushers for quarrying, demolition and recycling applications.
Powered by a fuel-efficient 330 kW Cat C-13 Tier 3 compliant diesel engine, the Fintec 1440 is carried on a manoeuvrable tracked undercarriage and incorporates a Sandvik PR301D impactor with a fluid clutch drive. Fed via a two-deck pre-screen, the crusher is a four hammer open-style rotor with a diameter of 1,150mm and a width of 1,330mm and discharges onto a secondary pan feeder. The plant is also equipped with a primary feeder and a separate two-deck pre-screen.
A relatively low weight and compact dimensions – the unit has an operating weight of 49.8 tonnes and is 15.5 metres in length in transport configuration - means the Fintec 1440 is transportable in a single load, allowing it to be readily moved and redeployed for maximum utilisation. Optional equipment includes a remote diesel and water pump, an over-band magnet for recycling and demolition applications, and a dolly chassis for ease of transport.
The machine is designed to deliver throughputs from 300 to 350 tonnes/hour in materials including granite, slate, limestone, brick and asphalt and is suitable for a wide variety of many applications such as secondary or fine crushing of softer rocks and in various demolition and recycling applications.
|
|
The RM60 is the most compact RM crusher and perfect for newcomers to recycling. This semi-mobile crusher can be transported using a truck with drag-on hook system (for example) and is ready for operation in just 10 minutes.
With a transport weight of just 12 tonnes, the crusher produces up to 80 tonnes of cubic high-quality grain per hour from rubble, asphalt and concrete. The RM60 is easy to operate and all service work can be carried out from the ground.
With high-performance components such as pre-screens and final screens, you can create a complete recycling centre. Construction companies can then offer their services to businesses and communities, creating clearly defined, cost-effective recycling systems.
|
|
The RM70 delivers the ultimate combination of ease-of-use and high-performance crushing. Thanks to completely new technical solutions for the transmission, crushing mechanism and overall process technology, the compact RM70 reaches new heights in throughput continuity - with excellent quality of the homogenous final grain. The innovative crusher geometry guarantees a high-quality, uniformly cube-shaped grain. The impact arm linkages can be adjusted hydraulically for different applications.
All routine maintenance and service work can be carried out quickly and safely from ground level. 3 folding doors make access even easier. The attractive industrial design fully reflects the revolutionary character of this machine.
Residents and authorities alike value the whispering performance of this highly manoeuvrable crusher - especially in built-up areas. The proven RM ENVIRO concept was taken into account in the design phase and developed even further.
|
|
|
|
|
|
C-12+
With over 1,500 units working world-wide the C-12 from Extec truly has become an icon in the world of tracked crushing.
Since its launch in 2001 the C-12 has been the benchmark others have measured themselves against with such revolutionary features as Vibratory feeder with automatic control to regulate the feed into the crusher; a hydraulic adjustment system to regulate the product size to be crushed: reverse crushing action to assist in clearing blockages; and a high crushing speed.
The newly designated C12+ is the result of Extec’s unrivalled R&D programme, and encompasses features designed to further enhance the profitability of the user at its core.
These features include:
* Extended tail conveyor as standard for even greater stockpiling capacity.
* Diesel hydraulic power via Caterpillar C-9 Industrial engine – 261 kW / 350 hp which provides hydraulic transmission without clutches.
* Large vibrating feeder with grizzly and discharge conveyor for fines. Hydraulic system automatically coordinates the flow of material from the vibrating feeder to the jaw.
* Hydraulic adjustment system to regulate the product size to be crushed.
* Uniquely small closed size setting.
* Operation of jaw can be instantly reversed to clear any blockage.
* Unique fast track system ensures the clear flow of reinforcing bar when concrete is crushed.
* Complete machine raises on its hydraulic legs to facilitate cleaning, servicing of tracks and to provide a stable base.
* Machine is self propelled by remote control or umbilical control hand set.
* Intelligent electronics.
* Bearing condition monitoring system.
* Vogel automated jaw grease system.
|
|
|
|
|
|
C-10+
This compact self-propelled machine brings the revolutionary features of the Extec C-12+ to the smaller quarry or demolition site where operating space is limited, yet high performance required. Of most sturdy construction, its power management, coupled with unique jaw design, makes it an icon for this category of crusher.
The following are among the features that set it apart:
* Fully adjustable hydraulically controlled jaw.
* Diesel hydraulic power with CAT engine – 215 hp. Model No: C6.6
* Tremendous power and speed of crushing with Spectacular reduction in product size.
* Vibrating feeder automatically controls the flow of material to the crusher.
* Reverse crushing action to relieve blockage.
* Fast track facility clears machine of tangled re-bar eliminating down time so prevalent in conventional crushers.
* Complete machine rises hydraulically to facilitate cleaning and servicing.
* Self-propelled on site yet travels on road without ancillary transport.
* Vogel automated jaw grease system.
* SKF – Sealed for life bearings.
* Mild steel liners in hopper and feeder base as standard.
* Web & Flange Chassis.
* Increased capacity diesel tank at rear of machine.
* Improved main & side conveyor chute.
* Upgraded Electronics.
* Smooth and even tracking action.
Applications include:
* Rock Crushing in quarries and construction sites.
* Concrete Crushing and asphalt crushing in recycling yards or demolition sites.
* Asphalt Crushing.
|
|
|
The Fintec 1107 Jaw Crusher has been jointly designed by ourselves and Sandvik Rock Processing, utilising the very latest technology, including finite element techniques to minimise stress levels within the frame itself. Sandvik have used all their experience gained over the last 100 years in crushing, to produce their most modern and efficient crusher, which is targeted at the recycling and contractor segment of the market.
|
|
|
|
|
|
Mobile Crushers : BR580JG-1
The newly designed Komatsu BR580JG-1 mobile crusher looks simple, and it's very powerful. This newly developed crusher offers you an amazing crushing capacity of 140 - 460 ton/h.
High-performance jaw
The KCJ4430 large-capacity jaw crusher offers the greatest treatment capacity in its class, plus easy maintenance. In addition, Komatsu's original bear lock cylinder mechanism allows you to change the discharge clearance with a simple one-touch adjustment, and it also facilitates the removal of clogged foreign material from the discharge side.
Outstanding mobility
Hydraulic steering and high-travel speed makes it easy to relocate the machine. The BR580JG-1 uses the same track undercarriage as those used on Komatsu's hydraulic excavators.
Large-capacity hopper
The 2.625 mm × 4.400 mm hopper is accessible for material loading from three sides.
ECOT3
Komatsu's SAA6D125E-5 engine with high pressure common rail injection provides 257 kW (345 HP) @ 1.900 rpm for superior crushing power. The engine meets EU Stage IIIA and EPA Tier III emissions regulations.
|
|
... see all the products in the category
Crushers
|
 see the results for the following category : Shredders |
|
|
