These practical and economical portable lift tables provide a convenient and cost saving solution to numerous material handling situations. The perfect answer for order picking, die handling, assembly operations or use as an efficient delivery cart. The Maxx-Mini Lifters are designed to reduce employee injuries and increase productivity.
With seven different models from which to choose, the Maxx-Mini Lifters have proven to be indispensable in all material handling operations. Ranging in capacities from 330 lbs. (150 kg) up to 2,200 lbs. (1,000 kg), they can handle virtually any job, big or small
|
|
SHT 100: The mobile, ergonomic high-speed lift table
- with a flexible goal height for production and logistics
With our mobile high-speed lift table goods are brought again and again very quickly, securely and comfortably on a selectable goal height. The goods can be then infered from all sides.
vertical lift: selectable from 700mm up to 1400mm
speed: 1400mm in 6 seconds
goal height: 800 up to 1400mm
load width: 800 up to 1400mm
load length: 800 up to 1600mm
additional load according to agreement
You adjust the goal height of the table at the place of work and lower the plate to the ground. You push the goods on the plates and bring them on goal level in only 6 seconds. Now you can push the goods on a bordering table.
Discover the various application types!
|
|
Backsaver Lite Lifts
These industrial grade lift tables are specifically designed for those applications involving lighter loads of up to 1,500 lbs.
They are available in four standard configurations:
Stationary, Compact with high lift and small footprint, Portable with easy rolling casters, and Powered Portable with battery powered drive.
|
|
|
|
|
|

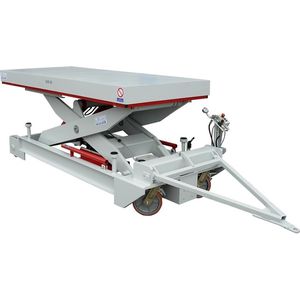

SELF-PROPELLED LIFTING TABLE
Mobile self-propelled lifting table on the ground to facilitate the changing of motors, compressors, air-conditioning and other components from rail cars.
Powered travels by a motor unit - from an electric fork-lift truck with batteries.
An operator drives the mobile self-propelled lifting table on the ground.
Main characteristics of self-propelled platform shown on the photo :
Lifting capacity : 2500 daN
Platform dimensions : 1,600 m x 1,400 m equipped with a plate on rollers to handle easily loads
Collapsed height : 0,400 m
Vertical stroke : 1,000 m
Main options : a double swivelling platform, a tilting platform, transversal and longitudinal sliding, a conveyor with free or motorized rollers, a "V" shape platform, galvanization,....
FOR ANY SPECIFIC REQUEST, CONSULT US.
Fields of application :
Manufacturing or maintenance of railway cars or vehicles. For any kind of activities requiring transport, maintenance, mounting and des-mounting of heavy parts......
|
|
MODELS ELT150 / ELT300 / ELT350 / ELT500
ELT800
Capacity Kg 150 / 300 / 350 / 500 / 800
Raised height mm 740 / 900 / 1300 / 900 / 1000
Lowered height mm 225 / 340 / 348 / 340 / 420
Overall size (W x L) mm 450 x 780 / 500 x 925
500 x 980 / 500 x 925
515 x 1150
Handle height mm 825 / 925 / 980 / 970 / 996
Table size (W x L) mm 450 x 700 / 500 x 855
500 x 910 / 500 x 855
515 x 1000
Wheel mm Ø100 / Ø127/ Ø127 / Ø127
Ø150
Foot pump to max. height mm 25 / 32 / 55 / 45
55
Weight Kg 46 / 82 / 120 / 87 / 115
|
|
| ... products without technical information |
| |
* Lift Table AS Series :
- Economic range but reliable.
- New design to meet norm EN1570:1999.
- New hydraulic system increases safety and protects your goods,tepless rate fo lowering system remains irrespective of the weight of the load.
* Lift Table-BS Series :
- Heavy duty range :
- New design to meet new CE norm EN1570: 1999.
- New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains irrespective of the weight of the load.

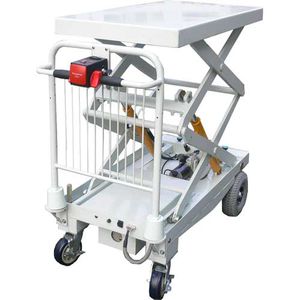

* Electric Lift Table-ES Series :
- Robust structure yet lighweight
- Two brakes increase safety
- Power unit made in europe DC 700W
- High quality battery 45Ah/12V
- Automatic battery charger
- Wheel and roller diameter 150mm
- Handle height 1185mm
|
|
|
|
