Industrial Modems: Making the integration of telemetry and control simple and seamless
The demand for remote control and low cost fault messaging systems applied to automation or remote facility management has grown rapidly. Mitsubishi Electric Europe has addressed this need through telemetry solutions based on a range of powerful Industrial Modems and management software.
There are two different types of Mitsubishi Industrial Modem: Intelligent Modems (MAM) and Standard Modems (MIM). Each type has models for connection to an analog Public Switched Telephone Network (PSTN) or a Global System for Mobile Telecommunication (GSM).
These new Industrial Modems are designed to be flexible and easy to use offering a simple RS232, RS422 or RS485 connection to the target device. Selected models even have Mitsubishi PLC protocols built in as standard making the integration of telemetry and control simple and seamless.
|
|
Embedded radio modem
The MU-2-R is an embedded radio modem operated in the 434 MHz ISM band. Dedicated commands, specially designed for wireless application, are provided for building a range of wireless system, from simple control systems to wide network systems. Using the commands, the user can concentrate on designing the application without needing to be aware of the radio protocol and control aspects. Reed-Solomon code is used for forward error correction (FEC) to maintain data integrity and provide highly reliable wireless communication. The MU-2-R meets the requirements of the European R&TTE Directive and carries the CE mark.
|
|
|
|
|
|
ZyWAN
The ZyWAN-GPRS1000 is a quad band GSM/GPRS Class 10 cellular routing modem providing WWAN (Wireless Wide Area Network) connectivity to link remote network and equipment with back-end monitoring services and telemetry applications.
The ZyWAN-GPRS1000 offers cellular connectivity for mobile and fixed assets to virtually any device, laptop or PC through multiple interfaces including serial ports, Ethernet and optional 802.11.
Targeted for fleets, public works and utilities oil and gas applications, the rugged ZyWAN offers a secure and robust connection to CDMA, EVDO, GSM/GPRS, 3G, and iDEN cellular networks. It provides real-time access to any Ethernet, 802.11 or serial device for mobile and fixed data applications.
Features
- Processor: PXA270 @520MHz
- Memory: 64MB RAM and 64MB Flash
- Customers can extend functionality by adding their own applications
- Eurotech software framework (ESF) installed
- Web browser gui setup interface
- Supports VON tunneling and encryption
- Provides secure routing of ip data
- WWAN (CDMA, EVDO, GSM/GPRS, UMTS, iDEN)
- WLAN
- GPS receiver
- Ethernet, USB & RS-232/422/485 ports
- Router functions: DHCP; Routing; Firewalling; Security AES, 3DES, SSH, IPsec; NAT (Network Address Translation); Terminal server and client; DNS client
- Dimensions: 238mm x 137mm x 65mm (W x L x H)
- Power requirements: 10 - 30V DC protected
- Operating temp. -20°C to 60°C; 0°C to 50°C (with WLAN)
|
|
|
|
|
|
The 1-port RS-232 OnCell G3111 and RS-232/422/485 OnCell G3151 come with a full TCP/IP stack to make it easy for users to establish transparent cellular connections to legacy devices over TCP/IP networks, and allow system integrators to deploy an AMR system to transmit data over a cellular network. As long as the control center is connected to the Internet, it can connect to remote metering devices. Remote meters configured with a private IP address can access resources on the Internet, but they cannot be managed or accessed directly over the Internet since private IP addresses are hidden. The OnCell G3111 and G3151 come equipped with OnCell Central Manager software to solve this private IP issue. Once a connection is established, the remote metering devices and the control center can communicate with each other on a private network over the Web.
In addition, the serial ports of the OnCell G3111/G3151 are protected by 15 KV ESD line protection to keep your system safe from unexpected electrical discharges. Because the OnCell supports 12 to 48 VDC power input, and has 2 KV EFT/surge protection, it can accommodate different types of field power sources.
Features:
‧Universal quad-band GSM/GPRS 850/900/1800/1900 MHz
‧Management software: Private IP management with OnCell Central Manager
‧Choice of operation modes, including TCP Server, TCP Client, UDP, Real COM, and Reverse Real COM
‧TCP Server/Client, UDP, Real COM, Ethernet Modem, RFC2217, and SMS Tunnel operation
‧Configuration by web console, serial console, and Telnet
‧Desktop or DIN-Rail installation
|
|
|
|
|
|
ARF73: Professional UHF Radio Modem
Due to an output power of up to 4W and a sensibility of -117dBm, the ARF73 reaches a coverage of 50km with the enclosed standard antenna.
Consequently, the ARF73 is ideal for:
* Applications requiring a really long-distance transmissions
* Communication under difficult conditions
* Applications requiring a secured radio link
This modem allows you to benefit from the advantages of the professional licensed radio (confidentiality, security) for a very low price.
The highly reliable radio link provided by the ARF73 makes it a perfect device for critical communications that, for example, must not depend from the availability of a GSM network.
Features:
• A licensed professional band from 400 to 470MHz
• Frequency stability : +/- 1kHz
• Improved automatic frequency correction calculation (up to 3kHz)
• 16 pre-programmed channels
• An output power selectable via software: 0.5W to 4W
• Sensitivity -117dBm
• Channel spacing: 12.5kHz (25kHz on request)
• Air rate: 4,800 / 7,680 / 9,600 bits/s
• RS232 and RS422 in transparent mode
• Authorisation for Europe
Upon supply, the ARF73 radio modem is already configured in order to permit a quick putting into operation; due to its RS232 serial port, it can immediately be connected to serial equipment (automatic machines, entry/exit terminals...).
The modem operates in transparent mode and can easily be configured with AT commands via the serial port.
In order to simplify its putting into operation, ADEUNIS RF offers you to deal with the administrative procedures related to the obtainment of a license.
More information, contact us: 04 76 92 07 77 or arf@adeunis-rf.com
|
|
|
|
|
|
'Low cost' multi-channel radio modem RS232 - 433/434MHz
The ARF33 enables two-way half duplex wireless data transmission over a range of 500m.
It integrates a 10-channel radio transceiver, a digital processing unit and a wide power supply range on the same board.
It is available as an IP65 enclosure ready for approved use.
This modem uses the 433/434MHz band according to the European Directive RTTE EN300-220/EN301-489 and is approved.
Data transfer in transparent mode is performed via an RS232 serial port.
Configuration is performed by AT commands.
It covers most short-distance wireless data transmission applications, from remote meter reading type point to point
transmission to constitution of cordless multipoint local networks, in sectors of activity such as automation, robotics,
remote management ….
SPECIFICATIONS
RF
• Programmables frequencies 433.125 to 434.700MHz
• Radiated RF power 10mW (10dBm)
• Sensitivity -100dBm
• Number of channels 10
• Modulation FSK
• Data rate 10Kbits/s
Modem interface
• Wired transmission rate 9.6kbps
• Serial ports RS232
• Flow control None
• Set up & configuration Through AT commands
• Modes Transparent
General informations
• Supply voltage 8 to 40V
• Rated consumption 50mA (under 24V)
• Operating temperature -30 / +70°C
• Range 500m on open field
• Size 145 x 100 x 40mm + 170mm antenna
• Packaging IP65 box
• Standard compliance EN300-220 / EN301-489 (full certified modem)
More information, please contact us arf@adeunis-rf.com or +33 (0) 4 76 92 07 77
|
|
|
|
|
|
The radio modules ARM-IO 868MHz / 25mW have been designed to reply to a big demand of informations report in industrial harsh environments ( 400m) and outdoor at more than 1000m line of sight.
Fitted in a IP65 casing these modules are available in several versions: Digital (ToR), Analog (4-20mA, 0-10V), PT100 for temperature sensor, and Serial (RS232 / RS485). The ARM-IOD et –IOA can be Modbus slaves or work in mirror mode.
A very efficient sleep mode (250µA) allows to divide the consumption by 100, this way you can power the radio module with a small solar panel.
With the -LP (Low Power) version with Lithium battery, no external power is required, it can count pulses or transmit inputs states or physical values, etc... directly from the ARM-SE radio modem in Modbus / TCP or /RTU or in mirror mode with the ARM-X.
Products references
- ARM-IOS Serial version RS232 / RS485
- ARM-IOD Digital version 1 Din (counters or booleans) + 1 Dout
- ARM-IOA Analog version 1 Ain 0-10V / 4-20mA + 2 Din
- ARM-IOP PT100 version 1 external temperature sensor
- ARM-IOD-LP Low Power version with internal Lithium battery, 2 Digital inputs
- ARM-IOA-LP Low Power version " ", 2 analog inputs + 1 Digital PNP output
|
|
Wireless Radio Modems RMT-1000
Our radio modem RMT-1000 allow communicate two RS-485 or USB serial bus by means 868 MHz or 915 MHz (USA) radio-link trough long range distances, and according the selected power, type of antenna and the obstacles, it can reach from some hundred meters up to several Km. A difference of other devices of market, the radio modem RMT-1000 is 85..265 Vac powered and optionally 24 Vdc, into an enclosure IP65 for field mounting.
|
|
ARM-SE (Serial / Ethernet)
The ARM-SE offers an alternative to the WiFi for industrial applications which have no need for a high datarate but more for a guarantee of operation in the worst situations.
This new radio modem ARM-SE (Serial Ethernet) is compatible with the A.R.M. (Advanced Radio Modem) product range and can communicate from a serial port or from an Ethernet network with others distant radio modules (I/O modules, serial ports, Wireless LAN). It is possible to use it as a radio bridge between 2 or more Ethernet equipments (for example PLC). Its advantage is the distance it can cover with small antennas (more than 5kms Line-of-sight) and its excellent sensitivity allowing it to reach very obstructed and perturbed areas such as industrial halls, mobile machines, etc...
|
|
ISM Micro-Power Data Transmission I/O Module FC-201S
¡ôShort-distance wireless data transmission
¡ôAutomatic data collection system
¡ôWireless meter reading
¡ôIndustrial remote control and remote measurement
¡ôBuilding automation, safety and security, powerhouse equipment wireless monitor, entrance control system
Specifications:
1) Carrier frequency: 433MHz
2) FSK Manchester
3) Frequency stability: ¡À5ppm
4) Channel: 8
5) Wireless I/O function, 4-input/ 2-output, addressing range: 0000 - 9999
6) RF power: ¡Ü20mW
7) Receiving sensitivity: ¡Ü-105dBm
8) Transmitting current: ¡Ü 70mA
9) Receiving current: ¡Ü 20mA
10) Interface: RS-232/ RS-485/TTL (customization for one of the three), data rate:1,200 - 19,200bps, format: 8E1/8N1/8O1
11) Air data rate: 1,200 - 19,200bps
12) Power supply: DC 3V¡À0.3, 5V¡À0.5
13) Temperature: -25¡ãC to +60¡ãC
14) Dimensions: 48 x 33 x 12mm
|
|
|
|
|
|
ARF53 - 500mW radio modem RS232/RS485 or USB, European & US versions
The ARF53 enables two-way half duplex wireless data transmission over a range of 6000 m.
It integrates a multi-channel radio transceiver, a digital processing unit and a wide power supply range on the same board.
Available as an IP65 enclosure ready for approved use, this modem uses the 869MHz (Europe) band according to the European directive RTTE EN300-220/EN 301-489 or the 902/928MHz (United-States) band according to the FCC Part 15.247 and is approved.
Data transfer is performed via an RS232/RS485 serial port or USB interface.
Configuration is performed by AT commands.
System Highlights
• No wiring
• No subscription
• Licence free (certified products)
• No maintenance
• Pre-configured (several programmable parameters available)
• Waterproof
• 6 Kms range
• Secured transmission
Applications
Communication between 2 PLC
Communication between 2 PC
Forklift trucks control
Industrial process monitoring
Long range telemetry
Urban traffic control, vehicule priority system management
Variable message signs, displays control …
Specifications
• ISM Frequencies 869MHz & 915MHz
• Power 500mW (+27dBm), sensivity -112dBm
• RS232 / RS485 or self-powered USB
• Alim 4.5 - 36Vcc
• New USB interface with a Windows® certified and Vista® compatible driver.
|
|
|
|
|
|
Industrial Grade Radio Modems
Easy to Install and Maintain, up to 2.4 km range
Benefits
DIN rail mount - saves panel or cabinet space.
Constant signal strength feedback - during installation and troubleshooting later.
Rugged circuitry, wide temperature - for indoor and outside applications.
Handles most industrial control power configurations and power supplies.
Immediate integration into cUL approved panels.
-LR versions are Class 1 Div 2 Approved
Features
Modbus compatible - no additional converters needed
Ranges to 2.4 km
Heavy duty DIN mount industrial grade case and components
Frequency: ISM band, 902 to 928 MHz or 2.400 to 2.4385 GHz
Modulation: FSK- Frequency Shift Keying
Signal strength indicator aids trouble shooting
3dBi for 900 MHZ; 2.1 dBi for 2.4 MHZ RPSMA male dipole
Wide temperature range -40° to 85° C
Versatile power: 10 to 48 VDC or 18 to 30 VAC
256-bit encryption (Model ZP9D-115RM-LR)
Need to get a digital signal across a highway or river? Or just to the other end of your big warehouse? Zlinx radio modems can do the job faster, easier, and less expensively than stringing cable. Easy plug-and-play set-up saves installation and maintenance time. These compact and rugged units are compatible with Modbus and Profibus so no additional converters are required.
Despite their low prices, these are not wimpy consumer or office products. Select the power level you need to punch through whatever distance and interference situations you encounter. Zlinx radio modems are built to handle the heat, cold, and environments of industrial operations.
|
|
|
|
|
|
ARF45-PRO - Serial to Wifi gateway
The ARF45 are a family of Serial to Wifi gateways. They permit an immediate connection of any serial device to a Wifi network with an enhanced level of security.
Available in a ready to use IP65 case, they allow a data wireless link over 200m.
The range comes in two versions:
* “Standard” model proposes RS232 / RS485 interface & complies with the 802.11b and 802.11g network standards with WPA-PSK (personal) security.
* “Pro” model works in RS232. In addition to all “standard” features, it complies with the 802.11i standard with an “advanced” WPA-2 Enterprise security protocol.
Both versions incorporate “Roaming” technology, making it possible to connect to the nearest Wifi access point and/or the one with the strongest radio signal automatically. This ensures a reliable and uninterrupted connection to the network whatever the environment for applications requiring mobility.
In order to make their use and deployment easy, they have an on-board web server accessible via any standard internet browser (I.E., Firefox). In addition, they offer the option of creating an XML file enabling users to save and duplicate a standard configuration.
* Protocols
- Standard version: TCP-IP, DHCP, BOOTP, ICMP , ARP, UDP, ICMP, SNMP, DHCP, TFTP, Telnet, HTTP, HTTPS, Auto IP, SMTP
- "Pro" model: same as Standard version + v2C, FTP, PPP, SSL/TLS, SSH, RSS, DNS
* Security
- Standard version: WEP64, WEP128, WPA-PS
- "Pro" model: same as standard version + WPA2-PSK + WPA2-Enterprise (EAP-TLS, EAP-TTLS, PEAP, LEAP
* Configuration via RS232 / connexion Telnet / serveur HTTP
|
|
ARF44 - Multi-channel transceiver with µC - 863/870MHz - 8mW
* Two-way digital link over 300 m
* 863-870MHz – multicanal- Wideband
* Module-Modem including a RF transceiver + µC + dedicated firmware
* On-board standard mode : Transparent
* Serial link: UART TTL
* Configuration and Set-up through Hayes commands
* Pin code
* Received signal strength indicator (RSSI)
* Consumer market, tertiary and industrial applications
o Short-distance communication
o Payment terminal
o Home applications
o Thermal regulation
o Traceability
o 'Consumer market' intercom
o Automotive
DemoKit - Integration kit including : demoboard, module, RS232 cable, power supply available for this product.
* Evaluate the products
* Perform RF measurements
* Develop a prototype
For any information http://www.adeunis-rf.com or +33 (0) 4 76 92 07 77
|
|
Industrial Modems: Making the integration of telemetry and control simple and seamless
The demand for remote control and low cost fault messaging systems applied to automation or remote facility management has grown rapidly. Mitsubishi Electric Europe has addressed this need through telemetry solutions based on a range of powerful Industrial Modems and management software.
There are two different types of Mitsubishi Industrial Modem: Intelligent Modems (MAM) and Standard Modems (MIM). Each type has models for connection to an analog Public Switched Telephone Network (PSTN) or a Global System for Mobile Telecommunication (GSM).
These new Industrial Modems are designed to be flexible and easy to use offering a simple RS232, RS422 or RS485 connection to the target device. Selected models even have Mitsubishi PLC protocols built in as standard making the integration of telemetry and control simple and seamless.
|
|
|
CHARACTERISTICS ADOS propose the new model of radio modem RTX01, been born for industrial applications in the field of the transmission given between instrumentation and PC/PLC of supervision. The extreme semplicità of configuration, joined to the transparency of the seriale communication, of it makes one instrument of immediate employment like alternative to the traditional wirings. had to the excessive crowding of the band 434 MHz, above all in industrial atmospheres. obsolete and it deprives of future evolutions. The radio modem RTX01 is of free employment and accredited directive EN 300-220 second, and has 7 radio ducts that can be shapes to you from the customer. of I use of the resource radio (on hour base) from part of the instrument connected to the modem, in contrary case will decay the homologation second directive EN 300-220.
|
|
|
The SATELLINE radio modem product group provides an easy and economic way of setting up a local area data communication network. The applications related to both public and private sectors are countless - hence the SATELLINE has become the most widely known of the SATEL radio modems.
|
|
|
|
|
|
SATELLAR is a new generation digital radio modem system that consists of several different units:
* Central unit (CU)
* Radio unit (RU)
* Expansion units (XU)
SATELLAR enables the building of an independent, reliable, real-time radio data communication system that meets the specific needs of the customer.
Typically, a central unit together with a radio unit are used in a network as a master station or in locations where an Ethernet connection is needed. For radio router stations, the central unit is not necessarily required. In these cases, the radio unit can be used alone. This is possible because of the modular structure of the product.
SATELLAR units are available as separate entities or as combined product packages:
* the SATELLAR-2DS includes a radio unit and a central unit, which enables full TCP/IP connectivity.
* the SATELLAR-2DSd provides the same functionality as the SATELLAR-2DS, but it is equipped with a colour display and a keypad.
* the SATELLAR-1DS is a radio unit that can be used in stations where a standard RS-connection is sufficient.
|
|
The Micro-Cell Module gives designers GSM/GPRS connectivity in a low-cost, high-performance single-board, it can be used as a standalone and powerful GPRS modem with its intrinsic TCP/IP stack. Its plug-and-play functionality and GPRS features make the Micro-Cell Module ideal for use in a wide range of M2M business fields, such as metering and remote maintenance, traffic systems, transportation and logistics, security, vending machines and facility management.
Features:
- Small Size: 82x66x32mm
- Low-Cost GSM/GPRS Modem.
- Dual Band EGSM 900/1800 MHz.
- Intrinsic TCP/IP protocol stack
- Data and SMS communications.
- RS232 serial communication.
- Up to 256kb of EEPROM Memory
|
|
GSM Products
* GSM / GPRS Modems
* GSM Telemetry Systems (Remote Control by Text Message)
* GPS Monitoring Systems (Locations by Text Message)
|
|
Radio Modems
* Wireless Data Comms
* OEM and Enclosed Modems
* Serial RS232 / RS485
* Wireless Video Links
|
|
Antennas for SATELLINE Radio Modems
We can offer following antenna types for your solutions:
* Half Wave Antennas for frequencies 400 ... 470 MHz and for 869 MHz (for SATELLINE-1870 modems) for short distances
* Quarter Wave Antennas for frequencies 400 ... 470 MHz, for 869 MHz (for SATELLINE-3AS 869 modems) and for 140 ... 174 MHz (for SATELLINE-3AS VHF modems) for short distances
* Helix Antennas for frequencies 400 ... 470 MHz and for 140 ... 174 MHz (for SATELLINE-3AS VHF modems) for short distances
* Directional Antennas for frequencies 370 ... 470 MHz, for 869 MHz (for SATELLINE-3AS 869 modems) and for 140 ... 174 MHz (for SATELLINE-3AS VHF modems) for long distances
* Omnidirectional Antennas for frequencies 370 ... 470 MHz, for 869 MHz (for SATELLINE-3AS 869 modems) and for 140 ... 174 MHz (for SATELLINE-3AS VHF modems) for long distances.
|
|
|
|
|
|

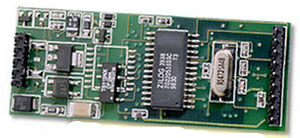

ARF34 - Transceiver with µC - 10 to 50mW - 434 & 868MHz
* Bidirectional digital link up to 1000 m
* 433/434MHz or 863-870MHz – multi-channel – Wide & Narrow bands
* Modem module including RF transceiver + µC + miniature antenna
* Serial link: UART TTL
* On-board standard modes: Transparent, Addressed, Firmware on demand
* Configuration and Set-up through Hayes commands
* Programmable emitting power and qualification of the RF signal (RSSI)
* pin code
interchangeable with the ARF54 Multi-channel transceiver with µC - 869 & 902/928MHz - 500mW (pin à pin compatible)
* Consumer market, tertiary and industrial applications
o Middle-distance communication
o Files transmission
o Professional thermal regulation (industrial buildings, hotels)
o Professional GPRS
o Middle-distance telemetering
o Digital or analog status translation
DemoKit - Integration kit including : demoboard, module, RS232 cable, power supply available for this product.
* Evaluate the products
* Perform RF measurements
* Develop a prototype
For any information http://www.adeunis-rf.com or +33 (0) 4 76 92 07 77
|
|
| ... products without technical information |
| |
|
|
