controlls up to 50 machines on a PC server
archiving of the production data in a database
recording and evaluation of the machine data
centralized control of the production line
real time monitoring via online-display
reduction of the production costs
reduction of the controlling staff
Analysis Options :
number of bonds, circuit boards and chips per time interval
quality result of the bond connections
downtime analysis
wire deformation graph (source and destination)
efficiency evaluation of the production shifts
time per production unit, average time per production unit, uptime calculation
bond time, average bond time
log book
data export to MS Excel
user defined analyses are possible
|
|
Data Acquisition and Supervisory Control System
Pages autoconfiguration for gammadue® and/or deltadue® instruments
Data acquisition and monitoring
Process operation
Wide library of drivers
Mimic and pre-formatted pages
Real time and historical trending
Powerful alarm handling
Flexible configurable reporting
Recipe management
Security levels for operator access
Ethernet TCP/IP networking
Data exporting to commonly used databases
|
|
|
|
|
|
Leica GeoMoS
The Leica Automatic Deformation Monitoring System
The Leica GeoMoS software provides a highly flexible automatic deformation monitoring system that is able to combine geodetic, geotechnical and meteorological sensors to match the needs of your moni-toring project. The Leica GeoMoS software is comprised of two main applications called Monitor and Analyzer. Monitor is the online application responsible for the sensor control, collection of data, computation and event management. Analyzer is the offline application responsible for the analysis, visualization and post-processing of the data.
Multi Purpose
Leica GeoMoS is a multi-purpose automatic deformation monitoring software that can be used for:
Structural deformation monitoring (e.g. dams, tunnels, bridges, high-rise buildings, construction) Land-slide and settlement detection (e.g. mining, rock falls, volcano slopes, subsidence)
Automated surveys (e.g. continuous, automated measurements) And many more...
GeoMoS stores all measurements and results in an open SQL database. The data can be accessed both locally and remotely, using either GeoMoS Analyzer or third party software.
Sensor Connections
Leica GeoMoS offers the ability to connect geodetic (total stations and GNSS sensors) and geotechni-cal sensors to understand the reasons of any detected movement and to improve the prediction of failure. In addition to the traditional serial based communication Leica GeoMoS also includes a direct TCP/IP communication interface to support Ethernet technology and mobile networks.
|
|
|
|
|
|
For viewing and interacting with Horner OCS Controllers, remotely via a personal computer
CscapeTM EnvisionRV (Remote View) is a low-cost, powerful Windows® based software application that will allow you to view and access remote Horner OCS controllers via a personal computer. Horner’s operator control stations combine a controller, I/O, operator interface and networking into one convenient unit using a single programming package called Cscape.TM
View the same screen as appears on the OCS or a different one.
With EnvisionRV, graphical objects look and behave the same on the PC as they do on the OCS. This feature reduces your training costs and can significantly speed up your implementation.
EnvisionRV incorporates 3 levels of security for each screen. You have full access control of your application.
Fast to configure and fast to respond, EnvisionRV can be setup and configured in minutes.
The result is a highly responsive user interface.
EnvisionRV uses the Horner CsCAN protocol to transfer data, giving you the flexibility to support various communications options including: Ethernet, serial, wireless, telephone, CAN and GPRS. EnvisionRV’s project utility allows you to easily configure multiple OCS units.
-Real-time connectivity to OCS
-3 levels of security per screen
-EnvisionRV’s project utility allows you to easily organize device files
-User selectable dockable or floating tool bars
-Import Cscape .pgm files/li>
-Online web support with application engineers
-Single point of connection, Monitor several units on the network by connecting to just one
|
|
|
|
|
|
Fuel data processing server FPS
FPS (Fuel data Processing Server) is intended for integration into vehicles and immovable objects monitoring systems software in order to process fuel level data.
Due to fuel level fluctuations, the content of noise in fuel sensors data is very high. The quality of raw data processing significantly affects the reliability and presentability of fuel information in the client’s AVL software.
FPS-server is integrated into a communication, processing or other server of the AVL-system operator/provider. FPS filters and smoothens the data to determine the actual fuel level at every time moment. After that, the server detects the fact and determines the volume of fuel fillings and discharges. FPS operates on the basis of Smoothing algorithm for the fuel data and detection of fuel fillings and fuel discharges - Fuelmetrix®.
Fuel data processing server FPS is developed in Java and uses sockets for connection. This allows to use it in any operating system and integrate into any software. The server processes fuel level data received from any sensors including regular ones
|
|
Industrial IT System 800xA
ABB's award winning Industrial IT System 800xA provides you with a better way to achieve measurable productivity and profitability improvements. System 800xA extends the scope of traditional control systems to include all automation functions in a single operations and engineering environment; enabling your plants to perform smarter and better at substantial cost savings. System 800xA delivers extended productivity gains by:
- Reducing the time to decision and action
- Engineering for maximum performance
- Reducing risk through high integrity automation
- Integrating information for improved visibility
- Improving batch production profitability, consistency, and traceability
- Optimizing plant asset availability and performance
- Delivering Control and I/O to meet automation and safety needs
- Extending installed system capabilities through seamless evolution
|
|
|
|
|
|
Entis LNG Pro is the latest Windows™ based application for storage management of liquefied natural gas (LNG) in bulk storage tanks under cryogenic conditions.
Entis LNG Pro is based upon the proven Enraf Entis concept, seamlessly integrating all tank instrumentation, and combining interfacing and supervisory control into one platform. This concept provides operators with all key LNG information at a glance.
A comprehensive set of dedicated operations screens for monitoring stored LNG product behavior, makes this software application the only package you need for all your LNG storage monitoring and control needs.
Special operator screens display all necessary profile data for the operator to determine LNG product behavior, controlling stratification build up and other unwanted situations.
Advanced inventory management, trending and reporting capabilities complete the functionality of Entis LNG Pro. Both observed and calculated data are stored in the program database for evaluation purposes.
|
|
Multi-language Supervision Software ( for Windows platform) for a constant monitoring of production and data storage.

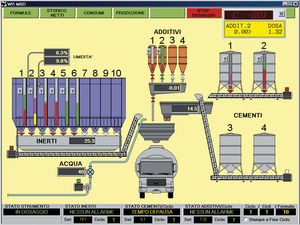

Software for plant control and supervision, it is able to monitor the real-time data and the state of the plant in graphic form (synoptic).
Memorization of max 9999 Fomulas.
Raw material traceability used for each batching.
|
|
Safety monitors configuration software on AS-Interface.
Description
With pre-defined and certified safety functions, you can assign command devices to integrated safety outputs by simple Drag & Drop operation.
Access to the safety data stored in the monitor is protected by password.
Monitoring and diagnostic status of the system is available by PLC and/or PC.
6 languages: English, French, German, Spanish, Italian, Portuguese.
|
|
|
|
|
|
SOFTWARE: Dotexa Lite (monitoring software).
COMPLETE PRODUCTION CONTROL
User-friendly software which integrates display and control of all the Doteco systems, for example, material loading, gravimetric metering, extrusion control, thickness profile, film width measurement, extrusion and line speeds.
- Recipe management: Allows creating or editing and filing 100 metering recipes and/or 100 extrusion recipes which can later be downloaded.
- Product management: Allows creating or modifying a database of coded products. A metering and/or extrusion recipe is assigned to a product code.
- Order management: Allows creating or modifying a list of job orders containing useful data to identify and trace the individual orders. A product code is assigned to each order.
- Metering control: Real-time display and state setting.
- Layer components: Metering data setting.
- Extrusion control: Real-time display and state setting. Using the arrow keys on the display or modifying the setpoints, line production can be changed or the individual layers simultaneously.
- Thickness profile: XY and polar graphic display.
- Consumption report: Storage of ingredient consumption for an exact inventory of the raw materials.
- Quality report: Storage of the process data for quality control requirements.
- Alarm report: Storage of alarm events.
- SPC: Statistical Process Control to examine the metering and extrusion process trend.
- Password management: 5 levels of password protection.
- Maintenance program: Scheduler for maintenance operations.
|
|
The machine operating company can follow, monitor and archive data from its production operation online. Access to this data is possible either in local company-internal intranets, or by using the normal Internet or by using a simple modem connection. The advantages of this system in comparison to a conventional modem point-to-point connection to the individual machines are:
- simplest handling with standard Internet technologies
- fully administrable by the customer (individually-configurable access authorisation)
- machines that are networked at field level only require one access point
- the ability to evaluate / process acquired data
- permanent access to current data
|
|
| ... products without technical information |
| |
controlls up to 50 machines on a PC server
archiving of the production data in a database
recording and evaluation of the machine data
centralized control of the production line
real time monitoring via online-display
reduction of the production costs
reduction of the controlling staff
Analysis Options :
number of bonds, circuit boards and chips per time interval
quality result of the bond connections
downtime analysis
wire deformation graph (source and destination)
efficiency evaluation of the production shifts
time per production unit, average time per production unit, uptime calculation
bond time, average bond time
log book
data export to MS Excel
user defined analyses are possible
|
|
Data Acquisition and Supervisory Control System
Pages autoconfiguration for gammadue® and/or deltadue® instruments
Data acquisition and monitoring
Process operation
Wide library of drivers
Mimic and pre-formatted pages
Real time and historical trending
Powerful alarm handling
Flexible configurable reporting
Recipe management
Security levels for operator access
Ethernet TCP/IP networking
Data exporting to commonly used databases
|
|
|
|
|
|
Fuel data processing server FPS
FPS (Fuel data Processing Server) is intended for integration into vehicles and immovable objects monitoring systems software in order to process fuel level data.
Due to fuel level fluctuations, the content of noise in fuel sensors data is very high. The quality of raw data processing significantly affects the reliability and presentability of fuel information in the client’s AVL software.
FPS-server is integrated into a communication, processing or other server of the AVL-system operator/provider. FPS filters and smoothens the data to determine the actual fuel level at every time moment. After that, the server detects the fact and determines the volume of fuel fillings and discharges. FPS operates on the basis of Smoothing algorithm for the fuel data and detection of fuel fillings and fuel discharges - Fuelmetrix®.
Fuel data processing server FPS is developed in Java and uses sockets for connection. This allows to use it in any operating system and integrate into any software. The server processes fuel level data received from any sensors including regular ones
|
|
| ... products without technical information |
| |
Powerful software solutions to optimize plant profitability
Combining world class software with unique industry experience to improve plant maintenance, operations, and control. This powerful suite of software products enables you to monitor plant assets, manage complex and dynamic situations, and optimize plant operations for performance as well as regulatory and contractual compliance.
|
|
|
|
|
|
Condmaster®Nova is a comprehensive condition monitoring and predictive maintenance program. Condmaster®Nova supports Leonova®Infinity and communicates with all SPM handheld data logging instruments and online systems for continuous condition monitoring.
Condmaster®Nova is available for single users and for networks (Windows compatible). It works under Windows NT, 2000, XP and uses SQL Server 2000 as data base handler, included on the installation disks.
Condmaster®Nova contains the expert knowledge needed to evaluate machine condition: a complete bearing catalogue, lubricant data, bearing life calculation, the SPM evaluation rules, the ISO limit values, the mathematical models for spectrum analysis and fault symptom detection, and much more.
Condmaster®Nova has network capability, data import and export functions, and full system security with four different access levels. You can administrate all maintenance activities, set up time schedules and measuring rounds, input work descriptions, and generate machine fault statistics. The program contains more than 40 report formats to sort and print out your data base. It automatically generates an alarm list and has extensive graphics functions for easy trend analysis.
The software is module built. It can be tailored, in performance and price, to your selected hardware and technical requirements.
The Condmaster®Nova platform includes the measuring techniques Vib ISO 2372, two user defined measurements (data input as analogue voltage or current, or manual), and Checkpoint (free text describing maintenance activity), all for unlimited use. It also has a runtime counter for the operating hours of a machine.
|
|
|
|
