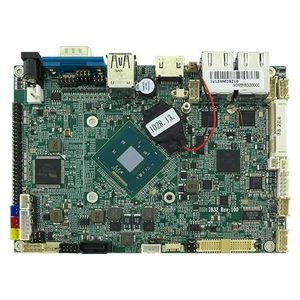

JRex 3.5" SBC
Embedded SBCs - in 3.5" (JRex). Serving as the best scaleable off-the-shelf-board solution - with up to Pentium M performance. Offering patented JFLEX IO, PC/104 and PCI/104-only expansions.
JRex boards are a family that allows full accessory reuse - as all interfaces remain unchanged electronically and mechanically.
Easiest up/downgrade at minimum risc - from VIA Eden to Pentium M and back again.
|
|
Mini-ITX Motherboards
Mini-ITX is the new compact standard motherboard form factor which is mechanically compatible with ATX motherboards. Kontron offers Embedded Mini-ITX motherboards with long life and many industrial features.
|
|
|
|
|
|
Micro-ATX single board computer with LGA775 socket supporting Core 2 Duo CPU, SATA II, GbE LAN, USB, PCI-E and CompactFlash socket
Features
* Supports Intel Conroe Core 2 Duo LGA775 CPUs, FSB 533/800/1066MHz
* Intel Q965 + ICH8R Chipset
* Four DIMMs up to 8 GB Dual Channel DDR2 533/667/800 MHz SDRAM
* Intel GMA 3000 2D/3D graphics accelerator
* Dual gigabit LAN with PXE support
* 1 PCI-E X16, 1 PCI-E X1, 2 PCI
* 4 COM, 6 USB 2.0, 4 SATA 300/150, CF
Form Factor
Micro-ATX
Platform
Supports Intel Conroe Core 2 Duo with VT, Pentium D 900 sequence, Pentium 4 with HT, FSB 533/667/800 MHz, LGA775
Intel Q965 +ICH8R chipset
AMI Flash BIOS
Processor Built-in Cache Memory
System Memory
DDR2 533/667/800 MHz SDRAM
8GB Max Capacity
240-pin DIMM x4
Storage Interface
IDE x1, Serial ATA II x4
CompactFlash I/II x1
Networking
10/100/1000 Mbps
RJ45 x2
Display
Intel(R) GMA 3000 2D/3D graphics media accelerator
Supports up to 224MB Video Memory
Audio
Realtek ALC260/262 HD audio codec, NS LM4950 amplifier
Mic-in, Line-in, Line-out
I/O Interface
FDD Header x 1
RS-232 x3, RS-232/422/485 x1 (all serial headers+5/12V support)
1 Parallel Port
6 USB(v2.0)
8 x TTL input , 8 x TTL output
PS/2
PS/2
Cooling
Heatsink & Fan
Expansion
PCI Express (x16) x 1, PCI Express (x1) x 1, PCI x 2, Mini-PCI slot x 1
Environmental Parameters
0~60C ambient operating temp.
neg 20~70C ambient storage temp.
0~90% ambient operating humidity
Physical Dimensions
243.84 mm x 243.84 mm (9.6 x 9.6)
Power
DC +3.3V/+5V/+12V/+5Vsb
ATX support
Compliance
CE, RoHS
|
|
|
Advantech is a global leader in plug-in I/O card design and manufacturing, providing a full range of industrial data acquisition (DAQ) and control products which are widely used in industrial and laboratory applications such as: monitoring, motion control, data acquisition, and automated testing. There are six major categories - CompactPCI, PCI-bus, ISA-bus, USB-bus, PC/104 modules, and Motion Control I/O products. With rich wiring terminals and extensive software support, Advantech provides reliable, efficient, and cost-saving industrial solutions. Moreover, Advantechs DAQ products could simply be bundled with versatile industrial PC chassis, backplanes, CPU modules, flat panel monitors and embedded automation computers.
|
|
Embedded Motherboards
Kontron motherboards are the ideal solution for embedded applications. As the options for embedded computing continue to expand, identifying the right choice becomes more complicated and can be very confusing. In applications where longevity and risk avoidance must be optimized, Kontron's experience in a variety of markets can lead customers to the solution that meets their needs and meets critical programming and cost objectives.
|
|
Industrial Motherboards
Avalue's industrial motherboards / mainboards come standard with an Extended Service Package that includes product life cycle management. PCB/ Assembly/ BIOS revision control, high quality design and manufacture, and legacy form factor/ device support that further ensure customers a lower cost of system ownership.
Product Range:
|
|
Avalue Unveils High-Performance, High-Secure Gaming Platform, ACP-GM45
Features
- Supports 45nm Intel FC-PGA/BGA Socket-P Core 2 Duo CPU
- Intel GM45 / ICH9-M Chipset
- Two SODIMMs up to 4GB DDR2 667/800 SDRAM
- Intel Graphics Accelerator 4500MHD
- Dual View, 2-CH LVDS, Dual VGA
- 7.1-CH Audio, 6W Amplifier, Dual Gbe
- 1CF, 1 PCI, 8 USB, 4 SATA, 3 COM, 2 CC Talk
- 32 Isolated DI, 32 Darlington DO
- Battery Backup 512KB x 2 SRAM
- JAMMA Interface
|
|
|
|
|
|
|
Protech Systems Co., Ltd., the leading provider of industrial computers, is releasing the PMB-601LF, an RoHS compliant LGA 775 ATX industrial motherboard supporting the latest Intel Core 2 Duo, Intel Celeron D, Intel Pentium D and Intel Pentium 4 processors with up to 1066MHz FSB. It is one of the first industrial motherboard solutions on the market offering the potent Intel Core 2 Duo/Intel Q965 chipset (ICH8R controller hub) combination. The PMB-601LF offers excellent power management, great I/O bandwidth with two PCI Express x16 slots, Intel High Definition Audio and an integrated 32-bit 3D graphics engine based on Intel Graphics Media Accelerator 3000 (Intel GMA 3000) architecture with DirectX 9.0, Shader Model 3.0, and 256 MB of video memory. The PMB-601LF delivers the high performance, low power consumption and efficient thermal design in a rugged solution developers need to support a range of embedded applications such as gaming, medical and industrial imaging, multimedia systems, digital image storage servers, application servers, automation and more.
|
|
Protech's New Mini-ITX Intel Core Duo CPU Industrial Motherboard
ITX industrial motherboard supporting the latest Intel Core Duo processors to deliver an optimum combination of performance, multitasking flexibility and fanless, low-power operation for a wide range of embedded and industrial applications.
The PMB-531LF incorporates the Intel 945GM Express chipset with Intel Graphics Media Accelerator (GMA) 950 to provide extreme graphics performance and takes advantage of the Intel Serial Digital Video Output (SDVO) specification on the PCI Express x16 slot for comprehensive video output connectivity to LVDS, TV-out and VGA displays through Advanced Digital Display 2 (ADD2) cards.
|
|
Structured around a processor, heart 32bits x86 at
133 MHz of ZF Micro devices and STM.
Dedicated to the industrial or military embeded applications.
Personnalisable according to the application.
Especially conceived to answer the constraints of an environment severe (temperature, vibrations, shocks and CEM).
|
|
Embedded Motherboards
Kontron motherboards are the ideal solution for embedded applications. As the options for embedded computing continue to expand, identifying the right choice becomes more complicated and can be very confusing. In applications where longevity and risk avoidance must be optimized, Kontron's experience in a variety of markets can lead customers to the solution that meets their needs and meets critical programming and cost objectives.
|
|
Intel offers a large family of motherboards covers desktop boards to server boards.
Assemble an optimized platform tailored to your unique needs with Intel Desktop Boards.
Designed for Performance.
Intel Desktop Boards Extreme Series are designed to provide extreme power for workstation needs, hardcore gaming, media editing and headroom for future needs while offering support for Intel Core 2 Extreme and Intel Viiv technology.
Intel Desktop Boards Classic Series are designed to deliver exactly what you expect - stability, reliability, affordability and expandability.
Intel Server Boards are designed with cutting edge leadership technologies providing you and your customers an exceptional degree of reliability, availability and serviceability.
|
|
Model WADE-8556
Leading Intel Core%u2122 2 Quad processor based Mini-ITX Board with Dual Displays and One GbE
Model WADE-8656
Leading Intel Core%u2122 2 Quad processor based Mini- ITX Board with PCI-E and Two GbE
Model WADE-8041
Cost-effective Ultra Low Voltage Intel Celeron M Processor based Mini-ITX Board with Dual Displays,Four COM Ports
Model WADE-8056
Leading Intel Core%u2122 2 Duo processor based Mini-ITX Board with Dual Displays and One GbE
Model WADE-8144
Network Enriched Intel Pentium M Processor based Mini-ITX Board with Dual Displays, Three GbE
Model WADE-8134
High Performanced Intel Pentium 4 Processor based Mini-ITX Board with Dual Displays, Eight USB Ports
Model WADE-6010
Optimized VIA C7 based Mini-ITX Board with Dual Display, Six USB Ports and Six COM Ports
|
|
Motherboards & Stackables
Many applications, such as those in protected environments, do not require the full feature set of a CompactPCI or VME system to meet their needs. Such applications are better served with embedded motherboards or stackable solutions. Our portfolio offers a range of different form factors and performance levels under an umbrella of extended lifecycle and configuration control services.
|
|
Size ATX form factor, 30.5cm x 22.0cm
Chipset NorthBridge: Intel 945G Express + Intel ICH7
ITE IT8712F +Fintek F81216D I/O chip
RTL8111C GbE Chip
Realtek ALC888/655 co-lay Audio Decoder(codec)
Processor Socket: LGA775, FSB: 1066/800/533MHz
Intel Pentium D, Intel Pentium 4, Intel Core 2 Duo
Built-in IO 4 x Serial ATA II 3.0Gb/s, 1 x UDMA ATA 100/66/33, 1xCF socket
3 x 2x20 pin box (support 12x COM)
1 x RS232/485/422(adjustable)
2 x USB 2.0/1.1 ( support 4x USB)
1 x GPIO(12GPI，12GPO)
1 x IrDA, 1 x LPC
I/O on rear panel
4 x USB 2.0/1.1
2 x RJ45
3 x Audio (1 x output/ 1 x input/ 1 x Microphone)
1 x RS232, 1 x LPT, 1 x VGA
Expansion 1 PCI Express x 16, 2 PCI Express x 1
3 PCI, 1 ISA
RAM 4 DDR II DIMM RAM support upto 4GB RAM
Support dual channel DDR II 667/533/400 DIMM RAM
|
|
Processor: Support Intel Mobile processor with socket M Core 2 Duo, Celeron M processor
Chipset: Intel GM945 + ICH7M
Memory: 2 x DDR2 DIMM 667/800, up to 4GB
Display: Intel GMA 950, share system memory up to 256m
1 x VGA, 1 x DVI-D, 1 x LVDS, 1 x TV-OUT
Ethernet: Realtek RTL8111B Gigabit Ethernet Controller, 1 x RJ-45 connector
Audio: Realtek ALC882 HD Audio Chip
I/O Interface: 1 x IDE, 6 x USB 2.0, 2 x RS-232, 2 x SATA, 1 x PCI, 1 x Mini-PCIE
Watchdog Timer: programmable 256 levels
Hardware monitor: Fan speed, temperature, voltage
Dimensions: 170mm170mm
Operating Temperature: 0℃～60℃
Operating Humidity: 5%～95%, non-condensing
Power Supply ATX-24 Pin
|
|
Processor: Onboard Intel Atom N270 (1.6GHz frequency, L2 cache 512KB,533MHz FSB)
Chipset: Intel 945GSE+ICH7M
Memory: 1x 200-pin SO-DIMM, DDRII 400/533 MHz up to 2GB
Display: GMA950 Dynamic share 224MB system memory for graphic memory
Up to 2048x1536x32 bpp@85 Hz for CRT
Up to 1600120032bpp@60 Hz for LVDS
1x DB15, 1x DVI, 18-bit single/dual channel LVDS
VGA + LVDS can achieve dual independent display
Ethernet: REALTEK 8111C,10/100/1000Mbps,4x RJ-45
Audio: N/A
I/O Interface: 1x RS-232, 1x RS-232/422/485, ESD protection
1xPC104+
4x USB2.0, 1x Mini-IDE(UDMA 100), 1x IrDA, 1x LPT
1 x PS/2, , 2SATA II, 1 x typeⅡ Compact Flash
Watchdog Timer: Generates a time-out system reset
Power Supply: Single Power(+12V)
Dimensions: 165mm115mm（LW）
Operating Temperature/Humidity: 0℃～60℃/0%～90%, Non-condensing
|
|
Processor Intel Menlow Silverthorne XL Z530
Chipset Intel Poulsbo XL US15W
Memory 1x 200-pin SO-DIMM, DDRII 400/533MHz up to 2GB
Display Intel Graphics Media Accelerator 500, Share system memory 128MB,
support VGA/LVDS(18/24 bits), Max resolution 1600x1200,85HZ
Ethernet Realtek RTL81102E(100M)/8111C(1000M) , 1 x RJ-45
Audio Realtek ALC665.AC'97
I/O Interface 2xRS-232
1xMini PCIE
2xUSB2.0, 1xTV-out, 1x IrDA, 1x8bit GPIO header,4 GPI &4GPO
1x SATA II, 1 x typeU Compact Flash
Watchdog Timer 1-255 secs software programmable
Power Supply Single Power(+12V)
Dimensions 145mm~102mmiL~Wj
Operating Temperature/Humidity -40`70/0%`90%, Non-condensing
|
|
For Industrial Computing, Lanner offers a variety of backplane choices for Full/Half-sized SBCs to fulfill diverse requirements. Integrated with suitable chassis and power supply units, this product line can satisfy a wide variety of computing requirements in different situations.
http://www.lannerinc.com
|
|
VMEbus
- Conforming with VITA 1-1994
- J1, J2 and J1/J2 backplane
- Manual or automatic daisy chain
VME64 Extension
- Conforming with VITA 1-1994 VME standards, VITA 1.1-1997 VME64 Extension standards, VITA 38 System Management for VME
- Termination, passive
- Electronic automatic daisy chain (EDC)
- Outstanding high-frequency noise suppression and very high MTBF due to ceramic capacitors
CompactPCI bus
- For durable industrial application
- CompactPCI is an adaptation of the Peripheral Component Interconnect (PCI) specification, version 2.1
- Power supply selectable with screw connections, ATX-PSU-connector, connector type M
- Clock signal less running times with optimum skew
ATCA Backplane
- Conformity with PICMG 3.0 ATCA Core Specification (ATCA= Advanced Telecom Computing Architecture)
- Full Mesh and Dual Star Topology
- 4 Ports per Link
- Slots for 2 redundancy Shelf Management Controller
- Connector for fan unit integrated
|
|
Elma offers the widest selection of cPCI, VME and VME64x in the industry.
Backplanes in various industry-standard architectures and custom design services. Signal integrity services are also available.
Products:
AdvancedTCA
CompactPCI
CPSB (PICMG 2.16)
MicroTCA
PXI
VXI
VME / VME64x
VPX (VITA 46)
VXS (VITA 41)
|
|
|
|
|
|
PICMG 1.3@Industrial Backplane
Model PBPE-06V
Vertrical 6-slot [PCI-E x1 (4),PCI-E x16 (1)]PICMG 1.3 Backplane
Fit for 2U chassis
Four USB ports
Dual SATA port
24-pin ESP12V power connector
Model PBPE-14AD64
14-slot [PCI-E x4 (1), PCI-E x8 (1), PCI-X (8),PCI (3)] PICMG 1.3 Backplane
Fit for 4U chassis
Dedicated to ROBO-8920VG2
Four PCI-X buses support eight PCI-X expansion slots
ModelPBPE-19AG64
19-slot [PCI-E x8 (1), PCI-E x4 (1),PCI-X (16)]
Fit for 4U up chassis
Dedicated to ROBO-8920VG2
Four PCI-X buses support 16 PCI-X expansion slots
PICMG 1.2@Industrial Backplane
Model PBP-14PD64
14-slot (4xPCI-X) 64-bit PICMG 1.2 backplane
PICMG 1.2
Four PCI-X buses
1 SHB, 2 PCI-X, 3 PCI-X, 3 PCI-X and 4 PCI-X
Fit for 4U chassis
283(L) x 317(W) mm;11.14"(L) x 12.48"(W)
Model PBP-06V564
Vertical 6-slot (2xPCI-X, 3xPCI) 64-bit PICMG 1.2 backplane
Fit for 2U chassis
ATX power connector support
321.94(L) x 83(W) mm;12.67"(L) x 3.27"(W)
ModelPBP-06P564
6-slot (2xPCI-X, 3xPCI) 64-bit PICMG 1.2 backplane
Fit for 6-slot node chassis
ATX and aux power connectors support
310(L) x 140.2(W) mm;12.2"(L) x 5.52"(W)
PICMG 1.0@Industrial Backplane
Model ACTI-14P4
14-slot (4xPCI) Active PICMG Backplane
2.4 mm PCB thickness
ATX power connector support
Fit for 14-slot chassis
317(L) x 257(W) mm;12.48"(L) x 10.12"(W)
Model PBP-19AI
19-slot (18xPCI) active PICMG backplane
Suitable for advanced CTI application
ATX power connector support
415.4(L) x 265.2(W) mm;16.35"(L) x 10.44"(W)
Model PBP-19P4
19-slot (4xPCI) PICMG Backplane
Fit for any 20-slot chassis
ATX power connector support
Sufficient ISA slots for CTI application
415.4(L) x 265.2(W) mm;16.35"(L) x 10.44"(W)
Model PBP-02V1X
Vertical 2-slot (1xPCI) PICMG backplane
Fit for 1U chassis
ATX power connector support
327.9(L) x 33.7(W) mm;12.91"(L) x 1.33"(W)
|
|
