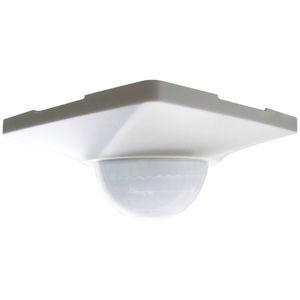

| The SX-360 Series ceiling-mount detector, with its unique zoom function and highly dense, triple-element detection pattern, provides unsurpassed detection performance at any ceiling height up to 5 metres. By simply twisting the units domed lens, the detection pattern can be easily adjusted at any installation height, making it one of the most flexible ceiling detectors on the market. This, combined with its compact design, makes the SX-360 suitable for a variety of applications - large or small, residential or commercial. |
|
CX-502AM is the world's first Multi Anti-Masking Technology to prevent any kind of detecting disturbances by applying and developing various forms of anti-masking optical technology.
Other models:
CX-502: standard model with no anti-masking function
CX-502V: CX-502 with alarm memory
|
|
With long, narrow detection areas that extend from both its sides the BX-80N is specifically designed to be wall-mounted centrally on a building, covering the building perimeter with a multi-layered, horizontal barrier that detects intruders before they break in. To help reduce false activations, the range can be adjusted so that detection extends only to the end of the building. The unit also has a size-judging function, which helps it discriminate between large and small objects within the detection area.
The BX-80N is stylishly designed to blend in with any architecture and is simple to install and set up - there being no need to align industrial transmitters and professional receivers. |
|
LONG RANGE PIR DETECTOR WITH SELECTABLE DETECTION PATTERN
The CX-702 is designed to give extremely stable long-range detection performance in a variety of internal commercial and industrial applications. With patented Multi-Focus Technology, sensitivity is maintained through the entire coverage area, even in high temperature areas or in applications with low temperature contrast. Combined with Double Conductive Shielding and Temperature Compensation, a high level of false alarm protection is guaranteed.
- Selectable detection pattern with dual purpose optics
wide-angle: 21m x 21m 85°wide coverage
long-range: 45m x 2.4m
- Mounting height from 1.5 m to 3.6m
- Patented multi-focus optics & double conductive shielding
- Temperature compensation
- Sealed optics
|
|
OUTDOOR PIR DETECTOR
The VX-402 provides an innovative solution to external area detection. It employs a highly reliable dual detection technique, which prevents false activations caused by small animals and birds. Two discrete detection areas are created and only when an intruder is detected inside both areas is an alarm output triggered. Double Conductive Shielding ensures that the sensor is resistant to interference from foreign light sources such as the sun and car headlights.
- 12m 90°wide coverage
- Mounting height from 0.8 m to 1.2m
- Limited detection range function with size judging function
- Patented double conductive shielding
- Sensitivity selection switch
- Temperature compensation
|
|
The VX-402R, a battery operated outdoor PIR detector allows for economical and effortless outdoor installation, whilst providing exceptional detection capabilities.
The VX-402R employs a highly reliable dual detection technique, which prevents false activations from small animals and birds. Two discrete detection areas are created and only when an intruder is detected inside both areas is an alarm output triggered.
This model can be integrated into wireless security systems.
FEATURES
- Battery saving circuit
- From C alarm output and tamper output
- Low current draw
- Limited detection range function
- Size judging function
- Sensitivity selection switching
- Temperature compensation |
|
VX-402REC provides great flexibility in detector-activated voice applications. As well as the ability to record any mesage in any language, with its superior playback settings, it allows the right message to be played in every situation.
Other models :
VX-402 : standared model with no voice recording & warning function
VX-402R : battery operated model with no voice recording & warning function |
|
An presence detector is always comprised of one industrial transmitter and at least two receiver chips with high quality optical systems. These are mounted on the sensor's PCB (modular system) or integrated into a pre-assembled housing (individual detection). The scanning range is set by means of a mechanical micro-speed unit by changing the angle between the transmitter and receiver. This optical procedure is called triangulation or optical differential measurement. Several beams can be combined in the modular system to form lines.
Presence detectors are ideal for edge and pinch protection on revolving and sliding professional doors and as ride-along anti-collision protection on swing doors. They can also be used for small areas such as kitchen and service areas of restaurants and hotels or as a person industrial counter in shopping centers. |
|
Sensors using socalled "combined technology" have two or more different technologies combined in one unit. With this combination the disadvantages of each individual technology can be compensated and at the same time their strengths are conjoined for the applications' ideal performance.
Combined technologies are used for the combined activation and safety at automatic doors. Besides, these sensors offer plenty of auxiliary functions which contribute to a substantial enhancement of the comfort around the door.
|
|
Thanks to its extremely high versatility, Merkur 2 leads the way and can be used on virtually any type of automatic door. With its totally reliable detection, Merkur 2 provides a smooth flow of people and also ensures savings on energy and costs! The intelligent sensor system has an optional direction recognition and thereby makes sure that the door only opens when people are approaching or leaving. The door closes again immediately afterwards. For escape and emergency exits, the Merkur 2 ES.SM version is fitted with a built-in self-monitoring device.
|
|
| ... products without technical information |
| |
M100 Stopswitch
Stopped Motion Monitor Sensor
Signals “stopped condition” on conveyors suppliers, professional fans and all rotating machinery
Inductive proximity sensor manufacturers which detects rotating metal target
Single trip set-point signal if no pulse is received within 4 seconds
Non-contacting & failsafe. Compatible with the Whirligig |
|
The magneto resistive detection detect the movement of ferromagnetic materials, by means of the change of the magnetic flow. They are available with (Series 350) or without (series 300) detection of direction of rotation.
They are suitable for rotary speed sensing, for detection of gearwheels and for standstill control. Areas of use can be heavy construction engines, rail vehicles, large industrial diesel engines and -turbines. Rotary speed sensing is possible with gear wheels form module 1, with a max. switching frequency of 15 kHz. |
|
Features
For contactless feed control, also suitable at reduced speed and wires
Detection of metallic, non-metallic and shiny surfaces, also at minimal speed
Robust metal casing
High protection class
|
|
| ... products without technical information |
| |
Hall detection have proved to be the most reliable technology for revolution measurement. DIS has been using Hall technology for over 10 years in the Quadro-Flux series. There is choice from a range of I/O circuits and housing options to measure revolution up to 25 KHz. For direction indication or fail safe options we offer dual circuits for phase shifted signals.
Measuring range: 0 - 25 KHz max.
Supply voltage: 5Vdc of 10 - 30 Vdc
Output: PNP, NPN or totem pole
Temperature range: -25 tot + 150ºC
Protection class: < IP68 (submersible) |
|
Rotary magnetic coders
The magnetic coder of impulses MDFK consists of a polar wheel and a magnétorésistif detector. He lets himself install in the same way that a conventional incremental coder.
Advantages:
- easy assembly, coder of an advantageous price
- recognition of the direction of rotation
Magnetic coders
Detectors with magnetic fields optimized for rotary and linear applications.
Potentiometer without contact
The magnetic detectors of series MDRM & MDFM are usable like potentiometers without contact. A magnetic rotor placed near the active face of the detector makes it possible to generate the output signals.
Advantages:
- usable in hard environments
- no part moving
- output signals Sine/Cosine
- linear 1... 9 VDC/4... 20 my in absolute values
|
|
The flat slimline lamp SL 025 with movement sensor is suitable for all types of panels and industrial enclosures, especially where space is at a premium.
The lamp can be mounted on its narrow or broad surface using screws. It is also available with a magnet which allows it to be fitted quickly in any position in a steel enclosure.
Both versions are available with an integrated electrical socket enabling the use of additional appliances.
Approvals: UL File Nr. E 234324 |
|
|
|
