GfG is a world leader for gas detection and measurement technology. For over 40 years GfG has specialized in designing, developing and producing the safest and most reliable equipment and sensors available.
GfG offers an extensive range of portable monitors and fixed systems. The product range includes sensors, the world´s smallest gas monitors, micro-processor controlled multi-gas detectors and computer aided system solutions. GfG provides diverse solutios for Toxic, Explosive and Oxygen gas detection in air and water.
GfG equipement is used in a variety of applications and industries including automotive, chemical industries, landfills, steel industries, hospitals, mining, public utilities, food processing, research institutes, universities and wherever the protection of life and property is needed.
|
|
|

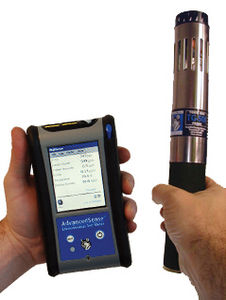

DirectSense TOX multi-gas monitors combine the latest available electrochemical gas sensor technology with the advanced capability of mobile computing. Toxic gas sensors are available for measuring Ozone (O3), Ammonia (NH3), Sulfur Dioxide (SO2), Nitrogen Dioxide (NO2), Nitric Oxide (NO), Carbon Monoxide (CO), Hydrogen Sulfide (H2S), Hydrogen Cyanide (HCN), Hydrogen Chloride (HCl), Oxygen (O2), Chlorine (Cl2), Arsine (AsH3), Phosgene, (CCl2O), Phosphine (PH3), Diborane (B2H6), Silane (SiH4), Chlorine Dioxide (ClO2), Fluorine (F2), Hydrogen (H2), Hydrogen Fluorine (HF) and Ethylene Oxide (EtO). Up to 5 gas sensors (in addition to a temperature sensor) can be configured into a single TG-501 probe. Or choose the EC-202 probe for temperature and a single gas sensor. If %RH is important in the same probe, check out our TG-502 probe. GrayWolf toxic gas instruments efficiently log and document your surveys.
|
|

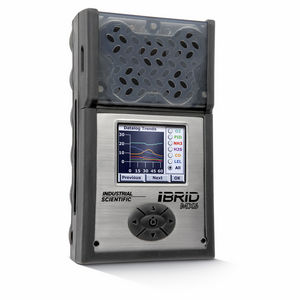

The MX6 iBrid™ is the new full featured multi-gas monitor from Industrial Scientific. The user-friendly design of the unit features a full-color liquid crystal display and 5-way navigation button to scroll through the menu-based operating system. Designed to meet a variety of monitoring applications, the MX6 iBrid™ can be set up to detect from 1 to 6 gases, including options for PID and infrared sensors for combustible gases and Carbon Dioxide. Configured with an internal sampling pump or for diffusion operation, it is ideal for applications from confined space entry to personal survey monitoring. The MX6 iBrid™ is compatible with the award winning DS2 Docking Station™ and iNet Instrument Network™ to further simplify and automate calibration, function (bump) testing and data management.
|
|
The iTX Multi-Gas Monitor is the industry's most versatile portable gas detection instrument. Designed to grow with you as your monitoring needs change, the iTX can go from being a single gas unit to a six-gas monitor, or anything in between, with just a few simple user configurations and sensor changes. Featuring advanced "smart" sensor technology, the iTX is capable of recognizing and configuring a wide assortment of field replaceable, interchangeable sensors. Providing simplified, single-button operation and calibration functions, the iTX's special Quick-Cal feature quickly calibrates up to four sensors at once.
|
|
|
The MX4 iQuad™ can be configured to monitor from 1 to 4 gases including oxygen, combustible gas and a choice of two toxic gases including CO, H2S or NO2. The MX4 features an LCD readout of all gases, peak/hold function, STEL, TWA, datalogging and lithium-ion or alkaline battery operation. The small size and durable, lightweight construction make the MX4 ideally suited for personal monitoring needs. An optional hand pump is available for using the MX4 in remote sampling applications.
|
|
Built with the durability and simplicity found in every Industrial Scientific instrument, the M40 is a reliable, low cost gas monitoring solution for confined space or personal monitoring applications. The M40’s rugged composite case is immune to RFI, and houses four discrete sensors, a large LCD readout, and integral lithium-ion battery for up to 18 hours continuous runtime.
The M40 continuously monitors oxygen, combustible gases, carbon monoxide, and hydrogen sulfide in any combination, activating bright alarm light, 90-dB audible and internal vibrating alarms when gas concentrations exceed the preset limits. Additional standard features include Peak/Hold functions, STEL and TWA readings, a continuous loop datalogger and ‘Quick-Cal’ calibration.
|
|
|
|
|
|
G460 Multi-Gas Detector – Hands Free Assurance
The durable G460 continuously measures and displays readings for up to seven gases at the same time. Its functional, watertight design (IP67) and the rubberized shock resistant housing (280 grams) make the G460 an ideal device for daily operations in rough environments. A large, easy to read, three-color display changes color to indicate the severity of the alarm; the backlight color changes from green for "OK" to orange or red for an alarm. The loud audible alarm (103 dB at 12"), built-in vibrator and bright 360° LED alarm indicators alert users to hazardous conditions. The innovative backlit display can be "flipped" 180° or "zoomed" at the push of a button.
A single on/off button is all it takes for normal day to day operation. A simple three button interface provides access to advanced setup options. Calibration adjustment is completely automatic; just attach the calibration adapter and apply gas. The instrument automatically makes adjustments and retains the three most recent calibration dates for each sensor. The motorized pump includes a built-in slideshutter switch that permits operation in either diffusion or sample-draw mode while the pump is attached. The easily attachable pump is powered by its own battery pack that provides 20 hours of continuous sampling from up to 100 feet away.
G460 detectors are available for use with a wide range of long-lasting, interchangeable smart-sensors for LEL. Infrared (NDIR) sensors for the direct measurement of CO2, and photoionization detectors (PID) for the measurement of volatile organic chemical (VOC) hazards are also available.
|
|
|
|
|
|
BW Technologies has set a new industry benchmark for performance, value and ease-of-use with the GasAlertMicro multi-gas detector. The ultra-compact and durable GasAlertMicro offers the most advanced features of any confined space gas detector on the market today, at the industry’s most economical purchase price.
Simultaneously displaying oxygen, hydrogen sulfide, carbon monoxide and combustibles present, GasAlertMicro delivers cutting-edge protection and is ideally suited to a wide range of applications, including hazmat response, confined space entry, search and rescue, and post-inspection fire safety.
GasAlertMicro’s features include high-output audible/visual/vibrator alarms; low, high, TWA and STEL alarm settings; a large, alphanumeric LCD; two LEL measuring units (0-100% LEL and 0-5% by volume methane); a built-in concussion-proof boot; and optional data-logging capabilities.
Field-selectable user options allow GasAlertMicro to be customized to virtually any environment. Calibration due-dates and alarm settings can be configured to meet specific industry requirements, and the pass code protect function ensures tamper-proof operation by preventing unauthorized users from accessing calibration options.
|
|
The Ntron Model PGA is a rugged, industrial 4-gas hand-held gas monitoring system. With up to four sensors per analyzer, it can be configured to detect flammable and toxic gases, as well as CO2 and Oxygen. Built-in audible and visible alarms include a 360-degree strobe and a 90dB horn.
The unit features an Intrinsically Safe design internal pump that contributes to the Model PGA’s Intrinsically Safe Certification.
Internal data logging can be downloaded through the PC interface facilitates to enable viewing or printing of data-logging info, instrument configuration, calibration (report printing), and programming. A convenient belt clip and hook is included, and rechargeable or dry battery packs are available.
|
|
|
|
|
|
Smaller and over 50% lighter than competitive instruments
Water-resistant design in an integral concussion-proof enclosure
Continuous LCD shows simultaneous gas concentrations for five gases
0 - 1000 ppm measurement of VOCs (Volatile Organic Compounds)
Integral motorized pump option for remote sampling
Two power options: AA alkaline or rechargeable hot-swappable battery pack
Provides 95 dB alarm tone and two bright wide-angled alarm bars
Equipped with internal vibrating alarm for high noise areas
Multi-language support in English, French, German, Spanish, and Portuguese
Three backlight options: standard- activates in low light (auto), in alarm (auto) and reactivates on-demand; alarm only- activates in alarm conditions and reactivates on-demand; stealth mode
Four alarm levels: instantaneous Low and High Alarm for all gases; TWA (time-weighted average) and STEL (short-term exposure limit) for VOCs and toxic gases
Simple automatic calibration procedure; compatible with BW MicroDock II automatic test and calibration station
Records TWA, STEL, and maximum exposures to gas and displays readings on command
User selectable field options include: PID correction factor, language selection, confidence beep, span level, set TWA/STEL calculation choice, set calibration due date, pass code protection, latching alarm, 'SAFE' display function, stealth mode, and selectable ppm resolution for some gases (e.g. SO2 0.1 ppm)
Full function self-test of: sensor, battery and circuit integrity; and audible/visual alarms
|
|
|
Included in the wide product range of Dräger Safety are a reliable line of multi-gas scanners. These instruments enable you to measure electronically several gases and/or vapours simultaneously through the use of two different technologies: Ion Mobility Spectrometry (IMS) and Photo Ionization Detection (PID).
|
|
The GenesisTM personal portable gas monitor combines ease of operation with outstanding durability to deliver reliable performance in the most demanding environments. Weighing only 16 ounces, the Genesis is protected by a die cast aluminum housing, rubber guards, a high-impact polycarbonate display window, and the Duraplus suspension system to cushion internal components.
Features:
- Simple one-button calibration
- Custom display with user friendly icons
- The Genesis can be used in four configurations: Diffusion Style, Internal Pump, Hand-Aspirated Pump or Extender Cable
- Interchangeable 3-AA batteries or rechargeable NiHy
- PEAK, STEL, and TWA readings
- Bright LED Array (for alarm conditions)
- RF resistant
- Glow-in-the-dark buttons
- Configurable for one, two, three, or four plug-in sensors
|
|
|
|
|
|
The KANE900 PLUS handheld multi-gas emissions analyser is easy to use for domestic and industrial boiler flue gas measurement and analysis. It operates on all boiler types and can display 8 parameters simultaneously showing measurements and calculations of boiler efficiency and pollution.
The KANE900 PLUS measures O2, flue and nett temperature and calculates CO2, boiler efficiency, excess air and losses. CO is measured with a hydrogen compensated sensor for increased accuracy. It also measures CO and calculates CO/CO2 ratio - 'The Poison Index' - to give complete readings for effective boiler analysis and safety.
The KANE900 PLUS measures NO and calculates NOx. Optionally, it can also measure either NO2 or SO2 and can be fitted with CO and NO sensors with different measuring ranges. These options can be fitted at time of purchase or when returned to an authorised KANE service centre at a later date.
An optional pressure sensor can be fitted to measure flue draught.
The KANE900 PLUS has a memory to store up to 150 readings and can transfer data to a printer or PC. The printout displays the time and date of each measurement as well as personalised information such as company name and telephone number.
|
|
|
Biosystems, LLC, a Bacou-Dalloz® Company, is a leading supplier of gas detectors, respiratory maintenance equipment and monitoring systems, worldwide. Founded in 1981, Biosystems is headquartered in Middletown, Connecticut.
|
|
|
|
|
|
BW Technologies by Honeywell announces the arrival of the latest portable multi-gas solution – the GasAlertMax XT. Simultaneously monitoring for hydrogen sulfide (H2S) carbon monoxide (CO), oxygen (O2) and combustibles (%LEL), the GasAlertMax XT features a non-intrusive integrated sampling pump and SmartSample diaphragm pump technology. By offering one-button operation, the GasAlertMax XT provides ease of use and simple compliance to industry safety standards. Tamper-proof, user adjustable options enable the instrument to be customized to suit your specific application.
The GasAlertMax XT is ideally suited to a range of applications and customers including confined space entry, oil and gas, marine and shipping, utilities, wastewater treatment plants, power generation and municipal needs.
Powered by rechargeable batteries that provide enough power for an entire 13 hour shift, the compact GasAlertMax XT comes with standard event logging and datalogging. Calibration is simple with an automatic procedure. The GasAlertMax XT is compatible with the BW MicroDock II automatic test and calibration system. Multi-language support is available in English, French, German, Spanish and Portuguese.
For more information on the GasAlertMax XT, visit www.gasmonitors.com.
|
|
|
FirstCheck is the very first multi-gas to combine complete VOC and toxic gas detection from 1 ppb up to 10,000 ppm with traditional multi-gas sensors for oxygen, hydrogen sulfied, carbon monoxide and explosive gas detection.
|
|
Compact Multi-gas Detector for H2S, CO, O2, Combustibles
The QRAE II is a full-featured, compact, one- to four-sensor gas detector for detection of combustibles, oxygen, hydrogen sulfide, and carbon monoxide. Key features include easy-to-change, externally accessed battery packs (available in rechargeable and alkaline versions), a water-resistant case and a new state-of-the-art O2 sensor technology with extended life.
Key features include:
Patented SPE O2? Oxygen sensor
Best EMI/RFI immunity technology for products in its class, eliminating radio interference
Easy access to sensors, filter and battery compartment without exposing electronic components to potential damage
Big graphic display for easy overview of gas type and concentration
Alkaline adapter and Lithium-ion battery pack
Rugged housing withstands harsh environments
|
|
The MultiRAE Plus combines a PID (Photoionization Detector) with the standard four gases of a confined space monitor (O2, LEL, and two toxic gas sensors) in one compact monitor with sampling pump. The MultiRAE Plus gets the job done in more circumstances than any other gas detector. The MultiRAE Plus is quickly and easily changed from a sophisticated technician instrument to a simple text-only monitor. The same monitor can be used as a personal monitor, a hand-held sniffer, or as a continuous operational area monitor.
The MultiRAE Plus detector can be made wireless with the use of RAELink. This allows real-time monitoring information from the detector to be integrated into an existing AreaRAE system. A wireless, RF (radio frequency) modem allows detectors to communicate and transmit readings and other information on a real-time basis with a remotely located AreaRAE base controller up to two miles away.
This product has ATEX approval.
|
|
|
|
|
|
AreaRAE Steel is the first ATEX certificated Wireless Monitor in Europe with up to 5 simultaneous gas sensors including Toxic Industrial Chemicals. It runs licence-free communication and RAE Systems can show over 2.500 installed base.
The AreaRAE Steel is housed in a welded stainless-steel enclosure, it is rugged, portable and weather-resistant, making it suitable for harsh environments. Ideal for hazardous materials and other emergency response monitoring applications, strategically placed AreaRAE Steel monitors can be used to quickly establish a perimeter, allowing first responders to back off to a safe position and monitor readings from up to 3 kilometers away.
The photoionization detector (PID) in the AreaRAE Steel can measure parts per million of volatile organic compounds (VOCs). In addition, it can be equipped with a lower explosive limit (LEL) sensor, an oxygen sensor, and one or two electrochemical toxic sensors for measuring specific substances such as hydrogen sulfide or chlorine.
An integrated wireless modem transmits real-time gas measurement data to a base station, which employs a standard Windows-based PC running ProRAE Remote software.
Key Features
- Up to five sensors (PID, LEL, O2 and two electrochemical toxic gas)
- Loud buzzer and large, extra-bright warning light
- Large LCD display and keypad
- Rugged, weather-resistant stainless-steel housing
- Built-in sampling pump
- Interchangeable Li-ion or alkaline battery pack
- Continuous operation via AC source
Applications
- HazMat and Emergency Response
- Refineries and Petrochemical Plants
- Power Plants
- Pulp and Paper Industry
- Marine and Offshore Wells
|
|
| ... products without technical information |
| |
For over 40 years GfG has been specializing in the development and manufacturing of systems for the measurement of explosive and toxic gases, oxygen as well as further parameters in air and water used in communities, chemical industry, fire and civil protection, mining, power supply, food processing industry, shipping, steel industry, agriculture and also research institutes and universities.Our range extends from sensors, to the smallest gas measuring device in the world, microprocessor driven multimeter with data storage to computer supported systems.
At GfG measuring instruments and sensors are developed by a highly-qualified team of engineers and scientists. A special focus is the development of sensors with the measuring system of IR-absorption, catalytic combustion and thermal conduction.
|
|
|
|
|
|
G450 Series - New 4-Gas Detector
Watertight design
The compact and lightweight 4-gas detector continuously measures CO, H2S, O2, and combustibles in ambient air. It's functional and watertight design (IP67) incorporates an impact proof, rubberized housing to meet the toughest requirements of harsh environments.
_____________________________________________________
GfG is a world leader for gas detection and measurement technology. For over 40 years GfG has specialized in designing, developing and producing the safest and most reliable equipment and sensors available.
GfG offers an extensive range of portable monitors and fixed systems. The product range includes sensors, the world´s smallest gas monitors, micro-processor controlled multi-gas detectors and computer aided system solutions. GfG provides diverse solutios for Toxic, Explosive and Oxygen gas detection in air and water.
GfG equipement is used in a variety of applications and industries including automotive, chemical industries, landfills, steel industries, hospitals, mining, public utilities, food processing, research institutes, universities and wherever the protection of life and property is needed.
|
|
|
|
|
|
Features:
Rugged, ultra-compact (4.2 x 2.4 x 1.4 in / 10.7 x 6.0 x 3.6 cm) and lightweight (5.6 oz. / 160 g)
Simple one-button operation
Standard datalogger (16 hours) and eventlogger (10 events)
Durable, stainless steel alligator clip
Integral concussion-proof boot for the most rugged environments
Continuous LCD shows simultaneous gas concentrations for H2S,CO, O2, and combustibles (0-100% LEL or 0-5.0% Methane)
Powered by a lithium polymer battery (run-time typically 14 hours;recharge in less than 3 hours)
Provides 95 dB alarm tone and bright wide-angled alarm bars
Equipped with internal vibrating alarm for high noise areas
Backlight: in alarm (auto) and on demand reactivation
Four alarm levels: Instant Low and High Alarm for all gases;TWA (time weighted average) and STEL (short term exposure limit) for H2S, CO; OL (over limit alarm)
Simple automatic calibration procedure
Fully compatible with BW's MicroDock II automatic test and calibration system
Records TWA, STEL and maximum exposures to gas and displays readings on command
User selectable options include: confi dence beep, latching alarm, calibration due date, bump due date, "SAFE" display function, multi-language, span concentration values, combustible sensor measurement selection (0-100%LEL or 0-5.0% v/v methane) and stealth mode
Full function self-test of: sensor, battery, circuitry and audible/visual/vibration alarms
Delivered ready for use with sensors, lithium polymer battey, stainless steel alligator belt clip, calibration hose/cap and instructions
|
|
The need to continuously and simultaneously measure the concentration of several gases arises frequently in industrial and community applications. For these kinds of measurements, Dräger offers a complete product line to provide our customers with custom solutions.
The Dräger X-am 7000 is protected not only against dust and dirt penetration and splashing water, but also submersible. As standard, a rubber casing protection safeguards the device against damages even in the event of a fall from a height of 1.5 m. Shock-resistant sensors provide accurate and precise measurement results
|
|
The SafeTNet 210 microprocessor-based controller is designed to detect up to two gases combustible, oxygen, and/or toxic.
- Digital readout display
- 4 to 20 mA
The SafeTNet 410 are microprocessor-based controllers designed to accept the input from one to four remotely located combustible, oxygen, and/or toxic gas detector heads.
- Digital readout display
- 4 to 20 mA
Standard Features:
- Digital readout display
- LED alarm indication
- 4 to 20 mA output
- Individual low and high alarm outputs with a common fault alarm relay
- Housed in NEMA 4X fiberglass enclosure
- 98 dB external buzzer
|
|
