planetary gear reducer / coaxial / high-torque / compact
planetary gear reducer
700 TW series

Torque: 2,500 Nm - 300,000 Nm

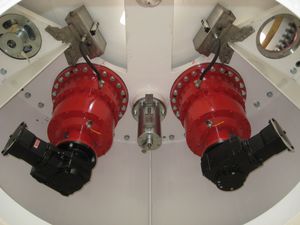

Wind turbine Pitch Control gear motor Bonfiglioli products are used in the latest state-of-the-art wind turbines to control the necessary functions of pitch and yaw drives systems. The 700T series planetary speed ...

planetary gear reducer / orthogonal / high-speed / modular
planetary gear reducer
300 series

Torque: 8,500 Nm - 170,000 Nm

... series of planetary gearboxes is composed of 20 finely spaced frame sizes with torque capacity from 1000 to 1.100.000 Nm. The modular design allows for several configurations, including: -single stage ...

planetary gear reducer / coaxial / low-backlash / high-torque
planetary gear reducer
GSD series

Torque: 17 Nm - 683 Nm
Rotational speed: 300 rpm

Its short design makes the GSD line the ideal high-end gearbox for space restricted applications. The output flange for robotics produces highest torsional rigidity. The low standard backlash of the GSD ...

planetary gear reducer / helical / orthogonal / precision
planetary gear reducer
GSBL series

Torque: 15 Nm - 1,266 Nm
Rotational speed: 3,000 rpm - 10,000 rpm

... high precision. Helical gears ensure a minimum noise level and smooth running. The right angle shape makes the GSBL line the perfect match for all dynamic applications where space is limited – in the 2-stage ...

planetary gear reducer / helical / coaxial / compact
planetary gear reducer
GFE series

Torque: 13 Nm - 1,562 Nm
Rotational speed: 3,000 rpm - 10,000 rpm

The GFE line is available in seven sizes ranging from 50 mm to 220 mm. Ground helical gears ensure a minimum noise level and smooth running. The full needle bearing allows for torques that beat the competition for units ...

helical gear reducer / orthogonal / high-power / three-stage
helical gear reducer
HDM series

Torque: 1,206 Nm - 85,045 Nm
Power: 2.2 kW - 37 kW

Gear box with motor. Flange motors up to 37kW are standardized. Offers a size range from 000 to 060, and compatible with reduction ratios from 1/12 to 1/350. [Right-angle shaft type: shaft arrangement A, B] Powerful ...

helical gear reducer / orthogonal / high-power / compact
helical gear reducer
HDR series

Torque: 16,584 Nm - 85,089 Nm
Rotational speed: 950 rpm - 1,750 rpm
Power: 2.2 kW - 895 kW

Both parallel shaft and standard right-angle types are available for this high-powered, compact product. It features a modular housing, which can be used with any mounting position. The housing comes with reinforcement ...

planetary gear reducer / coaxial / low-noise / high-power
planetary gear reducer
GPX 8 series

Torque: 0.008 Nm - 0.1 Nm

maxon GPX gearheads combine extremely high power transmission with a very short construction. High torques and speeds, low noise and backlash… the maxon GPX 08 has virtually every quality that could be required of a gearhead. ...

See the other products
maxon motor
planetary gear reducer / coaxial / high-power / modular
planetary gear reducer
GPX 12 series

Torque: 0.08 Nm - 0.17 Nm

maxon GPX gearheads combine extremely high power transmission with a very short construction. The modular design provides the basis for a customer-specific solution. The use of metal components makes a wide range of applications ...

See the other products
maxon motor
planetary gear reducer / coaxial / high-power / modular
planetary gear reducer
GPX 12 C series

Torque: 0.11 Nm - 0.23 Nm

maxon GPX gearheads combine extremely high power transmission with a very short construction. The modular design provides the basis for a customer-specific solution. The gearhead's ceramic components make it suitable ...

See the other products
maxon motor
planetary gear reducer / coaxial / high-power / modular
planetary gear reducer
GPX 12 LZ series

Torque: 0.11 Nm - 0.17 Nm

maxon GPX gearheads combine extremely high power transmission with a very short construction. The modular design provides the basis for a customer-specific solution. Plastic planet gears enable use in ...

See the other products
maxon motor
planetary gear reducer / coaxial / high-power / modular
planetary gear reducer
GPX 14 series

Torque: 0.16 Nm - 0.3 Nm

maxon GPX gearheads feature extremely high power transmission with a very short design. The modular design and the scaled stages provide the basis for a customer-specific solution. Metal components make ...

See the other products
maxon motor
planetary gear reducer / orthogonal / low-noise / three-stage
planetary gear reducer
KMP, KMPS, KMPP

Power: 8,000 kW

... foundation via a thrust bearing and the gear housing. This is why the special requirement made on a gear unit for vertical mills is its reliability. And for this reason, the worldwide tried and tested ...

See the other products
Flender GmbH A Siemens Company
belt conveyor gear reducer / orthogonal / precision / multi-stage
belt conveyor gear reducer
H series

Torque: 1,400,000 Nm
Power: 4,500 kW

... and this belt conveyor is perfect for that use as it works continuously and reliably with its gear units that are required to operate with precision. These gear units are supplied with an air-cooler if ...

See the other products
Flender GmbH A Siemens Company
belt conveyor gear reducer / bevel / helical / orthogonal
belt conveyor gear reducer
A series

Torque: 0 Nm - 1,400,000 Nm
Power: 0 kW - 4,500 kW

... , damage to the seals and so to increased wear. An optimised gear-unit temperature thus increases the service lives of the system, reduces life-cycle costs and maximises the life of the gear unit. Cooling ...

See the other products
Flender GmbH A Siemens Company
helical gear reducer / orthogonal / low-noise / three-stage
helical gear reducer

Torque: 11,600 Nm - 240,000 Nm
Power: 1,800 kW

Lauter tuns gear units separate mash from wort in brewery systems, through a raking machine inside the tun to remove spent grains and rake malt and grist, depending on the rotation direction. The raking machine's height ...

See the other products
Flender GmbH A Siemens Company
paper machine gear reducer / helical / parallel-shaft / shaft-mounted
paper machine gear reducer
GHZP, GHDP

Torque: 14,000 Nm - 820,000 Nm
Rotational speed: 2,000 rpm

... cylinders, the gear unit is attached to the cylinder pin as a shaft-mounted gear unit. As with the drying cylinders, steam is led through this cylinder pin into the M.G. cylinder. Just as throughout the ...

See the other products
Flender GmbH A Siemens Company
helical gearbox / coaxial / low-backlash / three-stage
helical gearbox
g500-H

Torque: 14,000 Nm

... accuracy in the application. The robust helical gearboxes are characterised by high permissible radial forces, closely stepped speed reduction ratios and a low backlash. They are available in a 2- and 3-stage ...

See the other products
Lenze SE
shaft-mounted gearbox / helical / parallel-shaft / low-backlash
shaft-mounted gearbox
g500-S

Torque: 19,000 Nm

... the application. The slimline shaft-mounted helical gearboxes are characterised by high permissible radial forces, closely stepped ratios and a low backlash. They are available in a 2- and 3-stage design ...

See the other products
Lenze SE
bevel gearbox / right-angle / low-backlash / compact
bevel gearbox
g500-B

Torque: 20,000 Nm

... and accuracy in the application. The efficient bevel gearboxes are characterised by high permissible radial forces, closely stepped ratios and a low backlash. They are available in a 2- and 3-stage ...

See the other products
Lenze SE
helical gearbox / coaxial / low-backlash / flange
helical gearbox
GST

Torque: 5,920 Nm

The GST is a robust and highly economical geared motor, which is available in 1-, 2-, or 3-stage versions. The high permissible radial forces and closely stepped speed reduction ratios, coupled with speed variation via ...

See the other products
Lenze SE
compact gearbox / helical / parallel-shaft / low-backlash
compact gearbox
GFL

Torque: 11,615 Nm

... output shafts located on the sides allow the power regulation and distribution within the connection. The gearboxes come in two or three stage models with built-in torque of up to 11,615 Nm as well ...

See the other products
Lenze SE
wind turbine gearbox / planetary / parallel-shaft / compact
wind turbine gearbox

Power: 4,500, 3,000 kW

... principle in the first planetary stage. The bogie principle can compensate for deformations in the surrounding structures thereby ensuring optimal gear load distribution under all operational conditions. ...

See the other products
ZF Friedrichshafen AG
planetary gearbox / parallel-shaft / for wind turbines / single-stage
planetary gearbox

Power: 2,000, 6,150, 3,000, 3,600, 2,050 kW

... Wind Power offers products with a proven design topology featuring a combination of one or two planetary stages and one or two parallel gear stages. This product series can bank on an ...

See the other products
ZF Friedrichshafen AG
planetary gearbox / parallel-shaft / for heavy loads / for wind turbines
planetary gearbox

Power: 2,300, 1,500, 2,100 kW

... Power offers products with a proven design topology featuring a combination of one or two planetary stages and one or two parallel gear stages. The gearboxes for conventional ...

See the other products
ZF Friedrichshafen AG
spur gearbox / parallel-shaft / hollow-shaft / two-stage
spur gearbox

Torque: 1,040 Nm
Power: 100 kW

With Lightweight Convincing Enabling trains to move quickly and efficiently through Boston: ZF’s two-stage hollow-shaft spur gear drive for the “Orange Line” and “Red Line” metro trains. The drive system ...

See the other products
ZF Friedrichshafen AG
spur gearbox / parallel-shaft / low-noise / high-efficiency
spur gearbox

Torque: 1,300 Nm

High reliability ZF Two-stage Spur Gear Unit with Sleeve Shaft for Metro-vehicles. Light designed but reliable Irioncast Housing reaches the tough weight requirements. Gear unit weight ...

See the other products
ZF Friedrichshafen AG
planetary gear reducer / helical / coaxial / high-performance
planetary gear reducer
PLG 75LN series

Torque: 2, 160 Nm

... compatible high performance planetary gearbox High efficiency Quiet operation due to helical gears in 1st stage, 2nd and 3rd stage have straight toothing Planetary ...

planetary gearbox / coaxial / precision / solid-shaft
planetary gearbox
RHP 42

Torque: 0.5 Nm - 11 Nm
Rotational speed: 5,000 rpm

RHP 42 gearbox has a Standard motor output dimension Motor shaft Ø 4x20. It is permanently greased. Gearboxes are generally available in standard dimension like the ...

planetary gearbox / coaxial / precision / solid-shaft
planetary gearbox
RHP 52

Torque: 0.7 Nm - 16 Nm
Rotational speed: 5,000 rpm

The gear box RHP 52 is specifically equipped with a standard motor output dimension. It contains a motor shaft Ø 6x23 and requires a permanent greasing application. Normally, the gear ...

planetary gearbox / coaxial / precision / solid-shaft
planetary gearbox
RHP 52 NEMA 23

Torque: 0.7 Nm - 16 Nm
Rotational speed: 5,000 rpm

Standard motor output dimension Motor shaft Ø 6,35x20. Permanent greasing. Normaly the gearboxes are shiped in the standard dimenson like the drow. Is possible to have different ...

spur gear reducer / coaxial / maintenance-free / transmission
spur gear reducer
HLAE

Torque: 15 Nm - 171 Nm

Hygienic design planetary gearbox The unique planetary gearbox with certified hygienic design – ideal for reliable cleaning processes. Our HLAE is unique: It is the world’s first planetary gearbox ...

helical gearbox / coaxial / low-noise / low-backlash
helical gearbox
PSBN

Torque: 28 Nm - 650 Nm

PSBN Precision planetary gearbox Our PSBN is the ideal combination of precision planetary gearbox and efficient bearing technology. It has been developed specifically for delivering the maximum performance ...

spur gearbox / coaxial / low-backlash / compact
spur gearbox
PLQE

Torque: 15 Nm - 520 Nm

PLQE Economy planetary gearbox Our PLQE is uncomplicated and powerful. It can be connected directly to your installation without the need for an intermediate flange. The large deep groove ball bearing at the output ...

planetary gear reducer / bevel / spur / right-angle
planetary gear reducer
WPLE

Torque: 4.5 Nm - 500 Nm

... the benefits offered by the Economy Line. With its compact, but powerful design, it is ideal for dynamic multiple axis systems. Our right angle gearbox features lifetime lubrication, is easy to install, ...

spur gearbox / right-angle / maintenance-free / transmission
spur gearbox
WPLQE

Torque: 14 Nm - 520 Nm

WPLQE Economy right angle gearbox The WPLQE is our right angle gearbox with the square output flange. This makes it particularly easy to install for a wide range of applications, and its large tapered ...

planetary gearbox / coaxial / low-backlash / precision
planetary gearbox
PL60

Torque: 40 Nm
Rotational speed: 4,000 rpm
Power: 400 kW

... planetary gearbox The PL is notably light, extremely powerful, yet suitable for complex production cycles due to its low-friction bearing design and optimized lubrication. A genuine powerhouse at an attractive, fair ...

See the other products
Newstart Planetary Gear Boxes Co.,Ltd.
planetary gearbox / coaxial / low-backlash / precision
planetary gearbox
PL40

Torque: 20 Nm
Rotational speed: 4,500 rpm
Power: 100 W

... servo gearbox, the most economic but reliable model. The modular design allows engineers to select from single stage,two stages and three stages of planetary gearing to achieve dozens ...

See the other products
Newstart Planetary Gear Boxes Co.,Ltd.
planetary gearbox / coaxial / precision / low-backlash
planetary gearbox
PS70

Torque: 10 Nm - 66 Nm
Rotational speed: 4,000 rpm

... cycles. Low heat generation at highest speeds Optimized output bearing Square output flange The highest dynamics in multiple axis systems For any mounting position Precise gearing Low backlash & noise

See the other products
Newstart Planetary Gear Boxes Co.,Ltd.
planetary gearbox / coaxial / precision / low-backlash
planetary gearbox
PL series

Torque: 0 Nm - 20,000 Nm
Rotational speed: 0 rpm - 10,000 rpm

... planetary gearbox The PL is notably light, extremely powerful, yet suitable for complex production cycles due to its low-friction bearing design and optimized lubrication. A genuine powerhouse at an attractive, fair ...

See the other products
Newstart Planetary Gear Boxes Co.,Ltd.
planetary gearbox / right-angle / precision / low-noise
planetary gearbox
WPL series

Torque: 0 Nm - 20,000 Nm
Rotational speed: 0 rpm - 10,000 rpm

The WPL series compact, but powerful design, it is ideal for dynamic multiple axis systems. Our right angle gearbox features lifetime lubrication, is easy to install, all this at an unrivalled price-performance ...

See the other products
Newstart Planetary Gear Boxes Co.,Ltd.
cycloidal gear reducer / coaxial / high-performance / low-noise
cycloidal gear reducer
HM series

Torque: 12 Nm - 36,800 Nm
Rotational speed: 0 rpm - 400 rpm
Power: 0.37 kW - 132 kW

The VARITRON® Cycloid Drive unique cycloid gear design has advantages superior to speed reducers using common involute tooth gears. The key to VARITRON®'s Cycloid Drive matchless performance ...

planetary gearbox / coaxial / high-precision / low-backlash
planetary gearbox
DM series

Torque: 22 Nm - 7,080 Nm
Rotational speed: 0 rpm - 1,000 rpm
Power: 100 W - 11,000 W

- High Precision Gear - The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or ...

planetary gear reducer / coaxial / high-precision / industrial
planetary gear reducer
DA Series

- High Precision Gear - The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or ...

planetary gearbox / coaxial / precision / low-backlash
planetary gearbox
DH series

Torque: 30 Nm - 1,608 Nm
Rotational speed: 0 rpm - 6,000 rpm
Power: 100 W - 11,000 W

Varitron DH Inline Precision planetary gearbox promise dynamic performances with low backlash. An impressive assortment of servo grade planetary gearbox for our inline series. Providing the ultimate flexibility ...

helical gearbox / parallel-shaft / high-torque / for heavy loads
helical gearbox

Torque: max 470000.0 Nm
Rotational speed: 0 rpm - 2,000 rpm
Power: 2.5 kW - 5,366 kW

The Varitron Helical gearbox unit portfolio is by far the most comprehensive range of industrial gear units in the market. It includes a multifaceted range of universal gear ...

planetary gear reducer / coaxial / three-stage / four-stage
planetary gear reducer
HP60

Torque: 5 Nm - 40 Nm
Rotational speed: 4,000 rpm - 6,000 rpm

planetary gearbox / coaxial / single-stage / modular
planetary gearbox
PG Series

Torque: 1,000 Nm - 610,000 Nm

... planetary gear units is the possibility to mount a series of stages of different sizes in order to obtain a vast range of reduction ratios. The product range provides reduction ratios from 3:1 to 7:1 ...

spur pinion gear reducer / parallel-shaft / compact / industrial
spur pinion gear reducer

Torque: max 200000.0 Nm

... accept any compromises specifically in these important components and decide to use Koellmann Gear high-quality gears instead. Extruder gears by Koellmann Gear have proven ...

spur pinion gear reducer / parallel-shaft / for cranes / industrial
spur pinion gear reducer

Torque: 5,000 Nm - 300,000 Nm
Rotational speed: max 3000.0 rpm

... customised to any individual requirement. Gears Modular gear system One-part and twist-proof gear housings Axis distance of 2- and 3-stage gears ...

planetary gearbox / coaxial / precision / two-stage
planetary gearbox
CPU

Technical Data The gearbox comprises two co-axial planetary stages arranged one behind the other. Both stages of the central gear unit are straight-toothed planetary ...

See the other products
FLSmidth MAAG Gear AG
spur pinion gear reducer / parallel-shaft / compact / three-stage
spur pinion gear reducer
LGD

... follows: - Integrated oil system - Direct lube oil return from the girth gear to the integrated lube oil tank prevents contamination of oil - Minimum oil flow in the girth gear guard - A tooth safety ...

See the other products
FLSmidth MAAG Gear AG
planetary gearbox / bevel / orthogonal / compact
planetary gearbox
WPU

... output axis. The WPU two-stage gearbox also supports the grinding table, mounted on the output disc. An external oil supply unit lubricates and cools the gearbox. Casing with internally toothed ring ...

See the other products
FLSmidth MAAG Gear AG
planetary gearbox / bevel / orthogonal / two-stage
planetary gearbox
WPU up to 1500kW

Power: 0 kW - 1,500 kW

... of explosion relief valves. Casing with internally toothed ring gear The casing of the MAAG WPU two-stage gear unit consists of a robust welded steel structure. The fixed ring gear ...

See the other products
FLSmidth MAAG Gear AG
planetary gearbox / bevel / orthogonal / compact
planetary gearbox
WPV

Power: 0 kW - 8,000 kW

... Torque split: the 2nd stage transmits only 70% of the torque. - Optimized force flow: achieved by the self centering inner gear and sun pinion. - Small gear wheels: through the use ...

See the other products
FLSmidth MAAG Gear AG
bevel gearbox / orthogonal / low-noise / low-backlash
bevel gearbox
KS TwinGear series

Torque: 110 Nm - 7,500 Nm
Rotational speed: 3,500 rpm - 8,000 rpm

The KS TwinGear helical bevel gearbox is a high performance and precision gearbox. This two-stage gearbox available in ratios up to 75:1 is very space-efficient and suits an array of ...

cycloidal gear reducer / parallel-shaft / high load capacity / high-performance
cycloidal gear reducer

Torque: 30 Nm - 29,400 Nm
Power: 0.12 kW - 90 kW

... advantages in industrial application. Features: Wide Ratio Range: One-stage, two-stage and three stage units are available to reach wide range of ratios.

planetary gear reducer / bevel / helical / parallel-shaft
planetary gear reducer

... These self-design reducer series have been authorized as standard equipment by Chinese National Construction Industry Committee. Common Features: * Transfer Power smoothly and steadily. * High loading ...

parallel-shaft gear reducer / precision / custom / vertical
parallel-shaft gear reducer
ZLYJ series

Torque: 0 Nm - 42,000 Nm
Power: 5.5 kW - 200 kW

... high-pnedaon rigid gear assembly with thrust block specially designed for the plastWrubber screw extruder. The gearbox employs the high-strength low-carbon alloy steel for gears and shafts, ...

planetary gearbox / coaxial / three-stage / compact
planetary gearbox
REG

Torque: 2 Nm - 400 Nm

The REG planetary gearboxes represent the best value-for-money "continuous runners" in our product range. The one, two or three-stage gearboxes are available in five sizes for drive torques ...

planetary gearbox / coaxial / low-backlash / high-torque
planetary gearbox
EPL series

Torque: 5 Nm - 500 Nm
Rotational speed: 2,500 rpm - 6,000 rpm

Our low-backlash economy planetary gearboxes offer high output or torque throughput in a compact design. The one, two or three-stage gearboxes are available in five sizes for drive torques ...

helical gear reducer / coaxial / high-rigidity / three-stage
helical gear reducer
250 series

Rotational speed: 13 rpm - 136 rpm

Delivering quality and reliable products, Bison Gear and Engineering Corporation designed the 250 Reducers to efficiently support a variety of applications while delivering optimum performance and efficiency. ...

spur gear reducer / helical / parallel-shaft / precision
spur gear reducer
881 series

Rotational speed: 12 rpm - 457 rpm
Power: 0.3 ch - 1.5 ch

The 811 model of reducers by Bison is constructed with high quality cast aluminum housing, with hardened steel helical and spur gears rated AGMA Class 11. The unit utilizes ball and needle bearings, ...
