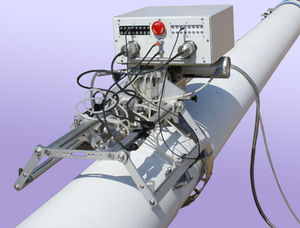

The RapidScan3D is an innovative solution to the need for Ultrasonic NDT of modern engineering structures. Using high speed electronics, an ergonomic scanning arm, and a set of array probes based on patented technology, the RapidScan3D offers true 3D scanning at a fraction of the cost of contour following scanning gantries. the RapidScan3D now offers the capability to scan 3 dimensional structures quickly and accurately using a precision coordinate measurement arm. Using the same high performance ultrasonic system of the RapidScan2 and user friendly software, complex structures can be scanned and evaluated. The RapidScan3D offers a complete and integrated ultrasonic scanning system. When scanning medium to large areas, full A-Scan capture is essential to avoid re-scanning regions during detailed analysis, whilst offline analysis tools improve production throughput.
For many structures, a stock object can be used to generate a model for a region of the structure to be inspected. However for applications where added value is gained from correlating the scan data with the detailed geometry of the part, the RapidScan3D can work with your 3D CAD data. For inspections where CAD data is not available or not required, the RapidScan3D allows stock object parts to be created which in many cases gives an excellent 3D representation of the part to inspect.
|
|
Aerospace
Offering a wide range of inspection solutions for aircraft engine part production, or composite airframe manufacturing to full aircraft maintenance.
Automotive
Offering a wide range of inspection solutions in every step of the Automotive value chain from semi-finished products (rods, bars, billets) up to the final assembling of vehicles.
Power Generation
Offering a wide range of inspection solutions for Balance of Plant (BOP), steam generators, turbine and generators, pipes and vessels and reactor internals.
Oil, Gas & Process
Offering a wide range of inspection solutions that help detect corrosion and inspect welds.
|
|
|
|
|
|
IT Concepts - Remote Visual Inspection
... the new perspective
We’re new, but not without experience, we were established in 1991. We have global resources with seven facilities around the world. Our greatest strength is our growing workforce which now exceeds five hundred people.
IT Concepts’ new high-performance inspection systems have been developed by experienced specialists especially with the user in mind. They are mobile, compact, extremely sturdy and intuitive in their handling.
All-round talents and specialists alike will find the right inspection system in the broad range of modular products offered by IT Concepts. Since every individual component, for example imaging and documentation hubs, videoscopes and accessories, can be combined, adjusted or added to as needed, you will always be able to configure your system to perfectly match virtually every type of inspection.
The system is available with an extensive range of accessories. Through intensive dialogue with users across the globe, our range of products is constantly being modified and enhanced. Simplify inspections in your field of applications and add to your system’s mobile capabilities.
Our Remote Visual Inspection (RVI) systems are used in many industrial areas including, Power Generation and Distribution, Oil and Gas, Automotive, Aviation, Aerospace and Building/Structural Inspection and Service. Our technology is also used for critical Law Enforcement, Security, Corrections, Search and Rescue and Military tasks where ease of use, accurate information and operator safety is paramount.
Discover your new RVI Perspective…
|
|
|
|
|
|
The iShot M4 Gun Tube & Bore Inspection System was designed for the internal inspection of cannons, mortars and howitzers.
The 14-inch length x 52mm outer diameter camera head visually reveals the general state of a gun tube’s interior at high magnification. The camera head is equipped with two high-resolution CCTV cameras for optimal inspection of the rifling’s condition. The front view camera has a fixed focus with 115-degree field of view. The side view camera allows the user to remotely focus the camera displaying any wear or corrosion within the gun tube. The ruggedized iShot M4™ Gun Tube Controller Console is equipped with a built in 8 inch monitor allowing the user to view the inspection while adjusting focus, light intensity, and recording all in one shot. The controller console is also equipped with a CF reader, USB Cable, 4GB CF Card, DVR Serial Port and PS2 for your keyboard.
The included centering devices ensure the camera head is consistently in a centralized position within the gun tube achieving maximum inspection performance. Centering devices are designed for 57mm, 60mm, 81mm, 105mm, 120mm and 155mm bores (additional sizes available upon request). The 17-foot telescoping push pole allows for easy insertion and measurement graduations in both US Standard and Metric, aiding in the identification of the flaw or corrosion location in the bore. Applications include; Tank Gun Tube, Mortar Tube, Ship Gun Tube, Turbine Rotor Bores, Generator Rotor Bores, Shaft and Pipe Inspections.
|
|
|
Verimation Technology, Inc. is a leading manufacture of Ultrasound Test Systems for automotive applications. This method of Non-Destructive Testing is very accurate and reliable. Testing is performed by coupling short bursts of high frequency sound waves to the test part. The wave patterns are then analyzed and test results are generated. This method of testing can find internal flaws and analyze material properties without cutting or destroying the part.
|
|
|
|
|
|
Detection Technology's X-Scan f-series products have, since 1999, offered the solutions for food, pharmaceutical and industrial NDT inspection needs. The current X-Scan f3 series is already the third generation of evolution in the industrial X-ray inspection arena.
X-Scan f3 series as the imaging subsystem of an X-ray inspection system provides the easy-to-use solutions for all applications, which require fast speed, high sensitivity and high resolution with an inspected object transported on a belt conveyor or similar apparatus.
Detection Technology's X-Scan iHE is an optimized series of products for high energy industrial NDT applications. The X-Scan iHE can provide the solution for very wide range of X-ray source with optimized X-ray absorption efficiency in the high energy range from 160KV to 5 MeV.
Detection Technology's X-Scan iCT product is the optimized solution for industrial, high energy computed tomography applications utilizing linear accelerators as the radiation source.
Detection Technology's X-Scan U-Shaped detectors have specifically been developed for the digital tire inspection of engineering tires, radial tires, car tires and giant tires.
|
|
|
|
|
|
The Case Tracker pressure/vacuum monitoring system is used to test the integrity of a wide variety of food and beverage products. This user friendly system is designed for non-contact, non-destructive, 100% automatic container inspection through a sealed cardboard and/or shrink wrapped case.
The primary function of the Case Tracker is to inspect containers in closed cardboard or shrink-wrapped cases for loss of pressure or vacuum. Any case with a container(s) that fall outside user set limits will be rejected. In many applications, the Case Tracker will detect defects other than low pressure or vacuum. Some examples are gross swollen cans, missing containers, dented cans, missing lids, popped safety buttons, or broken bottles.
There are two configurations from which to choose. The first style is an on-line system, which mounts to an existing conveyor usually located after the case packer system. This system is compact and easy to integrate to an existing conveyor. An optional rejection system is available as well as an optional spray marker system to mark the location of defective containers on the outside of the case for easy identification and rework.
The second configuration is a self-standing system with a six-foot inspection conveyor. A typical application for this system is in the warehouse area. This system may have wheels for easy movement to remote areas of the warehouse. There are optional infeed and exit conveyors for ease of palletizing and depalletizing. An optional case rejection system with high speed push rejector is also available for this system.
|
|
Portable shearography (Q-810)
Non-Destructive Inspection
* Fast inspection of composite structures
* Field inspection
* Portable system
* Easy operation
The Portable Shearography System Q-810 is a fully portable and compact inspection system for fast inspection of components made from composite structures like aircraft fuselages and components, rocket shell parts, marine ship hulls, pipes, etc..
The system is fully portable and is designed for field inspection services. The Portable Shearography Inspection System Q- 810 consists of a vacuum hood with flexible sealings, which can be attached to the component to be inspected.
Inside the hood a vacuum up to 150 mbar can be pulled in order to stress the material underneath the hood. Any debonding or structural defect will be detected by the integrated shearography camera. The camera image is analyzed by the software package ISTRA for Windows® and displayed on a computer monitor and head up display.
|
|
|

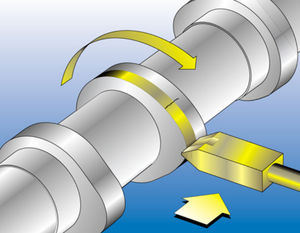

Marposs non-destructive testing technologies offer solutions based on the eddy current method for 100-percent inspection of critical components required to meet today's safety and reliability concerns.
|
|
|
The LOTIS® 400-N is a high-speed rotating laser-based inspection system primarily used in the nondestructive evaluation of boilers, heat exchangers and steam generators. The system provides an accurate and detailed computer-graphic map of the tube inside surface and is useful for detecting and quantifying flaws caused by corrosion, erosion and deformation. Features such as I.D. pits, cracks and dents and be accurately located and measured prior to failure. The system is provided with a variety of probe sizes from 0.46 inch (11.7mm) up to 3.94 inches (100 mm) and greater. LOTIS® has found wide application for the inspection of boilers in fossil fired power plants and pulp and paper mills as well as for heat exchangers in petrochemical plants
|
|
GE Inspection Technologies is a leading developer of eddy current instruments, testing machines, and sensors for industrial applications requiring surface and sub-surface crack detection and metal sorting. GE Inspection Technologies' non destructive eddy current testing equipment and solutions will meet the critical requirements of your unique application and deliver productivity, quality, and safety.
|
|
Verimation’s Verimet® 7700 Portable Eddy Current Tester is a portable micro processor-based eddy current instrument for heat verification, alloy sorting, hardness inspection and case depth testing of ferrous metal parts. Versatile and accurate it offers improved capabilities for a wide range of applications. The instrument is compact, lightweight and battery equipped so it is very easy to use.
|
|
The modular design is common to all systems: Host PC, measuring channels and interface module are separate from each other. The measuring channel execute the measurement and pass the measuring results to the Host PC whereas the interface module control the communication between Host PC and the equipment PLC. These testing equipment structures have resulted in very cost-effective solutions.
Applications: Quality control by non- destructive testing during the production of wires, cables, rods, bars, tubes and coils.
Material thickness: All metals
Measuring method: Eddy current measurement
Functional principle: When the material passes / transits the sensor, irregularities (welding faults like cracks, pores or circumferential faults) will be detected by changes of the eddy currents within the material.
Special features: Modular design based on the separation of measurement channels, interface module and Host PC.
|
|
|

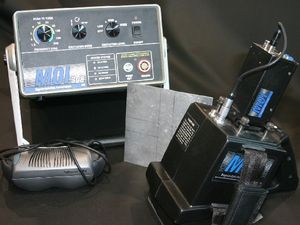

Magneto Optic Imaging technology has made major contributions to the nondestructive inspection of aging aircraft for cracking and corrosion. The MOI was developed for imaging anomalies in ferrous and non-ferrous materials using magneto-optic visualization. The MOI produces real time images of surface and subsurface defects and subsurface corrosion in metals. Major aircraft manufacturers have approved the technology for use. The US Air Force and Navy, major airlines and maintenance facilities are using the MOI for inspection of their aircraft. It is also being used in inspections for hidden corrosion in various aircraft skins and coverings such as de-icing tape. This non-destructive testing method gives the inspector the ability to quickly generate real-time eddy current images of large surface areas.
|
|
|
|
|
|

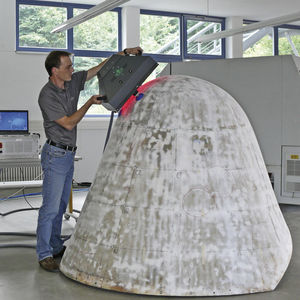

The shearography technology is an interferometric test method with which damage or defects can be identified on components under load. This measuring technique even allows detecting deformations of only a few micrometers in size. Already a relatively low component load can thus yield unambiguous measuring results, which are mandatory particularly for NDT testing.
The test object is illuminated with laser light and observed through a CCD camera equipped with the so-called shearing optics. These shearing optics project the object image onto the camera chip twice; each object point is thus represented twice on the CCD chip. When the test object deforms under load, the laser light reflected by the component changes. By superimposing an image showing the unloaded object state with an image taken in the loaded state, the change of an image point can be determined. The optimum test load type (thermal load or pressure and vacuum load) for the individual component depends on the fault type and fault depth and is ideally determined before serial testing by trial measurements using sample components.
|
|
