All valve series utilize a non-rotating rising stem design, with working pressures to 150,000 psi (1379 bar). Tubing sizes range from 1/4" to 1". Tubing connections utilize Autoclave Engineers coned and threaded design or our Speedbite Ferule Style connections for pressures up to 15,000 psi. Operating temperatures from -423°F to 1200°F (-252°C to 649°C). 316 stainless steel construction, other material options available.
|
|
Needle valve with complete or brought back siege
ND (nominal diameter): 80-1000
other diameters or pressures under request
NP (nominal pressure): 10-64
MAIN TECHNICALS SPECIFICATIONS
Rising, rotating stalk.
Right model or set square
Technology: Molded
Principle: Classique
|
|
Hydratron can supply from stock a wide range of high pressure needle valves suitable for working at pressures of up to 100,000 PSI (7,000 Bar )
They are available with NPT ( 10,000 PSI ), Medium Pressure ( 20,000 PSI ) and High Pressure ( 60,000 PSI ) connections to suit 1/4", 3/8", 9/16", 3/4" and 1" OD tubing.
The valves are manufactured with wetted parts manufactured from 316 SS as standard but can be supplied with wetted parts manufactured from other exotic materials such as Hastelloy or inconel if required.
The range available from Hydratron includes air operated valves, valves fitted with replaceable seats and valves fitted with fine metering spindles.
|
|
|
TECVAL instrumentation needle valves are designed to be used in multiple applications: back-seat needle valves (CP-04, CP-06), others which can be supplied with bridle for pattern manometer (CP-11) or with alignment sleeve (CP-13); compact design integral bonnet valves with or without positioner nut (CP-09) and the solid MULTIPORT valves with three female outlets.
|
|
|
|
|
|
|

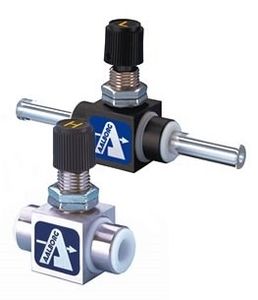

Beswick Engineering announces the release of a micro needle valve with M3 threaded inlet and hose barb outlet. The new M3 threaded needle valve is designed and manufactured for applications where space, leak-tightness, durability, and light weight are required. It can be used to control mini-cylinders, nozzles, timing circuits, filling heads, bleed vents, and in many other metering applications. It weighs just 2.26 grams and the installed height is about 10.4 mm. The needle valve allows precise flow adjustment. The adjusted flow remains stable even during temperature fluctuations as the needle and valve seat are both manufactured from stainless steel. The valve body swivels 360 degrees to facilitate installation and orientation. The needle valve body is designed with “built-in-barbs” which saves space and reduces cost of connections and assembly time. The valve controls flows from 0 to 1 SCFM at 50 psig. The metal to metal seal provides positive shut-off to 25 in Hg. Applications include: hydrogen fuel cells, medical and dental equipment, instruments, laboratory equipment, ink jet print engines, semiconductor manufacturing equipment, toxic gas detectors, aerospace equipment, packaging machinery, industrial robots and many more.
|
|
|
|
|
|
The needle valve can be used to control mini-cylinders, nozzles, timing circuits, filling heads, bleed vents, and in many other applications. The valve is also available with options such as a panel mount thread and a knob for easy adjustment. Maximum inlet pressure is 300 psig.
Features:
• The needle valve allows precise flow adjustment due to 56 threads per inch adjustment and three degree taper of the needle.
• The adjusted flow remains stable even during temperature fluctuations as the needle and valve seat are both manufactured from stainless steel.
• The valve body (elbow or tee) swivels 360 degrees to facilitate installation and orientation.
• The needle valve body is available with “built-in-barbs” which saves space and reduces cost of connections and assembly time. Call factory for details.
• The valve controls flows from 0 to 1 SCFM at 50 psig.
• The metal to metal seal provides positive shut-off to 25 in Hg.
Material: Brass, 303 or 316 stainless steel body; all models have 316 stainless steel needle, 303 or 316 stainless steel stud and cap, stainless steel lock nut and optional brass knob.
|
|
Manually handled valves designed to ensure a reliable and secure cut, allowing a certain flow regulation.
Pressure interval: 100 bar / 750 bar
Temperature interval: -20ºC / 600ºC
Connections: from 1/4" to 3"
Made in several alloys.
|
|
M-flow micro valves were developed for fine dosages of gases and liquids.
They are an integrated constituent of the float-rotameters by Vögtlin and are often used as separate valve units for OEM applications
– Compact, modular construction
– Stable and precise regulation
– Leak-proof when closed
– Customer specific versions
– Aluminium or stainless steel
– Different seal materials
– Straight valve, corner valve or insert
– 15 turn spindle, no hysteresis
|
|
The F-2822 Series Needle Valves are ideal for instrumentation and industrial applications. The fine angle of the needle allows for the precise control of flow, which is restricted in both directions. The Needle Valves are adjustable from 0 to the equivalent flow of a 0.025” orifice and can be provided for inline installation or panel mounting.
Two models are available: The standard glass filled nylon model is available with straight ports for 1/16” I.D. tubing or barbs for 1/16” and 1/8” I.D. tubing. The glass-filled polypropylene model is beneficial for those applications where chemical resistance is a concern.
Both models can be supplied with a nickel-plated brass or stainless steel needle. The needles are available with a screwdriver slot adjustment or knurled knob. Buna-N, Viton, or Ethylene Propylene o’rings are available.
|
|
Haskel's BuTech product line offers an extensive line of check valves, needle valves, 2-, 3-, 4- and 5-way ball valves with 3/16" to 1" ports (4.7mm to 25.4mm), as well as fittings, tubing and related equipment for petroleum production.
Our sub-sea valves are custom designed for instrumentation, process control and chemical injection applications in the harshest environments. Designed for Remote Operated Vehicle (ROV) operation, these valves provide rugged protection, safety and reliability in template control panels, sub-sea wellheads and christmas trees.
Manufactured to meet the requirements of NACE MR-01-75, API spec. 6A and 17D, and numerous other specifications, BuTech sub-sea valves ensure trouble-free operation in hydrogen sulfides, corrosion inhibitors, paraffin thinners, hydraulic fluids and many other chemicals.
|
|
|

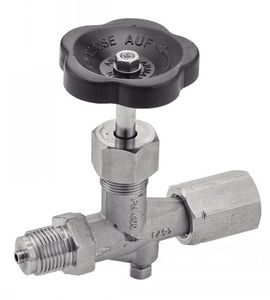

These valves are specifically designed to use for safe pressure gauge installation. The bleed or vent screw is used to vent the pressure with out opening the connections.
|
|
- Hand operated or air operated valves.
- Working pressures up to 14.000 bar / 200,000 psi.
- Large orifices at rated pressures.
- Excelent flow capacity performance.
- Safety quaranteed by special safety cover.
- Smooth operation under pressure.
- High quality stainless steel.
- Panel mounting or in line connection.
- Suitable for fluids or gases.
WE ARE LOOKING FOR A DISTRIBUTOR IN ITALY. Please contact us if you are interested!
|
|
|

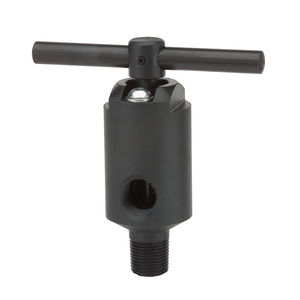

This type of valves are designed for heavy duty applications. These valves are widely used in the high pressure testing equipments. Other design features are similar to ANV 1
|
|
|
The H99 & H99HP Series offers a general-service valve of rugged design and construction. It is available in stainless steel to suit a wide range of services. Capable of withstanding high pressures (10,000 psig max and high temperature), this valve is typically used in severe service, high pressure sampling systems, high pressure shut down systems and test stands.
|
|
KOFLOC 2204
The KOFLOC Variable Primary Pressure Flow Controller MODEL 2204 SERIES is a control valve for precise control of minute gas flow and maintaining constant flow under fluctuating primary pressure (inlet), provided the secondary (outlet) pressure remains constant. This characteristic makes it a must-have preliminary valve in many flow control mechanisms. Constructed using high precision parts, the design of the MODEL 2204 SERIES transforms the rotation of the regulating screw to into linear motion of the needle without subjecting it to gaps and vibrations produced by the screw, to ensure stable and even control of minute flow.
FEATURES
♦ Excellent flow stabilization
♦ Clean construction
♦ Independent from supply pressure fluctuations
APPLICATIONS
♦ Scientific instruments
♦ Environmental analysis
♦ Atomic absorption spectrometry
♦ Gas chromatography
♦ R&D
♦ General industrial use
|
|
|
|
|
|
Pin valves
This pin valve is the evolution of article 009, one of the first articles projected and constructed by Ratti.
It immediately differentiates from other valves on the market due to the fact that there is no packing between the body, the valve and the support of the stem.
This solution, introduced over 30 years ago, has allowed us to guarantee a longer life of the valve, in fact the lack of an elastometer in such a critical position, and the realization of a metallic support, provides the valve with greater reliability in terms of tightness.
The only packing present in these valves is the PTFE compass, positioned on the top to support the stem.
The external part of the valve body has been completely re-designed from a "square" shape to a more "round" shape, in order to eliminate the external edges, thus reaching a better shape and making the constructive process more efficient, reliable and economical.
The valve is filed from a full sturdy 316L full bar of European certified make.
In the "053" version the connections are gas cylinder female die screw-cut and the diameters available are as follows: 1/4", 3/8",1/2",3/4", and 1".
In the "049" version the connections are of 3/4", 1", 1.1/2" and 2" "Tri-Clamp" type and the gauges are the same of the diaphragm valve (Art. 061) to favour interchangeability without modifying the plant.
Upon request, Articles 053 and 049 may be furnished with fastenings to be welded.
|
|
|

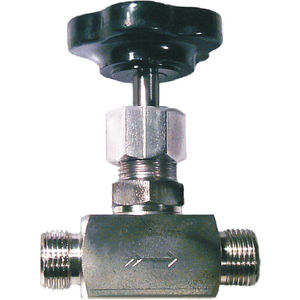

These needle valves are an ideal option for isolation or throttling application. The self centering non rotating stem ensures perfect seating. These rigid valves are designed for repetitive bubble tight shut off, easy maintenance & long trouble free life.
|
|
'PRIME' Needle valves are made for various operating pressure and temperatures. Looking at ever increasing demand and variety of applications, we have developed special purpose valves for instrumentation and flow control application.
DESIGN: Needle valves are also known as isolation valve, shut off valve or regulatory valve. Rotating angle tipped spindle, which in turn moves axially over the orifice seat, controls flow of the fluid. At the lower most position or closed position of the spindle, inlet orifice is completely blocked and thus isolates the fluid flow. In open condition Teflon or Grafoil packing seal restricts the leakage from the bonnet end.
|
|
Needle Valves, PN40
Brass body and topwork
with needle cone
Part No. 04010.X.0000
Female thread connection (G) acc. to ISO 7-1 Rp
Applications:
Suitable for non-toxic, non-inflammable fluids, gases and vapours.
The laws, regulations and standards are to observe for the range of application.
Working temperatures: -10°C / +14°F (263K) up to +100°C / +212°F (373K)
|
|
APPLICATION

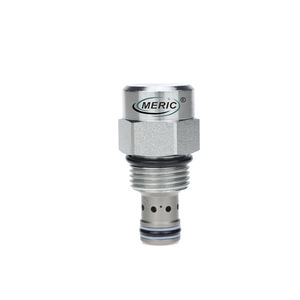

This valve in cartridge form restricts flow in both directions. Ideal for fine control of a non compensated system or as a shut off valve
Cartridge valve restrictor, free flow in one direction and variable restriction in the other. Ideal for meter-in or meter-out applications
|
|
|
Swagelok needle valves are available in a wide range of sizes, options and configurations for instrumentation lines.
|
|
The MV-13 Manual PFA Needle Valve is designed for high purity or aggressive chemical and gas applications. The design utilizes a molded high purity PFA body and stem as the only wetted components. The stem sealing area is precision machined for smooth, consistent flow. A PTFE ferrule assures a leak tight seal between stem and body. A PFA stem stop prevents removal of stem from body during operation. The MV-13 is available in straight through and angle configurations, several orifice sizes, and numerous end connections.
FEATURES:
* One piece PFA stem/handle and bodies provide high strength and corrosion resistance
* PFA stem stop provide a safer operation
* Angle and straight through configurations, with numerous end configurations, including Parflare, reduces connections, mounting space, and overall cost
|
|
Hayward Needle Valves are used for accurate metering of fluids. Turning the thumbwheel moves a tapered piston into the PTFE seat to control the flow down to a few drops per minute. Precision molded,fine pitched stem threads permit this very fine metering flow control.
|
|
The NV-30 series is a precision adjustable flow control used in pneumatic and fluidic systems. Nickel plated brass construction provides excellent corrosion resistance, and a clean and bright appearance. Flow control needle has 7 to 8 turns of precision adjustment, and maximum flow approximately equal to a 0.025" orifice. Unique laminar flow design ensures sensitive, repeatable control. Perfect for use in application requiring precision gas metering, and circuit speed or sequencing control.
|
|
Gate Valves and Needle Valves
Speed and flow can be regulated by a sf gate valve (aside from any dependence on pressure differences or viscosity). This is carried out by means of the coned seal which can be raised or lowered by the spindle. The further the spindle is raised, the greater the passage and hence the flow.
|
|
