* Aluminium, Stainless Steel, Steel, Brass, Nylon, Rubber
* Domehead, Countersunk, Large Flange, zincplated, knurled, underhead knurled, closed end, hexagonal shank, partially hexagonal shank
- TECNUTbasic
Blind Rivet Nuts
- TECNUTmini.basic
Blind Rivet Nuts with mini countersunk
- TECNUTmicro.basic
Blind Rivet Nuts micro with reduced countersunk
- TECNUThexte.basic
Blind Rivet Nuts with partially hexagonal shank
- TECNUThexgo.basic
Blind Rivet Nuts with hexagonal shank
- TECNUTfold
Presslaschen-Blind Rivet Nuts
- TECNUTplas
Blind Rivet Nut with lbrass insert
or Nylon Blind Rivet Nut
|
|
In steel, aluminium and stainless steel , they are highly resistant and of practical and quick use.
Available in metric thread from ØM3 to ØM12 with cylindrical and hexagonal different sizes, they are used for many applications.
|
|
CLUFIX® blind rivet nut provides the solution to achievement of an
internal thread function in a thin or thick metal sheet or profile.
CLUFIX® also allows the assembly of two or several elements, in the same way as a rivet does, whilst also providing the internal thread function.
|
|
Description:
JHZM-M8-6
MATERIAL : STEEL
THREAD SIZE : M8*1.25
TYPE JHZM
THREAD CODE : M8
SHANK CODE : 6
A 0.1 : 6
MIN.SHEET THICKNESS : 6
HOLE SIZE IN SHEET 0.08 : 11
C MAX. 10.98
E 0.25 : 12.7
T 0.25 : 6
other sizes are fully available:
M3, M4, M5, M6, M8
Features:
1. Carbon steel and stainless steel material are available
|
|
POP NUT™ brand blind rivet nuts are internally threaded rivets that can be installed into sheet-metal, tubing, extrusions, and plastics.
* The POP NUT TL Round Knurled body flat head provides excellent spin out resistance in round drilled, punched or molded holes.
* The POP NUT TK Round body thin head allows the mating part to install nearly flush without a recess or dimple.
* The POP NUT TH Hex Body provides excellent spin out in hex punched, laser cut or molded holes.
|
|
|
Insert nuts can self-produce threading on pre-drilled sheet-metals, that cannot be reached from the back. Their use do not cause damages or deformations on materials subject to surface treatment. They are available in stainless steel, steel, aluminium; they can have dome head, countersunk head or reduced head and the size ranges from M3 to M12. They can be cylindrical or hexagonal, open or blind.
|
|
FLUSHFIX® is the solution for virtually flush thread on the internal walls of a tube, or on a single metal sheet when a flush finish is necessary on the opposite side to crimping.
Because it is flush-fitting, FLUSHFIX® allows one tube to both slide and block inside another.
The FLUSHFIX® installation is completed without welding, thus eliminating the need for any reworking.
FLUSHFIX® : The unique blind rivet nut with a flush finish on the opposite side to crimping.
|
|
Product Features and Benefits :
These captive nuts are press-fit into a clean round hole on the panel to provide permanent retention of the nut. Panels lay over protruding studs and captive nuts are tightened down.

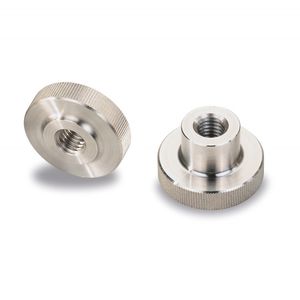

- Quickly fastens panel to externally threaded studs
- Hand-operable knurled knob provides solid grip
- Concealed ejection-spring design enables nut to "pop-up" when fully detached from threaded stud
- Provides for easy alignment with multiple fasteners
Available Options
- Through-hole version is grip tolerant, permits threaded stud to pass fully through depth of nut
- Blind hole version provides a more finished appearance, where stud length is contained within the body of the nut
- Available in nine metric/Imperial thread sizes to suit a wide range of installations
- Both versions available in bright finish
- Black powder coated finish available with blind-hole version only
|
|
Description:
JAC-024-1
Thread Size: 0.190-24(#10-24)
Thread Code: 0.24
Shank Code: 1
A max: 0.038
Min. sheet thickness: 0.040
Hole size in sheet +0.03: 0.406
Min. Dist Hole C/L To Edge: 0.36
C max: 0.405
D max: 0.405
E + - 0.25: 0.47
T1 max:0.17
T2 max:0.27
other sizes are fully available: 440, 632, 832,032, 0420, 0428, M3, M4, M5, M6.
Features:
1. Self-adjustment function can complement the error of hole size in sheet.
2. Locking and non-locking styles both are available.
3. Carbon steel and stainless steel material both are available..
|
|
Description:
Incline knurl Nuts
Installing nuts in sheet materials which are difficult to joint
This method is easy to apply.
Characteristics:
1.Treatment of thin sheet.
Install this nut on sheet with thickness of not less than 0.6mm.
2.Materials that is difficult to joint with.
This nut can be used on steel materials that is hard to joint with ,and also on materials such as aluminum ,stainless steel and plastics.
3.High installing strength
The part under head has its unique shape,when it is pressed in,sheets are fixed,and higher installation strength is obtained.
4.Easy installation
5.No need for special tooling ,air pressure and hydraulic pressure would be enough for simple installation.
6.The opposite side of nut is flat while the surface is not.
7.Still can be used after surface treatment
|
|
Lock nut DIN 985 - metal
Group 348
# Material: mild steel or stainless steel
# Finish: metal or zinc
# Prevents any loosening
# Excellent anti-vibration properties
# According to DIN 985, ISO 10511
Flange nut DIN 6923 - metal
Group 349
# Material: mild steel
# Finish: zinc
# Notched base for broad support
# Limits loosening
# According to DIN 6923, ISO 4161
|
|
Gripco® has provided quality nuts since 1904 and continues to be an integral partner in the OEM fastener supply industry.
When you have a fastener need, Gripco® has a product. Many factors work together to provide Gripco's cost efficiency including our capabilities in manufacturing, the dependability and consistency of our product, and our responsive scheduling and timely delivery.
|
|
Transparent nut
Group 170-1
# Made of polycarbonate (PC)
# Colour: natural
# High transparency
Nut
Group 051
# Made from nylon-66 (PA-66)
# Colour: natural
# Resistant to corrosion and most chemicals
# Also available in assortment box (group 019)
|
|
|
Arnold Umformtechnik GmbH, the fastener specialist, has explored fresh avenues in marketing the RIVTEX clinch system. When combined with the intelligent tool technology and process system produced by its subsidiary, Arnold & Shinjo, the RIVTEX range, consisting of clinch studs and self-piercing nuts, truly is a cost-reducing package.
|
|
NUTFIX™ self clinching nuts provide the solution to achieving a thread
function in metal sheet of any thickness.
This type of fastener is installed using a press.
The performance of NUTFIX™ nuts is outstanding - in terms of both
torque resistance and tensile force. It can therefore be used in numerous
applications, even those subject to significant stress.
|
|
Description:
JS-1224-3
Material: Carbon steel
Thread Size: 0.216-24(#12-24)
Thread Code: 1224
Shank Code: 1224
Min. sheet thickness: .091
Min. Dist Hole C/L Edge: .31
T + - 0.25: .13
A max: .087
C max: .276
E+ -0.25:.38
other sizes are fully available:
256, 348, 440, 632, 832, 024, 032, 0420, 0428, 0518, 0524, 0616, 0813, 0820.
M2, M3, M3.5, M4, M5, M6.
Features:
1. To provide internal thread; the sheet thickness can reach 0.8mm.
2. Carbon steel, stainless steel and aluminum material are available.
3. JSP style can be used on stainless steel sheet.
|
|
The suitable fastening element for your application!
Why Arnold & Shinjo should be your choice:
- Fully automated processing of all fastening elements
- Sheet thickness for piercing nuts from 0,6 to 4,0mm
- All fastening elements available with the surface of your choice
- Customised special solutions
- For virtually all sheet qualities
In one production step the hole is punched and the fastening element, the piercing nut, is connected inseparable with the panel. The possible applications for the system, ranging from aluminium sheet to high-strength or pre-coated sheet metal and various final products, open up new vistas for cost reductions.
|
|
In one production step the hole is punched and the fastening element, the piercing nut, is connected inseparable with the panel. The possible applications for the system, ranging from aluminium sheet to high-strength or pre-coated sheet metal and various final products, open up new vistas for cost reductions.
The versatility of applications, the profitableness, and the efficiency of the processing method, as the multitude of advantages compared with traditional joining techniques make more and more users all over te world to rely on this unique system.
|
|
Spinner-Grip Flange Lock Nut
Spinner-GripTM Flange Lock Nuts are the latest innovation in locking nuts. Free Spinning installation eliminates the need to "wrench" the nut down the thread.
Grade 8 strength and quality, but will work with any grade of fastener.
Does not damage threads or plating on fasteners.
Locks to the part - not to the threads. (Exceptional performance in applications with heavy vibration)
Greater temperature range than nylon insert locknuts.
Hardness of 28 - 38 HRc - More effective at maintaining clamp load under vibration.
Not limited to 5 reuses, as with most other torque lock nuts.
|
|
How do you get the desired bolt load up to 90% of yield precisely with a nut of same size as the nut it replaces? With HYTORC!
If Time is of Essence and Bolt Load Precision is a Must, the HYTORC-CLAMP® is the Answer! A simple, 3-part nut has an outer sleeve that turns on an inner sleeve connected with the bolt and on a washer spline-connected with the inner sleeve.
A high-speed HYTORC tool stops the inner sleeve from turning while turning the outer sleeve at a known friction. The inner sleeve is pulled up, the bolt is stretched to within + 4% of the preset Bolt Load, Side load- and Torsion-free.
|
|
Different types of T-Slot Nuts with threads and groove profiles for customised processing generate a counter-bearing for the screw in the groove.
Fastening elements for easy unit assembly, e.g. valves and limit switches, or heavy-duty units with modular dimensions which can be customised with bores and corresponding threads as required.
|
|
Flat headed cylindrical "AMSERT" embedded nuts
"AMSERT" thin countersunk head embedded nuts
"AMSERT" cylindrical countersunk head embedded nuts
"AMSERT" hexagonal and mixed embedded nuts
|
|
- Flat headed cylindrical "AMSERT" embedded nuts
- thin countersunk head embedded nuts
- cylindrical countersunk head embedded nuts
- hexagonal and mixed embedded nuts
|
|
RIVKLE®, RIVKLE® plus and RIVQUICK® fastening systems for sheets and profiles
For inside or outside threads on components with insufficient wall thickness to allow threads to be cut, Böllhoff offers RIVKLE® blind rivet nuts and studs. These are "blind", i.e. mounted from one side, which means they can also be used in hollow profiles.
To cover several product advantages, there are RIVKLE® plus, the optimized blind rivet nuts. For installation, we offer a multitude of installation devices ranging from pliers and semi-automatic units to die heads for production lines/robots.
We offer RIVQUICK® blind rivets for connecting components that are only accessible from one side. They are available as multi-range blind rivets and multi-faceted, self-developed special designs and also as standard blind rivets in accordance with DIN 7337. A wide assortment of installation tools completes the product range.
|
|
Alu Standard
Alu Countersunk
Alu Small Head
Steel Standard
Steel Countersunk
Steel Small Head
CAP-Alu Standard - airtight and watertight
CAP-Alu Countersunk - airtight and watertight
CAP-Alu Small Head - airtight and watertight
CAP-Steel Standard - airtight and watertight
CAP-Steel Countersunk - airtight and watertight
CAP-Steel Small Head - airtight and watertight
Hexagonal-Steel Standard
Hexagonal-Steel Small Head
Steel Splined Dome Head
Steel Splined Small Head
Steel Splined Countersunk
A2 Stainless Steel Dome Head
A2 Stainless Steel Countersunk
A2 Stainless Steel Small Head
|
|
Blind rivet-nuts, open ends or closed ends, with ribs or hexagonal, for thin metal sheets.
All kinds of heads, flat, large, flush, countersunk.
Advantages : Considerable clamping strength, higher than that of a class 8.8 steel screw.
Dimensions : From M3 to M12 ex-stock, other dimensions under request.
Material : steel zinc plated, stainless steel, aluminium, brass.
|
|
|
|
|
|
Steel inserts designed to provide load bearing threads in thin sheet materials. For hard metric hole sizes.
Key features and benefits
Can be used in very thin sheet materials from 0.25mm (0.0098")
Double diameter body and lead-in chamfer provide easy insertion into hole
Access needed from only one side of the application, for high speed assembly
Provide a female thread in application
Can be installed in pre-coated or post painted applications without damaging the surface
Clamp two or more sheets
Various platings available to increase corrosion resistance
Splined body improves torque-to-turn by up to 50% in soft materials compared to plain body inserts and improve electrical continuity in sheet metal fixings
Low profile head allows near flush fit to application and clamps two or more sheets of material together, within the grip range
Large flange head provides a load bearing surface and reinforces the hole to prevent push-out. Can be used as a spacer and can be supplied with an underhead seal.
Can be used with hand tools, pneumatic tools and fully automated machines to suit a wide range of assembly methods
Assembly applications
Automotive
Electrical engineering
Electronic components
Sheet metal
Domestic appliances
General light fabrication
|
|
|
The Atlas® product line includes two basic types of threaded rivet nut products. The Atlas SpinTite® product line includes a variety of inserts which satisfy most applications where strong one side thread installation is required. Of course if a standard product does not fit your need, please contact us so that we can make other recommendations. We also offer cost effective and easy to use installation tooling for our complete line of fasteners.
|
|
The CAGE-NUT is a square steel or stainless steel nut enclosed in an elastic metal cage.
- The CAGE-NUT allows tolerance in alignment or positioning.
- Hand-operated installation by compression of the cage in the indenting device.
- Dimensions: M3 to M12
|
|
The cage-nut allows a fast fastening in thin metal sheets, already punched.
Advantages : can be put in and off rapidly
Dimensions : From M3 to M10 ex-stock, other dimensions under request.
Material : Cage in steel or stainless steel, nut in steel or stainless steel.
|
|
... see all the products in the category
