Yokota impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back. The Yokota range of impulse tools is increasing fast, starting at 6Nm to tighten small joints, and goes up to 600Nm. Evaluation of tightening processes in car assembly shows that tightening joints uses 10% of the total assembly time. Working with faster tools therefore can speed up
assembly lines substantially.
|
|

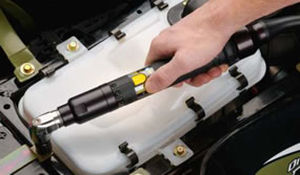

Lighter, Faster, More Powerful
- Torque range: 0.6 to 18 Nm (0.4 to 13 ft-lb)
- All models are under 2 lbs. and less than 12" long
- Push-to-Start Models include headlights
- Long life, lightweight cable has quick disconnect
QPM Threaded Fastening Systems Deliver Value Over Their Entire Lifecycle
- Any Stanley QPM Controller can operate tools from the entire range from < 1 to 2000 Nm
- Ethernet, DeviceNet, Profibus, 24V I/O and software options fit your plant interface requirements
- Stanley “Adaptive Tightening Control” technology improves quality by automatically adjusting for joint variability
- Programmable buttons provide process control options at the tool
- Fastening status LEDs, visible from either side of the tool, and a programmable buzzer signals the operator about assembly quality
|
|

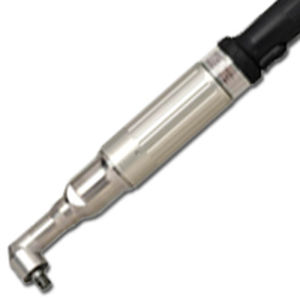

QA 4 / QA 6 / QA 8
Precision Air Nutrunners
High precision shut off clutch
for consistent repeatability and process quality
Adjustable shutoff clutch provides repeatability that improves joint quality
Quick, precise clutch shutoff limits torque scatter and reaction to the operator
ISO 5393 tested
Cycle counting capability enables integration into process control systems for QA4 and Remote tools.
Clutch tested to over 1 million cycles without failure
Proven components from our world-class line of DC electric tools
2 Year Warranty on clutch and angle heads
Three powerful motor options to match your torque and speed requirements
Adjustable Shutoff Clutch or Stall
Multiple drive sizes, spindle lengths, and floats
Single or Multi-spindle fixtured systems to increase productivity and improve joint quality
Run with Lube or Lube free
|
|
|
|
|
|
Loose bolts, leaks and defect components stand for a large part of recall and rework costs in the manufacturing industry today. Many of these can easily be avoided by choosing the correct tightening solution. Atlas Copco offers a full range of DC controlled tools that support ‘Right first time’ to enable the first step to a cost efficient and lean assembly process with zero defects.
The Tensor nutrunners and screwdrivers have been used in the automotive, offroad, aerospace and appliance industries since the mid 1980's. They are known for their unbeaten productivity and reliability as well as built-in error proofing capabilities.
The latest generation of controlled tools is the Tensor ST/SL that offers market leading productivity, process integration and complete traceability back to each and every tightened bolt. For quality critical applications that do not require documented torque results, Tensor DS/DL offers highest productivity based on the patented DigiTork control method.
The Tensor ranges span from 0,3 Nm to 4000 Nm in pistol-grip, inline or right angle configurations, to cover all customer needs.
The increasing quality demands in the electronics industry also require more tightening intelligence to achieve stable product quality. Atlas Copco offers a dedicated range of screwdrivers, MicroTorque™, from 0,5Ncm to 800Ncm. MicroTorque™ screwdrivers are available in different functionality levels and configuration to meet all customer needs.
|
|
Performance
The power-to-speed and power-to-weight ratio exceed every other direct drive power tool manufacutured today
Precision
The magneto-elastic transducers are ten times more responsive than typical strain gauges
Speed
Remains efficient even when your application calls for multiple fasteners
Lightweight
20 - 40% lighter than the competition, size for size
Versatile
A wide range of DC fastening tools is available in pistol grip, in-line, angle, and tubenut configurations
|
|
The Plug and Tighten tool is an electric brushless tightening tool directly plugged on the 110/230 Volt power supply.
Torque Range:
- Angle Head tools: 3 to 65Nm
- In line tools: 3 to 43Nm
The control is performed with a built-in digital torque transducer: Tested to ISO5393.
Quality of tightening and Traceability
- Torque shut off
- Torque shut off with angle monitoring
Easy to set up and tamper proof programming, either directly on tool with the display and keypad or from a pocket pcGroup picture P&T angle head
Very low Life Cycle Cost (LCC):
- Maximum energy consumption: 50 watts/hour
- Maintenance free brushless motor
- Gear box tested at more than 2 million cycles
Ergonomics:
- Low weight, low noise, low torque reaction
|
|
Ingersoll Rand pulse tools meet the new demands of assembly operations with high speed rundown of fasteners, exceptional accuracy and consistency in torque delivery, and operator-oriented design. A unique hydraulic impulse mechanism - driven by an air motor - applies torque to fasteners with a degree of control not possible in conventional tools. The result is precision fastening, with virtually no over-torquing in critical applications. Plus, tool users benefit from the added pluses of reduced transmission of torque reaction and vibration, as well as improved balance and quiet operation.
Ingersoll Rand offers standard, shut-off, and transducerized pulse tools to meet specific application requirements for accuracy and operator preference with broad torque coverage of 4 to 290 Nm.
|
|
Stall-type nutrunners consist of an air motor
connected to the output spindle by planetary gearing
and angle heads. In operation, the tool runs down
the fastener until the torque resistance in the
fastener causes the tool to stall. When the tool stalls,
the throttle is released by the operator and the tool is
removed. Stall-type tools can produce accurate
torques, especially on applications with varying
torque rates
|
|
Assembly System
PowerMACS 4000 with QST Nutrunners
Controller
The Atlas Copco Power MACS 4000(Monitoring And Control System) tightening controller represents the pinnacle of fixtured fastening control and a new generation of upgradeable controllers. Intuitive monitoring and communication capabilities combined with advanced management programs allow processes to be fine-tuned and productivity hurdles to be overcome.
Nutrunner
Outstanding speed characteristics with retained accuracy, high durability and increased up-time embodied in a robust design make the QST nutrunners well prepared for the markets toughest demands. QST is easy to integrate in fixtures such as the Atlas Copco Express Mechanics and our Application Centres have vast experience in integrating our spindles into many different types of fixtured solutions all over the world.
|
|
|
Get it together fast and accurately with Atlas Copco pneumatic nutrunners. For industrial assembly operations, accurate fastening and productivity go hand in hand. Atlas Copco pneumatic nutrunners will bring quality and productivity in to the assembly process. The clutch controlled nutrunners are designed for optimum productivity and quality, with accurate and consistent torque control that will reduce quality problems and minimize production line down time. The nutrunners are ergonomically designed- they are light and comfortable to hold, with fast clutch release, ergonomic design and soft warm grips prevents operator strain.
|
|
|

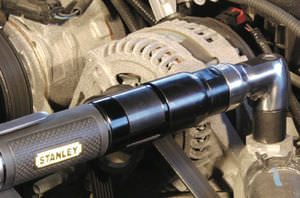

Stanley nutrunners offer all tool geometries, mounting options, and output types on all pneumatic and electric tools. Geometries include pistol, straight, angle, and offset. Mounting options include reaction bars, base mount brackets, flanges, and spring-loaded spindles. Output types include the industry-leading portfolio of crowfoot, tubenut, hold-n-drive, and flush socket heads. Stanley also delivers custom configurations to address extreme assembly challenges. Stanley pneumatic nutrunners include continuous drive and pulse types. Continuous drive nutrunners have either clutch or air shut off.
|
|
|
|
|
|
Maintenance & Automotive
Ingersoll Rand impact tools are the brand of choice for professional automotive mechanics and the racing teams of NASCAR. New geometry and materials together with years of engineering knowledge combine to deliver the best torque ranges and the lightest most durable product on the market.
Whether you choose the classic 231C or the newest revolution in impacts, the 2135Ti Titanium ½" impact, you will quickly see why professional mechanics around the world turn to Ingersoll Rand.
3/8" Drive
1/2" Drive
3/4" Drive
1" Drive
Industrial Production
The toughest industrial applications in the world run 24- hours a day, 7 days a week,
365 days a year...that's why Ingersoll Rand is dedicated to manufacturing impact tools that
can hold up to your toughest jobs.
Ingersoll Rand Industrial Production Class impact tools are designed with durability in mind, from the vanes turning the motor to the hammer frames and anvils. Proprietary hardening and treatment processes, innovative ergonomic design, and excellence in manufacturing all add up to the longest lasting, hardest hitting impact tools in the business.
3/8" - 3/4"
1" - 1 1/2" Drive
2" - 3 1/2" Drive
Torque Control
Electric
|
|
|
|
|
|
The ErgoPulse principle
The heart of a pulse tool is the hydraulic pulse unit, positioned between the air motor and the outgoing shaft. Since the pulses are very short, there is almost no reaction force in thehandle, only the much lower motor torque is transferred to the operator’s hand. The pulse unit increases the torque generated by the motor 50-100 times. As there is no metal-to-metal impact in a pulse tool, pulse tools provide a softer, more controlled pulse with considerably less vibrations and noise than an impact wrench. Together with good balance and low weight the result is a tool that
is extremely comfortable to operate. The reliability and accuracy of the ErgoPulse
tools make them ideal for many situations.
A complete range
The ErgoPulse range covers torque from 2-900 Nm and are available in both shut-off and non shut-off versions. The shut-off pulse tools – PT, PTS and PTX
types – will shut-off the air supply as soon as the pre-set torque has been reached.
With a shut-off tool the operator influence is minimized. The result is increased accuracy and faster tightening. The non shut-off tools – C and XS types – produce
pulses until the operator releases the trigger. They are preferred in applications
where it is an advantage for the operator to be able to control the process
by shutting off the tool manually. Atlas Copco pulse tools are available
in straight and pistol grip versions.
Probably the most powerful pulse tool in the world
The newest addition to our PTX is the EP 25 PTX , which builds up torques between 450-900 Nm extremely fast and only weighs about 10 kilogram.
|
|

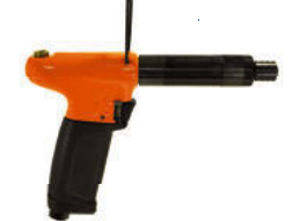

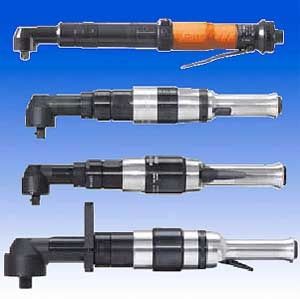

Cleco offers over 500 nutrunners, most of which
can be equipped with a wide variety of drive
options. This generates over 3,000 different
nutrunner combinations, allowing the exact tool
with precise features to be chosen for specific
job applications.
The following items should be considered before
selecting the tool: ergonomic factors associated
with the man/tool/task relationship, torque and
speed requirements, tool and fastener
accessibility, fastener joint variations, operator
skill level and air supply.
Tool performance can be affected by air supply.
Plant air line pressure to the tool will vary widely
due to several factors: distance of tool from
compressor; size of transmission lines, air drops,
manifolds, hose length and diameter, and
fittings. All power tool specifications are based
on the tool receiving air at 90 p.s.i.g. (6.2 bar)
with adequate air flow volume while the tool is
running.
|
|
FEIN HandyMaster ABS 9 (NiMH)
Cordless screwdriver up to 10 mm/M5
Small and handy battery-powered drilling screwdriver for universal use.
Exemplary ergonomics, well-balanced, and with optimum ease of use for working without fatigue, even in overhead work.
Torque configurable to ten stages (including drilling stage).
Electronic speed regulator to ensure smooth and safe drilling and screwdriving operations.
Vibration-attenuating 'soft-grip' for safe handling.
Right and left-hand running with locking function
Single sheath drill chuck with internal spindle lock and chucking power safety device.
Also available with NiCd batteries (1.4 Ah): ABS 9 (7 113 01 50)
|
|
Precision screw connections can be this easy. FEIN ACCUTEC for industrial
volume production.
Quality is a key factor for success. For years now, screw connections
have had to meet constantly rising industrial standards. In
its ACCUTEC screwdriver range, FEIN offers optimum solutions for
high-quality screwed connections from 0.5 to 25 Nm. We have
many years of experience which will guarantee perfect results with
comfortable, fatigue-free and very reliable operation. The best
examples: The new ACCUTEC ASW 9-10 offset screwdrivers and the
tried and tested ASM 9 two-stage screwdrivers for industrial volume
production. Indestructible technology, well thought-out design, maximum
functionality and very easy to operate: FEIN is satisfying the rising
quality standards – and not just in the automobile industry.
|
|
|
|
|
|
Screwdrivers are available with various impact mechanisms. Each application has it’s own mechanism. Therefore please take note of the
information below before purchasing a tool.
1-Hammer
The 1-hammer system makes 1 impact per rotation at 1 side of the anvil. This causes a higher energy per blow. The screwdrivers with the 1-hammer system are especially suitable for wood and steel screws.
2-Hammer
The 2-hammer system makes 2 impacts per rotation at both sides of the anvil. This mechanism is used for wood and steel screws and works more quiet than the 1-hammer system.
Direct drive
These direct drive screwdrivers are suitable for selftapping screws and wood screws.
Clutch mechanism
Screwdrivers with a clutch type mechanism are used for standard applications with normal joints. The mechanism works by means of
spring pressure. When reaching the torque the mechanism slips.
Shut-off mechanism
To comply with the ever increasing demands for screwdriving accuracy and work safety, we present a new range of pneumatic screwdrivers with a maximum torque repeatability. Along with the exceptional torque accuracy, the new Jointech Plus 2 torque control system has automatic high speed air shut off to allow for a considerable reduction of the reaction to the operator's hand.
|
|
The combination of the Li-ion battery with a special gear of high performance allows torque moments up to 4.000 Nm.
Main application areas:
Maintenance and Assembly
|
|
Delta Regis Tools - Electrc Screwdrivers
For Industrial production and electronics assembly applications, take a look at our most popular 32 VDC Series. It offers the best in operator comfort, safety, and flexibilty in a competitively priced package. As an alternative, the all-in-one 120 V Shut-off Clutch Series offers similar performance with a few less features at a cost savings. Looking for more consistency in an application currently using a hand screwdriver, battery driver, or drill? Try our 120 V Slip Clutch Series for a step-up in ergonomics and torque repeatability at an economical price.
|
|
|
|
|
|
Ingersoll Rand electric screwdrivers provide unmatched capability when driving small screws into metal or plastic in industrial assembly applications. Without the need for a a plant air supply, simply plug in the tool (for high-torque models) or controller (for low-torque models) directly into your wall outlet and you're ready to start production. The broad platform includes models offering enhanced ergonomic designs and grip surfaces, ESD-safe housings, and exceptional performance in low-torque applications.
Fastening control System
for QM and QE series Electric Tools
DISPLAY, with user Interface or MODULE, without user interface
Standard I/O interface board or one additional I/O board for single spindle
Communication serial and Ethernet, Profibus, Devicenet
Standard wall mount or Cabinet mount
Customerised software option
QE Electric Tools
Cycle status lights for Immediate feedback on the fastening process
On board
E-Prom for storage of Calibration data, cycle counting, etc
Mounting plate
QM Electric Tools
High duty cycle powerhead application
External electronics pod for a simpler integration and a better reliability
Highly configurable platform
|
|

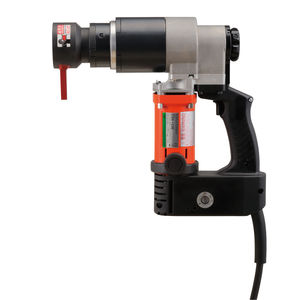

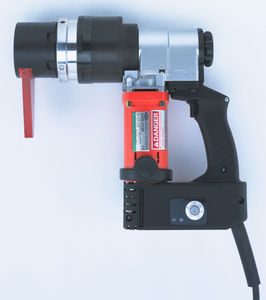

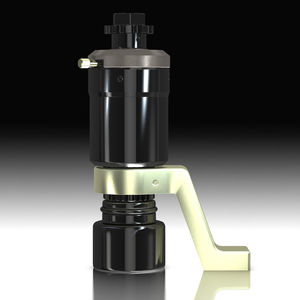

The LÖSOMAT high torque electric wrench, in straight and angled version, has two gears, infinitely adjustable torque and cut-off electronics. This electric wrench is indispensable for maintenance, assembly and service.
Main application areas:
Maintenance and assembly
|
|
HSP Handheld Screwdriver
with automatic feed system for screws and headless pins
- Compact and ergonomic design
- Automatic bit stroke
- Short changeover times
- Maximum flexibility
|
|
ESE
Electrical hand screwdrivers without feeding
- Manageable screwdriver for small screws and simple screwdriving application
- Powerful DC power drives
- Precise shut-off
- Continuously adjustable torque
- Quiet in operation
- Economical
- Maintenance-free
|
|
New event
mini
Hammer impact driver
Driver bit 1/4" Hex dr. can easy find in market
Power more that normal in market.
you can easy driver screw open and close
|
|
The LÖSOMAT high torque pneumatic wrench works quietly and is robust, with its rotary drive motor. An air control unit supplies constant air pressure.
Main application areas:
Power plants, transport industry, chemical industry, plastics industry, cable cars and lifts, mining, tunnel construction, shipyards, oil and gas industry and cement industry
|
|
GFB Bits exceed DIN standard
NOVUMTEC is specifically making high quality wide range bits and accessories for all kind of ScrewDrivers, Power tools, Machines, Tools.
"GFB" bits at Taiwan price, meet DIN Standard, match any screw heads perfectly is long life bits.
Torx is wide use in many areas since the torque is higher than ordinany type
We can make screw driver bit from T1 to T100 for industry use
different shank are acceptable
Our brand is GFB
|
|
Delta Regis Tools, Inc.
For production and electronics assembly applications, take a look at our most popular 32 VDC Series. It offers the best in operator comfort, safety, and flexibilty in a competitively priced package. As an alternative, the all-in-one 120 V Shut-off Clutch Series offers similar performance with a few less features at a cost savings. Looking for more consistency in an application currently using a hand screwdriver, battery driver, or drill? Try our 120 V Slip Clutch Series for a step-up in ergonomics and torque repeatability at an economical price.
|
|
|
With torque capacity ranging from 0.5 to 2000 Nm, Stanley's threaded fastening solutions come in multiple geometries and fit the most critical assembly requirements. Real-time monitoring, analysis, diagnostics, and configurations are available plant-wide, with networkable controls.
|
|
Digit screwdriver torque control
You can connect computer to save the test or working value
|
|
|
|
|
|
3.6V Cordless Driver Drill
- Compact and 0.4kg (0.9lbs.) lightweight and 249mm(9-13/16") overall length
- Dual position handle converts from straight to pistol grip for flexibility in tough to reach spaces
- Switch into drilling mode to drill small pilot holes or choose from 21 clutch settings to drive screws flush into wood or drywall
- Convenient forward reverse switch
- Lock button for preventing inadvertent start of the motor and also usable as a manual screwdriver
- 5 Nm(44 in/lbs.) of Max. tightening torque to power through fastening applications
- Two speeds, 200/600 RPM for better control based on the application
- 6.35mm (1/4") hex chuck for quick and easy bit changes
- Built-in LED light to illuminate the work surface
- 3.6V, 1.5Ah Sealed cylindrical lithium-ion strorage battery: EBM315
- EBM315 Lithium Ion batteries for long life (approx. 500 battery life cycles)
- Terminal cover for preventing improper short circuit
- A lithium ion battery provides a full charge evry time thanks to no memory effect
- Charger: UC3SFL with overcharge prevention circuit
|
|
|
|
