Simplify your next operator interface project with a STRONGARM mounting and enclosure combination.
Enclosures are designed to your exact terminal specifications; including the cut-out, cable space, drive access and cooling requirements. Specify pushbutton cut-outs and other extras to complete the ideal, hassle-free enclosure to complement your STRONGARM mounting. Enclosures are specially reinforced for pendant arm mounting to assure solid, wobble-free operation.
Features:
• Operator "friendly" interface
• Compact and repositionable including three levels of vertical travel (13", 23", 30")
• Internal, local, or remote PC (Internal MicroBox PCs available from STRONGARM)
• Multiple keyboard and pointer selections (including STRONGARM's revolutionary Stainless Steel Mouse)
• Feature panel for easy pushbutton additions
• Post Mount, Machine Top Mount, Wall Mount and Ceiling Mount available
• Horizontal and vertical extension capabilities
|
|

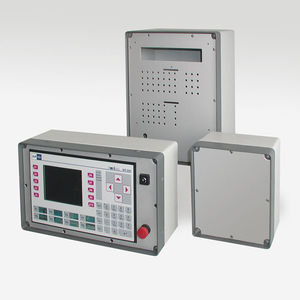

- Control housings from aluminum
- Support arm systems
- Control housings from steel sheet with the series "BAE" and "BAV"
|
|
HMI Enclosure Series. Functionality and versatility are found in the HMI Series. From standard "off the shelf" designs to al stainless steel construction, the HMI Series provide solutions to a wide variety of applications. Some of the features include:
- Powder Coated OR Stainless Steel Construction.
- Multiple Mounting Options
- Configurable Cable Connections
- Gasketed Doors and Openings
|
|
CC3000 Operator Interface Enclosures
CC3000 Accessory Mounting Brackets
CC3000 Clipboard
CC3000 Command Handle
CC3000 Door Stop Kit
CC3000 Fan Mounting Bracket Kit
CC3000 Keyboard Connector
CC3000 Keyboard Drawer
CC3000 Keyboard Front Plate
CC3000 Keyboard Straps
CC3000 Mouse Pad
CC3000 Pedestal
CC3000 Spring Nut Fastener Package
CC3000 USB Interface
|
|
|
|
|
|
Console enclosure delvalle
Elegant, functional consoles manufactured in finely polished Aisi 304 EN-14301 stainless steel, easily accessed, with a design which allows for IP55 protection and maximum resistance of IK10.
Upper door with shock absorbers which makes opening easier, with open bottom and hidden hinges.
It comes with a galvanised mounting plate.
• Officially approved for food, chemical, pharmaceutical, transformer and telecommunication industries for use both inside and outside, due to the advantages of high resistance to chemical agents and durability.
• delvalle serves to order any measurements required, including custom built holes and cut outs both for door and case.
• All models in stock for immediate delivery.
Special solutions:
• Custom built to order.
• Plinths (page 19).
• Metal legs.
• Polycarbonate window door.
• Manufactured in Aisi 316 EN-14401 stainless steel.
• Bakelite isolated or stainless steel mounting plate.
• Superior EMC electromagnetic protection between frame and contact surfaces which guarantees a perfect electrical connection. EEC regulation 89/336.
|
|
The one-piece desk is used in simpler applications but still offers an up-to-date technical specification.
These styles have bottom entry gland plates with an adjustable, removable section and an adjustable mounting plate.
Accessories are common to the three styles. The shelf lid of LE-ME and SBA are supplied with gas springs.
The design concept of the PE console allows the installation of racks or monitors and a supplementary casing can be fitted up to the back to increase the usable depth to 500mm.
The cabinet desks are manufactured from pressbent and welded 1.5mm and 2mm sheet steel.
The ZBA control desk range has been manufactured in parallel to the SBA range to meet simpler applications.
|
|
The lid stay of the one-piece consoles is locked against unintentional closure.
Maximum space for cable entry with divided gland plates.
The mounting plate is height-adjustable by 2 x 40 mm, e.g. with deep installed equipment in the lid or cable entry from the rear.
Material / Surface finish
Material:
Stainless steel 1.4301
Enclosure: 1.5 mm
Door or double door and console lid: 2.0 mm
Mounting plate: 3.0 mm sheet steel
Surface finish:
Enclosure, door and console lid: Brushed, grain 120
Mounting plate: Zinc-plated
Supply includes
Enclosure, solid rear and sides, door or double door at the front, with locking rod, console lid with lid stay and stainless steel cam latched in the enclosure, two-piece gland plate, mounting plate, zinc-plated, passivated.
Protection category
IP 55 to EN 60 529/10.91, NEMA 12 is met.
|
|
Console system
Flexible console system, allows a versatile number of combinations to configure the system to your design. A range of 19" accessories adds further versatility. Available in both Mild and Stainless steel.
- MPC / MPCS, Console combination version, single or double door
- In mild steel and stainless steel
- MPG / MPGS, Console compact version, single or double door.
- In mild steel and stainless steel
|
|
|
A wide range made up of monobloc enclosures for wall or floor fitting, made in sheet steel painted with polyester resin or manufactured in stainless steel. Combinable modular enclosure systems, ideal for building up large frames and control desks.
|
|
|
|
|
|
stainless steel control console enclosure
Elegant, functional consoles manufactured in finely polished Aisi 304 EN-14301 stainless steel, easily accessed, with a design which allows for IP55 protection and maximum resistance of IK10.
Upper door with shock absorbers which makes opening easier, with open bottom and hidden hinges.
It comes with a galvanised mounting plate.
• Officially approved for food, chemical, pharmaceutical, transformer and telecommunication industries for use both inside and outside, due to the advantages of high resistance to chemical agents and durability.
• delvalle serves to order any measurements required, including custom built holes and cut outs both for door and case.
• All models in stock for immediate delivery.
Special solutions:
• Custom built to order.
• Plinths (page 19).
• Metal legs.
• Polycarbonate window door.
• Manufactured in Aisi 316 EN-14401 stainless steel.
• Bakelite isolated or stainless steel mounting plate.
• Superior EMC electromagnetic protection between frame and contact surfaces which guarantees a perfect electrical connection. EEC regulation 89/336.
|
|
Stainless steel cabinets are used in both corrosive and food processing environments. ARETA has been manufactured in stainless steel without changing its design structure or its accessories, thus providing all the benefits offered by the standard painted version.
The clean external finish gives the product an aesthetically very pleasant and highly professional appearance.
|
|
|
Stainless steel enclosures are suitable for many environments, such as the chemical, food, pharmaceutical and oil industries. Being one of the fi rst on the market with stainless steel enclosures. Eldon have a long history and experience with this kind of product.
|
|
Modular desks with upper element
composed by base with front and rear
opening, depth 400/500mm., Central
desk, upper element and plinth H.100/200mm.
For various combinations.
IP55 protection.
|
|
Switch and control systems
- Electric switch and control systems
- Marshalling and distribution panels
- Electrical switch panels in accordance with national and international standards
- Special cabinets (steel, stainless steel, aluminum) for instrumentation, control and electro-technics and for use in hazardous areas
BARTEC BENKE designs and manufactures control system solutions for automation of machines and processes.
|
|
IDRM offers tailored solutions for tables of control, measuring and marking. Ability to conduct on-foot frame and lens hood for use with hot temperatures.
Explosion-proof boxes, control stations and panels Ex d IIB and IIC, aluminium alloy, steel or stainless steel (316L), with front window, box extension. Boxes assembling.
|
|
|
|
|
|
The recently developed CUBEx control enclosure product line from R. STAHL now makes it possible to combine compex control and distribution panels into comprehensive, space-saving units. Adds a whole new dimension to individualised and flexible solutions for your applications. Other customer-specified control and distribution panel designs are also possible. The CUBEx system increases the flexibility of your applications and ensures that all internationally recognised installation technologies can be employed. All standard, commercially-available electrical equipment can be installed. The space-saving design of this IIB enclosure enables a mounting distance of just 10 mm between units. Moreover, flameproof enclosures incorporating "D2D" technology enable the direct connection enclosures or terminal chambers are required. CUBEx is the logical next step in the development of IIC tchnology integrated in the renowend 8220 Series. For use in Group IIB hazardous areas in Zone 1 and Zone 2 or Zone 21 and Zone 22.
The main connection switch of the lighting and heating panels CUBEx Series 8264/5-ExV is operated through the side wall via an actuation mechanism. The circuit breakers are fitted on the second mounting level and are actuated via totary drives. As an option it is possible to fit test keys to the ELCBs to make it possible to actuate the back wall of the enclosure for fixing the devices. Cable entry is done directly via tapped holes, wired directly to the switches. For current distribution the original comb type rails are used at the switching units. A typical design allows for 12 or 24 circuit breakers. Different designs upon request.
|
|
|
|
