When looking for a high quality fiber with superior transmission and a numerical aperture (N.A.) of 0.22 for efficient light coupling, the Superguide™ SFS is the fiber of choice. The Superguide™ fiber is drawn from preforms manufactured by the Plasma Outside Deposition (POD) process. Rods of extremely pure synthetic fused silica are coated with fluorine doped silica layers to obtain preforms with step-like refractive index profiles. Plasma torches prepare the reaction compounds from SiCl4, O2, and a fluorine containing gas. Strong thermal gradients combined with the temperature plasma lead to chemical deposition conditions, which allow very high fluorine concentrations to be incorporated in the fused silica network. Refractive index differences of 0.27 corresponding to numerical apertures in excess of 0.28 have been realized with undoped core rods.
|
|
|
Silica optical fibers, despite their high strength, require coatings to protect and maintain their strength during installation and operation when high temperatures, abrasion, bending, and other stresses can cause fiber fatigue. OFS offers both single-mode and multimode optical fibers with protective coating layers applied directly to the glass during the fiber draw process.
|
|
When looking for a high quality fiber with superior transmission and a numerical aperture (N.A.) of 0.22 for efficient light coupling, the Anhydroguide™ AFS is the fiber of choice. The Anhydroguide™ fiber is drawn from
preforms manufactured by the Plasma Outside Deposition (POD) process. Rods of extremely pure synthetic fused silica are coated with fluorine doped silica layers to obtain preforms with step-like refractive index profiles. Plasma
torches prepare the reaction compounds from SiCl4, O2, and a fluorine containing gas. Strong thermal gradients combined with the temperature plasma lead to chemical deposition conditions, which allow very high fluorine
concentrations to be incorporated in the fused silica network. Refractive index differences of 0.27 corresponding to numerical apertures in excess of 0.28 have been realized with undoped core rods.
|
|
With numerical aperature (N.A.) of 0.39 and a hard polymer cladding that allows a high core-to-clad ratio, the Anhydroguide™ APCH is the low cost fiber of choice. The pure fused silica (SiO2) used in the core of Anhydroguide™ fiber is made by reacting silicon tetrachloride (SiCl4) with oxygen (O2) using a plasma arc rather than an oxy-hydrogen flame. This ensures that the residual hydroxyl concentration (OH) will be low in the core material resulting in superior infrared transmission as compared with flame prepared silica that is used in the
companion product, Superguide™, which has superior ultraviolet (UV) transmission.
|
|
When looking for a silica core and silica clad fiber with a hard polymer coating that allows a high core-to-clad ratio
and a numerical aperture (N.A.) of 0.22 for efficient light coupling, the Anhydroguide™ AFSH is the fiber of choice.
The Anhydroguide™ fiber is drawn from preforms manufactured by the Plasma Outside Deposition (POD) process.
Rods of extremely pure synthetic fused silica are coated with fluorine doped silica layers to obtain preforms with
step-like refractive index profiles. Plasma torches prepare the reaction compounds from SiCI4, O2, and fluorine
containing gas. Strong thermal gradients combined with the temperature plasma lead to chemical deposition
conditions, which allow very high fluorine concentrations to be incorporated in the fused silica network. Refractive
index differences of 0.27 corresponding to numerical apertures in excess of 0.28 have been realized with undoped
core rods.
|
|
|
|
|
|
Long life, deep UV transmission is made possible with Fiberguide¡¯s solarization resistant optical fibers, wherein the fiber core and clad are hydrogen doped at very high temperatures as the fiber exits the draw furnace and then hermetically sealed with an aluminum buffer/jacket during the fiber draw process. This break-through, patented in-line process allow the use of fiber with a wide variety of UV laser sources, making Solarguide¢â 193 the fiber best suited for deep UV (¡Â 300nm) applications. Irradiation of standard silica fibers with UV photons below 260nm generates defects in the standard silica
structure, so-called ¡°solarization¡±. The solarization is the reason for the significant decrease in standard fiber transmission in UV wavelengths over time making fiber eventually useless in that application. When present in the silica core, hydrogen combines with the defects generated and neutralizes them, preventing the UV photons from being absorbed and thereby lost. Although the effect of hydrogen in lowering the fiber solarization rates in silica is widely known, Solarguide¢â 193 is the only fiber in the industry that has its own
hydrogen supply which has been sealed in with a hermetic shroud (aluminum buffer) around the fiber, thereby making it available for keeping the fiber solarization resistant for significantly longer periods.
|
|
SILICA/HARD POLYMER CLAD Optical Fiber
JTFSH
- High -OH Core
- Hard Cladding
- High NA
Characteristics:
Step Index
Numerical Aperture: 0.37 ± 0.02
Full Acceptance Cone: 43.4 degrees
High -OH Silica Core, Hard Polymer Clad
High -OH Core for Vis-NIR Transmission
Operating Temperature: -65ºC to +125ºC
Proof Tested from 100kpsi to 150kpsi
Optional Acrylate, Nylon, or Hytrel® Buffer
Custom NA's Available
|
|
New Tighter Tolerances!Step Index
Characteristics
Numerical Aperture: 0.22 ± 0.02
Full Acceptance Cone: 25.4 degrees
UV-Vis-NIR Transmission, 180nm to 1,150nm
Superior Radiation Resistant
High Laser Damage Threshold
Sterilizable*
Bio-compatible Materials – USP Class VI*
High -OH Silica Core, Doped Silica Clad
Polyimide Buffer Standard; Silicone, Acrylate,
Fluoropolymer, Aluminum & dual buffers also available
Polyimide Concentricity ± 3µm
Sizes for Bundling
Tighter Tolerances Available
Temperature: Operating –65ºC to +300ºC
Intermittent, up to 400ºC
Proof Tested to 100kpsi
|
|
JTFLH - Tefzel® Buffer
Characteristics
-Step Index
-Numerical Aperture: 0.37 ± 0.02
-Full Acceptance Cone: 43.4 degrees
-Low -OH Silica Core, Hard Polymer Clad
-Low -OH Core for Vis-NIR Transmission
-Operating Temperature: 65ºC to +125ºC
-Proof Tested from 100kpsi to 150kpsi
-Optional Acrylate, Nylon, or Hytrel® Buffer
-Custom NA's Available
|
|
Ultra Low OH
Characteristics:
Step Index
Numerical Aperture: 0.22 ± 0.02
Full Acceptance Cone: 25.4 degrees
Vis-NIR Transmission, 380nm to 2,400nm
Radiation Resistant
High Laser Damage Threshold
Sterilizable*
Bio-compatible Materials – USP Class VI*
Low -OH Silica Core, Doped Silica Clad
Polyimide Buffer Standard; Silicone, Acrylate,
Fluoropolymer, Aluminum & dual buffers also available
Polyimide Concentricity ± 3µm
Sizes for Bundling
Tighter Tolerances Available
Temperature: Operating –65ºC to +350ºC
Intermittent, up to 400ºC
Proof Tested to 100kpsi
|
|
SILICA/TEFLON AF CLAD Optical Fiber
- FSU: High-OH
- FLU: Low-OH
- Ultra High NA'
Characteristics:
- Step Index
- Numerical Aperture: 0.66
- Full Acceptance Cone: 82.6 degrees
- UV-Vis-NIR Transmission
- Optional FEP/ETFE Jacketing Available
- Custom Sizes and Assemblies
- FSU: High -OH Silica Core, Teflon® AF Clad
- FLU: Low -OH Silica Core, Teflon® AF Clad
- Operating Temperature: –10ºC to +160ºC
- Sterilizable*
- Proof Tested at 100kpsi
- Silicone or Acrylate Buffer Recommended
|
|
SILICA SILICA Optical Fiber
- FPB: Broad Spectrum Optical Fiber
- Solarization Resitstant
Characteristics:
- New Lower Loss Broad Spectrum Fiber, 275-2100nm
- Excellent Focal Ratio Degradation Characteristics
- Step Index
- Numerical Aperture: 0.22 ± 0.02
- Silica Core, Doped Silica Clad
- Cost Effective
- Polyimide Concentricity ± 3µm
- Tight Tolerance
- Operating Temperature: 65ºC to +300ºC
- Proof Tested to 100kpsi
- Custom Sizes, Buffers, Jackets, Assemblies Available
|
|
Rare earth doped gain fibers for converting pump light into laser and amplifier signals.
Available in single clad, double clad, and triple clad variants, these fibers have the high brightness, narrow linewidth, and extreme power stability to satisfy the most demanding applications.
|
|
|
Perfect for single and multi-channel C- and L-band amplifiers and ASE sources and small form factor devices.
|
|
|
Industry leading tolerances on key spectroscopic parameters ensure lot-to-lot reproducibility.
|
|
|
Designed for efficient single mode operation around 1060 nm when cladding pumped at 808 nm.
|
|

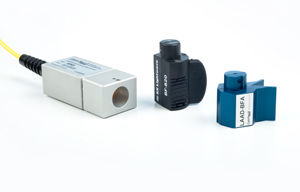

Sensors with fibre optics are used for optoelectronic sensing applications where mounting space is limited or where high operating temperatures do not permit the use of conventional sensors. Due to their small design and optical properties they do not only detect the presence of objects but also quality-related details, e.g. thread pitches of screws.
Transmitter and receiver of the fibre optic sensors are integrated into one housing. The fibre optic is connected to the switching amplifier using a special adapter, and so there is almost no loss. Fibre optics can be used as through-beam sensors or diffuse reflection sensors.
Fibre optics consist of flexible glass fibre bundles protected against external influence by a sheath.
|
|
Nufern designs and manufactures a broad range of specialty optical fiber. From photosensitive fibers to rad-hard fibers to high-power double clad fibers, you can trust Nufern to produce optical fiber to the world's highest standards for quality, reliability, and repeatability.
If you don't find what you need among our standard fiber offerings, we'll be happy to discuss creating a custom fiber.
|
|
|
Eye-safe fibers for use around the 2 µm wavelength.
|
|
|
Highly efficient fibers for 1 µm lasers & amplifiers.
|
|
OFS has been leading the industry in
supplying erbium-doped fiber (EDF) products for more than 15 years.
Our broadest range of erbium-doped products in the marketplace serves all your needs, while offering industry-standard and versatile designs in large production volumes.
Custom splice data for the fibers and devices used in your application is available upon request, and OFS offers its own OASiX Optical Ampflifier Simulation System Software to design and predict EDFA performance using the measured characteristics of the specific lots of fiber you purchase.
|
|
|
When looking for a low cost fiber with a high numerical aperture (N.A.) for more efficient light coupling, the Anhydroguide™ PCS is the fiber of choice. With an N.A. of 0.37 and a plastic cladding that allows a high core-to-clad ratio, satisfies those requirements and more. The pure fused silica (SiO2) used in the core of the Anhydroguide™ fiber is made by reacting silicon tetrachloride (SiCl4) with oxygen (O2) using a plasma arc rather than an oxy-hydrogen flame. This ensures that the residual hydroxyl concentration (OH) will be low in the core material resulting in superior infrared transmission as compared with flame prepared silica that is used in the companion product, Superguide™ which has superior ultraviolet (UV) transmission.
|
|
When looking for a low cost fiber with a high numerical aperture (N.A.) for more efficient light coupling,
the Anhydroguide™ PCS is the fiber of choice. With an N.A. of 0.37 and a plastic cladding that allows a high
core-to-clad ratio, satisfies those requirements and more. The pure fused silica (SiO2) used in the core of the
Anhydroguide™ fiber is made by reacting silicon tetrachloride (SiCl4) with oxygen (O2) using a plasma arc rather
than an oxy-hydrogen flame. This ensures that the residual hydroxyl concentration (OH) will be low in the core
material resulting in superior infrared transmission as compared with flame prepared silica that is used in the
companion product, Superguide™ which has superior ultraviolet (UV) transmission.
|
|
Polymer cladded fiber (PCF) has been on the market for many years, standing out by being very robust and easy to assemble. Compared with thick-core glass fibers, they are not only more robust but also considerably cheaper.
PCF consists of a silica core with polymer cladding. What is especially important here is good adhesion of the cladding material to the glass core, which does not go without saying because of the different expansion coefficients especially at high temperatures. This is where the many products on the market differ most. It is also why there are a vast number of different abbreviations such as PCS, HCS, HPCF, etc.
Low attenuation makes it possible to cover distances up to 500 metres with systems designed for POF (about 660nm), and up to 4 kilometres with 850 nm systems.
Cables
Fiber specifications
Connectors
Assembly tools
Measuring equipment

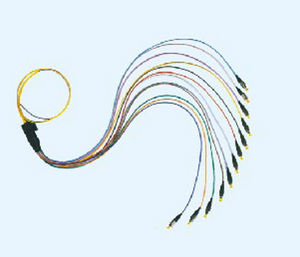

Cable Assemblies
|
|
Polymer optical fiber (POF) has been on the market for many years. Both the fiber core and the cladding are made of polymer. Key advantages of polymer optical fibers are high flexibility (high alternate bending resistance with smaller bending radii) as well as more economical connecting and transmission technology than in the case of glass. Moreover, this type of fiber also has all the major benefits of a fiber optical cable connection: EMC security, clear galvanic separation, no crosstalk, low weight, etc.
POF can meanwhile be used to connect over distances up to 70 metres, which is normally sufficient for both industrial environments and smaller office as well as home networks. It is even possible to cover distances up to 150 metres by selecting suitable active components.
Step-index standard POF
Step-index POF with low/high NA
Step-index POF for high temperature
Step-index POF for fast ethernet
Graded index POF
POF cables with UL-Standards
|
|
|
|
|
|
|
While single mode silica/silica fibers are available from a number of suppliers with standard polymer coatings, Fiberguide is unique in offering these fibers with high performance buffers/coatings of aluminum, gold or polyimide. A single mode fiber has a sufficiently small core diameter that it can only transmit a single transverse optical mode. Typical core diameters are in the range of several microns up to around 10 microns depending on the wavelength being transmitted. Conventional single mode fibers covered in this data sheet have circularly symmetric cores. As such, they can actually transmit two orthogonally polarized modes. Normally, this aspect is ignored because such orthogonal modes travel at nearly the same velocity and they can be treated as one. However, in very high data rate systems and other critical applications it is important to preserve the polarization state that is launched into the fiber. Such cases require the use of polarization preserving single mode fibers that are discussed in the accompanying data sheet.
|
|
Fast and trouble-free communications are taken for granted nowadays. To make this possible, hundreds of kilometres of cable thread through office buildings and factories, linking equipment, floors and buildings. Even whole countries are interlinked by cable.
Fiber optic cables provide the ideal solution for future-proof installations because they enable not only high rates of data transmission with major spare capacity, but also the highest possible degree of operating security.
Indoor Cables
Universal Cables
Outdoor Cables
Fiber optic cables for special applications
Cables with UL-Standards
|
|
|
OFS offers a broad range of standard and custom single-mode fibers. Fibers are available to support operating wavelengths from visible to infrared (380 - 2100 nm). Numerical apertures from 0.11 to 0.25 are available standard or can be specified in a custom fiber. Mode field diameter, attenuation, bend performance and other critical performance and aesthetic measures can also be specified. A variety of operational and installation environmental conditions can be supported through the fiber's design and/or coating composition.
|
|
|

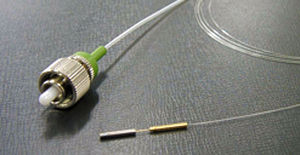

Tapered optical fibers are an efficient means of improving High Power Laser out puts. The taper functions to create a spatially uniform spot enhancing the laser output.
|
|
A backbone by LEAF® fiber provides network capacity and flexibility enabling future growth and compatibility with emerging network technologies. With its moderate dispersion and large effective area, LEAF fiber continues to be the fiber of choice for today’s high-data-rate and tomorrow’s all-optical long-haul and metropolitan networks.
Quick Facts:
- LEAF fiber is the most widely deployed NZ-DSF fiber in the world
- An ITU-T G.655-compliant fiber optimized for long-haul and high-data-rate metro networks
- LEAF fiber is the industry leader in PMD
- Introduced in 1998, LEAF fiber was the world’s first NZ-DSF with large effective area
- Winner of 4 industry excellence awards
- Deployed on 6 of the world’s seven continents and in more than 2 dozen countries
- The world's first low-water-peak NZ-DSF
|
|
|
|
