Description
New, small Opto-Coupler generation according EN50020. The potted Opto-Couplers are perfectly suitable for the galvanic separation of intrinsically safe and non- intrinsically safe circuits. Transistor technology guarantees clearly defined, clean switching status; with transmission frequencies up to 50kHz - universally applicable. The maximum peak voltage for electric circuits amounts to ` ia` 375 V. They are approved according to ATEX and DIN EN 50020.
|
|
Optocouplers - Hermetic
Avago Technologies has supplied high reliability hermetic optocoupler products since 1975 for use in state-of-the-art applications. These devices are capable of operation over the full military temperature range of -55 degrees C and +125 degrees C. All products are manufactured and tested on a MIL-PRF-38534 certified line and are included in the DSCC (Defense Supply Center Columbus) Qualified Manufacturers List QML-38534 for Hybrid Microcircuits. All hermetic optocouplers are available under DSCC Standard Microcircuit Drawings (SMD) Class H, suitable for military applications and most are available as Class K for space applications. A commercial version for harsh industrial use is also available on all products. Avago Technologies continuity and support of the industry has remained stable with zero product obsolescence.
|
|
|
|
|
|
Description:
The OPIA series optocouplers are designed for applications that use an analog output (Phototransistor or Photo Darlington) in a dual-in-line package. A wide selection of configurations are available. With typical isolation voltage of 2,500 or 5,000 Volts RMS, these product meet typical power system isolation requirements. Theory of operation: The LED transmitter is used to illuminate the Photosensor providing electrical isolation between two power systems while maintaining the ability to transmit information from one power system to the other. In many applications, analog signal levels may be required to be transmitted between two power systems while maintaining isolation between the power systems up to 5,000 volts RMS. A variety of LED and photosensor configurations are available depending on the system requirements
Features:
- 2,500 to 5,000 Vrms electrical isolation
- Choice of a Single and Dual LED
- Phototransistor or Photo Darlington Sensor
- Low-cost plastic Dual-In-Line (DIP) package
|
|
Part Number: KB827-B
GENERAL PURPOSE
HIGH ISOLATION VOLTAGE
SINGLE TRANSISTOR TYPE
PHOTOCOUPLER SERIES
FEATURES
1.Lead forming (gull wing) type, for surface mounting.
2.High isolation voltage between input and output (Viso=5000 Vrms).
3.Compact dual-in-line package
KB827-B: 2-channel type.
4.Recognized by UL and CUL, file NO.E225308.
5.Approved by VDE 0884 Teil2(NO:40006364)
(Creepage distance between input and output:7mm or more).
6.RoHS Compliant.
APPLICATIONS
1.Computer terminals.
2.Registers,copiers,automatic vending machines.
3.System appliances, measuring instruments.
4.Programmable logic controller.
5.Signal transmission between circuits of different potentials and impedances.
|
|
|
|
|
|
DESCRIPTION
The PS9587, PS9587L1, PS9587L2 and PS9587L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip.
The PS9587L1 and PS9587L2 are designed specifically for long creepage-distance as well as high common mode transient immunity (CMR) and high speed digital output type. Consequently, they are suitable for high speed logic interface that needs long creepage-distance (8 mm) on mounting.
The PS9587L1 is lead bending type for long creepage distance.
The PS9587L2 is lead bending type for long creepage distance (Gull-wing) for surface mount.
The PS9587L3 is lead bending type (Gull-wing) for surface mounting.
FEATURES
- Long creepage distance (8 mm MIN.: PS9587L1, PS9587L2)
- High common mode transient immunity (CMH, CML = ±15 kV/µs MIN.)
- High isolation voltage (BV = 5 000 Vr.m.s.)
- High-speed response (10 Mbps)
- Pulse width distortion (%u23D0tPHL %u2212 tPLH%u23D0 = 10 ns TYP.)
- Open collector output
- Ordering number of tape product: PS9587L2-E3: 1 000 pcs/reel
: PS9587L3-E3: 1 000 pcs/reel
- Pb-Free product
- Safety standards
- UL approved: File No. E72422
- CSA approved: No. CA 101391
- BSI approved: No. 8937, 8938
- SEMKO approved: No. 615433
- NEMKO approved: No. P06207243
- DEMKO approved: No. 314091
- FIMKO approved: No. FI 22827
- DIN EN60747-5-2 (VDE0884 Part2) approved (Option)
APPLICATIONS
- FA Network
- Measurement equipment
- PDP
|
|
Relays and Optos
Relays and optos are produced in different shapes and forms - from terminal enclosures to plug-in bases that can be fitted on the mounting rail. Their purpose is to switch, amplify and multiply digital signals in automation technology.
In electrical engineering, switching means opening and closing electric circuits. The switch receives the information as a command from the control circuit. Switching can be carried out by contactors, relays, switches and buttons or via a contactless set-up using semiconductor relays and optos.
With relays, semiconductor relays and optos, the advantages of modern relay and semiconductor technology can be used. Thanks to their compact design, they can be integrated into control concepts for the mounting rail even when space is tight.
|
|

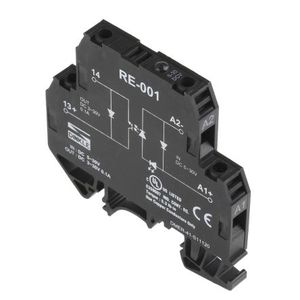

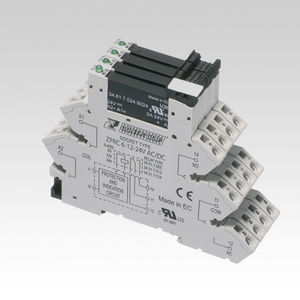

Terminal optocoupler MIRO 6.2 MIRO 6.2 pluggable
Optocouplers AMMS EMMS AMMDS AMMDU
AMS Transistor, switched positive to 4 A
Optocouplers for pole changing switch MIRO 12.4 DC - MOTOR CONTROL
Accessories
|
|
