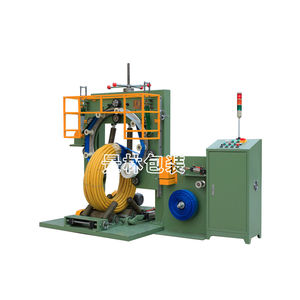

Artemis 50 automatic
Automatic machine for horizontal packaging round products with stretchfilm.
APPLICATIONS:
Packaging and protection of round products such as hose rolls, wire rolls, wheels and rings.
ADVANTAGES:
It wraps the product by its thickness and in its entire perimeter instead of wrapping by width leaving the inner space of the product free to put other products inside.
It saves stretchfilm because it uses less quantity of consumable for wrapping the thickness instead of the width.
|
|
Atis 50
Automatic orbital wrapping machine
Designed to wrap mouldings, aluminium profiles, tubs, blinds, shelves, … Automatic wrapping machine ready to set up in automatic production lines or high productions.
|
|
Artemis 50
Semiautomatic machine for horizontal packaging with stretchfilm.square and round products
APPLICATIONS:
Packaging and protection of square products such as frames, structures and windows without glass.
Also for round products such as hose rolls, wire rolls, wheels and rings.
ADVANTAGES:
It wraps the product by its thickness and in its entire perimeter instead of wrapping by width leaving the inner space of the product free to put other products inside.
It saves stretchfilm because it uses less quantity of consumable for wrapping the thickness instead of the width.
|
|
Neleo 50
Semiautomatic orbital wrapping machine
Designed to warp (mouldings, aluminium profiles, tubs, blinds, shelves, kit furniture...etc.)
|
|
|
|
|
|
FV205 31.1115 Product Information
Semi-automatic vertical stretch wrapping systems with mechanical brake system.
Vertikal system because the film is applied in an vertical way. The product movement is made horizontal.
The FROMM FV series stretch wrapping machines are particularly suitable for customers who need to wrap a range of long products, like profiles, wood, alimunium, steel, stainless steel etc.
FROMM offers you a wide range of Semi Automatic machines starting with diameter Ø400 folowed by Ø600 - Ø1.000 and Ø1.400mm
Our machines have been proven to be reliable and multifunctional.
With a mechanical film brake
Film brake adjustment, by means of a hand wheel.
A brief list of the benefits FV205
- Attractive and competitive price level
- Minimum of maintenance required
- Inside ring diagonal 390mm
- Easy to operate control panel
- Automatic cutting device for the film
- Automatic stop in zero position
- Adjustable vertical guide unit
- Acceleration and the deceleration speeds are controlled by inverter
- Working height 870-960 mm
- Supply complete with CE-declaration of conformity.
Options
- Conveyors in various lengths
Standard technical specifications
Maximum diameter goods Ø390mm
Min dimensions:
30 x 30mm (WxH)
Max dimensions:
250 x 200mm (WxH)
Max weight 25kg per meter
Power supply 230V - 50/60 Hz
automatic program
|
|
Horizontal stretch-wrapping machines mod. RING, with rotating ring and automatic hook-up and cutting film, for horizontal wrapping of panels, doors, pipes, bars, bobbins and all long products.
The Range include several models with ring sizes from mm. 400 to mm. 1500 mm. 2000 on request) in two series :
- S = semiautomatic machines for small production, with free conveyor and foot-switch for start
- A =automatic machines for medium and high production, with motorized conveyor, stabilizer press and photocell, for their insertion in automatic lines
|
|
|
|
|
|
- Penguin Horizontal Ring Wrapper is a well proven machine for packing lengthy products, using LLDPE stretch cling film, helically wrapped around the surface as the objects placed over the feed conveyor move towards the delivery conveyor.
- Even 6 meter long objects, like precision - finished metallic shafts/tubes, rigid PVC pipes, aluminium and other sections, doors, bundles of cloth etc can be packed easily.
- Can be supplied for any length and cross section of any product-single/ bundle
- Variable speeds for conveyors and ring wrapper
- Completely automatic cycle of operation - including holding the film initially and cutting the film finally
- Overlap of film can be varied as desired
- One stroke lubrication and very low maintenance requirements
- Easy operation with the state-of-the-art Programmable Logic Controller (PLC)
- Penguin RING WRAPPER is suitable for Industries manufacturing, even 6 meter-long Shafts, Pipes & Extrusions in Aluminium or other metals or P.V.C., which cannot be easily wrapped with protective wrappers manually due to their heavy weight & very lengthy nature. Using low installed power of 2 kW, this machine can stretch wrap the above items of various sizes in width & diameter, weighing even up to 200 / 300 Kgs. The type & size of Conveyor will depend on the nature & size of the product being stretch wrapped.
- For economical consumption of the stretch film, the inbuilt pre-stretch unit stretches the LLDPE stretchable cling film mechanically before wrapping over the "products". As the "products" are simultaneously moved over the feed / delivery conveyors, we get uniformly overlapped/ helically wound wrapping of the stretch film all over the surface of the "products". This gives the "products" necessary protection from dust & moisture and ensures longer storage life at a much cheaper packing cost.
- This machine can be easily integrated in to conveyor lines to save considerable labour & time. When larger quantities of above products are required to be packed, or when new expansion projects are implemented, industries like above can install this machine and save enormously in packing cost, in labour cost, in time taken for packing, etc., and this machine will pay back its cost very soon.
|
|
Fully automatic horizontal wrapping machine enables the protection and the stabilization of long-shaped products with important cross sections.
Stretch film width : 250 or 500 mm.
OPTIONS :
- 300% power pre-stretch
- Welding tail group instead of standard film cutting.
- Programming according to needs.
- motorized conveyor
- Automatic top sheet dispenser
|
|
|
|
|
|
Meypack FW 100 Series
- Economical transport packaging due to minimized film consumption
- Product bundling without heat
- Easy opening system available
- Capacity of up to 12 bundles/min.
Functions
- Turning upright stacking and grouping of lying and standing products, easy format change-overs.
- Film pre-stretching according to product requirements, the bundle strength can be adapted by easy modification of the film pre-stretch.
- Wrapping unit reliable wrapping process.
Meypack FW 200 Series
- Economical transport packaging due to minimized film consumption
- Product bundling without heat
- Only one film width for all bundle formats
- Easy opening system available
- Continuously running wrapping process
- Capacity of up to 60 bundles/min.
Functions
- Bundle separation turning upright, stacking and grouping of lying and standing products, up to 300 single products per minute.
- Film pre-stretching according to product requirements, the bundle strength can be adapted by easy modification of the film pre-stretch.
- Cutting system continuously operating cutting system, thermal cut with knifeedge.
|
|

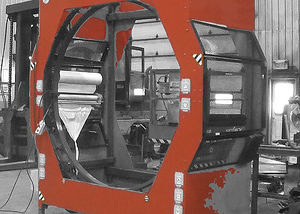

The Lan-ringer® wraps products that won't fit on a turntable, require banding, compression or extra packing for shipment. The Lan-ringer® has a proven record of success in many industries.
Lantech offers a wide variety of options to meet your specific requirements. Each application is evaluated to provide the right solution to your needs.
Controls
- PLC Allen Bradley MicroLogix 1500
- HMI / Touchscreen Allen Bradley PanelView 600+ Monochrome
- Logic Lan-Logix™ powered by RS Logix 500
Film Delivery System
- Power Roller-Stretch® 150% Standard;100-300% Available
- Wrapping Force Adjustable
- Film Capacity 10" Roll Diameter; 20" Film Width
- Film Break Detection Standard
Standard Options
- Power-Thru® Conveyor
- Product Stabilizers
- Accumulation Conveyor
|
|
|
Fully automatic rotating ring machine for packaging roofing panels, furniture, flatpacks, cabinets, doors, windows and other long and bulky, unpalletised products.
|
|
|
The AVR 2000 wrapping machines has been designed to achieve high output capacity with loads fed in along the rotating ring machine's horizontal axis. The control panel is used to set all the parameters involved in the wrapping programs and displays selfdiagnostic messages. Manual opérations cana also be carried out.
|
|
AUTOMATIC PACKAGING LINE WITH BUBBLE WRAP DISPENSER
AND ORBITAL WRAPPER MOD. HELIOS 125
Automatic packaging equipment for horizontal wrapping with stretchfilm+buble wrap/polyethylene
Applications:
Packaging, grouping and protection of long or bulky products in automatic lines and high productions of furniture, doors, timber boards, etc. which need protection in all the products sides. So, transversal packaging (stretchfilm) and longitudinal packaging (bubble wrap) is made.
|
|
