COMTEC® 6000 is an InSitu Oxygen & COe (Combustibles) flue gas and process gas analyser. The innovative combustibles sensor pioneered and developed by ENOTEC (patent pending), combines with its world-proven "leak-proof" Zirconia Cell technology to produce the worlds first InSitu O2 & COe analyser.
Both measuring cells, (O2 & COe), are actually located inside the process measuring actual real-time values without the need for sampling, conditioning and expensive hybrid systems. The COMTEC® 6000 probe simply installs directly inside the duct for direct & continuous dual readings of Oxygen & COe present. COMTEC® 6000 can easily be installed as standalone instrument or as a retrofit upgrade to an existing system. It's designed to be maintenance free, with minimal calibration requirements, and completely user-friendly operation.
|
|
|
|
|
|
The NeoFox Phase Measurement system is a fluorescence based optical sensor system that helps you reduce costs, improve stability and make calibration easier for a wide variety of oxygen sensing setups. NeoFox is the benchtop device for measurement of fluorescence lifetime, phase and intensity and is particularly suited for applications where sensitivity to drift and system stability are critical.
Features
» Usable for both dissolved and gaseous oxygen measurements
» Field and bench top models available
» Fibre optic based probe
» Analog output
» Software control
» Various probes available
» Various O2 ranges available
Advantages
» Fast response times
» No need for frequent calibration
» Does not consume oxygen
» Portable design
» High sensitivity
» Good stability
» Immune to change in pH level or ionic strength, salinity and biofouling
» Low power consumption
Applications
» Biological measurements
» Cosmetical analysis
» Medical analysis
» Chemical measurements
» Food analysis (inside packaging)
|
|
|
|
|
|
Portable oxygen Instrument for liquid and gas phase measurements
High quality analyzer for industrial use.
The MecSens series 512 hand-held analyzers are designed for off-line and in-line oxygen measurements in very harsh conditions. They fulfill all requirements for on-the-spot measurement in the beverage, power, water, semiconductor and chemical industries.
This high quality portable instruments with logging capabilities display both oxygen concentrations in either dissolved or gaseous units from trace levels to saturation and the temperature of the sample.
Ready to operate anywhere and anytime in the plant
These portable analyzers continuously measure temperature and oxygen concentration. They are compatible with all sensors in the 61 series. Exceptionally versatile, the customer can easily use the device as a log for automatically or manually storing measurement data with date and time. Featuring menu-driven user friendly operation, these analyzers can be easily configured using function keys and are built with the latest state-of-the-art technology.
|
|
In-line process Instrument for oxygen
High quality analyzer for industrial use
The MecSens model 51101 in-line instruments are designed to measure oxygen levels in very harsh
conditions.
They fulfill the requirements for continuous measurement in beverage, power, water, semiconductor and chemical industries.
A step ahead in in-line measurements
The in-line analyzers are compatible with all Mecsens 611 series sensors and continuously measure oxygen concentration and medium temperature.
Ruggedly constructed and waterproof, the instruments are built to last and are the ideal choice for demanding applications.
|
|

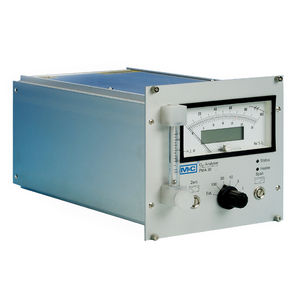

Due to the extremely fast response time of the patented M&C magneto-dynamic measuring cell with no stagnant volume as well as the negligible cross sensitivity from other sample gas components, the portable M&C oxygen analysers has a wide variety of applications. The analyser is a suitable and reliable instrument for monitoring oxygen concentrations in various gas analytical control applications including flue gas-, inert gas-, fermentation processes- and process or laboratory control measurements.
|
|
|

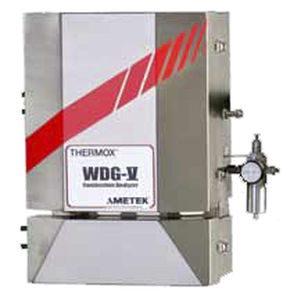

AMETEK Thermox offers three styles of direct-mount flue gas oxygen analyzer - all are easily serviced without removing the analyzer from the flange. Insitu – average response, to 1250°F (677°C). Convective – average response, to 2600°F (1537°C). Close-coupled extractive – very fast response to 3200°F (1760°C).
|
|
|
New analyzer who has the absolutely new characteristic of direct in situ oxygen measuring in processes with various and variable temperatures. The probe, realized in ceramics, can be used in every type of process. The special cell heater is not be damaged also with high temperatures of the process.
|
|
The XZR-500 sensor is an oxygen sensor which has been determines the amount of excess air required for optimum combustion. It uses advanced Zirconium Oxide technology to measure the levels of oxygen in extremely harsh conditions such as boilers, furnaces and incinerators.
When combined with the XCU-500 analyzer it produces fast and accurate readings from the harshest conditions.
|
|
|
|
|
|
Specifications:
Sensor: Mini Zirconia Oxygen Sensor with Integral Heater
Measurement Range: 0-1,000PPM Oxygen (over-range to 1500PPM)
Sample Method: Pump Drive with sample flow meter (includes internal mounted bypass check valve)
Display: 0.75” LED digital display,
Resolution: XXXX.X Color coded LEDs for system status: Alarms 1&2=RED, System Fault=YELLOW, System OK & on-line=Green
Response Time: <15 sec. for 90% response due to step change in PPM Oxygen @ 1 SCFH flow
Accuracy: ±3PPM @ 0-50PPM Oxygen (±1ppm with 2nd point cal near measurement point) ±5PPM at 51 500PPM Oxygen ±10PPM at 501-1,000PPM Oxygen
Operating Temperature: 32º-113º F (0º-45º C)
Signal Interface:
Serial service port: Bi-directional RS-232 Computer Communications of the following: Oxygen Concentration, Alarm Settings/Status, Fault Status
Analog Outputs: Voltage 0-1VDC or 0-5VDC or 0-10VDC +/- 0.5% @ 1K input min.
Non-isolated: 4-20mA: +/- 0.5%, negative ground (loop is powered by analyzer) Maximum loop impedance 500Ω.
Sample Port: 1/8 inch compression tube fitting (1/8” tubing assembly included)
Warm-Up Time: Approximately 2 min. to reach thermal equilibrium with ambient temperature.
Power: 9-250VAC, 50/60 Hz, Single Phase 10W
Power Electrical Connections: 2 meter power cable, ON/OFF Switch
Storage Temperature: 15º to 50º C (5-122º F)
Humidity: 0-95% non-condensing
Sample Flow: 1.0 to 2.0 SCFH @ constant pressure
Warranty: Analyzer & sensor: 12 mo. from date of shipment under normal operation
Weight: Less than 5 lb.
Mechanical: Aluminum chassis with carrying handle on top and rubber feet
|
|
|
|
|
|
Gas Analysers
WITT analysers are available as stationary or portable units for different types of gases and areas of application. Depending on type of application, they can be supplied separately or integrated with mixing systems. For local or remote monitoring and control extensive sensor technology and electronics are available. WITT are happy to design and build equipment to meet special requirements.
OXYBABY® 6.0 for 02 or 02/C02
Cordless hand held oxygen or combined oxygen and carbon dioxide analyser for checking modified atmospheres in food packs. The ideal instrument for portable, faster and accurate sample tests at the packaging machine, in stores or in laboratories.
OXYBABY® a cost effective mobile alternative to tabietop / fixed analysers for welding and food technology.
Ensure that the quality of packaged product is maintained (HACCP), guaranteed continued customer satisfaction.
The ideal instrument for sample tests with a minimum sample gas requirement, allowing the smallest of modified atmosphere packages (MAP) to be tested.
|
|
|
|
|
|
The Rapidox 3100 provides fast and accurate analysis over a wide oxygen range using a rugged, long-life zirconia sensor. It is available in models to measure just oxygen, or oxygen plus either CO or CO2.
Easy to use and simple to calibrate using your choice of any two gases, the Rapidox 3100 offers the high performance and flexibility usually found only in much more expensive products.
The Rapidox 3100 incorporates a powerful and silent linear piston pump for remote sampling of gas. From the display to the outputs, all features are fully programmable using the keypad on the front panel. Connections are made using 6/4mm flexible tubing to the front panel input and output unions and the front panel includes a flow gauge allowing the user to control the rate of gas flow into the analyser.
The Rapidox is supplied with powerful Windows software for easy data-logging and graphing. Just switch on and start measuring...
- Bench mounted zirconia oxygen analyser with internal sensor & sample pump
- Rapid response long-life sensor
- Easy to calibrate using any two gases
- Fully programmable audible alarms with signal output
- Sample flow rate adjustable from 0 to 4 litres per minute
- Suitable for applications where the gas must be sampled remotely
- Gas is sampled through flexible tubing connected to the front of the analyser
- Perfect for analysis of room air and difficult to access locations
- Perfect for static gas applications
- Suitable for gases up to 150°C
|
|
The XZR-400 oxygen analyzer detects trace oxygen and controls the purity of gases such as Carbon Dioxide, Helium, Nitrogen and Argon. To ensure a low cost of ownership, the XZR-400 uses a highly responsive zirconium oxide sensor with metallic sealed reference and S Type T/C. This instrument is easy to maintain and calibrate It also has a long sensor lifetime and is extremely quick and simple to install.
The XZR-400 is suitable to many applications and is available in three different versions; wall-mounted, rack-mounted and portable.
|
|
|
The XTP600 gas analyzer measures the percentage of oxygen in hydrogen, nitrogen or any hydrocarbon mixture. Thermoparamagnetic technology has been used to ensure the sensor is reliable and resistant to drift. This sensor is then built into an explosion proof casing which has been approved ATEX zone 1 for use in hazardous areas. As the sensor has no moving parts, vibration and movement will not affect the measurements over a long period of time. The outer casing of the XTP600 is strong and can be easily placed at the exact point of measurement. The XTP600’s maintenance time has been kept to a minimum by making sure the casing unscrews to allow easy access to the centre.
|
|
|
|
|
|
For the first time, the Vaisala SPECTRACAP® Oxygen Transmitter OMT355 offers Tunable Diode Laser (TDL) technology in a compact probe suitable for field use. The SPECTRACAP® sensor measures oxygen concentration optically by measuring the absorption of light from a tunable diode laser.
The OMT355 can be flange-mounted directly into a process without sampling or sample conditioning equipment. This provides the user real time measurement data without sampling or sample switching delays. In addition, the stainless steel probe tolerates aggressive chemicals and excessive amounts of moisture.
For processes with high temperatures, elevated pressures or excessive solids content, an optional sampling cell is available for the transmitter. As the sensor is very robust and has low sensitivity to gas flow and pressure variations, the associated sampling system is simple and can be installed near the sampling point.
The OMT355 is a low-maintenance instrument. A stainless steel mesh filter protects the probe optics from dust and dirt. An optional hydrophobic, porous PTFE filter is also available.
Typical applications for the OMT355 include gas generation, inert gas blanketing, fermentation and composting process monitoring.
|
|
The Ntron Oxytron 2000 is a full-featured industrial process control instrument for measuring oxygen in industrial process vessels and gas streams.
By continuously measuring oxygen, the Model 2000 provides increased safety margins in process manufacturing environments. It reduces inert gas consumption and VOC emissions by allowing manufacturers to use inert gas only as needed to maintain safe oxygen levels.
The Model 2000 offers low installation cost and comes ready to install with no additional hardware/software needed. Automated sensor calibration and system diagnostics enable low operating and maintenance costs.
The Oxytron 2000 provides the gas analysis component of the Neutronics Inerting Control System (ICS), the only proven system that automatically controls the level of oxygen in process manufacturing. Originally developed for one of the country’s largest chemical manufacturers, Neutronics ICS has been proven reliable in thousands of installations.
|
|
|
|
|
|
OxyBoss 100 Oxygen Sensor
OxyBoss 100 Oxygen Sensor -- The OxyBoss 100 is a long life product. The cell is guaranteed for one year. Rel-Tek has been manufacturing oxygen sensors for over a decade, and we've learned a lot about making sensors last. And, with an initial price comparable to competing "flash-bulb" O2 products, the cost of ownership of the high quality OxyBoss 100, including on-going maintenance, is a lot less. Range is 0-25% O2; uses 10-30VDC, 4-20ma, 2-wire hookup; supplied with NEMA-4X fiberglass enclosure with SS hardware and optional digital meter.
Another cost benefit is a natural zero, i.e. reading 4ma when ambient oxygen drops to zero; which may seem trivial, unless you have experience with competing sensors that don't. Calibrating the OxyBoss 100 is simple; use ambient air to set an upscale 20.7%. The cost savings?.. Well, with a natural zero, you never have to calibrate the zero point, a tedious process requiring what seems to be an interminable application of nitrogen. Safety, performance, reliability and low cost combine in the OxyBoss 100. This fine US-built product is engineered for quality, safety and performance.
The OxyBoss 100 offers unusually long O2 cell life... units often in service for a year or more without requiring cell replacement. Long term stability, temperature compensation, easy calibration and tolerance for moisture and dust have given this instrument a reputation for dependability. A dust filter and calibration adapter are included. A flow through adapter is available for low pressure in-line monitoring. The unique O2 sensing cell assembly will not rust or corrode, the nemesis of competing products for wet environments.
|
|
|
The TAPI series of gas analyzers may be fitted internally with reliable and sensitive O2 and/or CO2 sensor modules, using the paramagnetic technology. This allows simultaneous readings of the primary target gas as well as oxygen in stack applications. Integration and operation costs are dramatically reduced using these modules.
|
|
|
Zirconium oxide-based trace oxygen analyzers monitor oxygen concentration from PPB to % levels. Applications are wide ranging and include semiconductor rapid thermal processing, inerting/purging using N2, Ar, CO2 or He, UV curing, and specialty welding. The analyzers offer a very fast response, are unaffected by exposure to air and will not fail to zero oxygen reading.
|
|
|
Designed for the measure of oxygen traces in processes with protection atmospheres. Extremely low oxygen measuring also available.
|
|
The ORBISPHERE G1100 luminescent sensor, working in conjunction with an ORBISPHERE 410 analyzer, offers a new way of monitoring oxygen in high purity water applications. The complete system consists of the 410 analyzer, sensor, flow cell, and a calibration sample.
This complete system is designed for use in power generation plants or other industrial applications requiring effective oxygen monitoring. It features a fully automatic on-line calibration, programmable to meet operating requirements and has a low cost of ownership with downtime reduced to a 5 minute annual service.
-Luminescent sensor for process ppb level oxygen monitoring
-Dry sensor with no membrane, no electrolyte, and no chemicals
-Simple to install, set up and operate
|
|
The Mini ICS™ is Ntron’s most affordable, off-the-shelf solution for measuring oxygen in industrial process vessels and gas streams.
By continuously measuring oxygen, the Mini ICS provides increased safety margins in process manufacturing environments. It helps reduce inert gas consumption and VOC emissions by allowing manufacturers to use inert gas only as needed to maintain safe oxygen levels.
The Mini ICS offers extremely low installation cost and comes ready to install with no additional hardware/software needed.
The Mini ICS can be used as a stand-alone instrument or as the analysis component in the Neutronics Inerting Control System (ICS), the only proven system that automatically controls the level of oxygen in process manufacturing. Originally developed for one of the country’s largest chemical manufacturers, Neutronics ICS has been proven reliable in thousands of installations.
|
|
|
|
|
|
Easy to use and simple to calibrate using your choice of gases, the Rapidox 2100 offers exceptional performance and flexibility using a rugged, long-life zirconia oxygen sensor. The Rapidox 2100 portable oxygen gas analyser is packed with features usually available only in much more expensive oxygen analysers.
From the display to the outputs, every feature is fully user-programmable using the menu system on the front panel. An auxiliary input can be used to connect an optional pressure, vacuum or dewpoint sensor.
The Rapidox is supplied with powerful Windows software for easy data-logging and graphing. Just switch on and start measuring...
- Portable on-line zirconia oxygen analyser
- Highly sensitive and ideal for use in vacuum applications.
- Suitable for helium gas mixtures
- Optional external additional sensor: pressure, vacuum or dewpoint
- Rapid response long-life sensor
- Range 10E-20ppm to 100% O2
- Wide temperature range (0 - 650°C)
- Installed directly in gas pipes or gas tubing using the sampling chamber supplied
- Suitable for operating in helium gas mixtures
- Suitable for static or flowing gas applications
- Perfect for furnace / kiln applications & Flue gas monitoring
- Optional sample pump attachment available
- Sensor (on 2m cable) must be installed in gas stream by the operator
|
|
|
Analyzers designed and assembled from Fer Strumenti from 25 years, has caught up an absolute degree of reliability that make them suitable for use in the more aggressive conditions and in the highest temperatures. Wide availability of accessories make this probes suitable also in extremely hostile processes. Available in version for safety areas, and for areas with explosion risk(ATEX available). Hart protocol available as option
|
|
Teledyne%u2019s hand-held GB300 Portable Percent Oxygen Analyzer is designed for use in a wide variety of applications from diving to fine tuning boilers.
Lightweight and easy to use, the GB300 incorporates Teledyne%u2019s own Micro-fuel Cell sensor for quick and accurate analysis of oxygen.
This maintenance-free, sealed, electrochemical cell is specific to oxygen, insensitive to flow rate, and has a 90% response in less than 10 seconds. At the end of its life, the cell is discarded and replaced like a flashlight battery.
Constructed of high impact resistant materials, the GB300 provides unparalleled performance under the harshest conditions. The unit is powered by 3 AA batteries which should last for at least 2000 hours of use.
|
|
A complete range of flue gas oxygen analysers for all applications
Genesis is a range of flue gas oxygen analysers developed specifically for combustion analysis and control applications. Unrivalled flexibility and ease-of-use enables the Genesis oxygen analyser systems range to meet all process requirements.
The range of Oxygen Analysers for General Purpose Applications includes in-situ measurement probes for a wide range of flue gas temperatures (0 - 1250 °C / 32 - 2282 °F), local and remote control units, and an automatic calibration unit.
The 'stand-alone system' is the world's first truly, This oxygen analyser also carries TÜV approval.
|
|
|
|
|
|
Modified Atmosphere Analyser (Portable) - MAPtest 800
- Rapid response time
- Low maintenance and calibration requirements
- Timed pumped sample
- Up to thirty hours running time between battery charges
- MAP/CAP (modified and controlled atmosphere packaging) techniques
The MAPtest 800 portable modified atmosphere packaging analyser has been designed specifically for measuring oxygen concentrations over a wide range of food packaging and storage atmospheres. Based on a galvanic cell sensor which is unaffected by the presence of carbon dioxide, the unit offers a high degree of accuracy across the range 0 to 100%, and can be calibrated easily on air.
Applications:
- Modified atmosphere packaging companies
- Modified atmosphere packaging tester
- Modified atmosphere packaging
- Gas ratio for modified atmosphere packaging
- Modified atmosphere sterilized packaging
- modified atmosphere sandwich packaging
- modified atmosphere packaging investment
- modified atmosphere carbon monoxide packaging
A sample probe or a syringe, both of which are supplied with the analyser, is used to introduce the sample. When the probe is used an in-built pump, activated from the front panel, draws the sample through the probe into the analyser. The pumped volume is adjustable allowing measurements from different pack sizes. Once a measurement is made the result is shown and held on a large 3½ digit display.
|
|
CheckPoint - for testing modified atmosphere packaging (MAP). Small ergonomically designed handheld analyser for oxygen and carbon dioxide quality control of modified atmosphere packages.
Battery operated with either standard AA batteries or a rechagable battery pack. Memory function, large easy readable display and a sturdy aluminium housing.
CheckPoint is available in two versions:
- CheckPoint O2 for oxygen only
- CheckPoint O2/CO2 for combined measuring of oxygen & carbon dioxide
Benefits of the PBI-Dansensor CheckPoint:
- Simple to use
- Ergonomical design
- Easy gas content indication for modified atmosphere packages
- Cordless and easy to transport
- CO2 measurement is temperature compensated
- O2/CO2 model compensates oxygen reading for carbon dioxide content in applications with high CO2 content
|
|
The oxygen analyser model ZOA 100 use a gazeous diffusion micro zirconium oxide cell.
This technic allows a continious or intermittent use with very low maintenance.
The several versions of ZOA 100 are designed to fit the most severe applications.
The unit is also designed to be used as oxygen detector.
|
|
Series 3000T - Trace Oxygen Analyzers
The Series 3000T Trace Oxygen Analyzers provides powerful microprocessor technology while offering tremendous versatility in the low ppm ranges. This instrument offers three user-selectable linear ranges, high accuracy, fast response, adjustable alarms, and auto diagnostics.
No zero gases are required in most applications. The heart of the analyzer is a specially qualified Micro-fuel Cell designed to measure oxygen in the gas sample.
The sensor is unequaled in the industry for its accuracy, sensitivity, and reliability. The instruments can be used as a separate unit or as a component of a larger analytical system.
|
|
|
The Series 3000 Trace Oxygen Analyzers are rugged, microprocessor-controlled instruments designed for continuous or intermittent measurement of trace concentrations of oxygen. The Series 3000 Trace Oxygen Analyzers are available in single or three ranges, from 0-1 to 0-10,000 parts per million (ppm).
|
|
|
|
