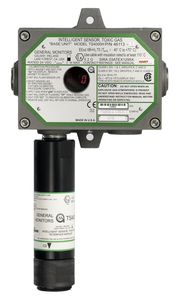

| The TS420 Oxygen Deficiency Detector continuously monitors for oxygen deficiency and provides an analog output. The TS420's design is based on electrochemical cell technology. |
|
| Ocean Optics sensor systems are ushering in a new generation of low-cost, portable chemical-sensing devices. Thanks to innovation in the development of chemical-sensing complexes -- particularly those with fluorescing properties -- products such as our Oxygen sensor systems will continue to provide viable alternatives to traditional chemical-sensing devices such as electrodes. The use of optical-sensing methods lessens the reliance on the electrochemical technologies that have dominated the field of oxygen sensing. |
|

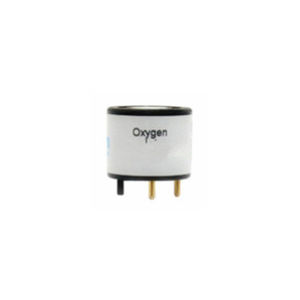

Alphasense Oxygen sensors operate using well-known fuel cell technology. The O2-A3 (3-year warranty), O2-A2 (2-year warranty), O2-A1 (1-year warranty), O2-G2 (2-year warranty)and O2-G1 (1-year warranty),sensors are designed for the latest generation of portable gas detectors where high detection performance, total reliability, small size and long lifetime are the key criteria.
All Alphasense sensors pass through our unique ATAV system (Automatic Test and Validation), which provides 100% traceability for you and your customers. Our sensors can also be supplied with a customised test report to individual requirements. A record of each sensor's performance is stored in the Alphasense database, accessible via the sensor barcode. This can be made available as hard copy evidence and also provides a powerful diagnostic tool. |
|
| The GS Oxygen sensor KE series (KE-25 and KE-50) is a unique galvanic cell type oxygen sensor which was developed in Japan in 1985. Its most notable features are long life expectency, excellent chemical durability, and it is not influenced by CO2. The KE series oxygen sensor is ideal to meet the ever-increasing demand for oxygen monitoring in various fields such as combustion gas monitoring, the biochemical field, medical applications, domestic combustion appliances, etc. |
|
The remarkable features of this oxygen sensor are its extremely long service life and the low maintenance costs due to its long-term adjustment and cleaning intervals.
The adjustment can be done in air or in saturated water without any calibration tables. The replacement of the galvanic cell is simplified by the design of the sensor. The membrane is very durable and is almost unbreak-able (100 µm membrane thickness).
Newly developed sensor electronics enable the oxygen sensor to work without an additional storage battery. The sensor can be modified to customer's needs regarding measuring range and accuracy.
The response time is less than 2 minutes.
The sensor can be immersed directly in water courses or tanks and does not need regular maintenance. The sensor is also available in combination with a temperature sensor supplier. |
|
Honeywell's high accuracy oxygen sensor range employs two ZrO2 discs with a small, hermetically sealed chamber between the discs. The first disc functions as a reversible oxygen pump, which successively fills and empties the chamber. The second disc measures the ratio of the partial pressure difference and generates a corresponding voltage. A heat element produces the 700 °C required for the ZrO2 to operate as an O2 pump. The time needed for the pump to achieve specific minimum and maximum pressures within this chamber provides a measure of the partial oxygen pressure of the environment.
Best Used For:
Industrial process and aircraft on-board oxygen generation system control, automotive exhaust gas diagnostics, service instruments, environmental oxygen monitoring, agriculture, combustion systems and environmental control.
|
|
Maxtec Electrochemical cells for Oxygen detection
Industry proven as reliable rugged and long life.
Low cost of ownership
Simple to integrate linear output cell |
|
| The GS-Yuasa Oxygen sensor SK-25 is a unique galvanic cell type oxygen sensor. Its most notable features are long life expectency, excellent chemical durability, no position dependency, and it is not influenced by CO2. The SK-25 oxygen sensor is ideal to meet the ever-increasing demand for oxygen monitoring in various fields such as food, bio-technology, security system. |
|
Available for zone 1, ATEX
|
|
Fault-proof measurement of oxygen
J. Dittrich Elektronic's oxygen measuring systems determine the oxygen content in gas mixtures, monitor their own function during operation, signal malfunctions in the hardware and sensor, can be calibrated without personnel or reference gas in atmospheric air and, hence, are fault-proof.
A second oxygen sensor is not necessary!
The oxygen measuring system MF010-O is the first such system to obtain positive certification of its fault-proofness from the Technical Inspectorate of Southern Germany (TÜV). |
|
Model InstaTrans (3001) Oxygen Transmitter
The Insta Trans is a two-wire, loop-powered 4-20 mA oxygen transmitter packaged within a weather tight NEMA-4 housing. The product was named for its built-in level of flexibility. It can instantly transform from ppm to percent (or vice-versa) simply by changing out the Teledyne sensor and resetting the range scale of the unit to ppm or percent via the function keypad.
The Insta Trans has six user selectable ranges from 0-10 ppm to 0-25 %. The user can easily change to the preferred range via the built in function keypad. In addition, depending on the corrosive nature of the sample, the Insta Trans can be supplied with either stainless steel or nylon wetted parts.
|
|
For over 40 years GfG has been specializing in the development and manufacturing of systems for the measurement of explosive and toxic gases, oxygen as well as further parameters in air and water used in communities, chemical industry, fire and civil protection, mining, power dispensing, food processing industry, shipping, steel industry, agriculture and also research institutes and universities.Our range extends from sensors, to the smallest gas measuring device in the world, microprocessor driven industrial multimeter with data storage to computer supported systems.
At GfG measuring instruments and sensors are developed by a highly-qualified team of engineers and scientists. A special focus is the development of sensors with the measuring system of IR-absorption, catalytic combustion and thermal conduction.
|
|
pH-ORP
Patented non-glass Durafet probes and traditional glass pH technology help measure, analyze and transmit pH and ORP information in industrial processes. Honeywell provides a complete line of industrial analyzers and industrial transmitters, and several mounting types.
7758/7758D Pipeline Mounting
The 7758 pipeline electrode mounting uses a stainless steel or polypropylene bushing with 3/4" NPT for mounting in pipelines.
7773/7773D Flow & Immersion Mounting
7773 mounting capabilities encompass the industrial measurements of pH, ORP, specific ion and temperature in a flow or submersion configuration.
7774/7774D Insertion Removal Mounting
The 7774 insertion/removal assemblies, which accommodate Durafet II and Meredian series combination (single-probe) pH or ORP electrodes, are designed for use in processes under pressure because the electrode can be inserted or removed without interrupting the process.
7777/7777D Immersion/In-Line Glass Mounting
Honeywell's 7777 series of electrode mountings enables users to interface Durafet II ph electrodes with a process via a ¾" threaded connection and Meredian II by either submersing the electrode or mounting it into a ¾" threaded connection.
7777DVP Immersion/In-Line Mounting
Honeywell's 7777DVP Series of electrode mountings enables users to interface Durafet III pH electrodes to a process via a ¾" threaded connection by either submersing the electrode or mounting it into a ¾" threaded connection.
7794DVP Sanitary Durafet III Mounting
The Sanitary Durafet III pH electrode has an integral, tri-clamp flange for easy mounting in the process.
HB Series Ruggedized Electrodes
Honeywell's HB Series of electrode mountings are designed for high temperature, high pressure and harsh chemical applications.
Transmitter - APT2000PH
The APT2000PH transmitter is a two-wire 24-volt device that continuously measures pH or ORP in industrial processes.
Analyzer - APT4000PH
The APT4000 pH/ORP analyzer continuously measures pH or ORP in industrial processes.
DirectLine DL421 pH Transmitter
The DL421 transmitter can be connected directly to the electrode as one integral mounted unit. Alternatively, the transmitter can be wall, pipe or DIN rail mounted remotely from the associated pH electrode.
DirectLine DL422 ORP Transmitter
The Meredian II ORP electrode can be located directly on to the DL422 transmitter module as one integral mounted unit. Alternatively the DL422 transmitter can be wall, pipe or DIN rail mounted remotely from the ORP electrode.
DirectLine DL1000 Durafet Mountings
DL1000 pH electrode in combination with DL421 pH transmitter either directly or remotely mounted offer an ideal end user solution to online pH measurement. Installation, maintenance and performance cost savings are assured.
DirectLine DL2000 Meredian Glass Mountings
For pH measurement the DirectLine transmitter modules can be mounted integrally or remotely with the DL2000 Meredian glass pH electrode.
DirectLine DL3000 ORP Mountings
For ORP measurement the DirectLine transmitter modules can be mounted integrally or remotely with the DL3000 ORP electrode.
Durafet non-Glass pH Sensor
The Durafet pH electrode is an industrial, non-glass, unbreakable, Ion Sensitive Field Effect Transistor (ISFET)-based pH sensor that provides fast, accurate and dependable pH measurement in the most demanding applications.
HPW7000 HiPurity pH Measurement System
The HPW7000 HiPurity Water pH Measurement System is an electrode mounting assembly designed specifically for the difficult pH measurement in high-purity water applications.
TL1000 Durafet II Twist Lock Mounting
The TL1000 Series, Twist Lock Mounting, provides an easy way to install/remove Durafet III pH electrodes from pipelines and tees. A quick ¼ turn is all that is required for installation/removal.
Analyzer - UDA2182 Multiple Input
The UDA2182 Universal Dual Analyzer represents the latest in analyzer technology by providing the most versatile multiple-input analyzer package on the market for measurement of pH, ORP, conductivity and dissolved oxygen.
|
|
| ... products without technical information |
| |
pH-ORP
Patented non-glass Durafet probes and traditional glass pH technology help measure, analyze and transmit pH and ORP information in industrial processes. Honeywell provides a complete line of industrial analyzers and industrial transmitters, and several mounting types.
7758/7758D Pipeline Mounting
The 7758 pipeline electrode mounting uses a stainless steel or polypropylene bushing with 3/4" NPT for mounting in pipelines.
7773/7773D Flow & Immersion Mounting
7773 mounting capabilities encompass the industrial measurements of pH, ORP, specific ion and temperature in a flow or submersion configuration.
7774/7774D Insertion Removal Mounting
The 7774 insertion/removal assemblies, which accommodate Durafet II and Meredian series combination (single-probe) pH or ORP electrodes, are designed for use in processes under pressure because the electrode can be inserted or removed without interrupting the process.
7777/7777D Immersion/In-Line Glass Mounting
Honeywell's 7777 series of electrode mountings enables users to interface Durafet II ph electrodes with a process via a ¾" threaded connection and Meredian II by either submersing the electrode or mounting it into a ¾" threaded connection.
7777DVP Immersion/In-Line Mounting
Honeywell's 7777DVP Series of electrode mountings enables users to interface Durafet III pH electrodes to a process via a ¾" threaded connection by either submersing the electrode or mounting it into a ¾" threaded connection.
7794DVP Sanitary Durafet III Mounting
The Sanitary Durafet III pH electrode has an integral, tri-clamp flange for easy mounting in the process.
HB Series Ruggedized Electrodes
Honeywell's HB Series of electrode mountings are designed for high temperature, high pressure and harsh chemical applications.
Transmitter - APT2000PH
The APT2000PH transmitter is a two-wire 24-volt device that continuously measures pH or ORP in industrial processes.
Analyzer - APT4000PH
The APT4000 pH/ORP analyzer continuously measures pH or ORP in industrial processes.
DirectLine DL421 pH Transmitter
The DL421 transmitter can be connected directly to the electrode as one integral mounted unit. Alternatively, the transmitter can be wall, pipe or DIN rail mounted remotely from the associated pH electrode.
DirectLine DL422 ORP Transmitter
The Meredian II ORP electrode can be located directly on to the DL422 transmitter module as one integral mounted unit. Alternatively the DL422 transmitter can be wall, pipe or DIN rail mounted remotely from the ORP electrode.
DirectLine DL1000 Durafet Mountings
DL1000 pH electrode in combination with DL421 pH transmitter either directly or remotely mounted offer an ideal end user solution to online pH measurement. Installation, maintenance and performance cost savings are assured.
DirectLine DL2000 Meredian Glass Mountings
For pH measurement the DirectLine transmitter modules can be mounted integrally or remotely with the DL2000 Meredian glass pH electrode.
DirectLine DL3000 ORP Mountings
For ORP measurement the DirectLine transmitter modules can be mounted integrally or remotely with the DL3000 ORP electrode.
Durafet non-Glass pH Sensor
The Durafet pH electrode is an industrial, non-glass, unbreakable, Ion Sensitive Field Effect Transistor (ISFET)-based pH sensor that provides fast, accurate and dependable pH measurement in the most demanding applications.
HPW7000 HiPurity pH Measurement System
The HPW7000 HiPurity Water pH Measurement System is an electrode mounting assembly designed specifically for the difficult pH measurement in high-purity water applications.
TL1000 Durafet II Twist Lock Mounting
The TL1000 Series, Twist Lock Mounting, provides an easy way to install/remove Durafet III pH electrodes from pipelines and tees. A quick ¼ turn is all that is required for installation/removal.
Analyzer - UDA2182 Multiple Input
The UDA2182 Universal Dual Analyzer represents the latest in analyzer technology by providing the most versatile multiple-input analyzer package on the market for measurement of pH, ORP, conductivity and dissolved oxygen.
|
|
| ... products without technical information |
| |
Optical D.O. measurement based on dye luminescence is strongly promoted in these days. The manufacturers of such instruments claim far superior performance compared to conventional electrochemical transducers. In theory, the functional principle of the optical D.O. measurement confirms this superiority. However, practical realisation and application does set certain limits and, as usual, further technical development is needed to bring theory and practice to accordance.
WTW's FDO 700 IQ D.O. sensor belongs to a new generation of these sensors that eliminate the drawbacks of the former ones. Its most remarkable features are:
- High accuracy right from the start
- Utmost stability over a long timespan
- Minimum maintenance effort
This is achieved by entirely new technologies:
- Intelligent Membrane with IQMC technology
- Soft Green Light Technology
- (C2) calibrated optics
- EPRS reference procedure
|
|
The Rapidox 2100 portable oxygen gas analyser is packed with features normally only available in oxygen analysers costing thousands of pounds. From the display to the outputs, all features are fully user-programmable using the menu system on the front panel. Easy to use and simple to calibrate using your choice of gases, the Rapidox 2100 offers exceptional performance and flexibility using a rugged, long-life zirconia oxygen sensor. The Rapidox now comes with powerful Windows software for easy data-logging and graphing. Just switch on and start measuring...
-Portable on-line zirconia oxygen analyser
-Rapid response long-life sensor
-Range 10E-20ppm to 100% O2
-Sensor (on 2m cable) must be installed in gas stream by the operator
-Suitable for static or flowing gas applications
-Installed directly in gas pipes or gas tubing using the sampling chamber supplied
-Suitable for use in vacuum applications with optional KF adaptor
-New helium mode for operating in helium gas mixtures
-Wide temperature range (0 - 650°C)
-Perfect for industrial furnace / kiln applications & Flue gas monitoring
-Optional sample pump attachment available
-Not suitable for use in flammable gas compositions |
|
The Argweld® Titanium Purge Monitor has been specifically designed for indicating oxygen levels in Argon gas for weld purging.
It is believed to be the worlds first purpose designed and built Titanium Weld Purge Monitor.
It measures and clearly indicates actual oxygen levels in parts per million (or percent) down to 10 parts per million, (0.001%), on an alpha-numeric display.
The unit is menu driven by four buttons on the front panel and has an internal alarm with high and low oxygen levels which can be set on the front panel.
A unique new low cost sensor is used which has very little maintenance requirement and tests have shown that is should have up to a five year life. An optional software package is available to allow a computer to be used to store and print results and graphs etc for quality control purposes.
Titanium Purge Monitor Features:
Small, light, portable and inexpensive.
Automatic fault finding diagnostics.
Measures and indicates down to 10 ppm (0.001%)
Unique fast response sensor with expected 5 year life.
Optional PurgeLog 2000 Software for data acquisition.
Specifically developed for weld purging of titanium.
Low repair, refurbishment and recalibration costs.
Operation with any welding equipment as well as orbital welding equipment and welding enclosures.
Ideal for welding stainless steel in ultra clean applications.
Internal Alarm and security pin code facilities.
Push Button operated menu.
Weld Start/Stop Facility. |
|
The Argweld Weld Purge Monitor.
Keeps waiting time to a minimum:
The monitor can tell the operator exactly when the oxygen level is low enough to commence welding. No estimating or guesswork is involved, so no time is wasted waiting for the correct level to be reached.
Measures the content of oxygen in the purge gas to indicate when it is safe to carry out a weld.
Saves on excessive use of inert gas:
The exact oxygen content is given, so no more inert gas than necessary has to be used to ensure that the weld will be free of oxidation.
Prevents weld failures:
Premature starts on welds are avoided, high quality is ensured.
Highly portable:
Its small size makes is easy and very convenient to use in all purging situations.
Low cost:
The monitor is available at low relative cost and is a perfect accessory for use with any pipe purging system or argon welding enclosure.
Continuous monitoring of oxygen levels:
A continuous read out of the oxygen level is given, even when welding is taking place. This can avoid unforeseen purge problems that could cause quality failures after the weld has been started.
Calibration and Certification:
Our instrument is supplied calibrated and certificates for Industry Standards are included. Re-calibration is available to operators at any time. |
|
|
|
